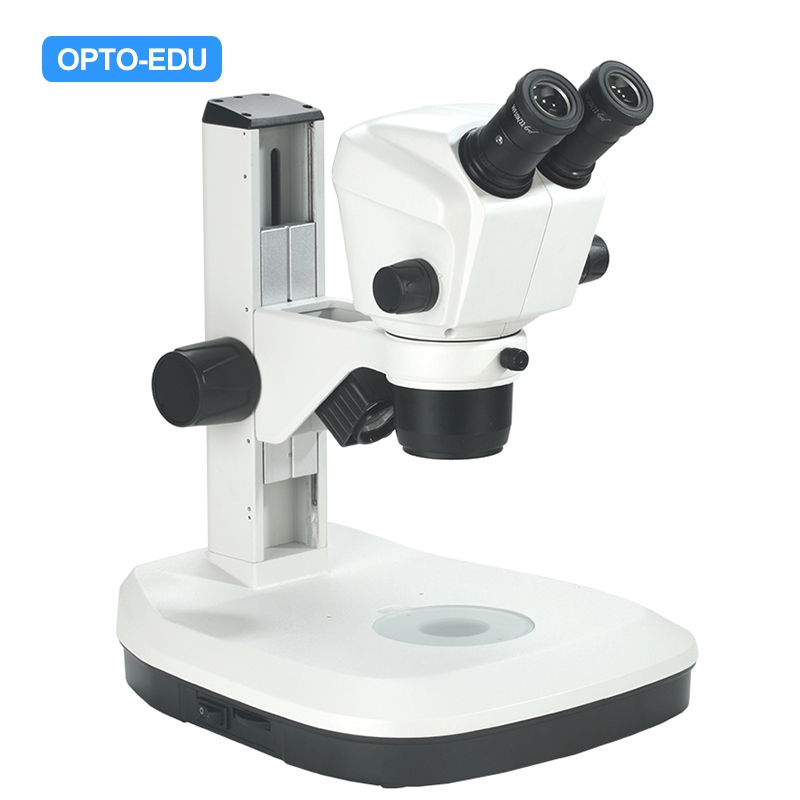

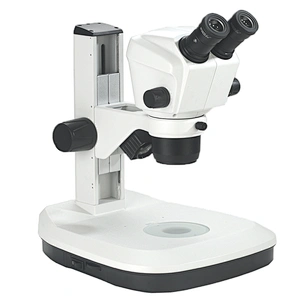

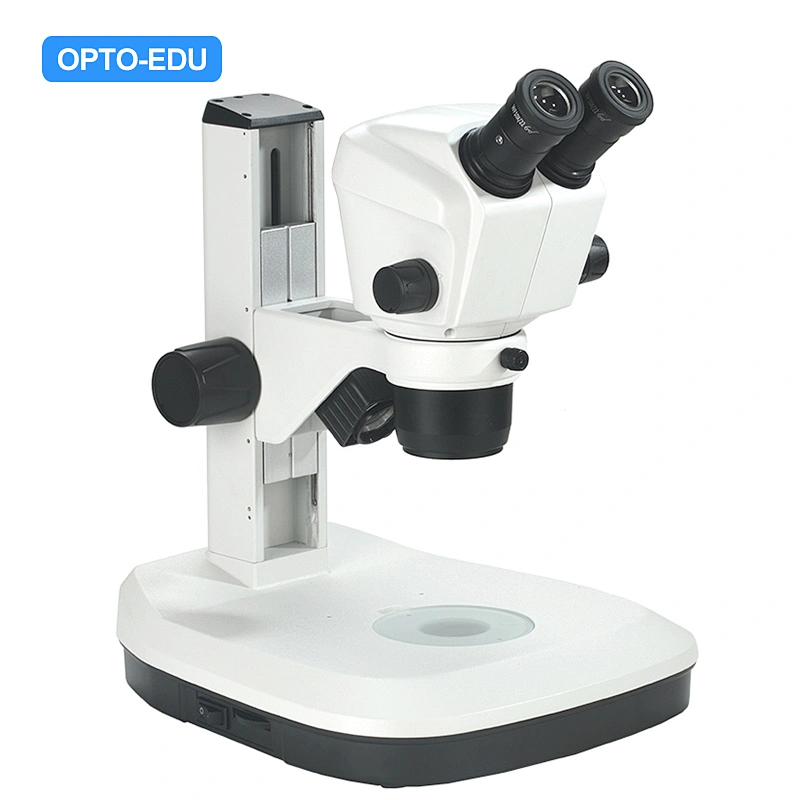

Zoom Stereo Microscope, 0.7-4.5x, 1:6.5, Binocular, Refelect & Transmit 3W LED Light


  • 0.7~4.5x Zoom Lens, High Zoom Ratio 1:6.5, Outstanding Ergonomic Design
  • Total Magnification Up To 3.5x~180x (View Field 62.86~1.44mm) With Optional Eyepiece & Lens
  • Binocular Head 40° Viewing Angle With Large View WF10x/22mm Diopter Adjustable Eyepiece
  • Auxiliary Lens 0.5x, 0.75x, 2.0x And Focus Adjustable CCD Adapter 1.0x, 0.7x, 0.5x Optional
  • Large Track Stand 33x30cm High Stability, Reflect & Transmit 3W LED Light Available
Quantity:

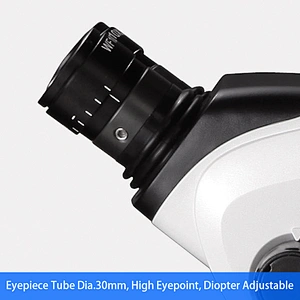

Eyepiece

Eyepiece tube Dia.30mm, High eyepoint, diopter adjustable

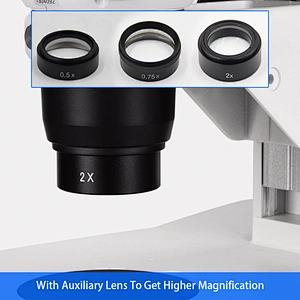

Zoom Lens
With auxiliary 0.5x/0.75x/2.0x lens to get higher magnification
A23.2603 Zoom Lens 0.7x~4.5x, Zoom Ratio 1:6.5 Technical Data
Auxiliary Lens0.5x0.75x1x (Standard)2.0x
Working Distance184mm128 mm108mm40mm
Eyepieces 10x/22mmMagnification3.5x~22.5x5.25x~33.75x7x~45x14x~90x
View Field (mm)62.86~9.7841.91~6.5231.43~4.8915.72~2.45
Eyepieces 15x/16mmMagnification5.25x~33.75x7.87x~50.63x10.5x~67.5x21x~135x
View Field (mm)48.57~7.5632.38~5.0424.29~3.7812.14~1.89
Eyepieces 20x/12mmMagnification7x~45x10.5x~67.5x14x~90x28x~180x
View Field (mm)37.14~5.7824.76~3.8518.57~2.899.29~1.44
A23.2604 Zoom Lens 0.68x~4.7x, Zoom Ratio 1:6.8 Technical Data
Auxiliary Lens0.5x0.75x1x (Standard)2.0x
Working Distance184mm128 mm108mm40mm
Eyepieces 10x/23mmMagnification3.4x~23.5x5.1x~35.3x6.8x~47x13.6x~94x
View Field (mm)67.65~9.7545.1~6.5233.82~4.8916.91~2.45
Eyepieces 15x/16mmMagnification5.1x~35.3x7.65x~52.9x10.2x~70.5x20.4x~141x
View Field (mm)50.0~7.2333.33~4.8225.0~3.6212.5~1.81
Eyepieces 20x/12mmMagnification6.8x~47x10.2x~70.5x13.6x~94x27.2x~188x
View Field (mm)38.24~5.5325.49~3.6919.12~2.779.56~1.38
A23.2605 Zoom Lens 0.65x~5.3x, Zoom Ratio 1:8.1 Technical Data
Auxiliary Lens0.5x0.75x1x (Standard)2.0x
Working Distance184mm128 mm108mm40mm
Eyepieces 10x/24mmMagnification3.25x~26.5x4.88x~39.75x6.5x~53x13x~106x
View Field (mm)73.85~9.0649.18~6.0436.92~4.5318.46~2.27
Eyepieces 15x/16mmMagnification4.88x~39.75x7.32x~59.63x9.75x~79.5x19.5x~159x
View Field (mm)52.25~6.4234.84~4.2826.15~3.2113.08~1.6
Eyepieces 20x/12mmMagnification6.5x~53x9.75x~79.5x13x~106x26x~212x
View Field (mm)40~4.9126.67~3.2720~2.4510~1.23

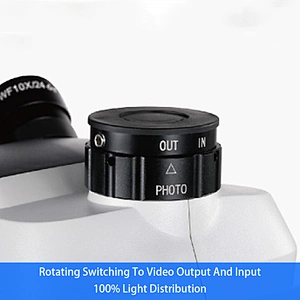

Trinocular Inclined 35°, Light Split Switch E100:P0/E0:P100
Rotating switching to video output and input, 100% light distribution

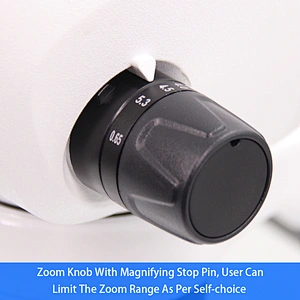

Zoom Knob
Zoom knob with magnifying stop pin, User can limit the zoom range as per self-choice

Up/Bottom 3W LED

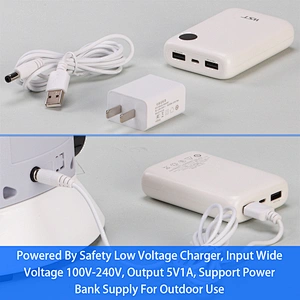

Powered By Safety Low Voltage Charger

Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
ItemsA23.26 Series Zoom Stereo MicroscopeA23.2603A23.2604A23.2605Cata. No.
BBLBBLTTLBBLTTL
HeadSeidentopf Head, Interpupilary Distance 50-75mm
Binocular Head Inclined 40°
Binocular Head Inclined 35°
Trinocular Inclined 35°, Light Split Switch E100:P0/E0:P100
Trinocular Upgrade To Light Split Fixed E50:P50       A53.2650-E50P50
EyepieceEyepiece Tube Dia.30mm, High Eyepoint, Diopter Adjustable
WF10x/22mm, Pair        A51.2621-1022
WF10x/23mm, Pair      A51.2621-1023
WF10x/24mm, Pair      A51.2621-1024
Zoom Lens0.7x~4.5x, Zoom Ratio 1:6.5
0.68~4.7x, Zoom Ratio 1:6.8
0.65~5.3x, Zoom Ratio 1:8.1
Zoom KnobWith Magnifying Stop Pin
Magnification7.0x~45x, Up to 3.5x~180x By Optional Auxiliary Lens
6.8x~47x, Up to 3.4x~188x By Optional Auxiliary Lens
6.5x~53x, Up to 3.25x~212x By Optional Auxiliary Lens
W.D.Working Distance 108mm, With Standard 1x LensA54.2601-S04

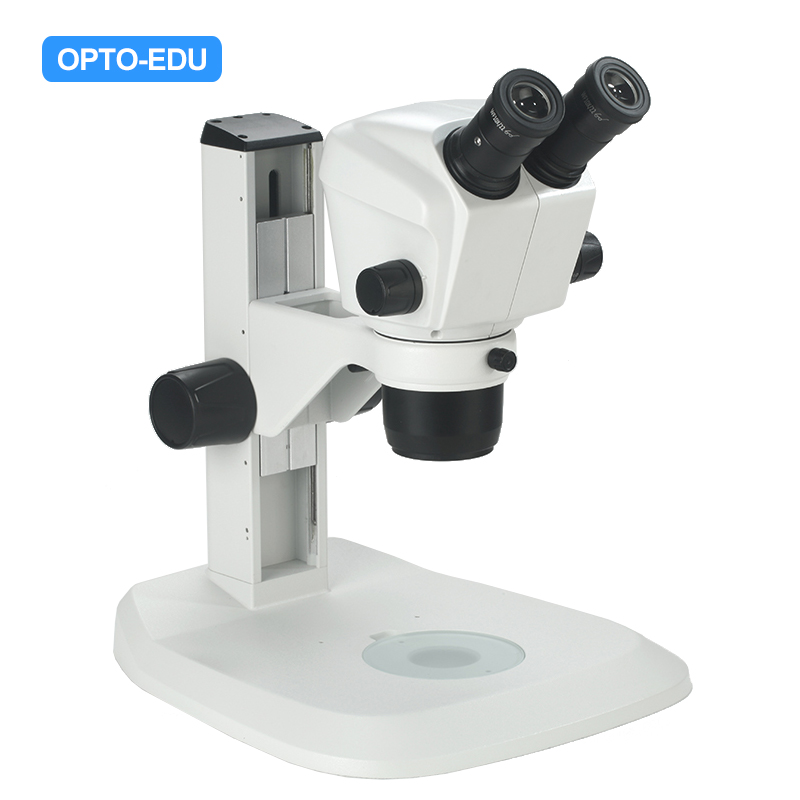

StandLarge Track Stand, Base Size 33x30cm,
Track Stand Focusing Range 80mm
No Light Source
     A54.2609-T
Large Track Stand, Base Size 33x30cm,
Track Stand Focusing Range 80mm
Up/Bottom 3W LED, Power By Safety Low Voltage Charger
     A54.2609-TL
PackageCarton Size 480×370×475mm, 1 Unit/Ctn
WeightGross Weight: 8 kgs, Net Weight: 6.5 kgs
Note:""In Table Is Standard outfits,""Is Optional Accessories
ItemsZoom Stereo Microscope Optional AccessoriesCata. No.
EyepieceWF15X/16mm, Dia.30mm, High Eyepoint, Diopter AdjustableA51.2621-1516
WF20X/12mm, Dia.30mm, High Eyepoint, Diopter AdjustableA51.2621-2012
Auxiliary Lens0.5x, W.D.189mmA52.2621-05
0.75x, W.D.128mmA52.2621-75
2.0x, W.D.36mmA52.2621-20
StandSmall Pole Stand, Base Size 300x220cm, No Light, Pole Stand Focusing Range 115mmA54.2609-P
Large Track Stand, Coaxial Coarse/Fine Focus, Base Size 330x300cm, No Light, Track Stand Focusing Range 80mmA54.2609-TF
Large Track Stand, Coaxial Coarse/Fine Focus, Base 330x300cm, 3W LED Up/Bottom Light, Track Stand Focusing Range 80mmA54.2609-TFL
CCD Adapter1.0x, Focus AdjustableA55.2601-SZ10
0.7x, Focus AdjustableA55.2601-SZ07
0.5x, Focus AdjustableA55.2601-SZ05

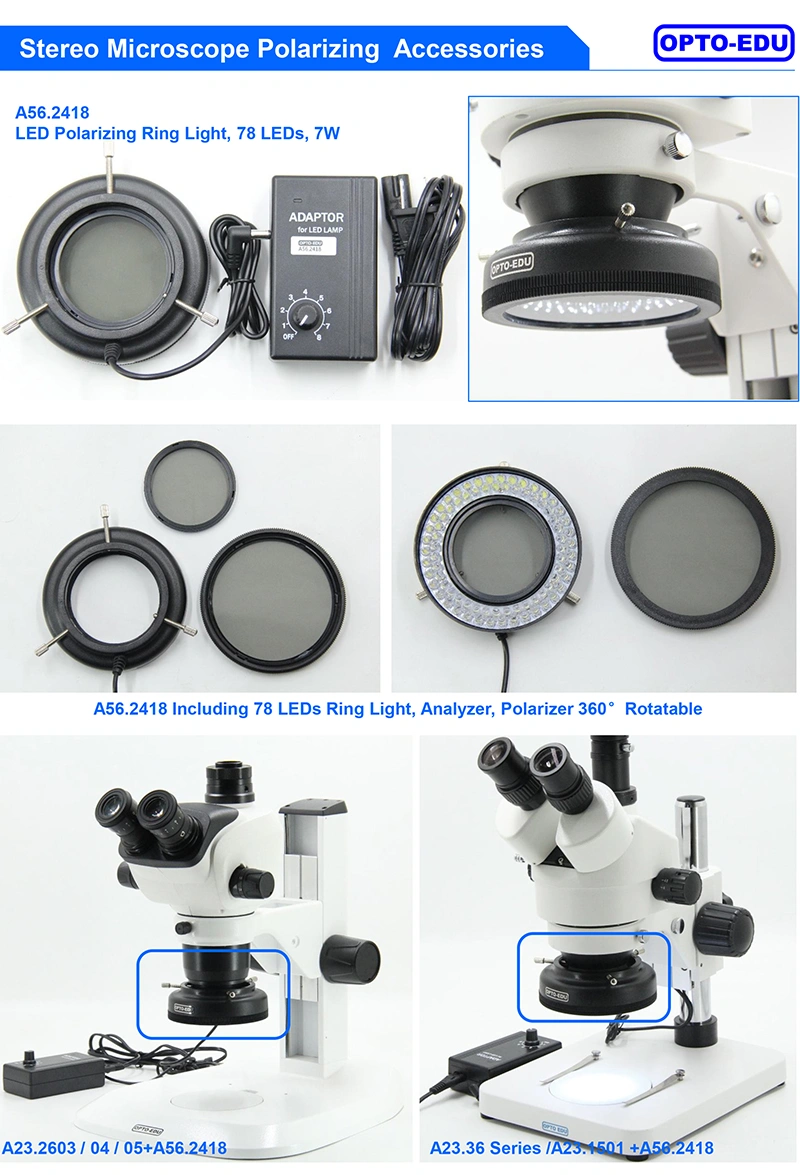

PolarizingPolarizer + Analyzer, For Stereo MicroscopeA5P.2604
Connect RingLED Light Connect RingA56.2602-R
Working StageXY Travel Range 75x56mm, Stage Size 180x155x27mm, Glass Size 116x96mm, Min Scale 0.1mm, Diameter Φ95 for Connecting stand base: 95mm A54.1632
Micrometer10 Kinds Of Regular Eyepiece Micrometer ModelA58.2002
Light SourceLED Ring Light, 56 LEDs, 4.5W, AC 100~240V, Inner Dia. 58mmA56.2103-A
LED Cold Light, 10W-30WA56.2617
Halogen Cold Light Source, 150W A56.2618







Pictures
Model No. A23.2603-BL A23.2603-B
Function
Bright Field Bright Field
Features
Parellal Optical System Parellal Optical System
Optical System
Parallel Parallel
Standard Magnification
7x-45x 7x-45x
Optional Magnification
3.5x-180x 3.5x-180x
Head Type
Seidentopf Binocular Seidentopf Binocular
Head Inclination
40° 40°
Head Rotation
Eyetube 360° Eyetube 360°
Head Interpupillary
50~75mm 50~75mm
Head Diopter
Left & Right Adjustable Left & Right Adjustable
Eyepiece Features
Wide Field
High Eyepoint
Diopter Adjustable
Wide Field
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
30.0mm 30.0mm
Working Distance
格式:1.0,或1.0~2.0 格式:1.0,或1.0~2.0
Eyepiece
WF10x/22mm, 2 pc. WF10x/22mm, 2 pc.
Focusing Range
0.000000 0.000000
Focusing Scale
0.000000 0.000000
Light Source Feature
Transmit & Reflect ——
Light Source Type
LED ——
Transmit Light
3W LED ——
Reflect Light
3W LED ——
Power Supply Type
Cordless Battery ——
Stereo Zoom Ratio
1:6.5 1:6.5
Stereo Stand Type
Table Stand Track Table Stand Track
Stereo Stand
Base size 330x300cm,
Up/bottom 3W LED
Track stand focusing range 80mm
Base size 330x300cm,
No light source
Track stand focusing range 80mm
Camera Output
C-Mount C-Mount
