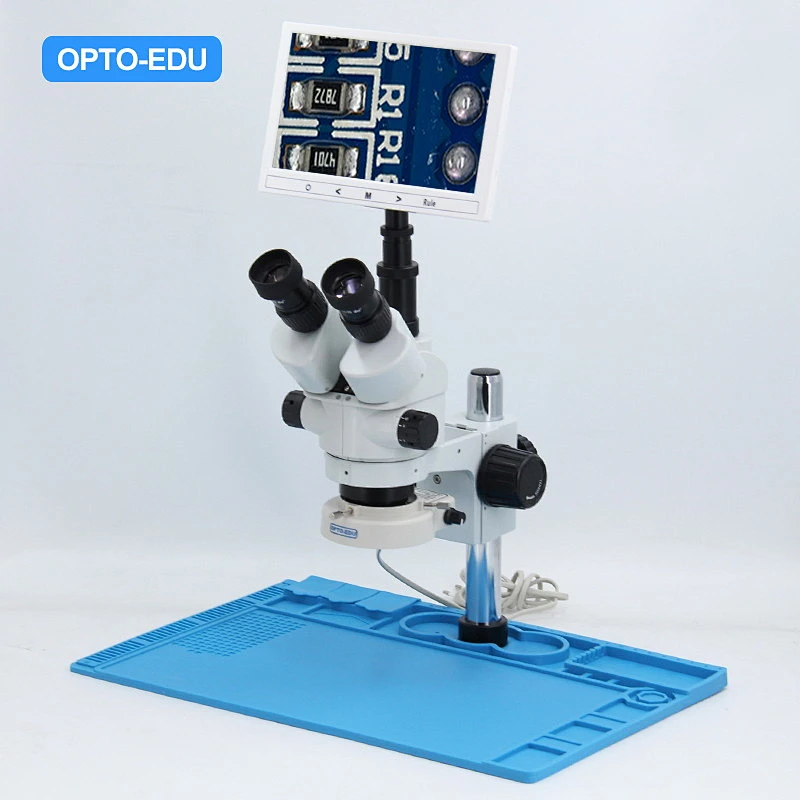

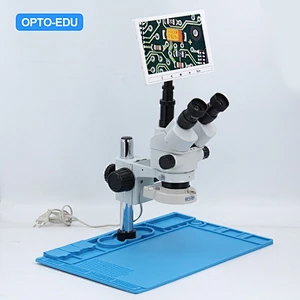

LCD Digital Zoom Stereo Microscope, Mobile Phone Repair

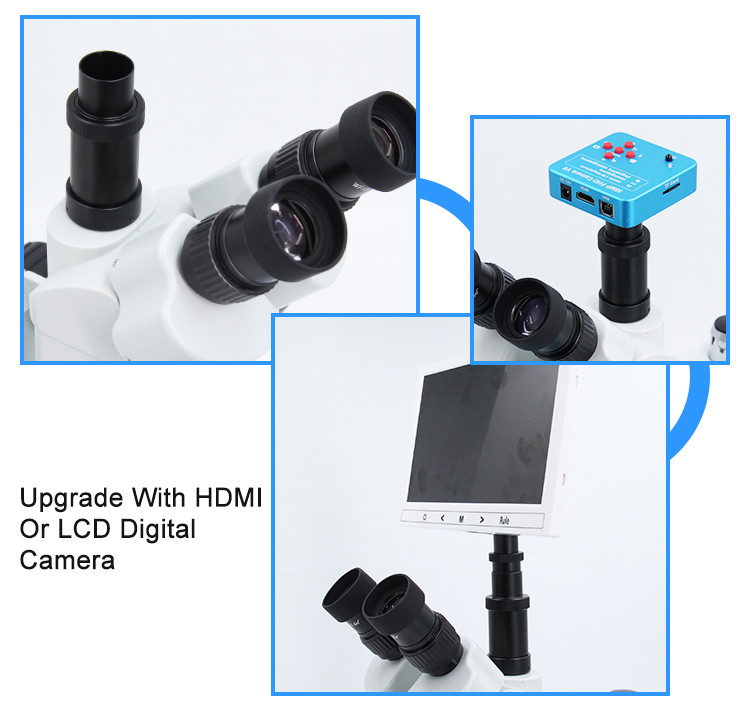

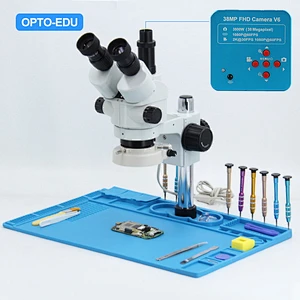

  • 38M HDMI+USB Digital Camera
  • 0.7~4.5x High Quality Optical System Zoom Stereo Microscope
  • Trinocular Head Light Split 5:5 Support View Image In Eyepiece & LCD At Same Time
  • Upper 56 LEDs Right Light Brightness Adjustable
  • Large Alloy Soft Pad Working Area For Phone Repair
Quantity:







A23.3645N-R2 Series

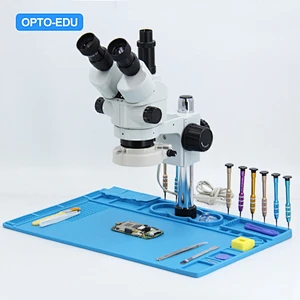

DIY Phone PCB Repair Microscope
A23.3645N-
R2
A23.3645N-
R2L1
A23.3645N-
R2H1
HeadTrinocular Head, With Eyepiece Adapter
LCD Screen 9"With Digital Camera, AV Output
HDMI+USB Digital Camera 38.0M Pixels
45° Inclined, 360°Rotatable, Both Tube ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm
EyepieceWF10x/20mm, Both With Eye-cup
Zoom Lens0.7~4.5x
Zoom Ratio1:6.5
Magnification7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Lens
W.D.Working Distance100mm, With Standard 1x Lens
F.O.VField Of View 1~95.2mm
StandLarge Pole Stand, Size 200*255*8mm, Pole Height 240mm, Dia.32mm, With Heat Resist Soft Rubber Pad, Working Area For Phone PCB Repair
Light SourceUpper 56 LEDs Right Light Brightness Adjustable
Optional AccessoriesCata.No.
EyepieceWF15x/15mm, High-eyepointA51.3621-1515
WF20x/10mm, High-eyepointA51.3621-2010
WF25x/9mm, High-eyepointA51.3621-2509
WF30x/8mm, High-eyepointA51.3621-3008
Auxiliary Lens0.5X,W.D. 165mmA52.3621-0.5x
1.5X,W.D. 45mmA52.3621-1.5x
2.0X,W.D. 30mmA52.3621-2.0x
Pictures
Model No. A23.3645N-R2-L1 A23.3645N-R2-H1
New Product Year
2018 2018
Optical System
Greenough Greenough
Standard Magnification
7x-45x 7x-45x
Optional Magnification
3.5x~180x 3.5x~180x
Head Type
Seidentopf Trinocular Seidentopf Trinocular
Head Inclination
0-35° Tiltable 0-35° Tiltable
Head Rotation
Head Rotate 360° Head Rotate 360°
Eyepiece Features
Wide Field Wide Field
Eyepiece Diameter
30.0mm 30.0mm
Working Distance
100mm, With Auxiliar 100mm, With Auxiliar
Eyepiece
WF10x/20mm, 2 pcs WF10x/20mm, 2 pcs
Objective Type
CMO (Stereo) CMO (Stereo)
Objective
0.7x~4.5x 0.7x~4.5x
Working Stage Spec.
Soft Pad Working Area Soft Pad Working Area
Light Source Type
LED LED
Reflect Light
56 LEDs Right Light Brightness Adjustable 56 LEDs Right Light Brightness Adjustable
Power Supply Type
AC 100V-240V Wide Voltage AC 100V-240V Wide Voltage
Video Adapter
Digital Eyepice 23.2mm Digital Eyepice 23.2mm
Stereo Zoom Ratio
1:6.25 1:6.25
Stereo Stand Type
Pole Stand Pole Stand
Stereo Stand
Stand 200*255*22mm, Pole Height 240mm, Dia.32mm Stand 200*255*22mm, Pole Height 240mm, Dia.32mm
Camera Type
LCD+Camera LCD+Camera
Camera Screen Size
9” 9”
Camera Mounting
Eyepiece Tube 23.2mm Eyepiece Tube 23.2mm
Camera Output
VGA/RCA VGA/RCA
