A33.3713-16M

Like Favorites

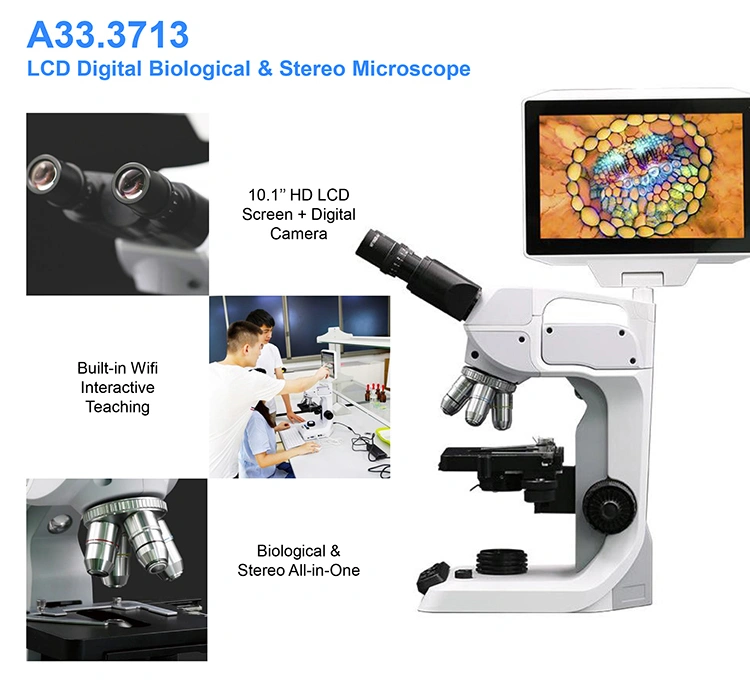

10.1" LCD Digital Biological Microscope, Internet Version

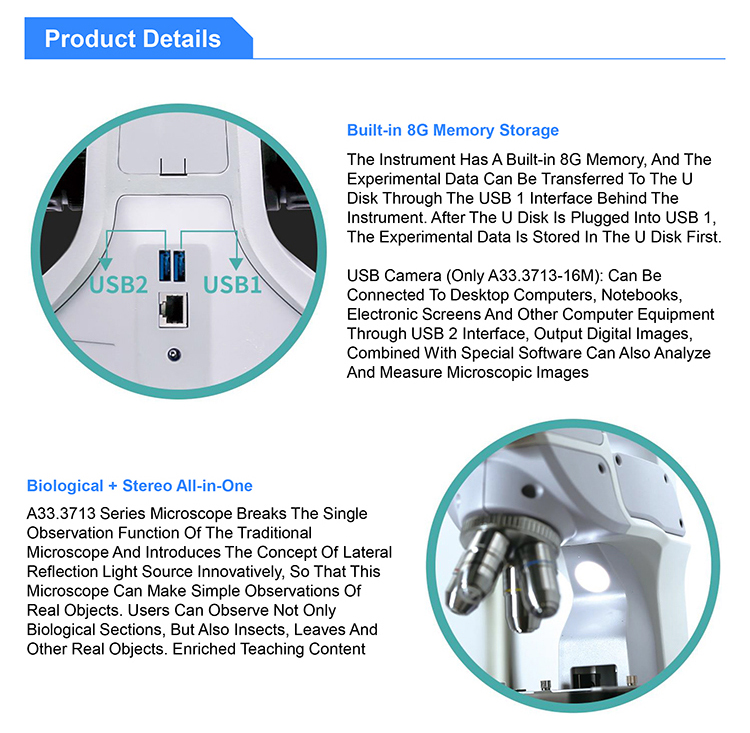

Built-in 8G Memory For Picture & Video Capture, Output To USB And WIFI

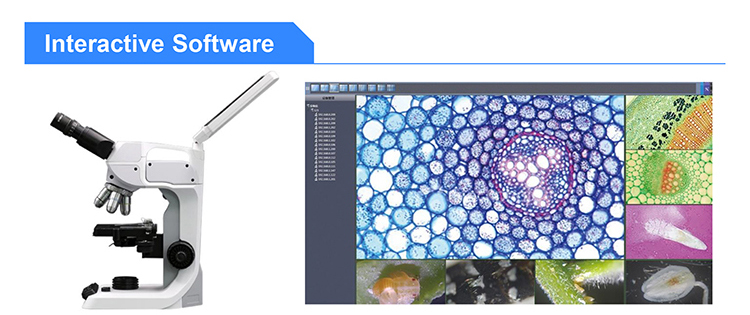

With Ethernet Connection Port & Interactive Software For Teaching
Biological & Stereo 1x Lens Low Power Combined In One
Up & Bottom LED Light Source For All Specimen View

Specification:

A33.3713-16M

A33.3713-5.0M

A33.3713Series Of High-definition Digital Liquid Crystal Microscopes Can Meet The Needs Of Biological Specimen Sectioning In The Teaching Field. An Eye-catching Handle Is Provided Above The Fuselage, Which Can Ensure That The Microscope Is Always Kept In A Positive Position When Lifting And Moving The Microscope, Thereby Effectively Preventing The Eyepieces And Observation Samples From Falling. In Addition, The Instrument Can Be Equipped With A High-capacity Lithium Battery (optional) And Can Be Used Without A Power Supply, Which Is Very Convenient For Outdoor Viewing.

A33.3713 Digital Biological Microscope Specification		5.0M	8.0M	16M
LCD Screen	10.1'', Resolution 1920x1200	●	●	●
External Interface	Ethernet	●	●	●
	WIFI		●	●
	USB Camera			●
Support External Devices	Desktop/Laptop/Integrated Machine	●	●	●
Storage	Built-in 8G/Inserted U disk	●	●	●
Video Resolution	1080P/30fps	●	●	●
Photo Resolution	5.0M	●
	8.0M		●
	16M			●
Measuring	Crosshair	●	●	●
Positioning	Crosshair, Arrow Pointer Coordinate Colors Are Black, White, Red, Blue, Green Positioning Reference Can Be Stored	●	●	●
Feature	Biological & Stereo	●	●	●
Magnification	40x-400x	●
	10x-400x		●
	10x-1000x			●
	64x-640x	○
	16x-640x		○
	16x-1600x			○
Eyepiece	WF10x/18mm	●●	●●	●●
Eyepiece	WF16x/13mm	○○	○○	○○
Nosepiece	Triple	●
	Quadruple		●
	Quintuple			●
Biological Objective	Infinity Objective 4x/ 10x/ 40x	●	●
Biological Objective	Infinity Objective 4x/ 10x/ 40x/ 100x			●
Stereo Objective	Infinity Objective 1x		○	○
Focusing	Coaxial Coarse & Fine Focus	●	●	●
Working Stage	Double Layers Mechanical Stage, 140x130/76x36mm	●	●	●
Condenser	Abbe	●	●	●
Illumination	Transmit & Side LED Light Source	●	●	●
Input Voltage	19V	●	●	●
Optional Accessories	Aluminum Box	○	○	○
	Aluminum Box With Tie Rod	○	○	○
	High-capacity Lithium Battery	○	○	○
Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories.

Pictures Hide Same Show Difference
Model No.	A33.3713-16M		A33.3713-5.0M
Other Specification	Function Key Panel	Function Key Panel	Function Key Panel
Optional Accessory	Aluminum Box	Aluminum Box	Aluminum Box
Camera Output	USB WIFI Ethernet	WIFI Ethernet	Ethernet
Camera Screen Size	10.1"	10.1"	10.1"
Camera Pixel	16MP	8.0MP	5.0MP
Power Supply	Input Voltage 19V	Input Voltage 19V	Input Voltage 19V
Power Supply Type	AC 100V-240V Wide Voltage	AC 100V-240V Wide Voltage	AC 100V-240V Wide Voltage
Reflect Light	LED	LED	LED
Transmit Light	LED	LED	LED
Light Source Type	Flourescent LED	Flourescent LED	Flourescent LED
Light Source Features	Transmit & Reflect	Transmit & Reflect	Transmit & Reflect
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Working Stage Moving	76x36mm	76x36mm	76x36mm
Working Stage Size	140x130mm	140x130mm	140x130mm
Working Stage Type	Double Layers Mechanical	Double Layers Mechanical	Double Layers Mechanical
Objective	Infinity 4x10x40x100x + Stereo 1x	Infinity 4x10x40x + Stereo 1x	Infinity 4x10x40x,
Objective Type	Infinity Achromatic	Infinity Achromatic	Infinity Achromatic
Nosepiece Holes	5 Holes	4 Holes	3 Holes
Nosepiece Features	Outward	Outward	Outward
Eyepiece	WF10x/18mm, 2 pcs	WF10x/18mm, 2 pcs	WF10x/18mm, 2 pcs
Eyepiece Diameter	23.2mm	23.2mm	23.2mm
Head Diopter	Both Tube Adjustable	Both Tube Adjustable	Both Tube Adjustable
Head Inclination	30°	30°	30°
Head Type	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Binocular
Standard Magnification	10x-1000x	10x-400x	40x-400x
Optical System	Infinity Achromatic	Infinity Achromatic	Infinity Achromatic
Features	Biological + Stereo	Biological + Stereo	Biological + Stereo
Standard Function	BF	BF	BF

A33.3713 Catalogue.pdf 1.33M 2022/10/16
