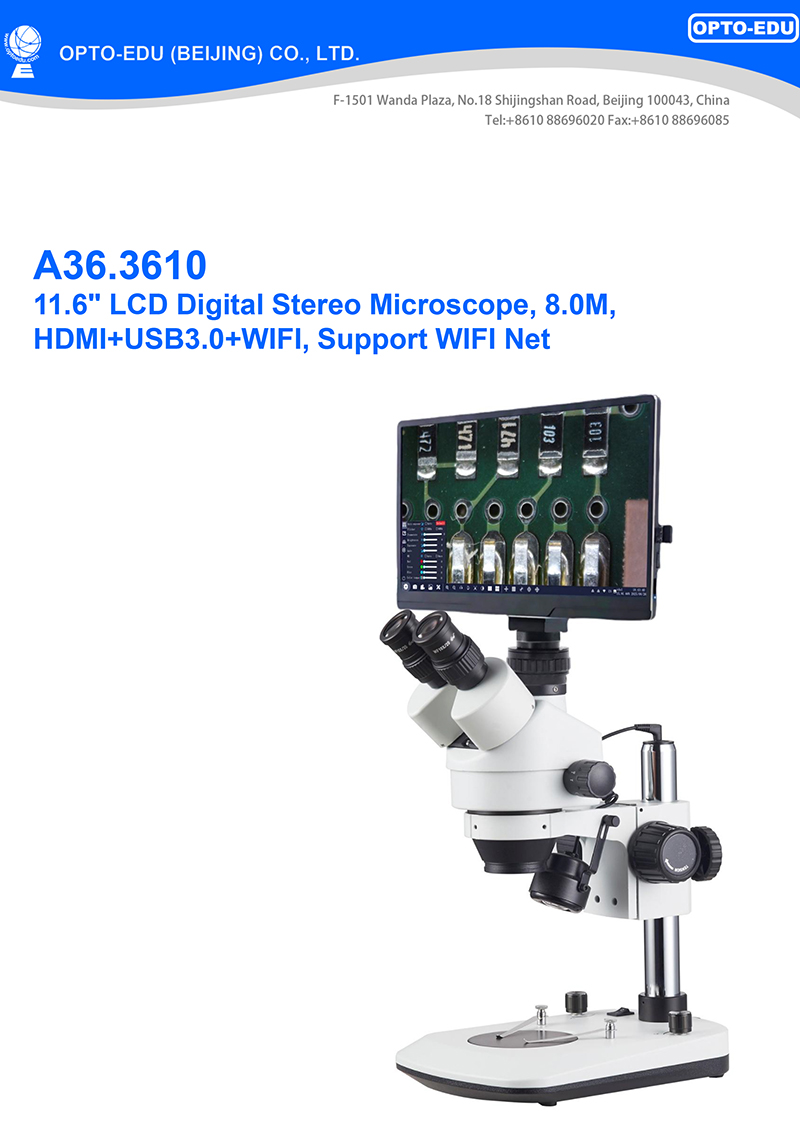

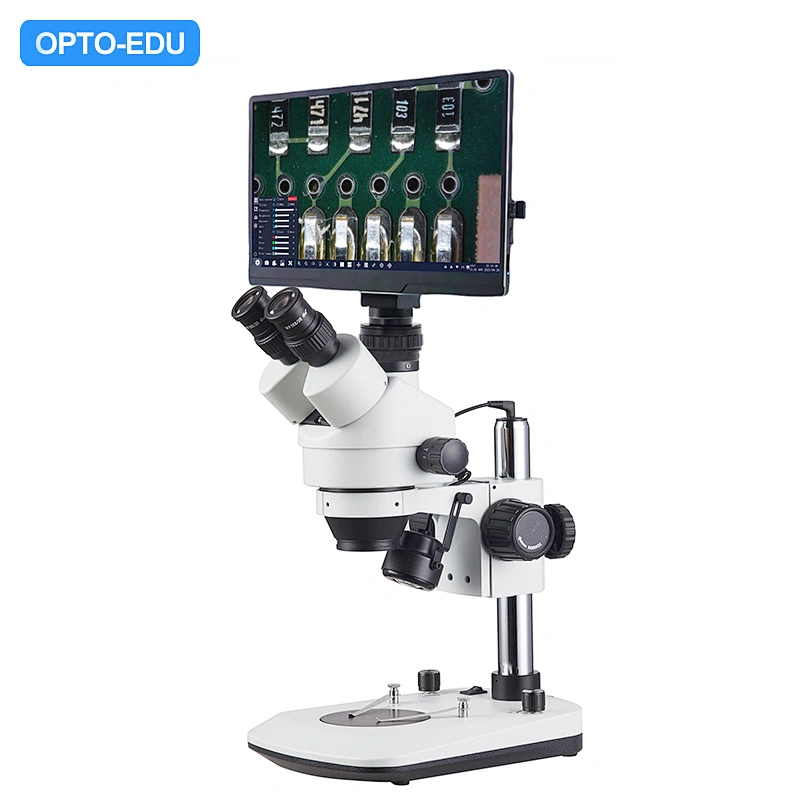

11.6" LCD Digital Stereo Microscope, 8.0M, HDMI+USB3.0+WIFI, Support WIFI Net

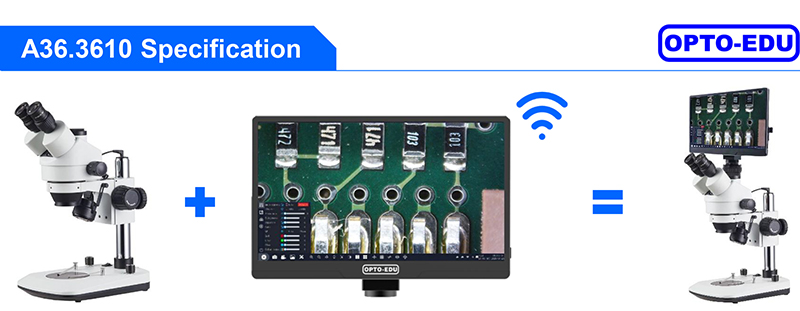

A36.3610 = A23.3645-B8LT + A59.3550
A23.3645-B8LT Zoom Stereo Microscope Specification
Head	Trinocular Head, 45° Inclined, 360° Rotatable, Interpupillary Adjustment 54-75mm, Both Eyepiece Tube ±5° Diopter Adjustable,
	With0.5x C-Mount Focus Adjustable,
	Light Split Fixed P50:E50, Simul Focal Design To Show Image On Both Eyepiece & Photo Port At Same Time

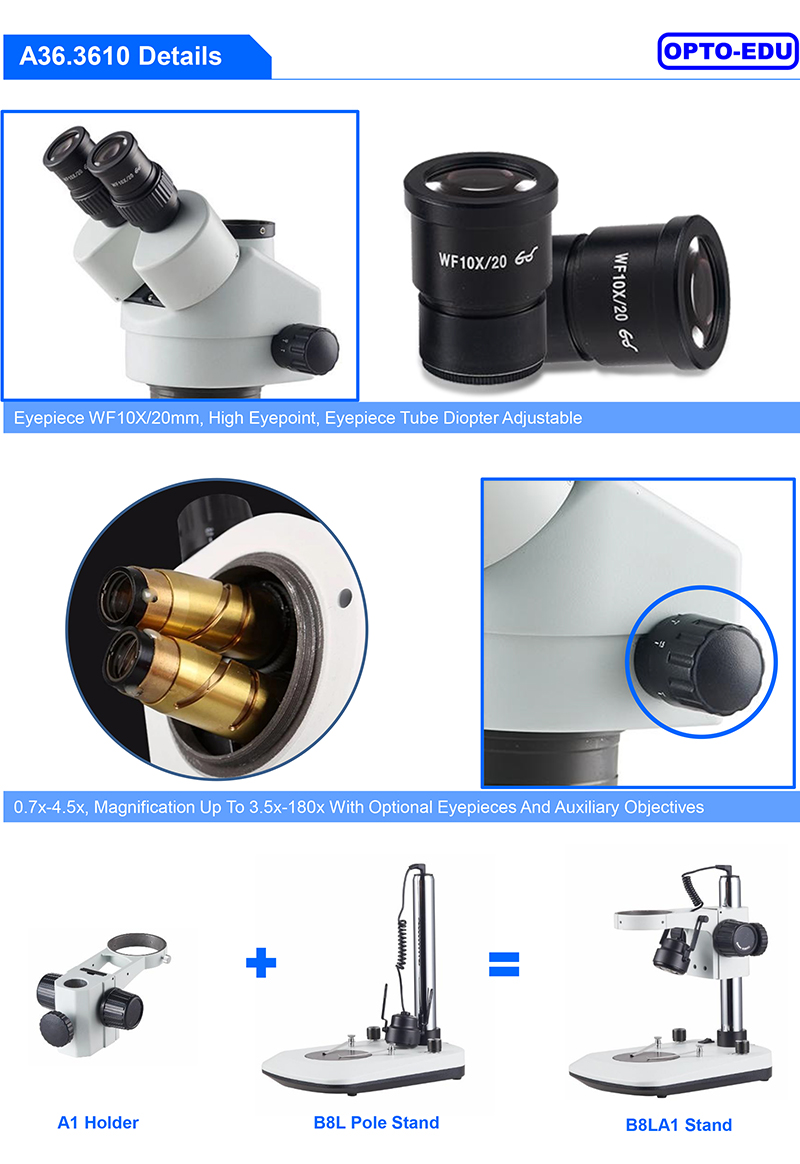

Eyepiece	WF10x/20mm, High Eyepoint, Dia.30mm
Zoom Lens	0.7x~4.5x
Zoom Ratio	01:06.5
Magnification	7x-45x, Up To 3.5x-270x With Optional Eyepieces & Auxiliary Objectives
Working Distance	100mm, Up To 30~165mm With Auxiliary Objectives
Field Of View	0.9-57.1mm (Detail See Optical Data Sheet)
Focusing	Pole Stand Coarse Focusing Range 50mm, Tension Adjustable
Focusing	Track Stand Coarse Focusing Range 74mm, Tension Adjustable
A59.3550 11.6"LCD Digital Camera, 8.0M, HDMI+USB3.0+WIFI
LCD Screen	11.6"LCD, Resolution 1920x1080p High Clearance Screen, Brightness 220cd/㎡
Camera	8.0M, 4K Digital Camera,
Sensor	1/1.8"IMX334 CMOS Sensor
Resolution	3840*2160 Pixels@60 fps Preview
	Photo 16M
	Video 1920x1080p
Pixel Size	2.0x2.0um
CPU	ARM Cortex [email protected]
Memory	4GB LPDDR4
Digital Zoom	10x
Control	USB Mouse + Keyboard Control For Built-in Software, No Need Computer
Data Interface	USB3.0 x3, USB2.0 x2, HDMI x1, WIFI
Microscope Interface	Standard C-Mount

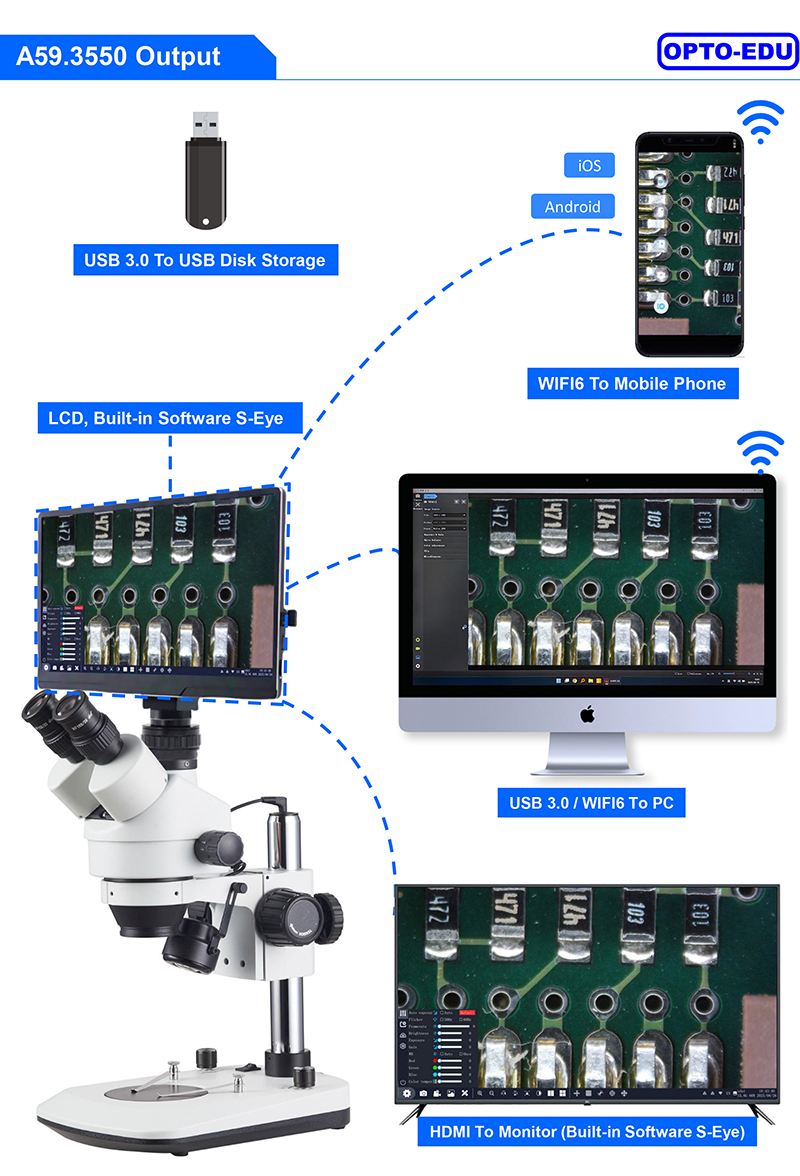

Output	LCD, Built-in Software S-Eye
	HDMI To Monitor (Built-in Software S-Eye)
	USB 3.0 To PC (Software S-Eye)
	USB 3.0 To USB Disk Storage
	WIFI6 To PC (Software S-Eye)
	WIFI6 To Mobile Phone (S-Eye App)
Software Function	Photo, Video Capture & Store
	Calibration, All Kinds Measure, Mark, Analysis Function
	Set Brightness, Contrast, Exposure, White Balance etc.
	PC Software ImageView Support EDF & Stitching Function
	WIFI Output Support Digital Interactive Classroom Up To 60 Microscope & Cameras
Language	CN, EN, DE, FR, JP, IT, RU And Support Customized
Power Supply	DC 12V/2A Power Adapter, Input 100-240V AC
Size / Weight	Product Size 271171.555mm, Net Weight 0.7kg
Packing List	LCD Camera, AC Adapter, USB Cable, HDMI Cable
Package	Packing Box 33.5259cm, 1.2Kgs, 1 set/Box

A23.3645, A23.3645N Optional Accessories		Cata.No.
Head	Binocular Head + WF10x/20mm	A53.3645-B
Head	Trinocular Head + WF10x/20mm	A53.3645-T

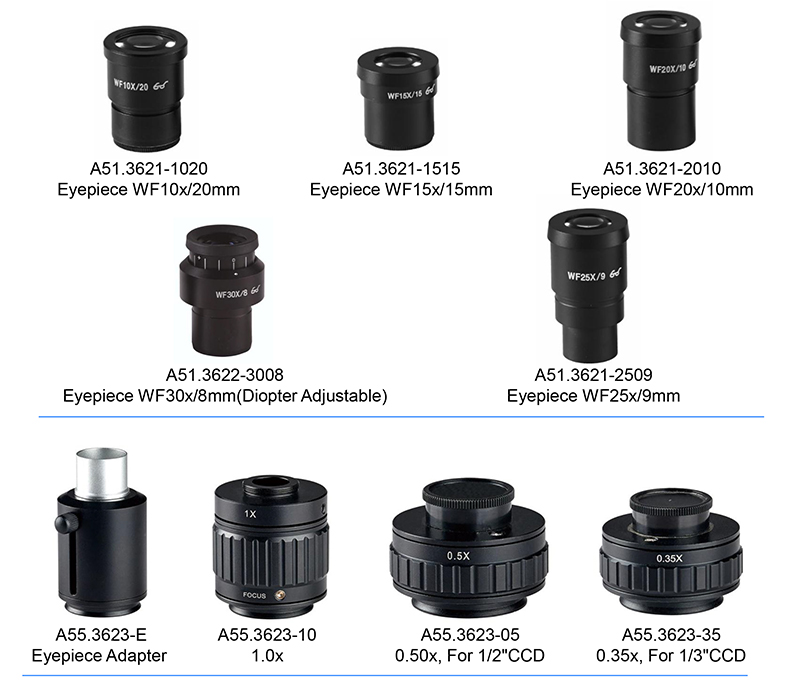

Eyepiece	WF10x/20mm, High Eyepoint, Dia.30mm	A51.3621-1020
	WF15x/15mm, High Eyepoint, Dia.30mm	A51.3621-1515
	WF20x/10mm, High Eyepoint, Dia.30mm	A51.3621-2010
	WF25x/9mm, High Eyepoint, Dia.30mm	A51.3621-2509
	WF30x/8mm, High Eyepoint, Dia.30mm, Diopter Adjustable	A51.3622-3008

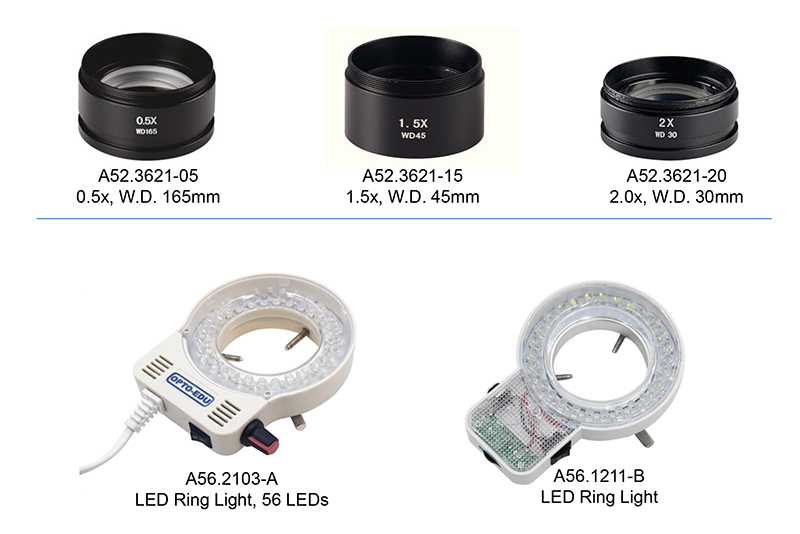

Auxiliary Lens	0.5x, W.D. 165mm	A52.3621-05
	1.5x, W.D. 45mm	A52.3621-15
	2.0x, W.D. 30mm	A52.3621-20
CCD Adapter	Eyepiece Adapter Focus Adjustable	A55.3623-E
	1.0x, Focus Adjustable	A55.3623-10
	0.50x, Focus Adjustable, For 1/2"CCD	A55.3623-05
	0.35x, Focus Adjustable, For 1/3"CCD	A55.3623-35

A36.3610 Zoom Stereo Microscope Optical Data Sheet
Zoom Lens		0.7x~4.5x
Auxiliary Lens		0.5x	1.0x (Standard )	1.5x	2.0x
Working Distance		165mm	100mm	45mm	30mm
WF10x/20mm	Magnification	3.5x-22.5x	7.0x-45x	10.5x-67.5x	14x-90x
WF10x/20mm	View Field(mm)	57.1-8.9	28.6-4.4	3月19日	14.3-2.2
WF15x/15mm	Magnification	5.25x-33.75x	10.5x-67.5x	15.75x-101.25x	21x-135x
WF15x/15mm	View Field(mm)	42.8-6.7	21.1-3.3	14.3-2.2	10.7-1.7
WF20x/10mm	Magnification	7.0x-45x	14.0x-90x	21.0x-135x	28x-180x
WF20x/10mm	View Field(mm)	28.6-4.4	14.3-2.2	9.5-1.5	7.1-1.1
WF25x/9mm	Magnification	8.85x-56.3x	17.5x-112.5x	26.2x-168.8x	35x-225x
WF25x/9mm	View Field(mm)	25.4-4.0	12.9-2.0	8.6-1.3	6.4-1.0
WF30x/8mm	Magnification	10.5x-67.5x	21x-135x	31.5x-202.5x	42x-270x
WF30x/8mm	View Field(mm)	22.9-3.6	11.4-1.8	7.6-1.2	5.7-0.9
