A36.3602

Like Favorites

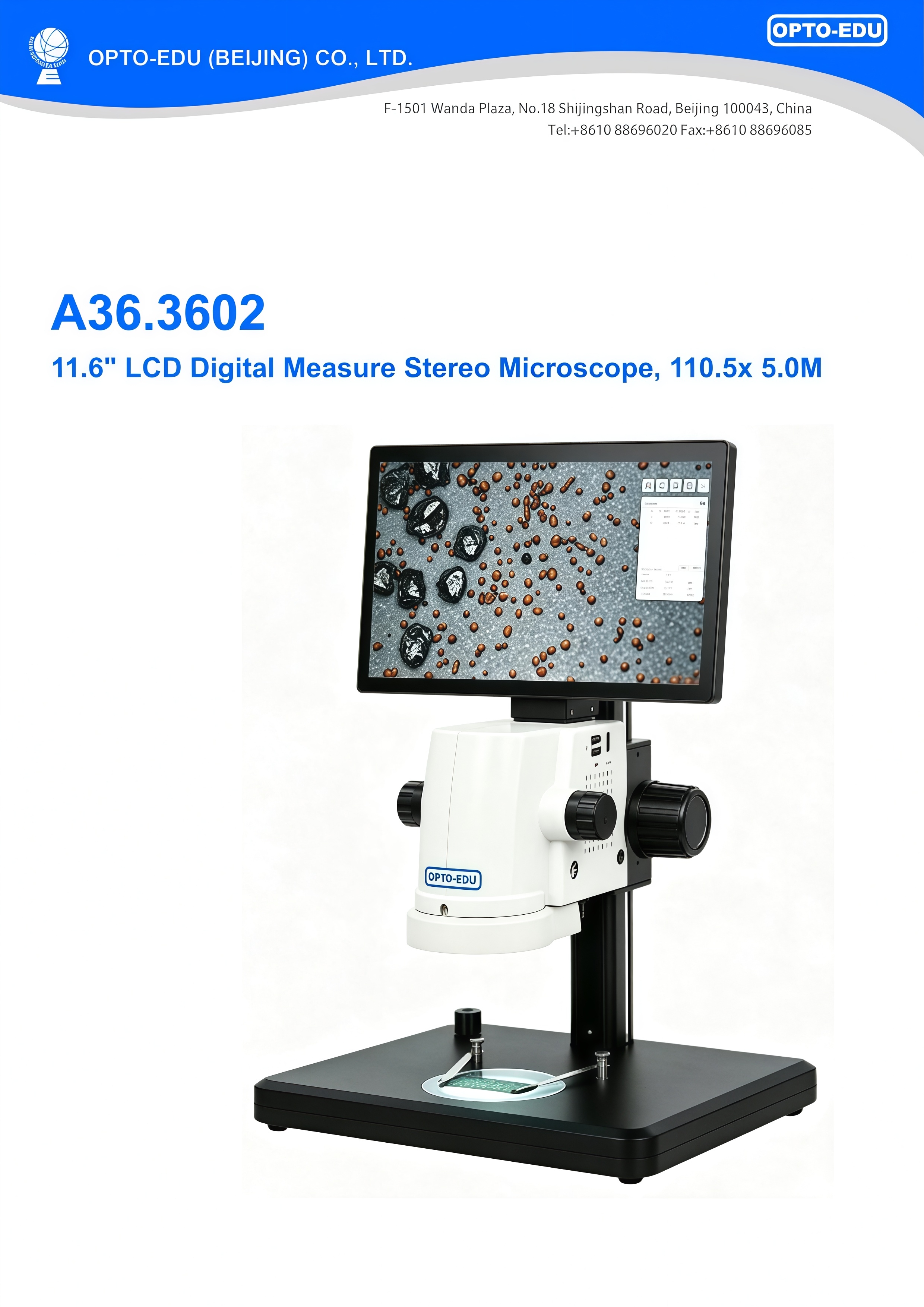

11.6" LCD Digital Measure Stereo Microscope, 110x 5.0M

11.6" LCD 5.0M HD Camera All-In-One Design, Upper & Bottom LED Light
Real-time Observation, Photo, Video, Measurement, Storage, Data Output
Total Magnifiation 17x-110x With 0.7x~4.5x Zoom Lens
Mouse Control Menu Support Measuring, Photo & Video Record
Image Output To HDMI, TF Card, USB Disk

A36.3602 LCD stereo microscope

The A36.3602 series integrated zoom optical module with high definition camera. It can be conveniently used in a narrow and small space. According to ergonomic principles, its internal optical corner design and angle adjustment of the display screen, allow the operator to look at the display in a flat view. Through the HDMI HD interface, it can connect to another display simultaneously.

A36.3602 LCD Digital Stereo Microscope Specification
Magnification	17X-110X
Objectives	0.75X-4.5X stereo zoom, zoom ratio 6.4:1
Display	11.6Inch, 1920H*1080V, IPS screen, detachable
Imaging sensor	1/2.8Inch SONY CMOS
Real-time image frame rate	60fps@1920*1080
Photograph	5 Mega-pixel
Recording	45fps@1920*1080
Output Interface	HDMI
Input Interface	Double USB2.0
Camera Parameters	Exposure, White-balance, Gain, Gamma, Brightness, Contrast, Hue, Saturation, Gray
OSD Operation	Mouse
Storage Function	Snap, Record, USB Storage
Measurement	Point,Line,Parallel lines,Broken lines,Angle,Diameter circle,Radius circle,Three-point circle,Distance from circle to line，Concentric circles,Double circle,Vertical line,Arbitrary line,Polygon,Arc,Mark,Screenshot,Table data export,Calibration,Parameter Settings
Other Functions	Flip horizontally, Flip vertically, Freeze
Scale Ruler	3 kinds, customizable colors, line widths, display switches
Grid Lines	8 group, customizable colors, line widths, display switches
Languages	Simplified Chinese,Traditional Chinese、English,French,Russian,Japanese,Italian,German
Auxiliary Lens	0.5x
Auxiliary Lens	2.0x
Light Source	56-LED ring light, brightness adjustable

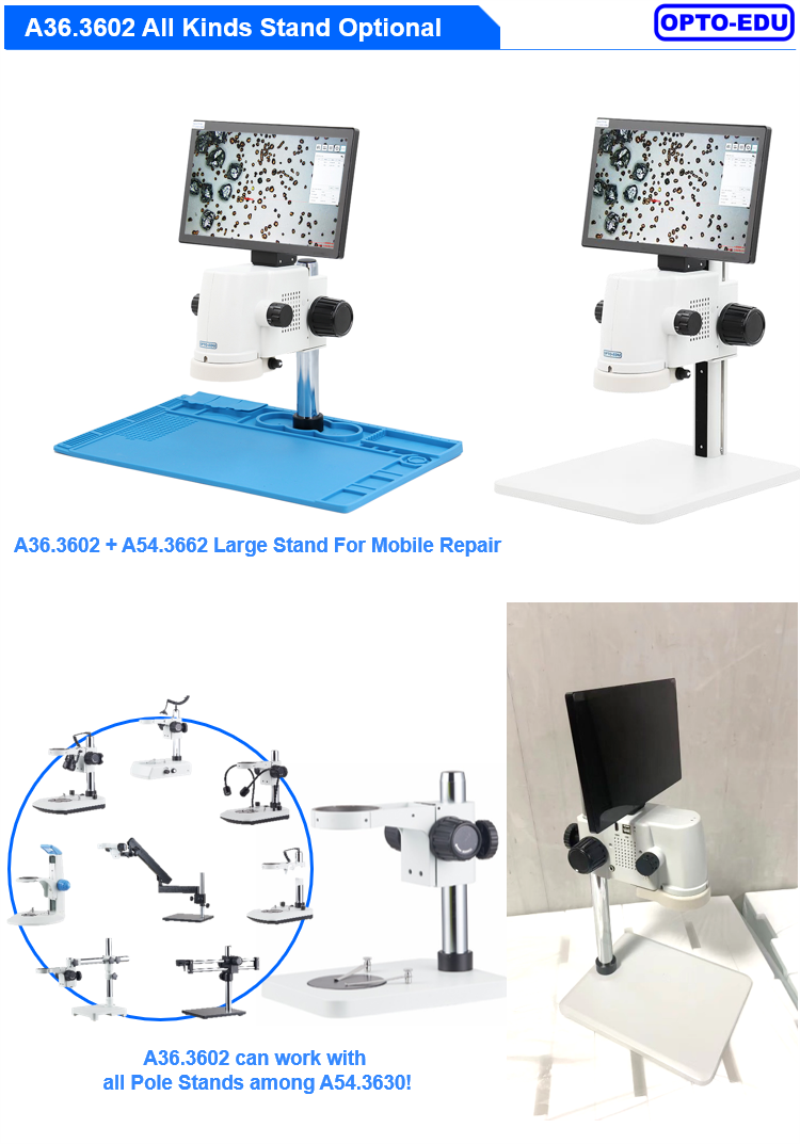

Base	Various bases are available according to customers' requirements

croscope Optical Data Sheet
Objective	Standard		Auxiliary 0.5X		Auxiliary 2X
W,D.	100mm		165mm		30mm
11.6‘’	Mag	View Field	Mag	View Field	Mag	View Field
	17.2x-110.5x	18.5x10.5-2.8x1.5	8.6x-55.2x	37.5x21-5.5x3.0	34.4x-221x	9.5x5.5-1.5x0.7

Pictures
Model No.	A36.3602

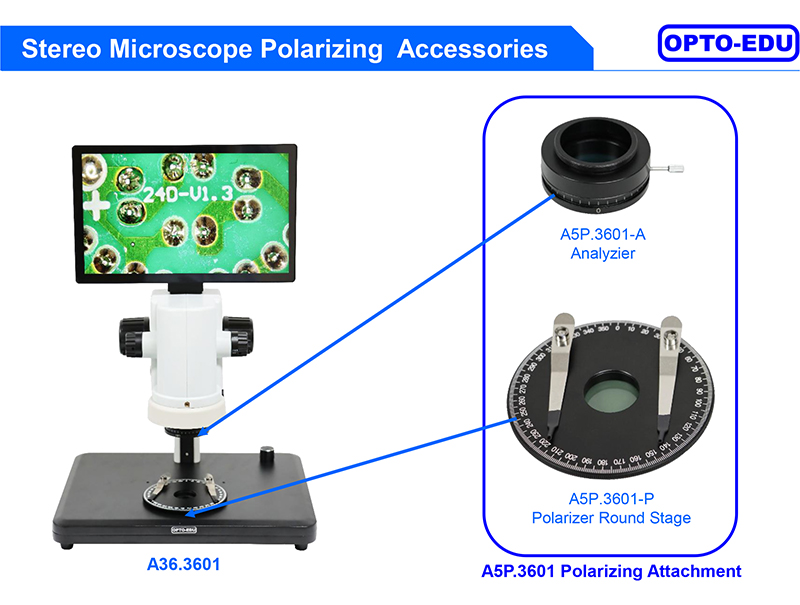

Optional Accessory	Polarizing Lens, UV LED Ring Light
Camera Output	USB HDMI SD/TF Card
Camera Screen Size	11.6"
Camera Sensor Size	1/3"
Camera Pixel	5.0MP
Camera Features	Manual Focus
Stereo Stand Type	Track Stand
Working Distance	100mm
Stereo Zoom Ratio	1:6.4
Power Supply	External Wide Range Adapter, Input AC 100-240V-AC50/60Hz, Output DC12V2A
Power Supply Type	AC 110V-240V
Reflect Light	LED Ring Light, Brightness Adjustable
Light Source Type	LED
Standard Magnification	17.2x-110.5x
Upgrade Function	BF+PL
Standard Function	BF
New Product Year	2019
公用.产品备忘	2025-06-25 确认可选配立柱底座36种，成本-20+底座 A54.3630
