A50.7009

Like Favorites

Micro In-situ Heating & Tensile Stage

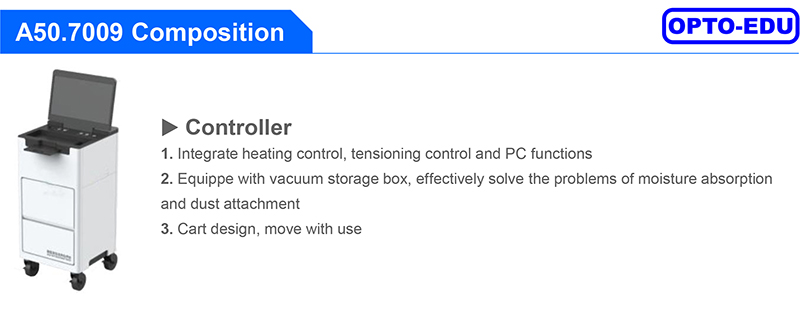

Integrate heating control, tensioning control and PC functions

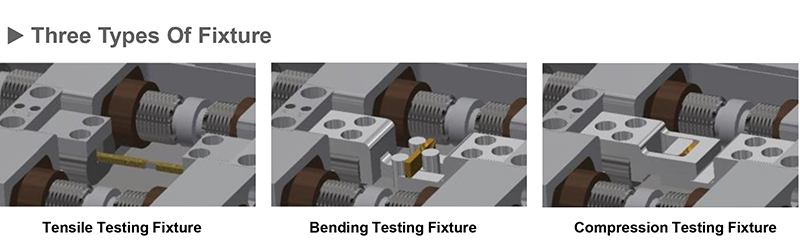

Support tensile, compression, bending, shear and other mechanical testing functions

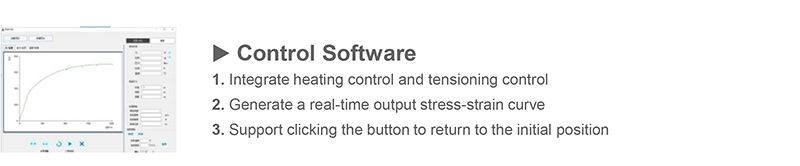

Control Software Generate a real-time output stress-strain curve
Unique degaussing design and anti thermal electronic interference design

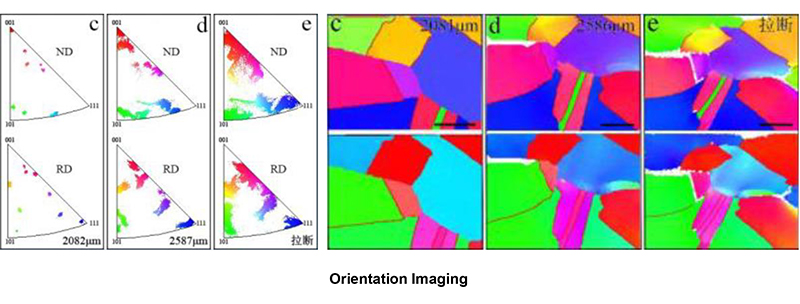

For scanning electron microscope; and developed algorithms for EBSD and X-ray diffraction analysis

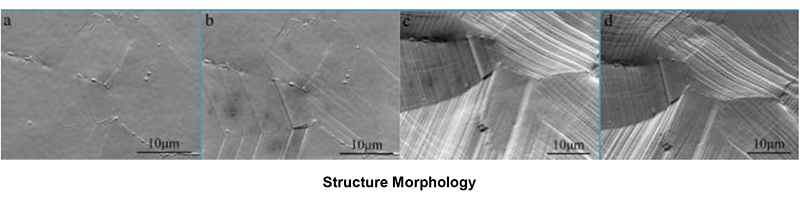

The micro in-situ heating tensile stage for testing the microstructures’ and properties’ revolutions of materials.
Used in scanning electron microscope; and developed algorithms for EBSD and X-ray diffraction analysis.

A50.7009 Micro In-situ Heating & Tensile Stage Specification

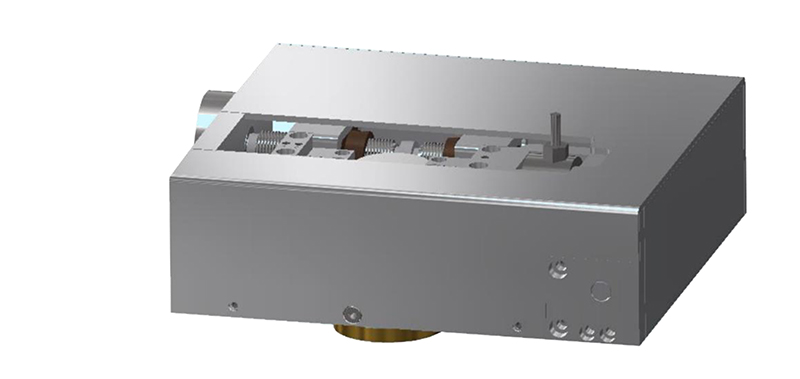

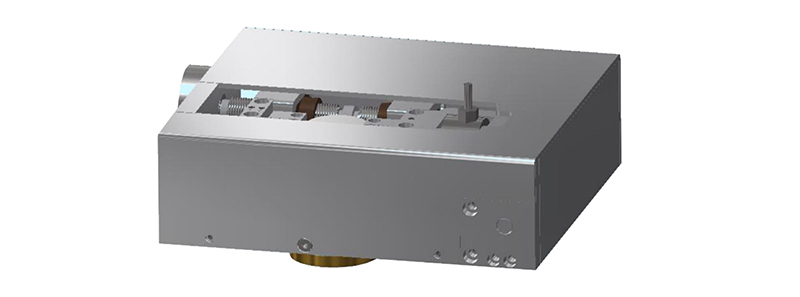

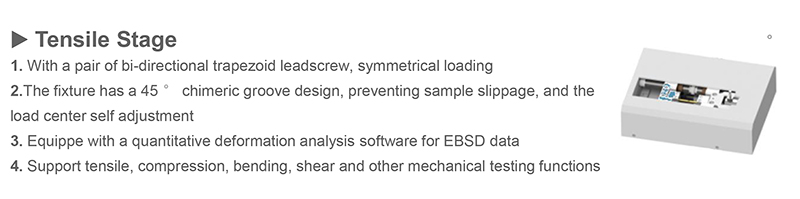

Tensile Stage
Load	Optional Range：20N、100N、200N、500N、1000N、2000N
	Full-scale Accuracy：±0.1%
	Load Resolution：0.01N
Displacement	Maximum Displacement：30mm
	Full-scale Accuracy：±0.1%
	Displacement Resolution：100nm
Loading Mode	Constant Deformation Rate Tensile Test
Loading Rate	Continuously Adjustable
Power	110/220V，50~60Hz，48W
Instrument Size	148.5 mmx133mmx44.5mm
Instrument Weight	≈2.0 kg
	Size Range：l=16-60mm，w_max=12mm，t_max=4mm
	Typical Size：l=48mm，w=6mm，t=1.5mm
Sample Size	In Situ Observation Area：l=2mm，w=1.5mm，t=1.2mm

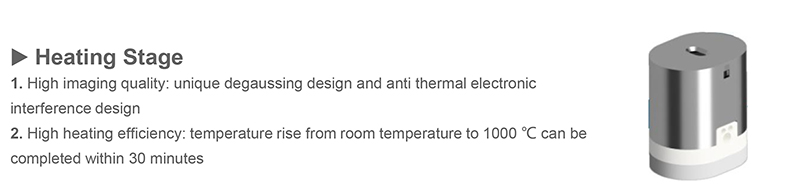

Heating Stage(Optional)
Heating Temperature	T_max=1000℃,±1℃,Heating Area:φ6mm
Power	DC,24W
Instrument Size	24mmx32mmx40mm
Heating Rate	0~50℃/min
Control Software
Operating System	Windows 7
Sampling Frequency	0~10Hz

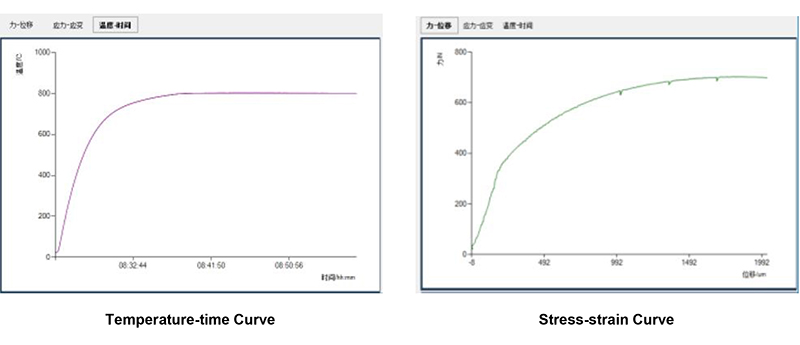

Real Time Curve	Load-displacement, Stress-strain, Temperature-time
Real Time Parameters	Load, Displacement, Stress, Strain, Temperature
Output Report	(Load, Displacement, Stress, Strain, Temperature)-Time
Report Type	Excel

A50.7009 Catalogue.pdf 831.41KB 2023/11/02
