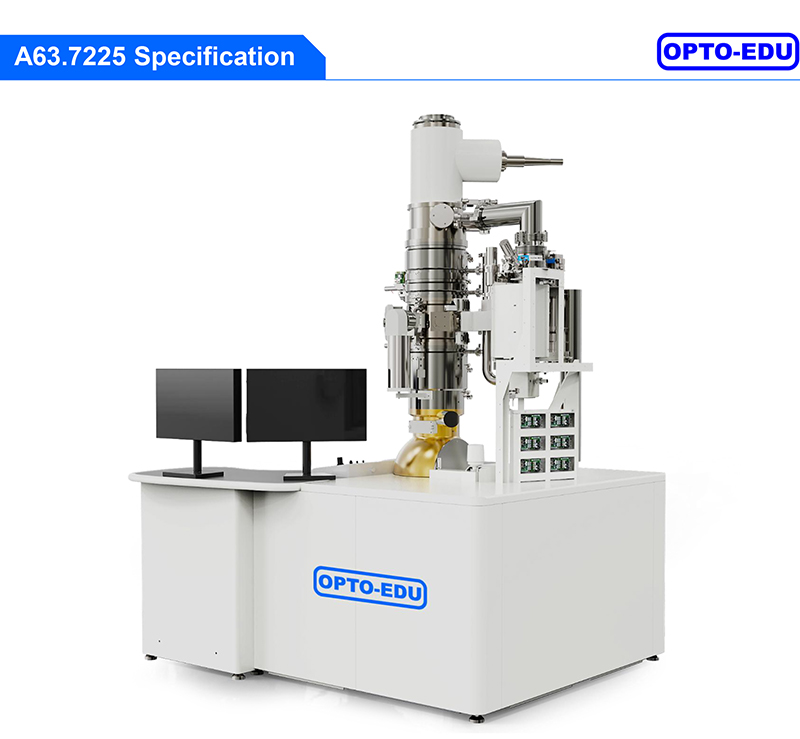

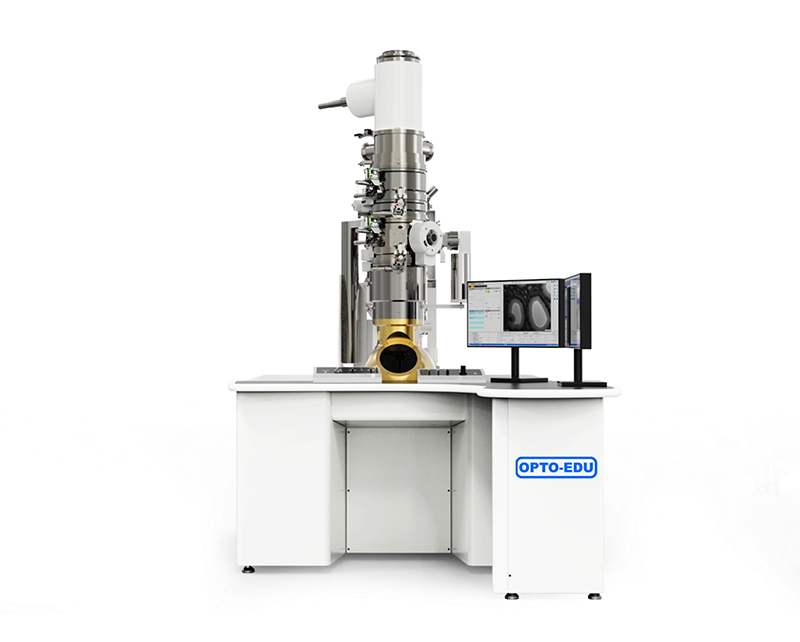

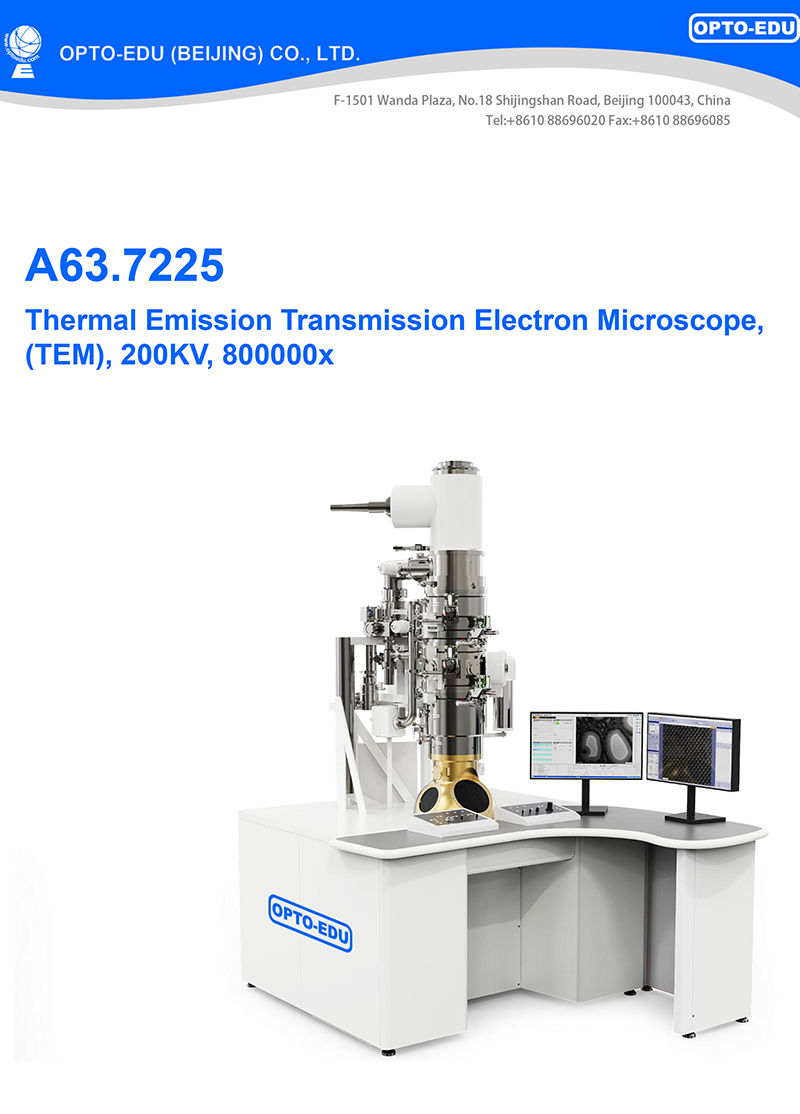

A63.7225 is a Thermal Emission Transmission Electron Microscope (TEM), 200KV, 800000x, independently developed & designed specifically for fields such as biology and medicine. This electron microscope design is easy to operate, and its large pole shoe design provides solutions such as 3D characterization, in-situ observation, and microcrystalline electron diffraction.
Simple Operation
Optimized panel and UI design, even beginners in transmission electron microscopy can directly operate the device; Provide instructional videos for operation.
Auto Function
Automatic insertion and removal of sample rods, automatic aperture control, etc.
High Sensitive Camera
The electron microscope is equipped with a highly sensitive CMOS camera, which can easily obtain high-quality images.
Thermal Emission Transmission Electron Microscope, 200KV, 800000x
Accelerating Voltage
200 kV, Factory Aligned at 80 kV and 200kV
Electron Source
Polycrystalline Tungsten or LaB6 Emitter
TEM Point Resolution
0.25 nm
TEM Information Limit
0.2 nm
Magnification
20x to 800000x.
FEG Gun Vacuum
< 1x10-6Pa,
TEM Column Vacuum
<5x10-5Pa
Goniometer
Eccentric Goniometer 5-axis Motorized,
Camera
20M Speed Enhanced Bottom Mounted CMOS Camera EMSIS XAROSA 5120x3840
Stage
Compu Stage Double-tilt Holder
X ±1mm, Y ±1mm, Z ±0.35mm, α ±25°, β ±25°
Upgradable
EDS Analysis
Warranty
Warranty One (1) Year.
Optional Accessories
Installation
On-Site Installation & Operational Training Service Pack Optional
