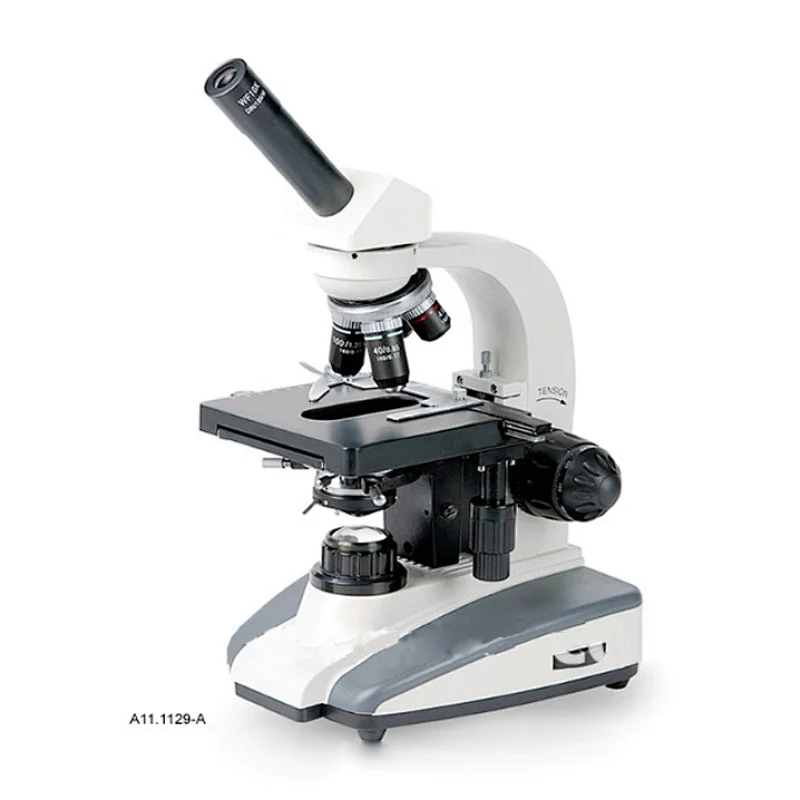

A11.1129 Biological Microscope | -A | -B | -C | |
Head | Monocular Head,45° inclined,360° Rotatable | ● | - | - |
| Compensation Free Binocular Head,30° inclined,55mm-75mm | - | ● | - | |
| Compensation Free Trinocular Head,30° inclined,55mm-75mm | - | - | ● | |
Eyepiece | WF10X | ● | ● | ● |
Objective | Achromatic 4X | ● | ● | ● |
| Achromatic 10X | ● | ● | ● | |
| Achromatic 40X, Spring | ● | ● | ● | |
| Achromatic 100X, Spring | ● | ● | ● | |
Nosepiece | Quadruple Revolving Nosepiece | ● | ● | ● |
Stage | Double Layer Mechanical Stage,Size:140mmx140mm Moving Range75mmx50mm | ● | ● | ● |
| Condenser | ABBE N.A.1.25 Condenser with Iris Diaphragm & Filter | ● | ● | ● |
Focusing | Coaxial Coarse and Fine Focusing Scale Value 0.002mm | ● | ● | ● |
| Collector | High Brightness collector and be interconverted with Kohler Illumination | ● | ● | ● |
| Light Source | Halogen Bulb 6V/20W, AC 85V-230V,Brightness Adjustable | ● | ● | ● |
Optional Accessories | ||||
| Eyepiece | WF16X | |||
| WF20X | ||||
| P16X | ||||
| Objective | Semi-plan Objective 4X | |||
| Semi-plan Objective 10X | ||||
| Semi-plan Objective 20X | ||||
| Semi-plan Objective 40X(S) | ||||
| Semi-plan Objective 60X(S) | ||||
| Semi-plan Objective 100X(S) | ||||
| CCD | CCD Adapter | |||
| Photo | Photo Adapter | |||
