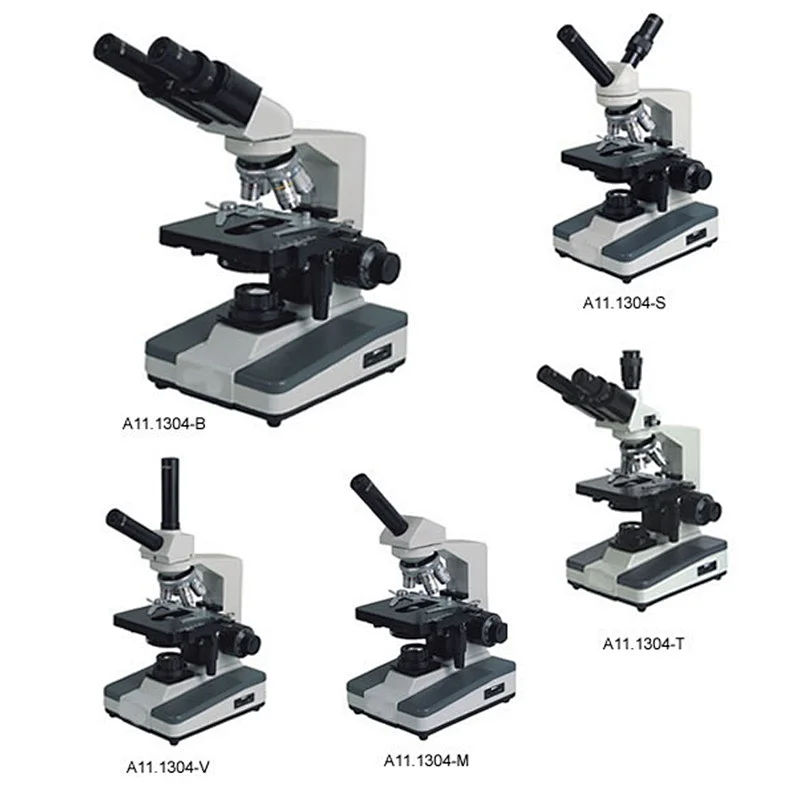

A11.1304 Biological Microscope | M | S | V | B | T | |
Head | Monocular Head, 45°inclined, 360° rotatable | ● | ||||
Compensation Free Binocular Head, interpupillary distance:55-75mm, 30°inclined, 360° rotatable | ● | |||||
Compensation Free Trinocular Head, interpupillary distance:55-75mm, 30°inclined, 360° rotatable | ● | |||||
Dual Observation Head, one tube 30°inclined and another tube vertical, 360° rotatable | ● | |||||
Dual Observation Head, 45° inclined | ● | |||||
Eyepiece | Wide field plane-scope eyepiece: WF10X | ● | ● | ● | ● | ● |
| Objective | Achromatic 4X | ● | ● | ● | ● | ● |
Achromatic 10X | ● | ● | ● | ● | ● | |
Achromatic 40X(S) | ● | ● | ● | ● | ● | |
Achromatic 100X(S,Oil) | ● | ● | ● | ● | ● | |
| Nosepiece | Quadruple Revolving Nosepiece | ● | ● | ● | ● | ● |
| Total Magnification | 40X-1000X | ● | ● | ● | ● | ● |
Stage | Double Layers Mechanical Stage 130X140mm/70X50mm | ● | ● | ● | ● | ● |
Focusing | Coarse & fine focusing knob, Range 20mm, precision: 0.002mm | ● | ● | ● | ● | ● |
| Condenser | ABBE Condenser:N.A.1.25, Φ2-Φ30mm Iris diaphragm and Φ32 filter | ● | ● | ● | ● | ● |
Light Source | Halogen lamp 6V/20W and Kohlar Illumination System | ● | ● | ● | ● | ● |
