Biological Microscope from China Manufacturer - Opto-Edu (Beijing) Co., Ltd.

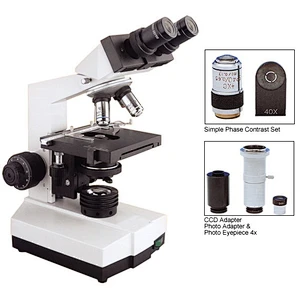

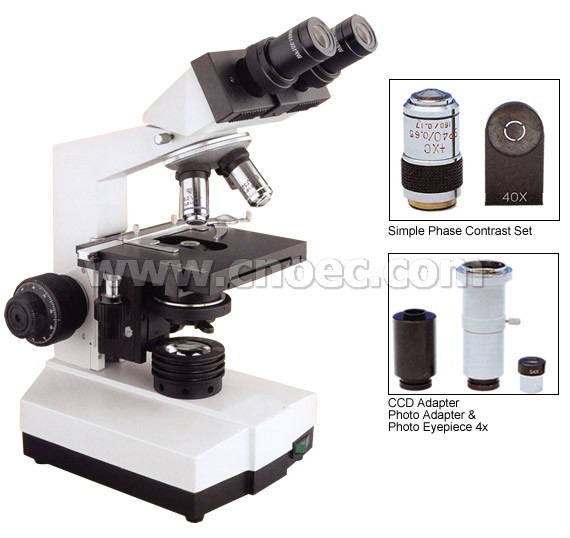

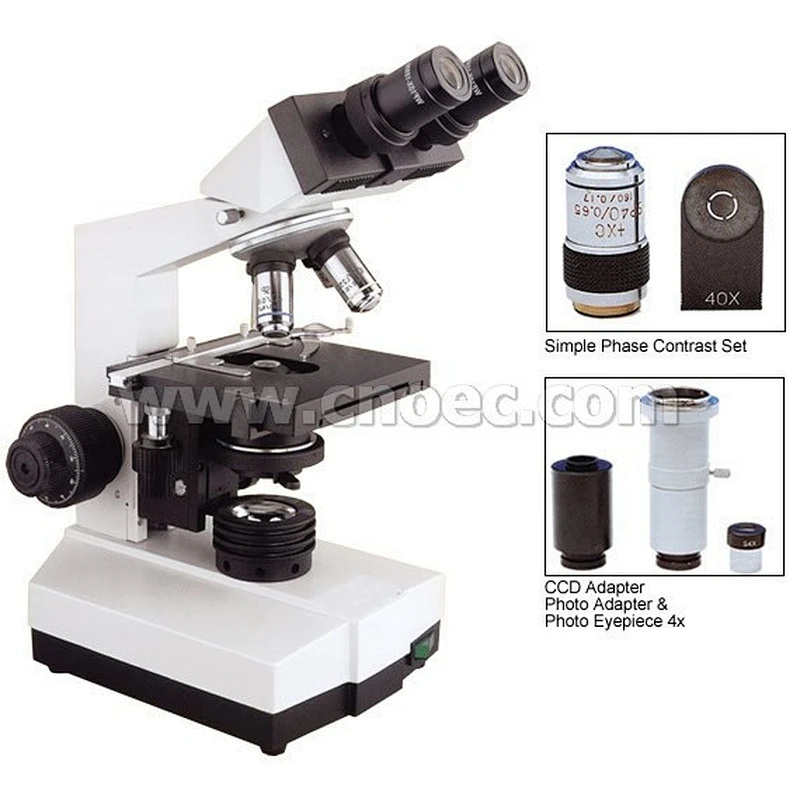

Biological Microscope

A11.0103 Specification		A	B	C	D
Magnification	40X-1600X	●	●	●	●
Head	Monocular Head, 30 degree Inclined, 360°Rotatable	●	-	-	-
	Sliding Binocular Head, 30 degree Inclined, 360°Rotatable, Interpupilary Distance 55-75mm	-	●	-	-
	Seidentopf Binocular Head, 30 degree Inclined, 360°Rotatable Rotatable, Interpupilary Distance 55-75mm	-	-	●	-
	Seidentopf Trinocular Head, 30 degree Inclined, 360°Rotatable Rotatable, Interpupilary Distance 55-75mm	-	-	-	●
Eyepiece	WF10X/18mm	●	●	●	●
Objective	Achromatic 4X/0.10	●	●	●	●
	Achromatic 10X/0.25	●	●	●	●
	Achromatic 40X/0.65, Spring	●	●	●	●
	Achromatic 100X/1.25, Spring, Oil	●	●	●	●
Nosepiece	Quadruple Revolving Nosepiece	●	●	●	●
Stage	Mechnical Stage 125mm X 130mm, Vernier Scale Travel Range 60mm X 30mm with Graduation of 0.1mm,	●	●	●	●
Condenser	Abbe N.A.=1.25, Milled Out to Phase Slide, Built-in Iris Diaphragm and Filter Holder, Vertical Rack and Pinion Focusing with Safely Spot, Height Adjustable	●	●	●	●
Condenser	Blue, Amber,and Green Filter	●	●	●	●
Focusing	Coaxial Coarse and Fine Focusing Knobs, 02mm per Rotation with Graduations in 0.002mm increments, Tension Adjustment Available, with Upper Stopper and Sliding Stopper	●	●	●	●
Light Source	Base with Built-in Halogen Lamp 6V/20W , with Continue Intensity Control, 110V/220V	●	●	●	●

Optional Accessoires		Item No.
Eyepiece	WF16X/10mm	EP16a
	WF10X/18mm with Pointer	EPg10
	Reticle WF10X/18mm	EPr10b
Objective	Semi-plan 4X/0.10	B-OSPr4
	Semi-plan 10X/0.25	B-OSPr10
	Semi-plan 40X/0.65, Spring	B-OSPr40
	Semi-plan 100X/1.25, Spring, Oil	B-OSPr100
Photo Adapter	Photo Adapter	MP03
Photo Adapter	Photo Eyepiece 4X	EPHn4
Video Adapter	CCD C-Mount	TV02
Simple Phase Contrast Set	+/- SP Phase Contrast Objective 40x/0.65, with Annular Stop 40x used on Condenser	LRPO2

Pictures Hide Same Show Difference
Model No.	A11.0103-A	A11.0103-C	A11.0103-C	A11.0103-D	A11.0103-B
Focusing Scale	0.000000	——	——	0.000000	0.000000
Focusing Range	0.000000	——	——	0.000000	0.000000
Standard Magnification	40x-1600x	40x-1600x	40x-1600x	40x-1600x	40x-1600x
Optical System	Achromatic	Achromatic	Achromatic	Achromatic	Achromatic
New Product Year	2011	2011	2011	2011	2011

Pictures

Hide Same

Show Difference

Model No.

A11.0103-A

A11.0103-C

A11.0103-D

A11.0103-B

Focusing Scale

0.000000

——

0.000000

Focusing Range

0.000000

——

0.000000

Standard Magnification

40x-1600x

Optical System

Achromatic

New Product Year

2011
