Coaxial LED Illumination
Coaxial LED Illumination
Coaxial LED Illumination

A56.4902

Like Favorites

Coaxial LED Illumination

Quantity:

Coaxial LED Illumination


1. Introduction

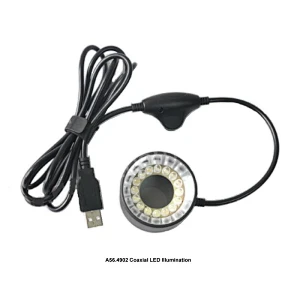

Annular  lamp model A56.4902 is designed for monocular microscope, it is a high  brightness white LED lamp with high brightness, linear light, long life, small  size, and has the advantages of flicker-free, small amount of heat, it  completely solves the traditional annular lamp’s shortage of short life, big  volume, the life of the defects, high calorific value, it is upgraded version  of annular lamp.

2. Feature
--Long life, energy saving, compact, convenient installation;
  --High brightness, produce less heat, comfortable light for eyes, direct  current power supply, no stroboscopic;
  --Safe, reliable, aluminum alloy housing, shockproof, Anti-aging,  flame-retardant, anti-static;
  --Homogeneous light, brightness adjustable, achieve the ideal effect of  observation, it is an ideal of monocular microscope light source;
  --USB power supply, make your work more convenient and high efficient.


Hardware Configuration
Lamp Power
<3W
Input Voltage
DC 5V
Illumination Adjustment ModeLinear Adjustment ( 0~100 )
Working Distance80~230mm
The Brightness On The Center≥15000LX(Height 100mm)
LED Quantity16 pcs High Light White Lamp
LED Diameter
5mm
Colour Temperature5600K
Diameter Of Lens-mount
Max Φ48mm
Power Supply Interface

USB-A Mount

Operating Environment
Operating Temperature0℃~ 40℃
Storage Temperature-20℃~ 60℃
Operating Humidity30~80%RH
Storage Humidity10~60%RH
