Cooled CCD Camera,1.4M
Cooled CCD Camera,1.4M

A59.3802

Like Favorites

Cooled CCD Camera,1.4M

Quantity：

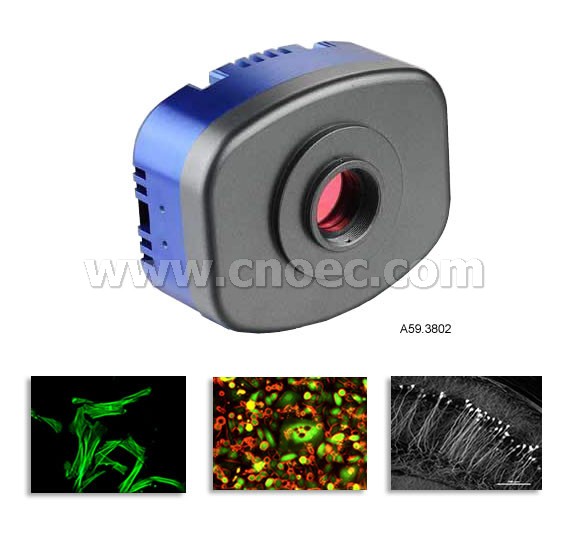

A59.3802 Cooled CCD Camera
Specification
A
B
C
D
CCD chip Manufacturer
Sony
CCD Scan Mode
Progressive scan.
Resolution
1360H x 1024V
Maximum fps
12.5fps(1360 x 1024) 15fps(680*520)
CCD chip Model
ICX205ALICX205AKICX285ALICX285AQ
CCD size
1/2"CCD2/3"CCD
G sensitive
450mV400mV1300 mV1240 mV
Pixels
4.6 micron x 4.6 micron6.45 micron x 6.45 micron
Filter
MonoColorMonoColor
Power
3.5V12V
Gain
-Hardware gain adjusting
Angle Light Prohibition
NoYesNo
White Balance
Automatic、Manual
Parameter
Image size、bright、gain、exposure time、RGBImage size、bright、gain、exposure
Peltier Cooled
-30℃ below ambient-45℃ below ambient
Filter
R,G,B
Lens Interface
Standardf C-mount
Exposure Control
Automatic/Manual
Exposure Time
1ms-60min
Low Speed Readout
Yes
A/D conversion
12 bit
Fan
30x30/5000rpm
Data Interface
USB2.0/480Mb/s
USB cable
2.5 meters
Supply Electricity
USB2.0
Dimension
100mm*81mm*48mm (H*B*T)
Storage Temperature
-20-70℃
Operational Temperature
0-60℃
Weight
480g
Operational Humidity
45%-85%
Certificate
CE
