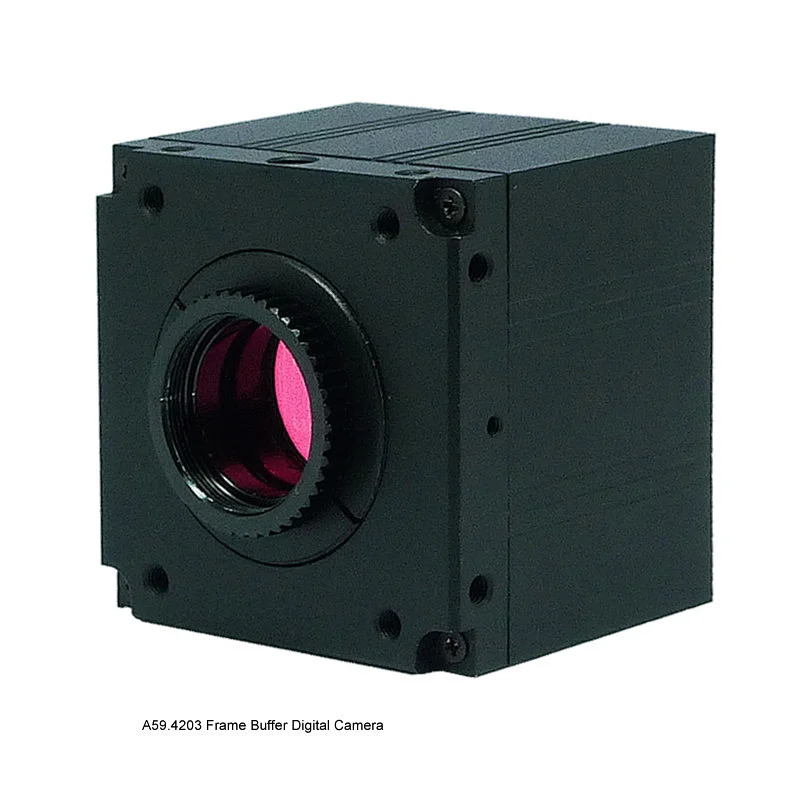

A59.4203 Frame Buffer Series
products developed in 2009. continue with USB2.0 interface, camera, using high-capacity
internal SDRAM, data exist to SDRAM and then spread to PC, make the product
significantly reduces the computer configuration requirements, and can access
multiple cameras in a computer use, high product stability. This series of products
can reach 9 million maximum pixel.
A59.4203-A Full range of
products are used SONY CCD imaging sensors with high sensitivity, good color
reduction degree, many advantages of higher image quality. It is worth mentioning
that, CCD products for dynamic snapshot. This series of products continue to
use the USB2.0 interfaces.
Applications: assembly line piece-line detection, license plate recognition
capture, microscopic image acquisition and many other fields.

Specification | A59.4203-1.4C | A59.4203-1.4M |
|---|---|---|
| Pixels | 1.4M | 1.4M |
Senser | Color 1/2"Sony CCD | Black&White 1/2"Sony CCD |
ImageResolution | 1360*1024 | 1360*1024 |
| Pixel Size | 4.65umx4.65um | 4.65umx4.65um |
| Frame Rate | 15FPS | 15FPS |
| SN Ratio | ||
| Dynamic Range | ||
| Sensitivity | ||
| Data Bit | ||
| Exposure mode | Global Shutter | Global Shutter |
| I/Ocontrol | 2way Input, 1way Output | 2way Input, 1way Output |
| Lens mount | C、CS | |
| Output | USB 2.0 | |
| Exposure time | 1/15000s~2s | |
| Programmable control | Image resolution, RGB gain, exposure time, contrast, Gamma, image flip, raw data | |
| Other | Auto/manual white balance, regional white balance, auto black balance, remove dead pixel function, intensity balance, user-defined hardware encryption | |
| Software | Support DSHOW、TWAIN, OCX, SDK, Labview; Free measurement software | |
| Operating system | Support Windows 2000、Windows XP、Windows, Vista、Windows7 Support 32-bit and 64-bit operating system | |
| Power supply | USB power supply | |
| Power | 3.0W | 3.0W |
| Size | 62*62*57mm | |
| PCB Board | 50*50mm | |
