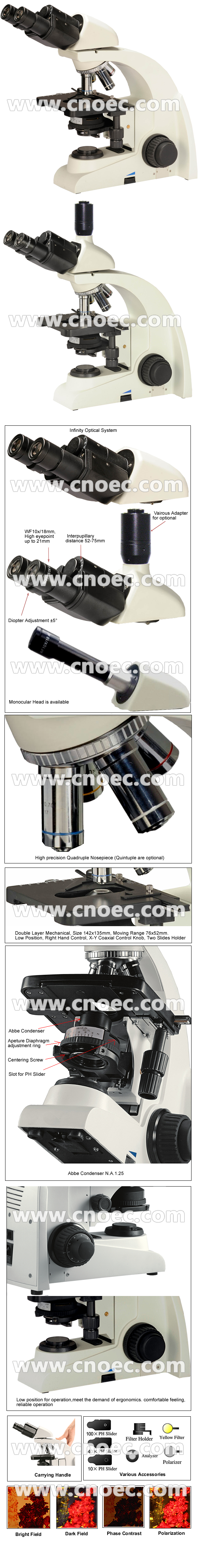

Specification | A12.2701-A | A12.2701-B | |
|---|---|---|---|
| Head | Binocular head,30° inclined, 360° rotatable, interpupillary distance 52-75mm, ±5 diopter adjustment | Trinocularhead,30° inclined, 360° rotatable, interpupillary distance 52-75mm, ±5 diopter adjustment | |
| Eyepiece | WF10x/18mm, high eyepoint up to 21mm | ||
| Objective | Infinity achromatic objective 4x/0.13, 10x/0.30, 40x/0.70 (s),100x/1.25 (s, oil) | ||
| Focus System | Low positioned, coaxial coarse & fine focusing system with an adjustable tension control and upper limit stop, coarse 14mm/rot, fine 0.1mm/rot, minimum reading 1μm on left-side fine knob, moving range 20mm | ||
| Nosepiece | Quadruple,reversed type with positive click stops | ||
| Stage | Double layer mechanical stage, size 142x135mm, moving range 76x52mm. low position, right hand control, X-Y coaxial control knob, two slides holder | ||
| Condenser | Abbe N.A.1.25 with iris diaphragm and with socket for phase contrast / dark field slider, centering adjustable,height adjustable,color-coded diaphragm scale marking corresponded with the objectives of different power | ||
| Filter | Blue filter Φ32, (Not available for LED illumination) | ||
| Light Source | 6V 20W Halogen lamp, brightness adjustable, Kohler type without field diaphragm | ||
| Power Supply | 100-240V Wide power range, CE certified | ||
| Adapter | 1x C-Mount | ||
A12.2701 Laboratory Microscope Optional Accessories | Item No. | ||
| Head | Binocular head,30° inclined, 360° rotatable, interpupillary distance 48-75mm, ±5 diopter adjustment | A53.2702-3A | |
| Trinocular head,30° inclined, 360° rotatable, interpupillary distance 48-75mm, ±5 diopter adjustment | A53.2704-3A | ||
| Eyepiece | WF10x/20mm, plan, high eyepoint up to 21mm | A51.2701-10B | |
WF16x/13mm,plan high eyepoint up to 21mm | A51.2701-1613 | ||
WF10x/18mm, plan eyepiece with pointer | A51.2702-10 | ||
WF10x/20mm plan eyepiece with pointer | A51.2702-10B | ||
WF10x/18mm plan reticule eyepiece | A51.2703-10 | ||
WF10x/20mm Reticule Eyepiece | A51.2703-10B | ||
Infinity Plan Achromatic Objective | 4X/0.13 ∞/0.17,WD12.31 | A52.2706-04C | |
10X/0.30 ∞/0.17,WD4.00 | A52.2706-10C | ||
20X/0.45 ∞/0.17,WD1.24 | A52.2706-20C | ||
40X/0.70 ∞/0.17,WD0.29 (Spring) | A52.2706-40C | ||
60X/0.80 ∞/0.17,WD0.40 (Spring) | A52.2706-60C | ||
100X/1.25 ∞/0.17,WD0.09 (Spring,Oil) | A52.2706-100C | ||
| Stage | Upgrade To double layer mechanical stage, size 156x138mm, moving range 76x54mm | A54.2701-2B | |
| Nosepiece | Upgrade to Quintuple,reversed type with positive click stops | A54.2705-A1 | |
| Light Source | Upgrade to LED 3W set (brightness adjustable) | A56.2705-E | |
Upgrade to LED 3W set including rechargeable battery (brightness adjustable) | A56.2705-EC | ||
| Reflected mirror | A56.2708 | ||
| 6V20W Halogen bulb (Osram) | A56.2703-20B | ||
3W LED bulb | A56.2705-3A | ||
| Filter Φ32mm | Green filter | A56.2706-G1 | |
Yellow filter | A56.2706-Y1 | ||
Frosted glass | A56.2706-F1 | ||
| Polarizing Attachment | Analyzer | A5P.2701-A | |
Polarizer | A5P.2701-P | ||
| Dark Field Attachment | Dark field condenser (Dry) | A5D.2701-D | |
Dark field condenser (Immersion) | A5D.2701-I | ||
Dark field slider | A5D.2701-S | ||
| Phase Contrast Attachment | Centering telescope | A5C.2710-C | |
Phase contrast slider, for infinity phase contrast achromatic objective | 10x | A5C.2712-10 | |
| 40x | A5C.271240 | ||
| 100x | A5C.2712-100 | ||
| Phase contrast slider, for infinity phase contrast plan achromatic objective | 10x | A5C.2712-10P | |
| 20x | A5C.2712-20P | ||
| 40x | A5C.2712-40P | ||
| 60x | A5C.2712-60P | ||
| 100x | A5C.2712-100P | ||
| Infinity phase contrast achromatic objective, positive | 10x | A5C.2720-10P | |
| 40x | A5C.2720-40P | ||
| 100x (s,oil) | A5C.2720-100P | ||
| Infinity phase contrast achromatic objective, negative | 10x | A5C.2720-10N | |
| 40x | A5C.2720-40N | ||
| 100x (s,oil) | A5C.2720-100N | ||
| Infinity phase contrast plan achromatic objective, positive | 10x | A5C.2722-10P | |
| 20x | A5C.2722-20P | ||
| 40x | A5C.2722-40P | ||
| 60x | A5C.2722-60P | ||
| 100x (s,oil) | A5C.2722-100P | ||
| Infinity phase contrast plan achromatic objective, negative | 10x | A5C.2722-10N | |
| 20x | A5C.2722-20N | ||
| 40x | A5C.2722-40N | ||
| 60x | A5C.2722-60N | ||
| 100x (s,oil) | A5C.2722-100N | ||
| Adapter | 1.0x C-Mount | A55.2701-10 | |
| 0.5x C-Mount | A55.2701-05 | ||
| 0.25x C-Mount | A55.2701-25 | ||
| for digital eyepiece (to be used on trinocular tube) | A55.2701-8 | ||
| Digital camera adapter, (Need to know camera model number) | A55.2702-2 | ||
