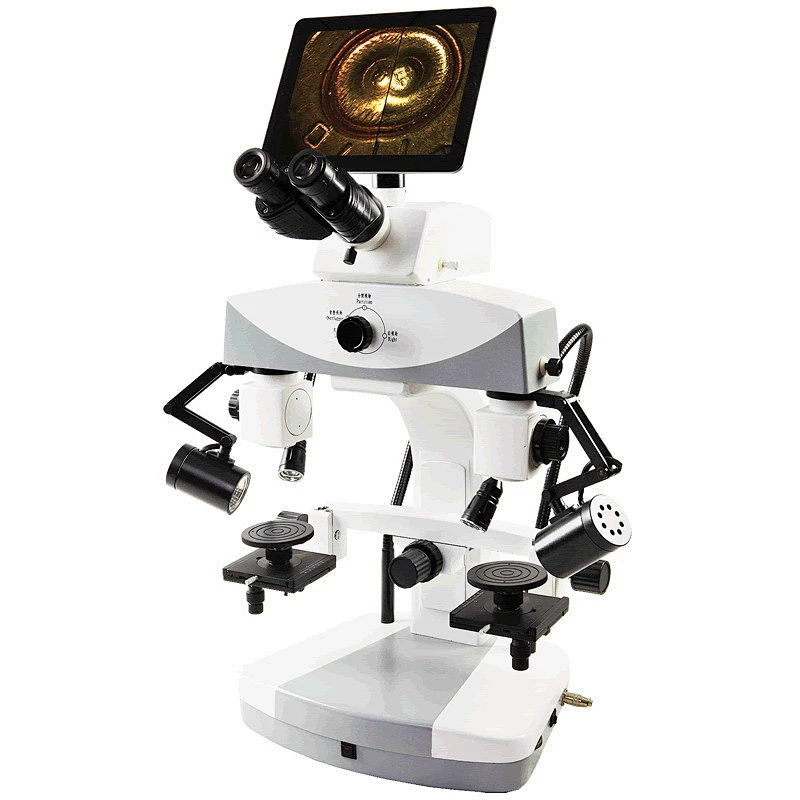

A18.1845-LCD Forensic Comparison MicroscopeSpecification | ||
| LCD Pad | 9.7''LCD Pad Digital Camera, Android System, | |
Magnification | 2.5x~160x | |
Head | Bionocular Head, 30° Incline, Interpupilary Distance 50~75mm, Diopter +/-5 Adjustable | |
| Eyepiece | WF10x/23mm, High Eyepoint | |
WF20x/12mm, High Eyepoint | ||
Objective | 5 StepZoom Plan Objective0.64x, 1.0x, 1.6x, 2.5x, 4.0x | |
Auxiliary Lens 0.4x, 2.0x | ||
Working Distance | 100mm | |
View Field | Dia.2.0~90mm | |
Magnification Correcting | Magnification Correction System, with Correcting Lens | |
Separation Line Adjusting | Seperation Line Adjust System in Back, with Special Designed Adjust Driver | |
Working Stage | Square Manual Working Stage 100*100mm, Moving Range 54*54*54mm | |
| Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable | ||
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm | ||
Light Source | 5W LED Warm Light, High Brightness, Brightness Adjustable | |
5W LED Cold Light, High Brightness, Brightness Adjustable | ||
Coaxial Light Lens, to observe in deep hole, or smooth object surface | ||
Polarizing Light Lens, to eliminate flare lights and dazzling lights; | ||
| Transmit Bottom Light | ||
| Ultraviolet Light Lens | ||
Filters: Red, Blue, Yellow, Green | ||
Adapter | CCD Adapter | |
| Photo Adapter for SLR Digital Camera | ||
Power | 80~240V Wide Range Voltage | |
Dimension | Instrument Size 38*31*85cm | |
