Metallurgical Microscope

A13.1019

Like Favorites

Metallurgical Microscope


Quantity:

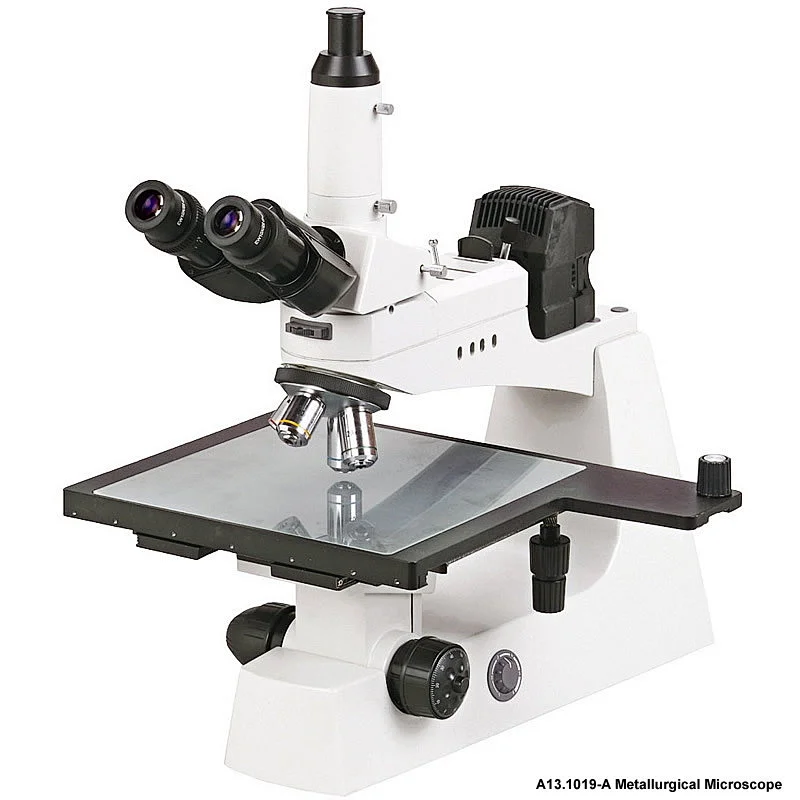

A13.1019 Metallurgical Microscope
A
B
SystemInfinity Optical System
HeadSeidentopf Trinocular
Eyepiece

EW10x/22mm, Extra Wide Field

NosepieceQuadruple
o
Quintuple
o
ObjectiveInfinity Plan Long Working Distance Achromatic Objective
--4x/ 0.1/ ∞/-
--10 x/0.25/ ∞/-
--20x/ 0.4/ ∞/-

--40x/ 0.6/ ∞/0
o
Infinity Plan Long Working Distance Achromatic Objective
5x/0.12/ ∞/-
10 x/0.25/ ∞/- (BF/DF)
20x/ 0.4/ ∞/-(BF/DF)
50x/0.75/ ∞/-
100x/0.80/ ∞/0
o
FocusingCoaxial Coarse & Fine Adjustment, Range24mm
Working Stage Large Working Stage Size 300*268mm, Extra Large Moving Range 250*250mm, Fast Movement, Precision Adjustment
Illumination6V/ 20W Halogen Lamp, Brightness Adjustable
o
24V/100W Halogen Lamp, Brightness Adjustable, With Dark Field
o
FilterGreen, Blue,Yellow, Ground glass
Optional Accessories
PolarizingSimple Polarization Set, Analyzer and PolarizerA5P.1004
AdapterC mountA55.1002
