Motorized Comparsion Microscope, 3.2x~320x
Motorized Comparsion Microscope, 3.2x~320x
Motorized Comparsion Microscope, 3.2x~320x

A18.1822

Like Favorites

Motorized Comparsion Microscope, 3.2x~320x


Quantity:

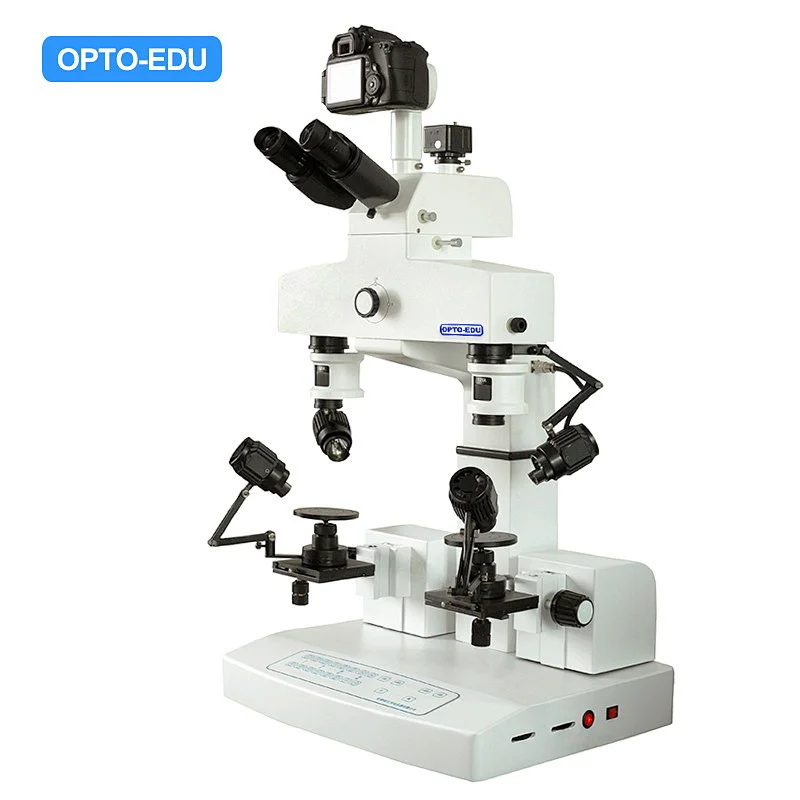

A18.1822 Motorized Comparsion Microscope
Total Magnification3.2x-320x
HeadBinocular 45° Inclinded, 48-75mm
EyepieceWF10X/22mm, WF16X/13mm, WF20X/12mm
ZoomDual Bridge Zoom 1x/1.6x
ObjectiveWhen The Bridge Zoom Is 1x,  5 Step Zoom Lens 0.8x,1.25x,2x,3.2x,4.8x
When The Bridge Zoom Is 1.6x,  5 Step Zoom Lens 1.28x,2x,3.2x,5x,8x
Auxiliary Lens0.4x.2.0x
View FieldFull Left, Full Right, Split Image, Overlapping Image
Working StageManual Adjustment Range: X-55mm, Y-55mm, Z-55mm, Round Stage Size:Φ90mm
Motorized Adjustment Range: X-50mm, Y-50mm, Z-50mm
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm
Working Distance102mm
BridgeMotorized Joint Up/Down Range 0-150mm
Light SourceDual Light 5W LED
Coaxial Light
Polarizing Light
UV Filter And Red/Yellow/Blue/Green Filter
Camera3.0M Digital Camera, Photo Adapter For Cannon SLR
Adapter0.5x C-Mount
Function PanelTouch Type, User-Friendly Design, Easy To Operate And Accurate
PowerPower Supply 80-240V
