- Place of Origin:CN;BEI
- Drawtube:Trinocular
- Theory:Biological Microscope
- Brand Name:OPTO-EDU
- Model Number:A11.1316-T

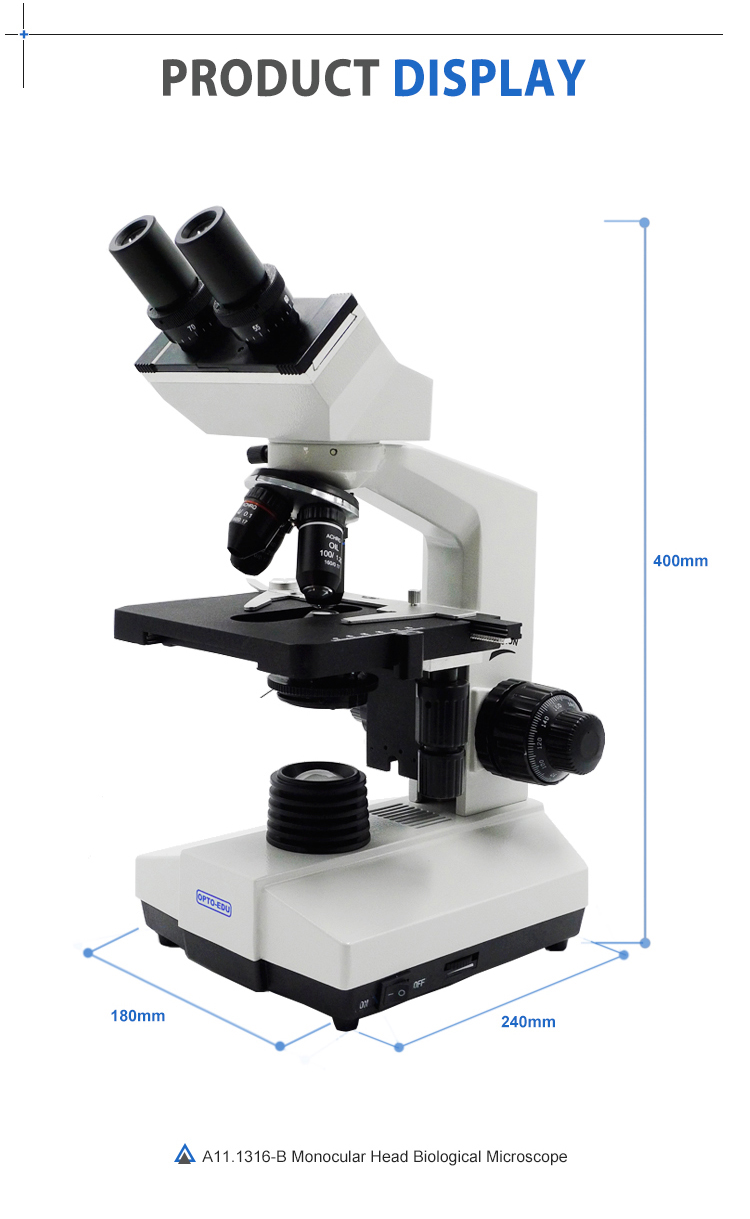

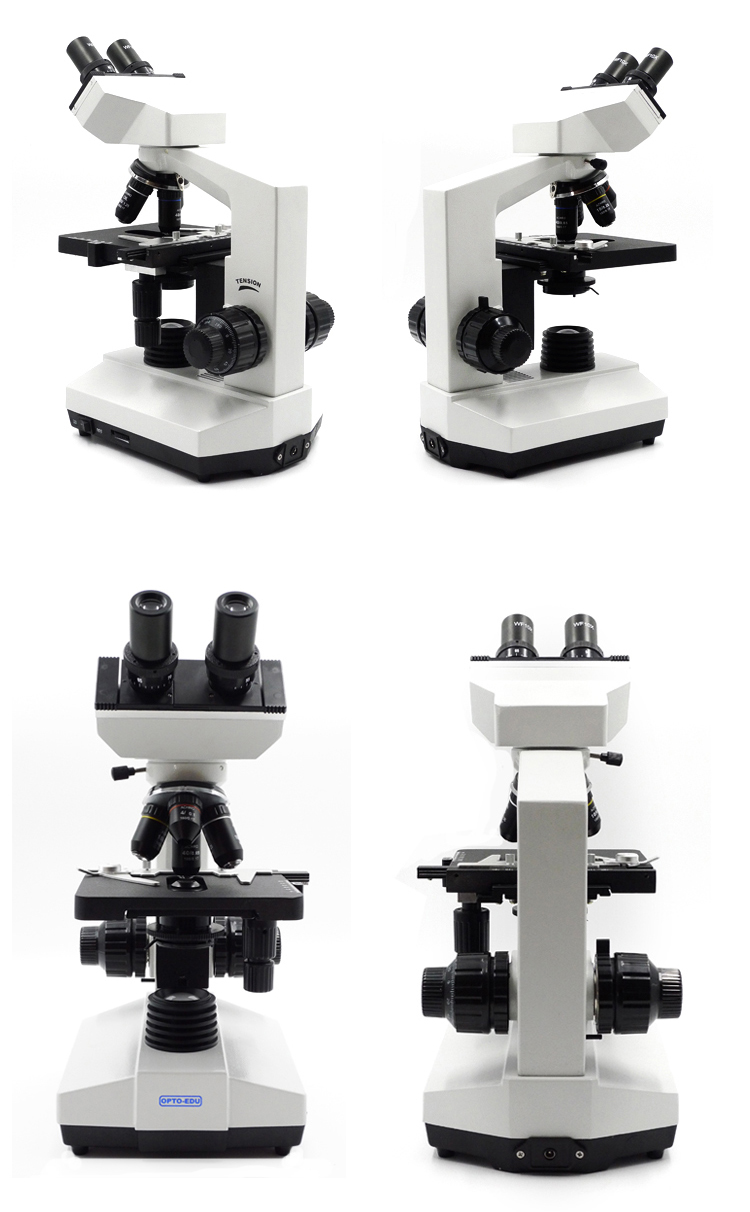

OPTO-EDU A11.1316-T 1600x Trinocular Optical Biological student Microscope

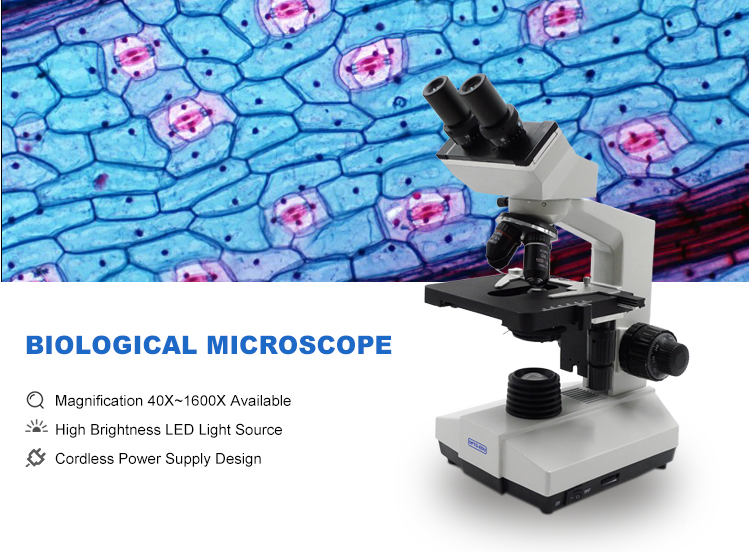

A11.1316 is the best value entry level biological microscope, especially appreciated when budget is limited. All models are equipped with an integrated X-Y mechanical stage are supplied with an Abbe N.A. 1.25 condenser. Optional WF16X, WF20X eyepiece enable utmost 2000X optical magnification.
| A11.1316 Biological Microscope | M | B | T | |

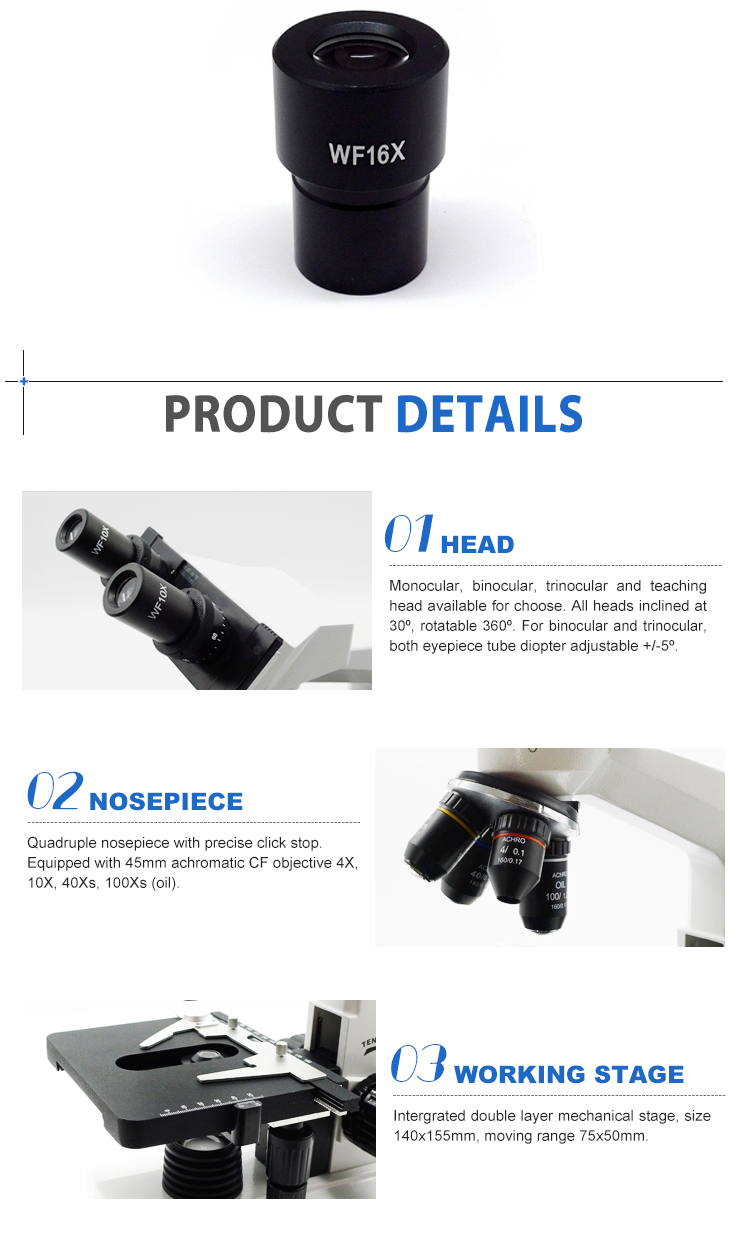

| Head | Monocular Head, 30° Inclined, 360° Rotatable | √ | ||
| Sliding Binocular Head, Interpupillary Distance: 55-75mm, 45° Inclined, 360° Rotatable, Left & Right Diopter Adjustable | √ | |||
| Sliding Trinocular Head, Interpupillary Distance:55-75mm, 45° Inclined, 360° Rotatable, Left & Right Diopter Adjustable | √ | |||
| Eyepiece | Wide Field Plan WF10X | √ | √ | √ |
| Objective | Achromatic 4X | √ | √ | √ |
| Achromatic 10X | √ | √ | √ | |
| Achromatic 40X(S) | √ | √ | √ | |
| Achromatic 100X(S,Oil) | √ | √ | √ | |
| Nosepiece | Quadruple Nosepiece | √ | √ | √ |
| Stage | Double Layers Mechanical Stage 140X155mm/75X50mm | √ | √ | √ |
| Condenser | Abbe Condenser N.A.1.25, Φ2-Φ30mm Iris Diaphragm, with Φ32 Filter Holder | √ | √ | √ |

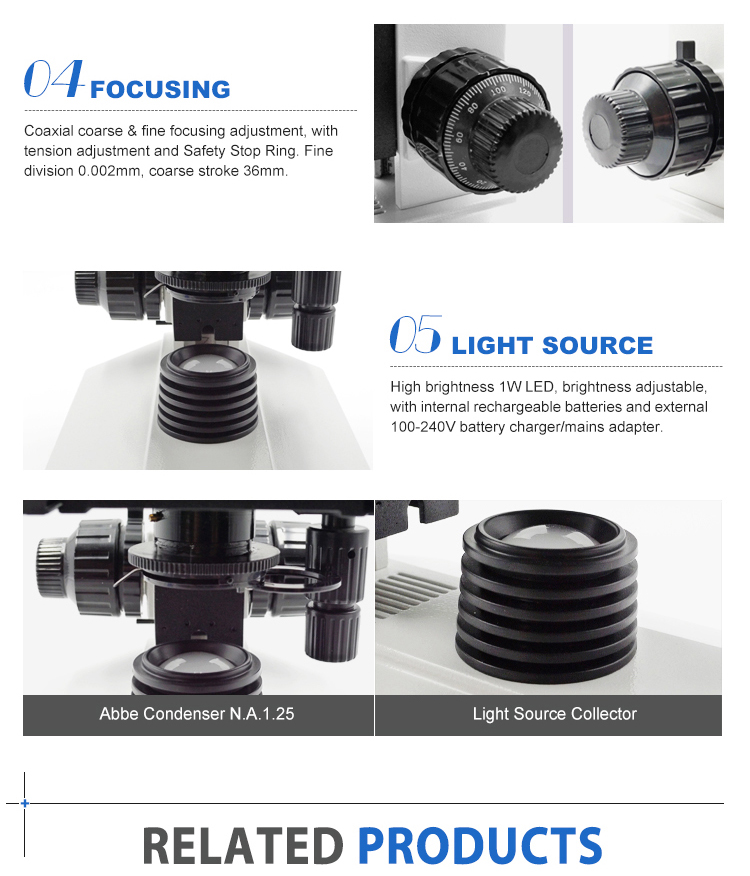

| Focusing | Coaxial Coarse & Fine Focusing Adjustable Mechanism 25mm, Precision 0.002mm | √ | √ | √ |
| Light Source | LED Lamp 1W, Brightness Adjustable | √ | √ | √ |
| Weight | Gross Weight 7Kg, Net Weight 6Kg | √ | √ | √ |
| Package | 1 Set/ Carton, 33cm*28cm*43cm, Wood Cabinet Is Optional | √ | √ | √ |
| A11.1316 Optional Accessory | ||
| Eyepiece | Wide Field Plan WF16X | A51.1303-16 |
Biologicalmicroscope is widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects.
OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
