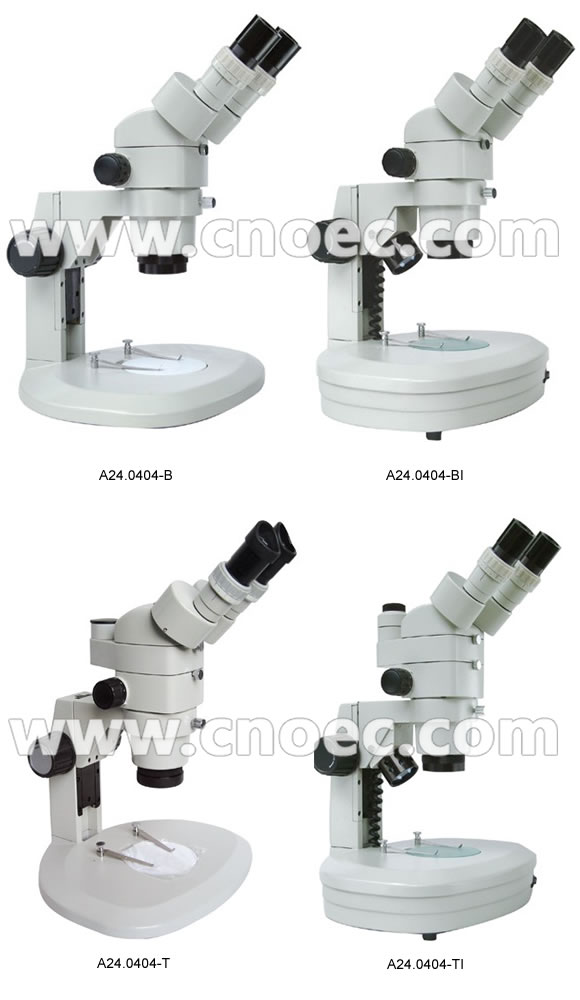

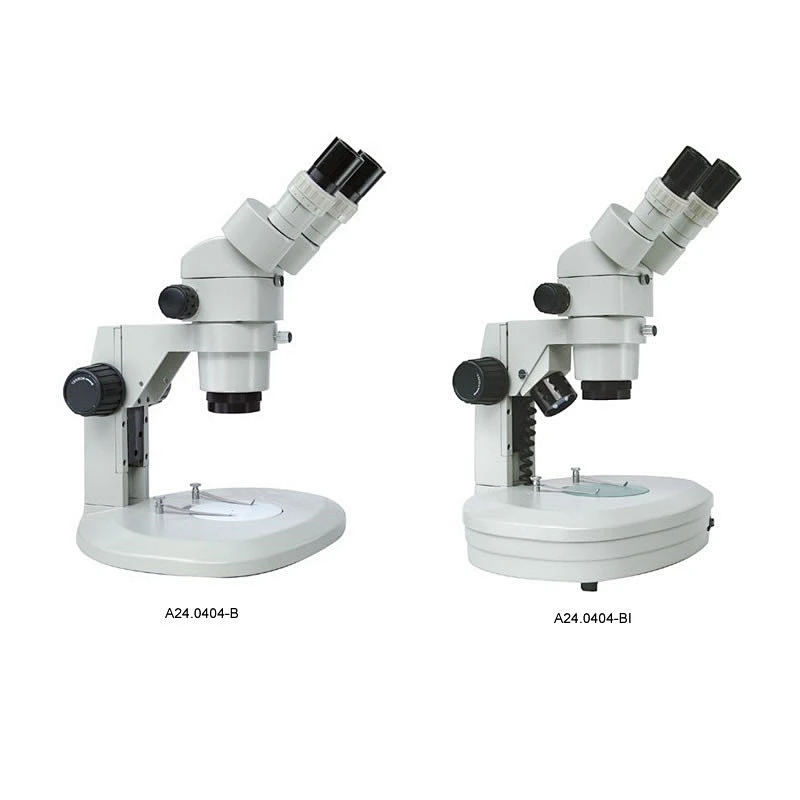

A23.0404Zoom Stereo Microscope | B | BI | T | TI | |
|---|---|---|---|---|---|
Head | Binocular head, 45° Inclined interpupillary distance: 48-75mm, diopter adjustment: ±5 diopter | o | o | ||
| Trinocular head, 45° Inclined interpupillary distance: 48-75mm, diopter adjustment: ±5 diopter | o | o | |||
Eyepiece | SWF10x/22mm | ||||
| Zoom Ratio | 1:8.3 | ||||
| Objective Zoom Range | 0.6x-5x | ||||
| Stand | Track stand | ||||
| Working Distance | 95mm | ||||
| Illumination | No light | o | o | ||
| Top halogen lamp 6v/15w, adjustable brightness | o | o | |||
| Bottom fluorescent lamp 5w | o | o | |||
| Voltage Inpu | 110V/60HZ or 220V/50HZ | ||||
A23.0404Zoom Stereo Microscope Optional Accessories | |||||
| Eyepiece | 5x | A51.0401-05 | |||
| 10x | A51.0401-10 | ||||
| 15x | A51.0401-15 | ||||
| 20x | A51.0401-20 | ||||
| 25x | A51.0401-25 | ||||
| 30x | A51.0401-30 | ||||
| Auxiliary Objective | 0.5x | A52.0405-05 | |||
| Photo Adapter | 6.3x | A55.0407-63 | |||
| 2.5x | A55.0407-25 | ||||
| CCD Adapter | 0.3 | A55.0414-03 | |||
| 0.5x | A55.0414-05 | ||||
| 1x | A55.0414-10 | ||||
| CCD Eyepiece Adapter | A55.0416 | ||||
| Polarizing Attachment | Polarizer | A57.0402 | |||
