Polarizing Microscope

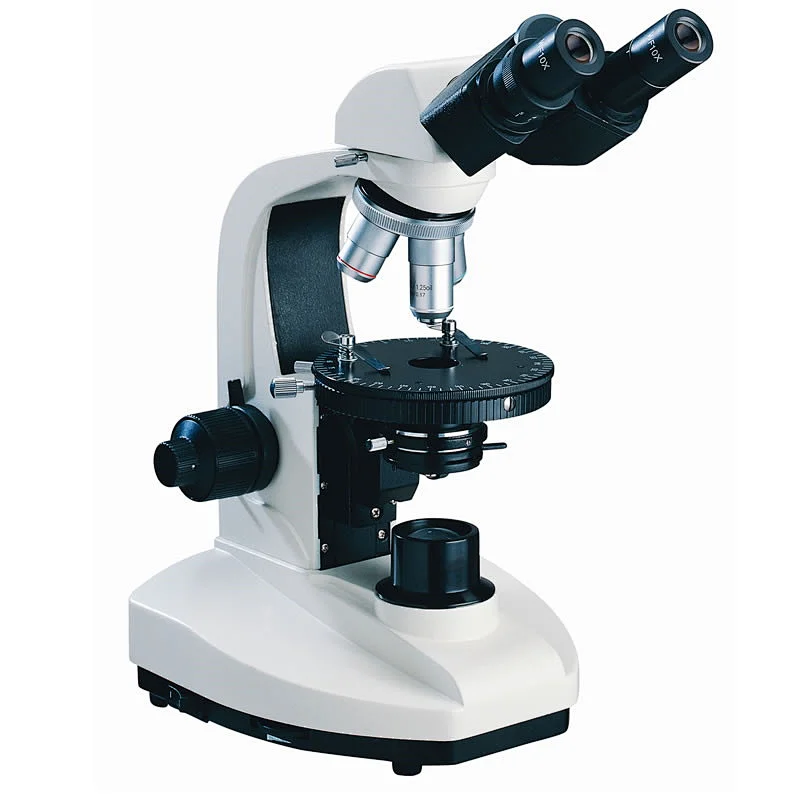

Polarizing Microscope, Transmit Light

A15.0201 Polarizing Microscope Specification

Eyepieces

WF10X/18mm Wide Field

●

Objectives

Achromatic 4X/0.10

●

Achromatic 10X/0.25

●

Achromatic 40X/0.65 (Spring)

●

Achromatic 100X/1.25(Spring,oil)

●

Head

Binocular inclination of 30°

●

Analyzer

Sliding

●

Focus System

Coaxial coarse/fine system, with tension adjustable and up stop, minimum division of fine focusing 2um

●

Nosepiece

Quadruple, backward ball bearing inner locating

●

Stage

Rotatable stage, diameter 120mm

●

Double layer mechanical stage135x125mm, moving range 75x35mm, with rotatable stage dia.100m

●

Condenser

Abbe Condenser N.A. 1.25 rack & Pinion adjustable

●

Filter

Frosted filter

●

Blue filter

●

Polarizer

360° rotatable stage

●

Collector

For illumination with halogen lamp (with field diaphragm)

●

Illumination Unit

With polarizer, 6V20w, halogen lamp, adjustable brightness

●

Optional Accessories		Item No.
Eyepiece	WF16x/11mm wide field	A51.0203-16A
Eyepiece	Dividing WF10x/18mm, 0.1mm/Div	A51.0205-10
Head	Monocular, 360°,inclination of 30°	A53.0201-5
Head	Trinocular, inclination of 30°, observe and photograph at same time	A53.0207-2
Nosepiece	Quintuple, backward ball bearing inner locating	A54.0203-1
Filter	Green filter	A56.0209-2
Filter	Yellow filter	A56.0209-3
CCD Adapter	0.4X	A55.0202-01
	0.5X	A55.0202-04
	1X	A55.0202-02
	0.5X with dividing 0.1mm/Div	A55.0202-03
Photo Adapter	2.5X/4X Change over photograph adapter with 10X viewing eyepiece	A55.0201-1
	4X Focusing photograph adapter	A55.0201-2
	MD Adapter	A55.0201-3
	PK Adapter	A55.0201-4
Adapter	Digital camera adapter CANON (A610,A620,A630,A640)	A55.0204-01
