Student Biological Microscope, Binocular

A11.1551-B

Like Favorites

Student Biological Microscope, Binocular

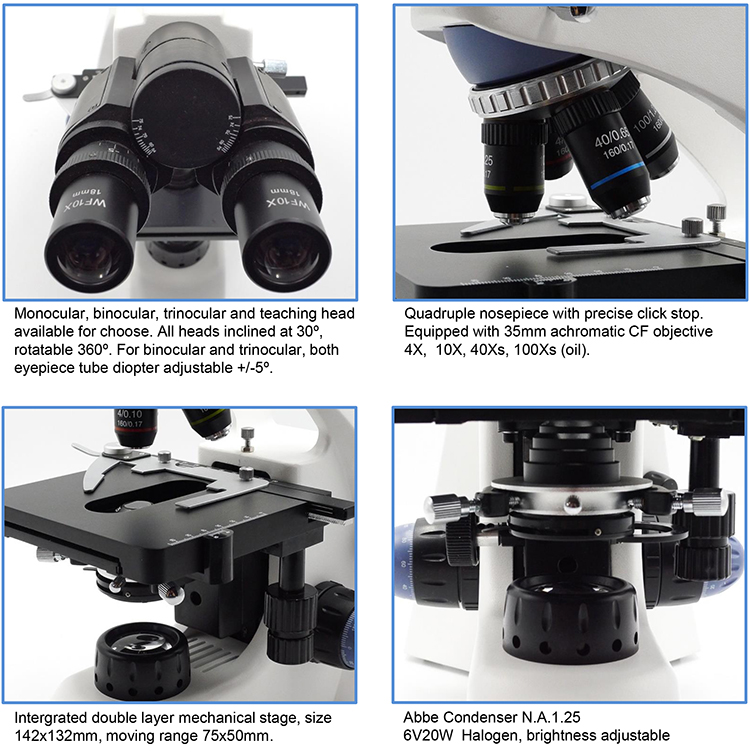

Monocular, Binocular, Trinocular And Teaching Head Available For Choose.
Quadruple Nosepiece With Precise Click Stop.
Intergrated Double Layer Mechanical Stage, Size 142x132mm, Moving Range 75x50mm.
Abbe Condenser N.A.1.25，6V20W Halogen, Brightness Adjustable
Infinity Plan and Achromatic Optical System Available

Specification:

Student Biological Microscope, Monocular

A11.1551-M

Student Biological Microscope, Trinocular

A11.1551-T

A11.1551-B

A11.1551 Biological Microscope
Model	A11.1550-M	A11.1550-B	A11.1550-T
Optical System	Finity Optical System, Achromatic
Head	Monocular Viewing Head	Seidentopf Binocular Head	Seidentopf Trinocular Head
	Inclined at 30º, 360º Rotatable	Inclined at 30º, 360º Rotatable	Inclined at 30º, 360º Rotatable
Eyepiece	Wide Field Eyepiece WF10X/18mm
Objective	Achromatic Objectives 4X 10X 40Xs 100Xs(oil)
Nosepiece	Quadruple Nosepiece
Condenser	Abbe Condenser N.A. 1.25 With Diaphragm, Filter
Focusing	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 36mm With Tension Adjustment
Stage	Double Layer Mechanical Stage 142X132mm, Moving Range 75X50mm
Illumination	6V/20W Halogm Lamp,Brightness Adjustable
Adapter	N/A	N/A	Eyepiece Tube Adapter
A11.1551 Biological Microscope Optional Accessories
Eyepiece	Wide Field Eyepiece WF16X/13mm		A51.1503
	Wide Field Eyepiece WF20X/11mm		A51.1503
Objective	Plan Achromatic CF Objectives 4X 10X 40Xs 100Xs (oil)		A52.1510
Nosepiece	Quintuple Nosepiece		A54.1502-5A
CCD Adapter	1.0x C-Mount		A55.1550-10
	0.5x C-Mount		A55.1550-05
Illumination	3W LED Brightness Adjustable, Rechargeable, Without Batteries		A56.1503

More Pictures

Pictures Hide Same Show Difference
Model No.	A11.1551-B	A11.1551-M	A11.1551-T
Video Adapter	——	——	Digital Eyepice 23.2mm
Power Supply Type	AC 110V-240V	AC 110V-240V	AC 110V-240V
Transmit Light	Halogen 6V20W or LED Optional	Halogen 6V20W or LED Optional	Halogen 6V20W or LED Optional
Light Source Type	Halogen	Halogen	Halogen
Condenser N.A.	1.25	1.25	1.25
Condenser Type	Abbe	Abbe	Abbe
Condenser Features	Filter Holder Center Adjustable Rack & Pinionↆ↑	Filter Holder Center Adjustable Rack & Pinionↆ↑	Filter Holder Center Adjustable Rack & Pinionↆ↑
Focusing Scale	0.002mm	0.002mm	0.002mm
Focusing Range	36mm	36mm	36mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw
Working Stage Moving	75*50mm	75*50mm	75*50mm
Working Stage Size	132*142mm	132*142mm	132*142mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Objective	Achromatic 4x, 10x, 40x(S), 100x(O,S)	Achromatic 4x, 10x, 40x(S), 100x(O,S)	Achromatic 4x, 10x, 40x(S), 100x(O,S)
Objective Type	Achromatic	Achromatic	Achromatic
Nosepiece Holes	4 Holes	4 Holes	4 Holes
Nosepiece Features	Inward	Inward	Inward
Eyepiece	WF10x/18mm	WF10x/18mm	WF10x/18mm
Eyepiece Diameter	23.2mm	23.2mm	23.2mm
Head Diopter	Both Tube Adjustable	——	Both Tube Adjustable
Head Interpupillary	54~75mm	54~75mm	54~75mm
Head Rotation	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Inclination	30°	30°	30°
Head Type	Sedentopf Binocular	Monocular	Seidentopf Trinocular
Standard Magnification	40x-1000x	40x-1000x	40x-1000x
Optical System	Achromatic	Achromatic	Achromatic
Standard Function	BF	BF	BF
New Product Year	2016	2016	2016

A11.1551 Instruction Manual.pdf

A11.1551.pdf
