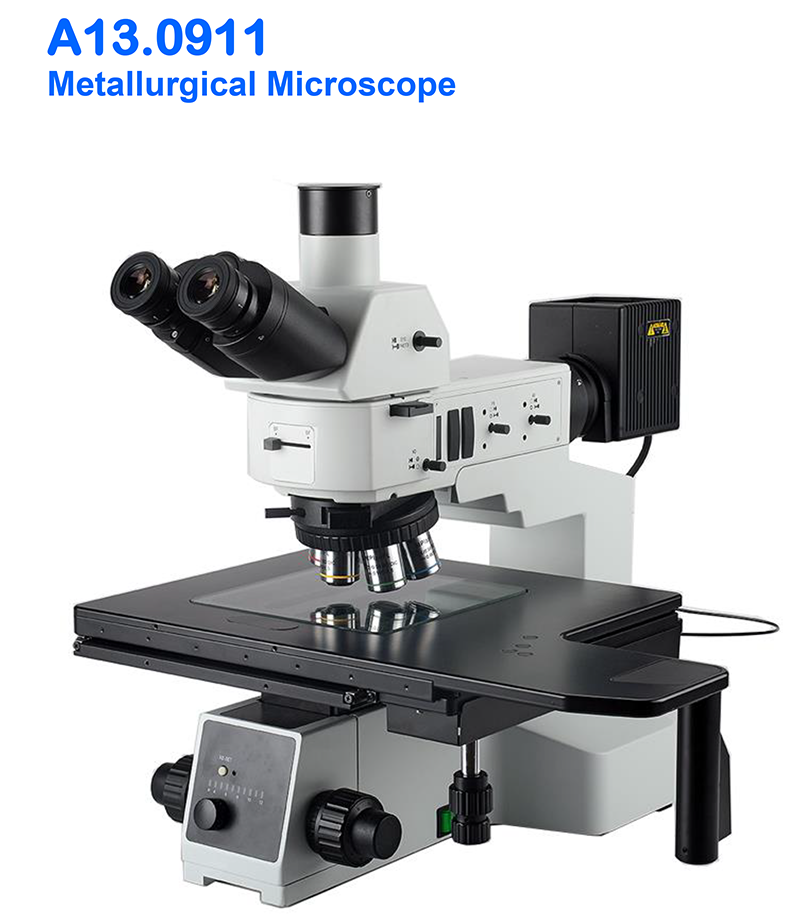

Metallurgical Microscope, 8", BF+DF+PL+DIC, Semi-APO, Reflect Light

Bright Field, Dark Field, Polarizig, DIC, Transmit & Reflect Light Metallurgical Microscope

Infinity Color Corrected Optical System With BD Semi-APO DIC Objective

6 Holes BF/DF Nosepiece, With DIC Slot, DIC Slide Optional

8" 3 Layers Stage 525x330mm, With Glass Plate, Moving 210x210mm

Transmit & Refected 12V100W Halogen, With Motorized Field Diaphragm

	Mag.	N.A.	W.D.	Cover	Confocal	Conjugate
	Mag.	N.A.	W.D.	(mm)	(mm)	(mm)
Infinity LWD BD Semi-APO DIC	20X	0.4	8.5	0	45	∞
	Mag.	N.A.	W.D.	Cover	Confocal	Conjugate
	Mag.	N.A.	W.D.	(mm)	(mm)	(mm)
Infinity LWD BDSemi-APO Metallurgical	50x	0.55	7.5	0	45	∞
Infinity LWD BDSemi-APO Metallurgical	100x	0.8	2.1	0	45	∞
	Mag.	N.A.	W.D.	Cover	Confocal	Conjugate
	Mag.	N.A.	W.D.	(mm)	(mm)	(mm)
Infinity BF Semi-APO DIC	5x	0.15	19.5	-	45	∞
	10x	0.3	10.8	-
	20x	0.5	3.2	0
	50x	0.8	1.2	0
	100x	0.9	1	0

A13.0911 Metallurgical microscope		Model.No	A13.0911
A13.0911 Metallurgical microscope		Model.No	-R	-RT	-LR	-LRT
Optical System	Infinity Color Corrected Optical System
Function	Bright Filed / Dark Field / Polarizing / DIC
Head	Erect image, 30° Inclined Gemel Trinocular Head, Interpupillary Distance: 50mm~76mm; Light Split: E100:P0 , E0:P100	A53.0913-T30E	●	●	●	●
	Inverted Image, 30° Inclined Gemel Trinocular Head, Interpupillary Distance: 50mm~76mm; Light Split: E100:P0 Or E20:P80 Or E0:P100	A53.0913-T30	○	○	○	○
	Inverted Image, 5~35° Tiltable Head, Interpupillary Distance: 50mm~76mm; Light Split: E50:P50 Or E100:P0 Or E0:P100	A53.0913-T535	○	○	○	○
Eyepiece	Plan Eyepiece PL10x/25mm Diopter Adjustable	A51.0904	●	●	●	●
Eyepiece	Plan Eyepiece PL10x/25mm Diopter Adjustable, Reticle Attachable	A51.0905	○	○	○	○
Nosepiece	BD Sextuple Nosepiece, With DIC Slot	A54.0930-RM6BD	●	●	●	●
	BD Quintuple Nosepiece, With DIC Slot	A54.0930-MX5BD	○	○	○	○
	Sextuple Nosepiece, With DIC Slot	A54.0930-RM6	○	○	○	○
	Septuple Nosepiece, With DIC Slot	A54.0930-RM7	○	○	○	○

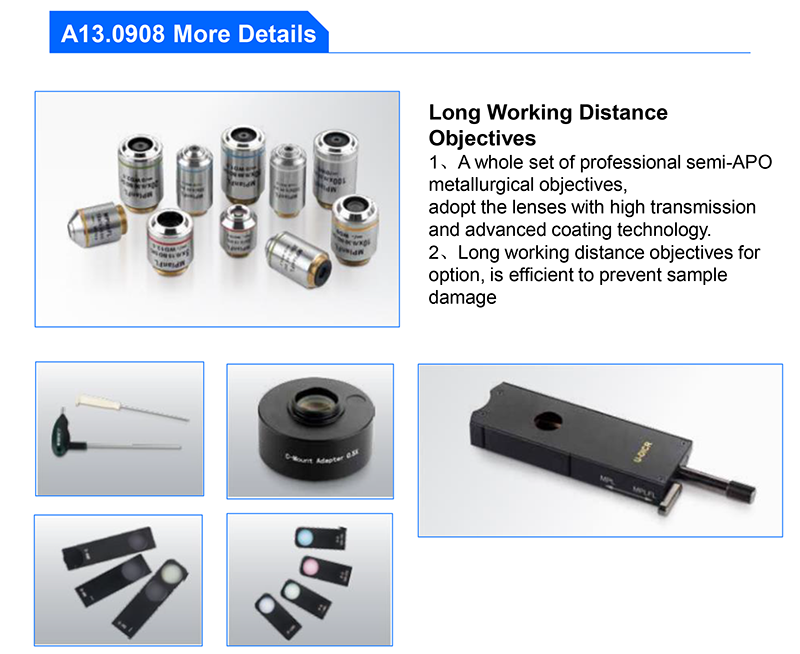

Objective	BD Semi-Apochromatic Metallurgical Objective 5x,WD=13.5, NA=0.15	A5M.0941-5	●	●	●	●
	BD Semi-Apochromatic Metallurgical Objective 10x,WD=9, NA=0.30	A5M.0941-10	●	●	●	●
	BD Semi-Apochromatic Metallurgical Objective 20x,WD=2.5, NA=0.50	A5M.0941-20	○	○	○	○
	BD Semi-Apochromatic Metallurgical Objective 20x,WD=8.5, NA=0.40	A5M.0941-20A	●	●	●	●
	BD Semi-Apochromatic Metallurgical Objective 50x,WD=1.0, NA=0.80	A5M.0941-50	○	○	○	○
	BD Semi-Apochromatic Metallurgical Objective 100x,WD=1.0, NA=0.90	A5M.0941-100	○	○	○	○
	BD Semi-Apochromatic Metallurgical Objective 100x,WD=3.5, NA=0.80	A5M.0941	○	○	○	○
	BD Long Working Distance Achromatic Metallurgical Objective 5x-DIC Lmpl5x /0.15 WD11mm	A5M.0939-5	○	○	○	○
	BD Long Working Distance Achromatic Metallurgical Objective 10x-DIC Lmpl10x/0.3 WD9.5mm	A5M.0939-10	○	○	○	○
	BD Long Working Distance Achromatic Metallurgical Objective 20x-DIC Lmpl20x/0.45 WD3.4mm	A5M.0939-20	○	○	○	○
	BD Long Working Distance Semi-Apochromatic Metallurgical Objective 50x Lmplfl50x /0.55 WD7.5mm	A5M.0938-50	●	●	●	●
	BD Long Working Distance Semi-Apochromatic Metallurgical Objective 100x Lmplfl100x /0.80 WD2.1mm	A5M.0938-100	○	○	○	○
	Semi-Apochromatic Metallurgical Objective 5x,WD=19.5, NA=0.15	A5M.0942-5	○	○	○	○
	Semi-Apochromatic Metallurgical Objective 10x,WD=10.9, NA=0.30	A5M.0942-10	○	○	○	○
	Semi-Apochromatic Metallurgical Objective 20x,WD=3.2, NA=0.50	A5M.0942-20	○	○	○	○
	Semi-Apochromatic Metallurgical Objective 50x,WD=1.2, NA=0.80	A5M.0942-50	○	○	○	○
	Semi-Apochromatic Metallurgical Objective 100x,WD=1,NA=0.90	A5M.0942-100	○	○	○	○

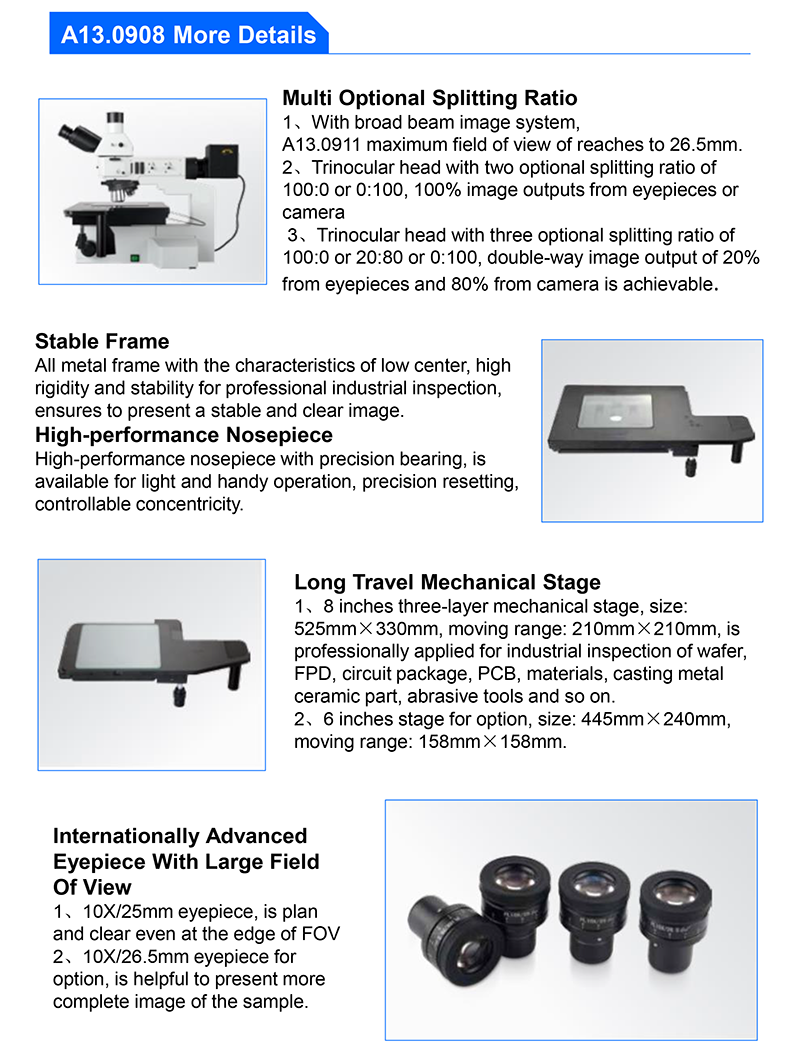

Working Stage	8 Inches Three Layers Mechanical Stage, （X;Y） Axis Coaxial Adjustment, Plat Size 525330mm, Reflected Moving Range 210210mm, Transmitted Moving Range 100mm X 100mm, Glass Plate	/	●	●	●	●
	6 Inches Three Layer Mechanical Stage With Low Position Coaxial Adjustment, Size: 445mm X 240mm, Reflected Moving Range: 158mm X 158mm, Transmitted Moving Range 100mm X 100mm; With Clutch Handle For Quick Movement; Glass Plate	A54.0944-M6RT	○	○	○	○
	Reflected Frame With Coaxial Coarse And Fine Adjustment, Coarse Adjustable Distance 33mm, Fine Precision 0.001mm, Built-In 100v-240v Wide Voltage System	/	●	/	/	/
	Reflected & Transmitted Frame With Coaxial Coarse And Fine Adjustment, Coarse Adjustable Distance 33mm, Fine Precision 0.001mm, Built-In 100v-240v Wide Voltage System, Transmitted Lamp-House With Single 5w Led. With NA0.5 Condenser.	/	/	●	/	/
	Reflected Frame With Coaxial Coarse And Fine Adjustment, Coarse Adjustable Distance 33mm, Fine Precision 0.001mm, Built-In 100v-240v Wide Voltage System, Reflected Illumination 12v/10w Led.	/	/	/	●	/
	Reflected & Transmitted Frame With Coaxial Coarse And Fine Adjustment, Coarse Adjustable Distance 33mm, Fine Precision 0.001mm, Built-In 100v-240v Wide Voltage System, Reflected Illumination 12v/10w Led. Transmitted Lamp-House With Single 5w Led. With NA0.5 Condenser.	/	/	/	/	●
	BD Reflected Illuminator With Center Adjustable Iris Aperture And Field Diaphragms, With Shift Switch Between Bright Field And Dark Field	/	●	●	●	●
Transmit Illumination	12v100w Halogen House With Philips 7724 Bulb	/	●	●	○	○
	12v/100w Halogen Bulb（Philips 7724）	A56.0923-HB12-100	●	●	○	○
	8"Wafer Holder(For 6"/8"Wafers)	A5M.0921-678	○	○	○	○
	6"Wafer Holder(For 4"/5"/6"Wafers)	A5M.0921-456	○	○	○	○
	IF-B Blue Filter ≤480nm	A5M.0949-B	○	○	○	○
	IF-G Green Filter: 520nm-570nm	A5M.0949-G	○	○	○	○
	IF-R Red Filter: 630nm-750nm	A5M.0949-R	○	○	○	○
	LBD Filter, Natural (For Halogen Illuminator)	A5M.0949-LBD	●	●	○	○
Video Adapter	0.35x C- Mount	A55.0934-35	○	○	○	○
	0.5x C- Mount	A55.0934-05	○	○	○	○
	0.65x C- Mount	A55.0934-65	○	○	○	○
	1x C- Mount	A55.0934-10	○	○	○	○
Polarizer	Polarizer & Fixed Analyzer	A5P.0913	○	○	○	○
Polarizer	Polarizer & 360° Rotatable Analyzer	A5P.0970	●	●	●	●
Other Attachment	DIC Nomarski Prism (For Objectives A5M.0941, A5M.0942)	A5M.0952	○	○	○	○
	DIC Nomarski Prism (For Objectives A5M.0939)	A5M.0948	○	○	○	○
	High Precision Stage Micrometer 0.01mm	/	○	○	○	○
	Alley Key For M4	/	●	●	●	●
	Alley Key For M5	/	●	●	●	●
	Sponge + Inner Box + Paper Carton	/	●	●	●	●
Notes:"○"for option,"●"for standard.

Pictures Hide Same Show Difference
Model No.	A13.0911-R	A13.0911-LR	A13.0911-LRT	A13.0911-RT
Optional Accessory	DIC Slide	DIC Slide	DIC Slide	DIC Slide
Camera Output	C-Mount	C-Mount	C-Mount	C-Mount
Polarizing	Polarizer & Analyzer For Reflect	Polarizer & Analyzer For Reflect	Polarizer & Analyzer For Reflect	Polarizer & Analyzer For Reflect
Dark Field	BF/DF Switch On Reflect Light	BF/DF Switch On Reflect Light	BF/DF Switch On Reflect Light	BF/DF Switch On Reflect Light
Power Supply Type	AC 110V-240V	AC 110V-240V	AC 110V-240V	AC 110V-240V
Reflect Light	Reflect Light BF/DF 12V100W Halogen, With Polarizing Set	Reflect Light BF/DF 12V100W Halogen, With Polarizing Set	Reflect Light BF/DF 12V100W Halogen, With Polarizing Set	Reflect Light BF/DF 12V100W Halogen, With Polarizing Set
Transmit Light	——	——	5W LED	5W LED
Light Source Type	Halogen	Halogen	Halogen	Halogen
Light Source Features	Halogen 100W Kohler	Halogen 100W Kohler	Halogen 100W LED 5W Transmit & Reflect Kohler	Halogen 100W LED 5W Transmit & Reflect Kohler
Focusing Scale	0.001mm	0.001mm	0.001mm	0.001mm
Focusing Range	33mm	33mm	33mm	33mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring
Working Stage	8"	8"	8"	8"
Working Stage Moving	210x210mm	210x210mm	210x210mm	210x210mm
Working Stage Size	525x330mm	525x330mm	525x330mm	525x330mm
Working Stage Type	3 Layers Mechanical	3 Layers Mechanical	3 Layers Mechanical	3 Layers Mechanical
Working Stage Features	Size ≥140x180mm	Size ≥140x180mm	Size ≥140x180mm	Size ≥140x180mm
Objective	Infinity LWD BD DIC Semi-APO Metallurgical 5x10x20x, Semi-APO 50x	Infinity LWD BD DIC Semi-APO Metallurgical 5x10x20x, Semi-APO 50x	Infinity LWD BD DIC Semi-APO Metallurgical 5x10x20x, Semi-APO 50x	Infinity LWD BD DIC Semi-APO Metallurgical 5x10x20x, Semi-APO 50x
Objective Type	Infinity Plan	Infinity Plan	Infinity Plan	Infinity Plan
Objective Features	DIC APO LWD BF+DF Covreless	DIC APO LWD BF+DF Covreless	DIC APO LWD BF+DF Covreless	DIC APO LWD BF+DF Covreless
Nosepiece Holes	6 Holes	6 Holes	6 Holes	6 Holes
Nosepiece Features	Inward With DIC Slot	Inward With DIC Slot	Inward With DIC Slot	Inward With DIC Slot
Eyepiece	PL10X/25mm, 2 pcs	PL10X/25mm, 2 pcs	PL10X/25mm, 2 pcs	PL10X/25mm, 2 pcs
Eyepiece Diameter	30.0mm	30.0mm	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm
Head Light Path	E100:P0/E0:P100	E100:P0/E0:P100	E100:P0/E0:P100	E100:P0/E0:P100
Head Interpupillary	50~76mm	50~76mm	50~76mm	50~76mm
Head Rotation	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Inclination	30°	30°	30°	30°
Head Type	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	50x-500x	50x-500x	50x-500x	50x-500x
Optical System	Key Feature, 只写最重要的几条特征, 展示在对比界面	Key Feature, 只写最重要的几条特征, 展示在对比界面	Key Feature, 只写最重要的几条特征, 展示在对比界面	Key Feature, 只写最重要的几条特征, 展示在对比界面
Features	Infinity APO DIC BF+DF	Infinity APO DIC BF+DF	Infinity APO DIC BF+DF	Infinity APO DIC BF+DF
Standard Function	BF+DF+PL+DIC	BF+DF+PL+DIC	BF+DF+PL+DIC	BF+DF+PL+DIC
New Product Year	2021	2021	2021	2021

Pictures

Hide Same

Show Difference

Model No.

A13.0911-R

A13.0911-LR

A13.0911-LRT

A13.0911-RT

Optional Accessory

DIC Slide

Camera Output

C-Mount

Polarizing

Polarizer & Analyzer For Reflect

Dark Field

BF/DF Switch On Reflect Light

Power Supply Type

AC 110V-240V

Reflect Light

Reflect Light BF/DF 12V100W Halogen, With Polarizing Set

Transmit Light

——

5W LED

Light Source Type

Halogen

Light Source Features

Halogen 100W
Kohler

Halogen 100W
LED 5W
Transmit & Reflect
Kohler

Focusing Scale

0.001mm

Focusing Range

33mm

Focusing Type

Coaxial Coarse & Fine

Focusing Features

Tension Adjustable
Safety Stop Lock Ring

Working Stage

Working Stage Moving

210x210mm

Working Stage Size

525x330mm

Working Stage Type

3 Layers Mechanical

Working Stage Features

Size ≥140x180mm

Objective

Infinity LWD BD DIC Semi-APO Metallurgical 5x10x20x, Semi-APO 50x

Objective Type

Infinity Plan

Objective Features

DIC
APO
LWD
BF+DF
Covreless

Nosepiece Holes

6 Holes

Nosepiece Features

Inward
With DIC Slot

Eyepiece

PL10X/25mm, 2 pcs

Eyepiece Diameter

30.0mm

Eyepiece Features

Diopter Adjustable
Super WF ≥23mm

Head Light Path

E100:P0/E0:P100

Head Interpupillary

50~76mm

Head Rotation

Head Rotate 360°

Head Inclination

30°

Head Type

Seidentopf Trinocular

Standard Magnification

50x-500x

Optical System

Key Feature, 只写最重要的几条特征, 展示在对比界面

Features

Infinity
APO
DIC
BF+DF

Standard Function

BF+DF+PL+DIC

New Product Year

2021
