| Chip Parameters |
| Photosensitive Chip | High-sensitivity Transillumination BSI Color Sensor |
| Pixel Level | 25M |
| Frame Format | 16:9 |
| Output Method | USB3, HDMI, 5G Wi-Fi, LAN |
| Scanning Method | Progressive Scan |
| Optical Parameters |
| Spectral Response Capability | VIS~NIR Visible Range Full Spectrum Band Response (Filtering Out Infrared Interference Above 650nm) |
| Optical Anti-reflection Technology | The Sensor Window Uses Multi-layer AR Anti-reflection Technology |
| Optical Interface | C-Mount With Adjustable Focal Length |
| Electrical Parameters |
| Dynamic Range | 75dB/14-bit Analog-to-digital Conversion |
| Video Display | 60 Frames Per Second @ 1080P, 30 Frames Per Second @ 4k |

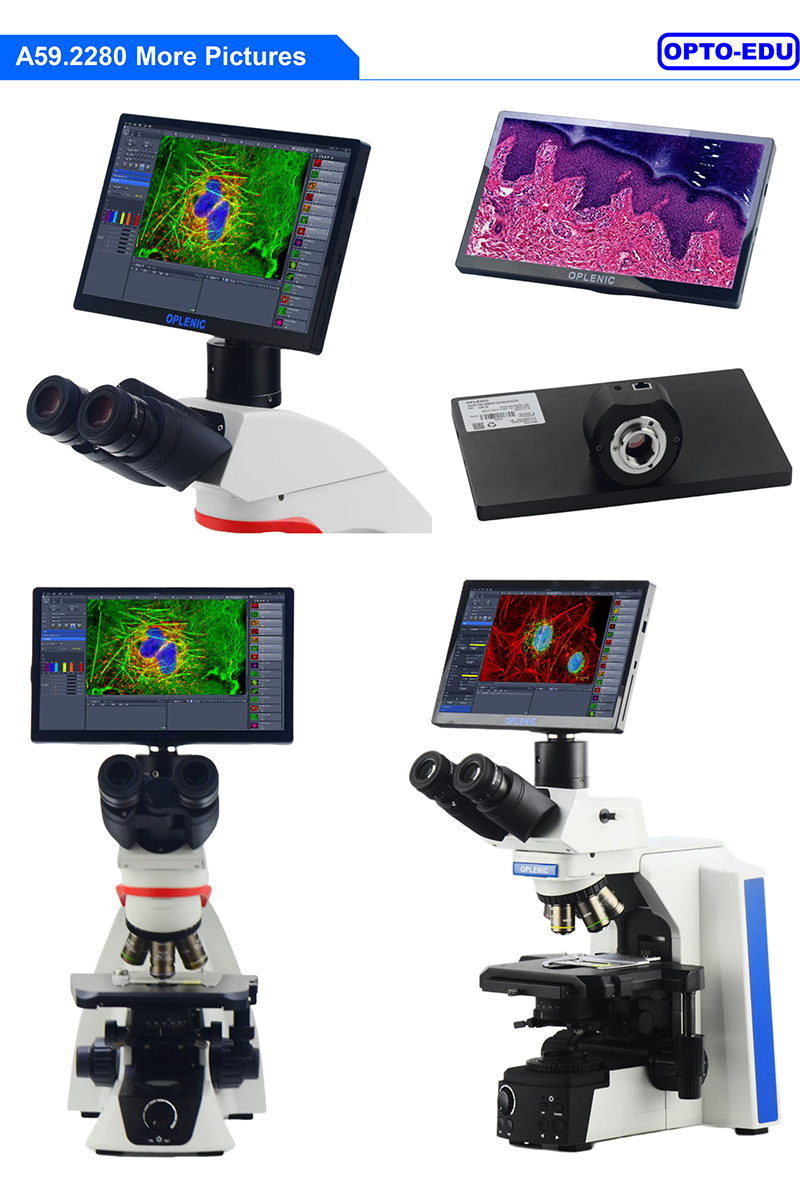

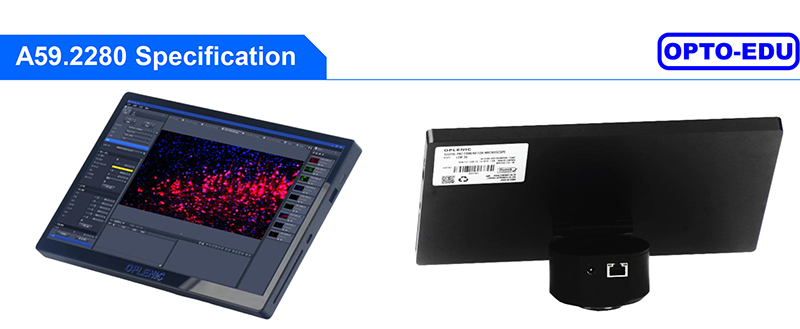

| Display and Resolution | 13.3"Ultra-thin Metal Structure IPS Wide-angle Wide Color Gamut Integrated Camera Integrated Screen |
| Exposure Control | Automatic Tracking/Manual Dual Mode |
| White Balance | Using Instrument Light D65/D50 Light Source Dedicated Color Temperature Calibration Mode |
| Color Reconstruction | OPLENIC® UItron™ Second-generation Color Engine, Color Reconstruction Engine For Microscope Color Gamut |
| Wireless Screen | Can Use HDMI High-definition Output or W-FI to Connect to The Network, Use Mobile Phone APP to Control |
| Data Transmission | HDMI High-definition Output Interface, USB3 Interface, 5GWi-Fi, LAN |
| Storage Media | SSD Memory Hard Disk Card |
| Control Parameters |
| Brightness Setting | Manual Lock/Auto, Target Value Setting, Brightness Gain Setting |
| Color Setting | Global Automatic Calibration, D65 Color Temperature Automatic Compensation, RGB Channel Saturation Correction |
| Image Quality Setting | Brightness Correction, Saturation Correction, HDR Correction |
| Anti-flicker Function | Built-in Anti-strobe Exposure Algorithm, Adaptive Recognition |
| Image Setting | Video Clarity Dynamic Sharpening, Saturation, Wide Dynamic |
| Image Noise Reduction | Built-in Video Dynamic Noise Reduction Algorithm |
| Remote Control Photography | Communication Infrared Remote Control Controls The Camera To Take Pictures, Which Can Avoid Jitter Interference When Operating The Device |
| Accessibility |

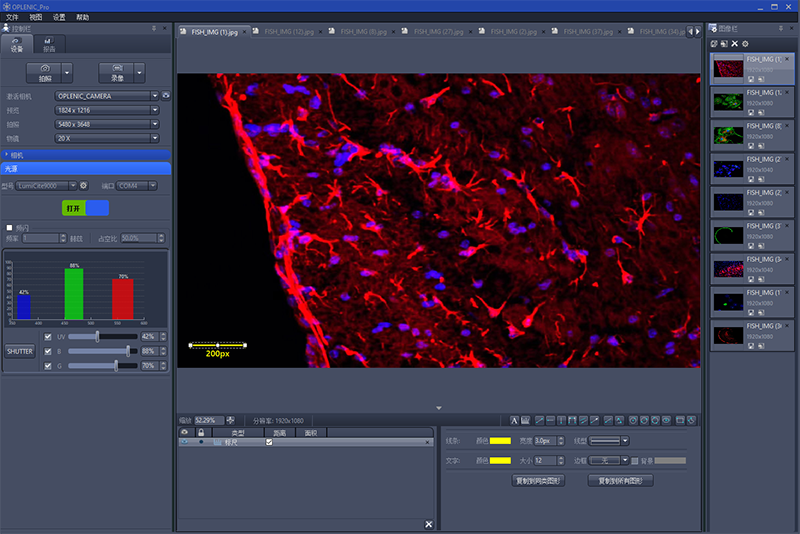

| Image Processing | Horizontal Mirror, Vertical Mirror, Measurement, Etc. |
| Auxiliary Cursor | Supports Multi-color Crosshairs |
| Time Setting | Supports Recording Date And Time |
| Language Switching | Supports Chinese And English |
| Camera Initialization Button | One-click Reset, Return To Factory Settings |
