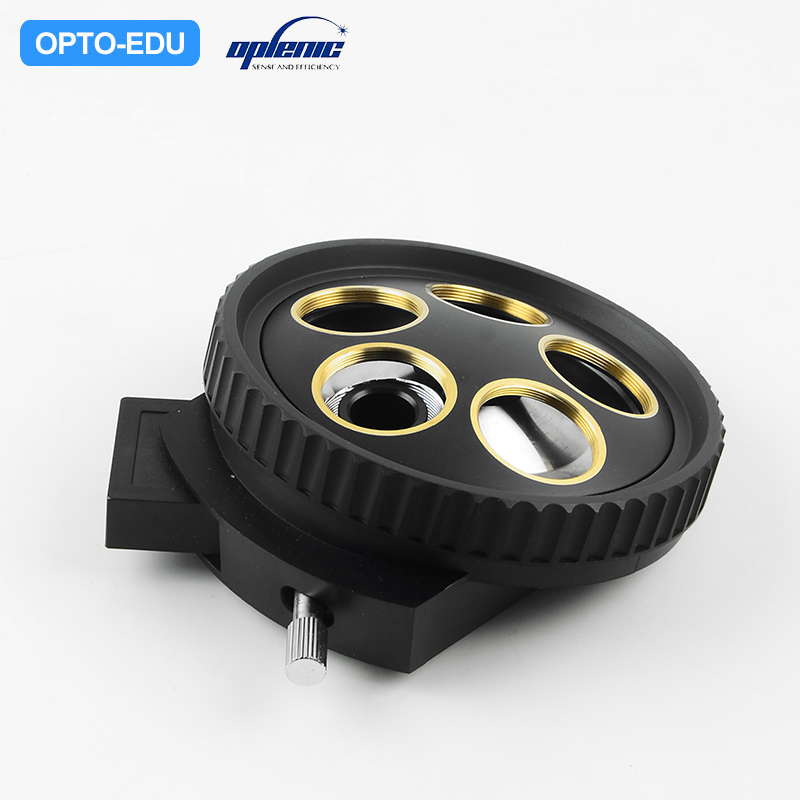

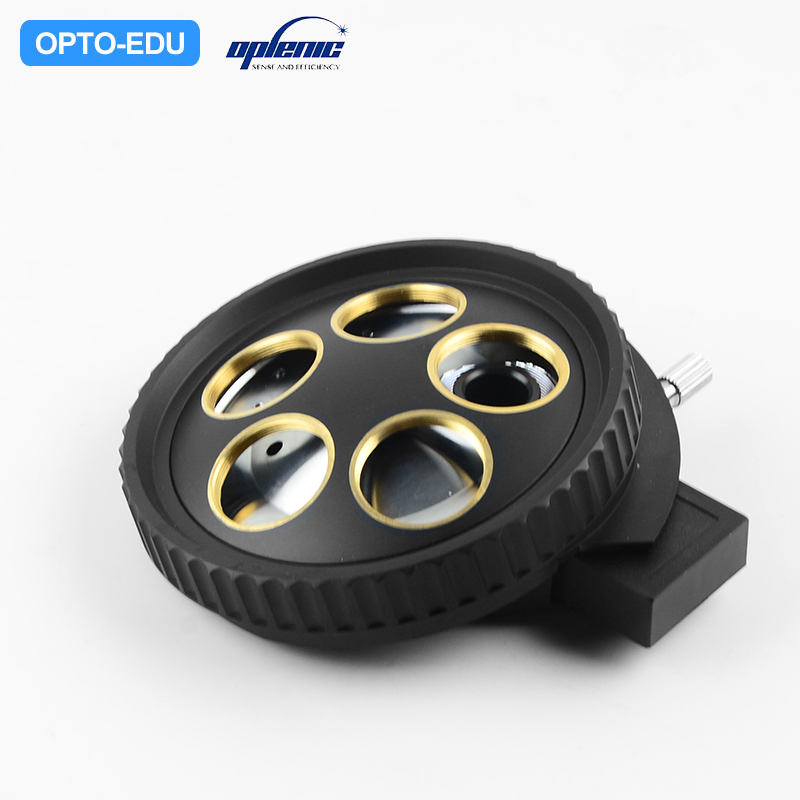

![[Objective Turret] OPLENIC® Encoded Objective Lens Converter SC3-5BDRE Five-position Precision Objective Lens Turret M26 Thread (with DIC Dlot) for Upright Microscope](https://2469193113797632-1747877232650-3038014.cdn.site.joinf.com/2469193113797632/pe5G5jJrBn.jpg?imageMogr2/thumbnail/800x800/strip/pad/1/color/I0ZGRkZGRg==/sharpen/100/format/webp/ignore-error/1/auto-orient "[Objective Turret] OPLENIC® Encoded Objective Lens Converter SC3-5BDRE Five-position Precision Objective Lens Turret M26 Thread (with DIC Dlot) for Upright Microscope")
![[Objective Turret] OPLENIC® Encoded Objective Lens Converter SC3-5BDRE Five-position Precision Objective Lens Turret M26 Thread (with DIC Dlot) for Upright Microscope](https://2469193113797632-1747877232650-3038014.cdn.site.joinf.com/2469193113797632/pe5G5jJrBn.jpg?imageMogr2/thumbnail/300x300/strip/pad/1/color/I0ZGRkZGRg==/sharpen/100/format/webp/ignore-error/1/auto-orient)
![[Objective Turret] OPLENIC® Encoded Objective Lens Converter SC3-5BDRE Five-position Precision Objective Lens Turret M26 Thread (with DIC Dlot) for Upright Microscope](https://2469193113797632-1747877232650-3038015.cdn.site.joinf.com/2469193113797632/6BnScPwTZw.jpg?imageMogr2/thumbnail/300x300/strip/pad/1/color/I0ZGRkZGRg==/sharpen/100/format/webp/ignore-error/1/auto-orient)
Suitable for Olympus BX series upright bodies, 5-position switch, installation of M26 BD objective lens, support DIC slot and polarizing analyzer accessories. |
| Turntable Type | Manual turntable |
| Number of holes | 5 |
| Connection | Dovetail chute |
| Objective thread | M26 |
| DIC Slot | have |
| Center calibration | Not supported |
| Contour surface accuracy | <2μm |
| Center deviation accuracy | <10μm |
| Positioning type | Ball |
| Positional encoding | support |
| Matching body | SCOPE 53 |
