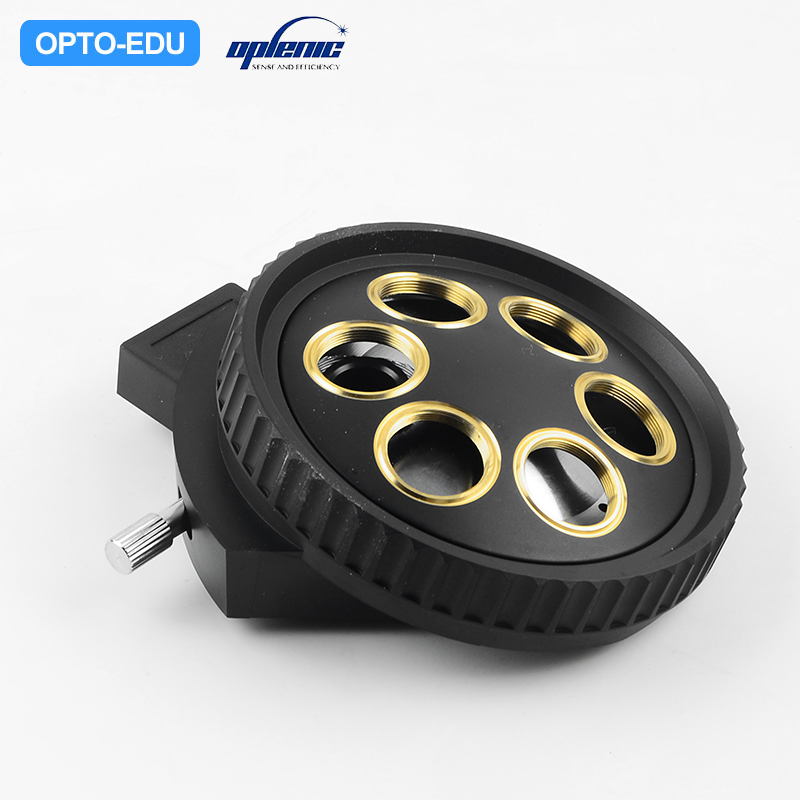

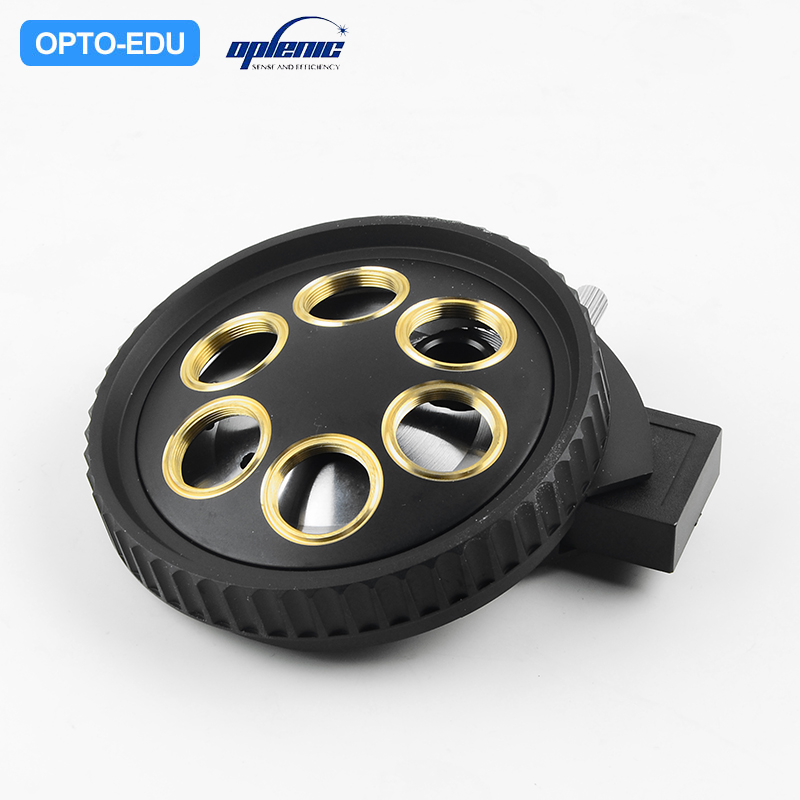

【Objective Turret】OPLENIC® Upright Microscope Objective Turret U-D6RE Six-position Precision Objective Turret RMS Thread (with DIC Slot)
【Objective Turret】OPLENIC® Upright Microscope Objective Turret U-D6RE Six-position Precision Objective Turret RMS Thread (with DIC Slot)
【Objective Turret】OPLENIC® Upright Microscope Objective Turret U-D6RE Six-position Precision Objective Turret RMS Thread (with DIC Slot)

A54.2202-UD6

Like Favorites

【Objective Turret】OPLENIC® Upright Microscope Objective Turret U-D6RE Six-position Precision Objective Turret RMS Thread (with DIC Slot)

Quantity：



Suitable for Olympus BX series upright bodies, 6-position switch, installation of RMS caliber objectives, support for DIC slot and polarizing analyzer accessories.


Turntable TypeManual turntable
Number of holes6
ConnectionDovetail chute
Objective threadRMS(M20.32)
DIC Slothave
Center calibrationNot supported
Contour surface accuracy<2μm
Center deviation accuracy<10μm
Positioning typeBall
Positional encodingNot supported
Matching bodyOplin, Olympus, Sunny Optical
