[Motorized Objective Lens Turret] OPLENIC® Six-hole Motorized Objective Lens Turret RMS Thread (Stepping Motor) M-6REA

Quantity:

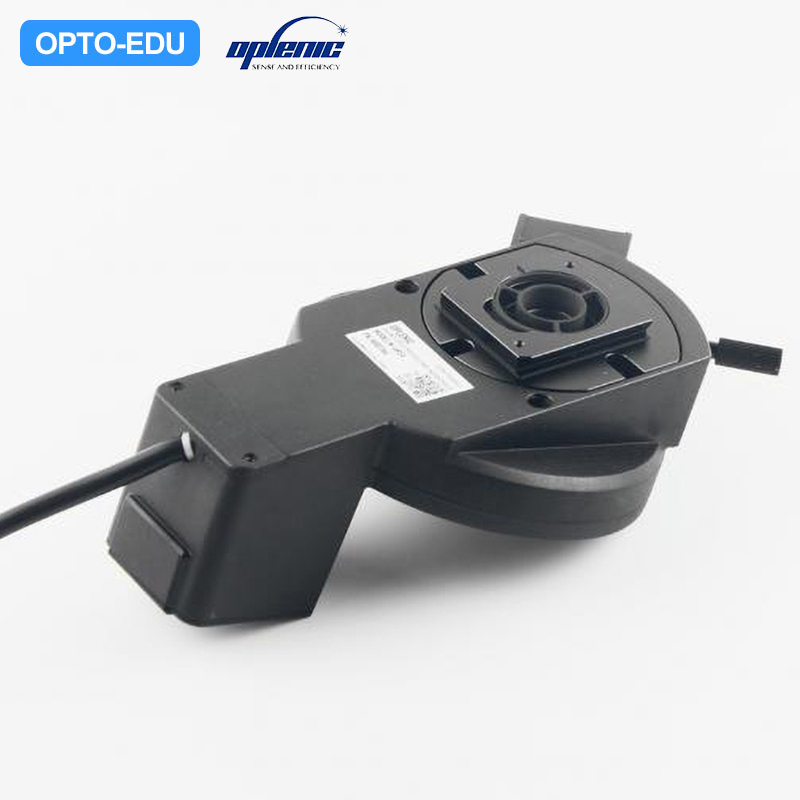

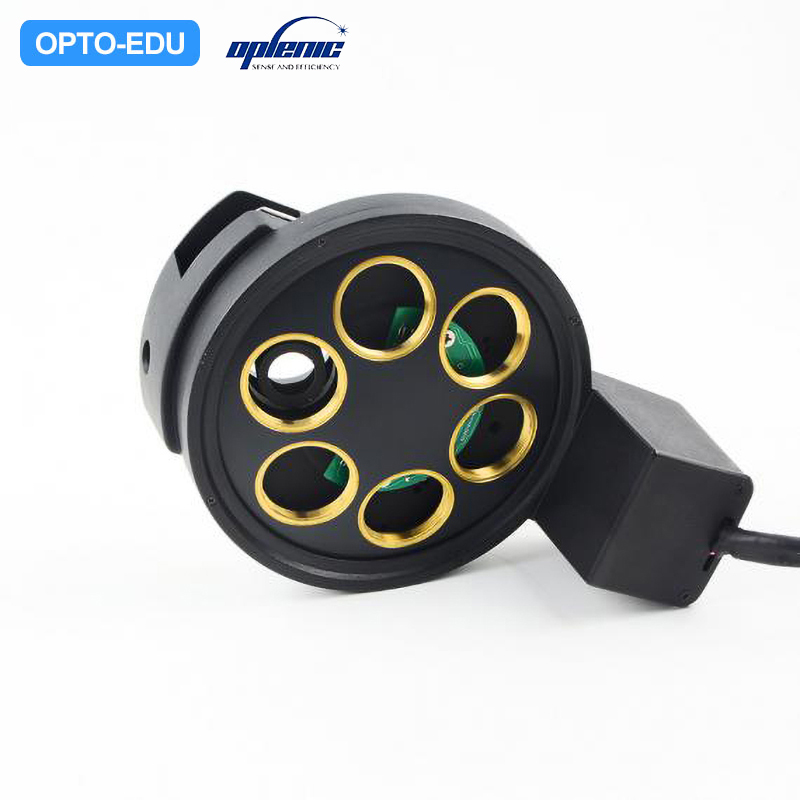

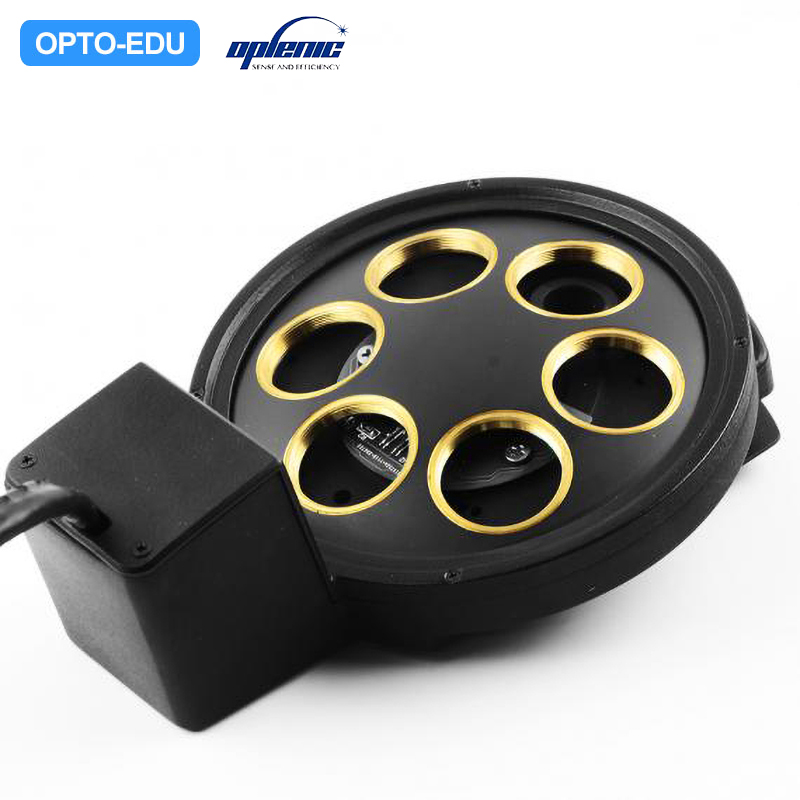

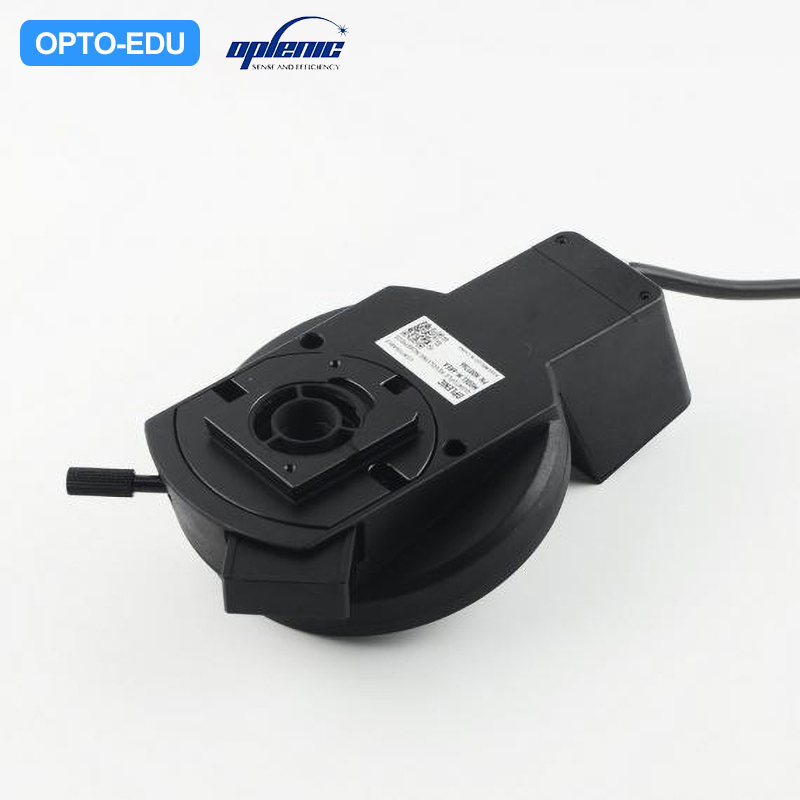

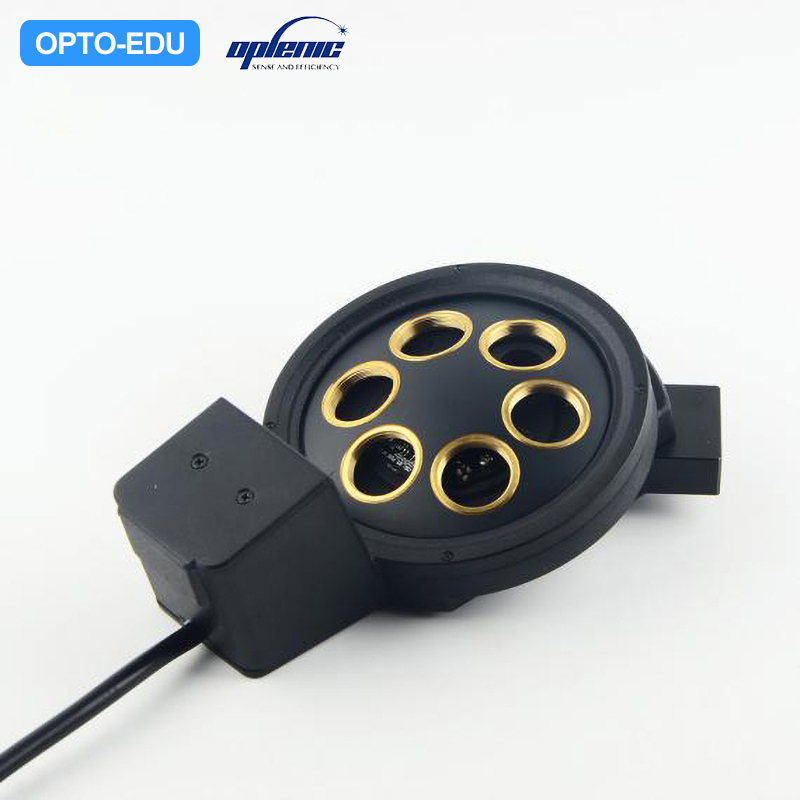

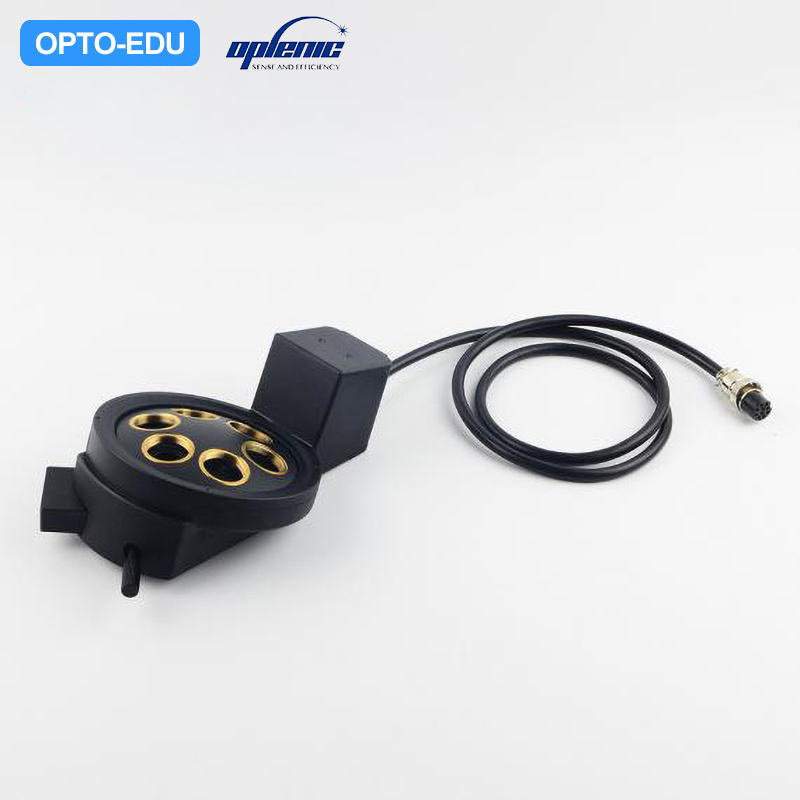

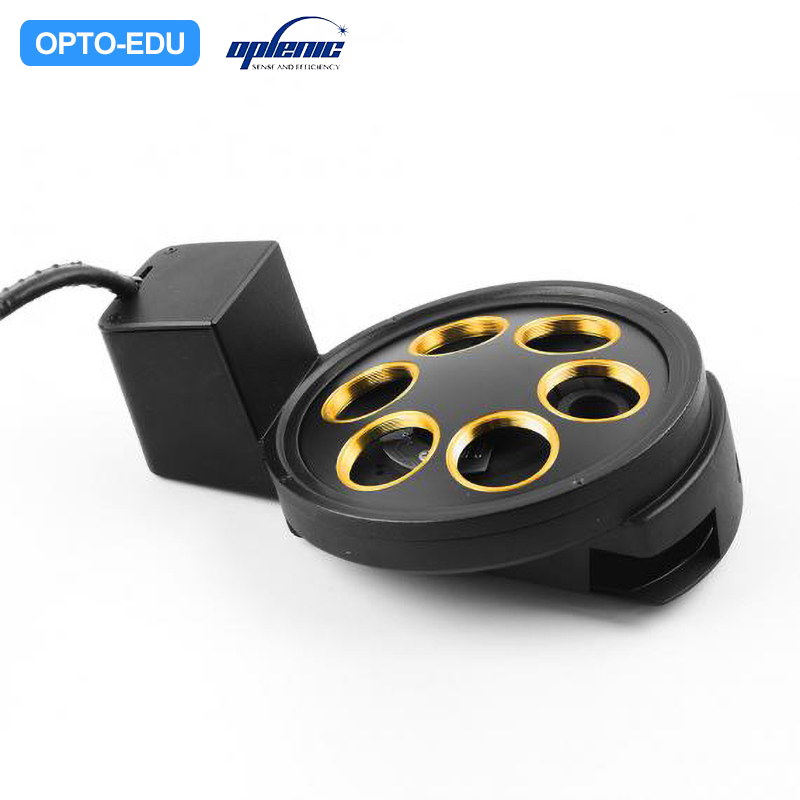

The Oplin M-6REA six-position electric objective turret, combined with the M-CP2 controller, can realize the electric switching of the microscope objective. It uses imported SKF precision bearings, with precise positioning and a service life of up to 10 years.

Turntable TypeElectric turntable
Number of holes6
ConnectionDovetail chute
Objective threadRMS(M20.32)
DIC Slothave
Center calibrationNot supported
Contour surface accuracy<2μm
Center deviation accuracy<10μm
Positioning typeBall
Positional encodingsupport
Motor TypeStepper Motor
Keyboard ControlSupport/forward and reverse
Computer controlSupport/Programmable
Turntable weight0.95kg
Matching bodyOplin, Olympus, Sunny Optical
