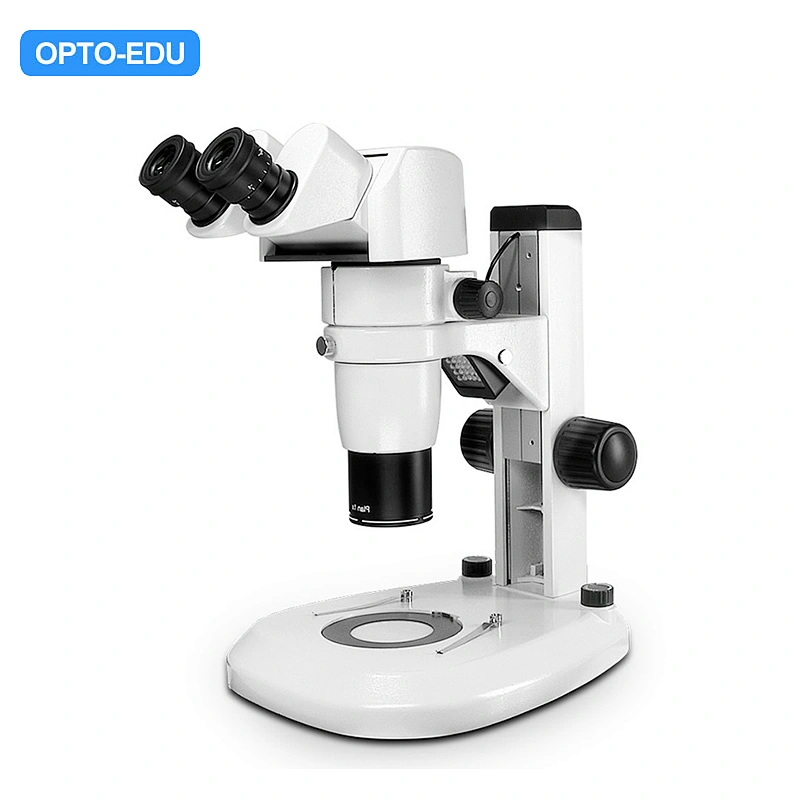

| A23.1001-T Zoom Stereo Microscope, With Tilting head | A23.1001-T06 | A23.1001-T08 | A23.1001-T10 | |
| Optical System | Parallel Optical System, Module Design to Add Function Easily | ● | ● | ● |
| Head | Titling Head 0°-35° Viewing Angle Adjustable for User | ● | ● | ● |
| Eyepiece | Extra Wide Field Eyepiece EWF10x/22mm | ● | ● | ● |
| Zoom Body | 0.8~5.0x, Zoom Ratio 1:6 | ● | - | - |
| 0.8~6.4x, Zoom Ratio 1:8 | - | ● | - | |
| 0.8~8.0x, Zoom Ratio 1:10 | - | - | ● | |
| Auxiliary Lens | Plan Achromatic Lens 1.0x | ● | ● | ● |
| Working Distance | 78mm | ● | ● | ● |
| Focusing | Coarse Focusing Konb, Range 105mm | ● | ● | |
| Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm, Focusing Mount Inner Dia. 76mm | ● | |||
| Illumination | Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours | |||
| A23.1001-T Zoom Stereo Microscope, With Tilting head | Cata. No. | |||
| Eyepiece | WF15x/16mm | A51.1027-1516 | ||
| WF20x/12mm | A51.1027-2012 | |||
| WF30x | A51.1027-30 | |||
| Auxiliary Lens | Plan Apochromatic Lens 0.5x | A52.1023-05A | ||
| Plan Achromatic Lens 1.0x | A52.1023-10 | |||
| Plan Achromatic Lens 2.0x | A52.1023-20 | |||
| Achromatic Lens 0.3x | A52.1023-03 | |||
| Achromatic Lens 0.5x | A52.1023-05 | |||
| Illumination | Coaxial Illumination Set: | A56.1021 | ||
| --Cold Light Power Supplier, | ||||
| --Dual Light Guide, | ||||
| --Coaxial Episcopic Illuminator, | ||||
| --Iris Diaphragm | ||||
| Iris Diaphragm | A56.1021-2 | |||
| Working Stage | Temperature Control Stage | A54.1004 | ||
| Movable Working Stage | A54.1007 | |||
| StandClick to see | Universal Table Stand | A54.1011 | ||
| A54.1012 | ||||
| A54.1013 | ||||
| A54.1014 | ||||
| Track Stand, Transmit & Reflect Light Source With Coarse & Fine Focusing Optional, Model -F, Like A54.1019-F | A54.1019 | |||
| A54.1020 | ||||
| A54.1021 | ||||
| Fluorescent | EPI-Fluorescent Attachment For Stereo Microscope | A5F.1020 | ||
| Dark Field | Dark Field Attachment For Stereo Microscope | A5D.1001 | ||
| Polarizing | Simple Polarizing Attachment For Stereo Microscope | A5P.1003 | ||
| Adapter | Photo Tube, Beamsplitter 1 Port | A55.1003-S1 | ||
| Photo Tube, Beamsplitter 2 Port | A55.1003-S2 | |||
| Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera | A55.1020-2X | |||
| C-mount 0.5x | A55.1021-05 | |||
| C-mount 1.0x | A55.1021-10 | |||
