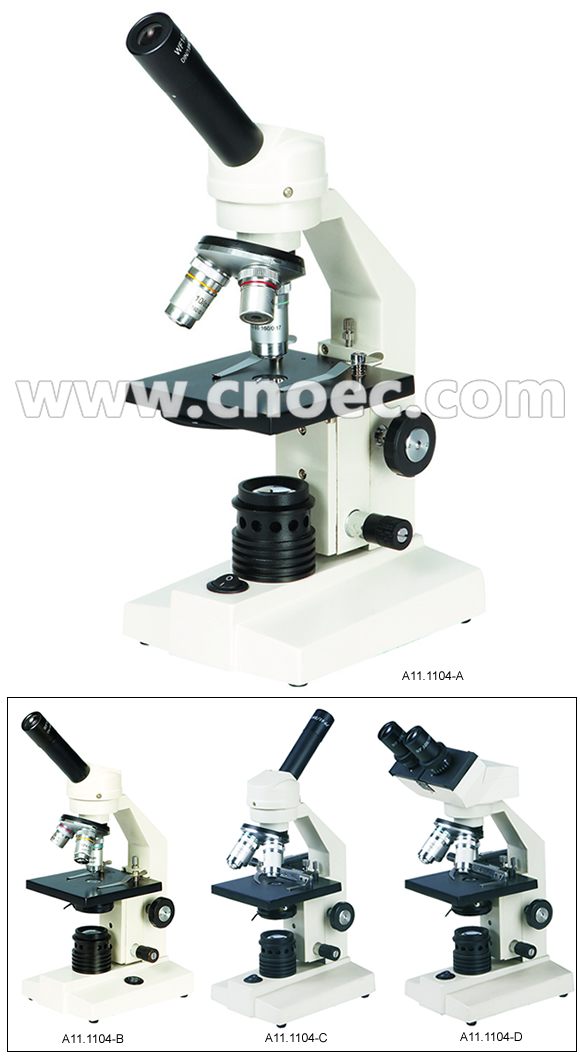

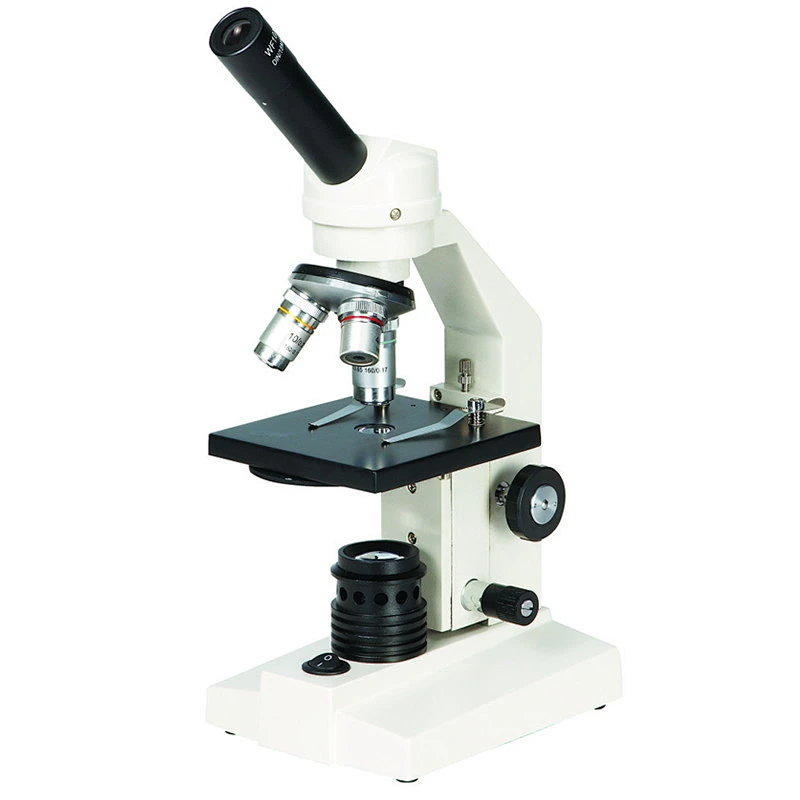

A11.1104 Biological microscope | -A | -B | -C | -D | |
Head | Monocular Head,45° Inclined,360° Rotatable | ● | ● | ● | - |
| Sliding Binocular Head,45° Inclined,55mm-75mm | - | - | - | ● | |
Eyepiece | WF10X/18mm | ● | ● | ● | ● |
Objective | Achromatic 4X | ● | ● | ● | ● |
| Achromatic 10X | ● | ● | ● | ● | |
| Achromatic 40X, Spring | ● | ● | ● | ● | |
| Achromatic 100X, Spring | - | - | ● | ● | |
Nosepiece | Triple Revolving Nosepiece | ● | ● | - | - |
| Quadruple Revolving Nosepiece | - | - | ● | ● | |
Stage | Plain Stage with Specimen Clips, Size120x110mm | ● | ● | - | - |
| Mechanical Stage,Moving Range:60mmx30mm | - | - | ● | ● | |
| Condenser | N.A.=0.65, with Disc Diaphragm | ● | - | - | - |
| N.A.=0.65, with Iris Diaphragm | - | ● | - | - | |
| Abbe Condenser N.A.=1.25, with Iris Diaphragm & Filter | - | - | ● | ● | |
Focusing | Seperate Coarse & Fine Focusing Knobs | ● | ● | ● | ● |
Light Source | Incandescent Lamp,220V/20W or 110V/20W | ● | ● | ● | ● |
Optional Accessories | |||||
| Head | Demonstration WP-T | ||||
| Demonstration WP-V | |||||
| Eyepiece | WF16X | ||||
| WF20X | |||||
| P16X | |||||
| Objective | Achromatic 20X | ||||
| Achromatic 60X(S) | |||||
| Light Source | LED | ||||
