--Mechanical Tube Length 160mm
--Full coated optical system, with parfocal achromatic objective
--Anticorrosion stage made by metal
--Precision rack & pinion focusing system for steady and comfortable operation
--Slip clutch system, allowing the focusing knob to slip and continue turning, protect the focusing system from damage by applying too much force to the knob after it has reached the end.
--Adjustable rack stop prevents the objective lens from hitting the slide on the stage.
--Metal U-shaped base makes the unit steady, body can inclined 45 degree.
--Most components of this microscope are made of metal, such as eyepiece, objective, stage, body, focusing system, condenser and etc

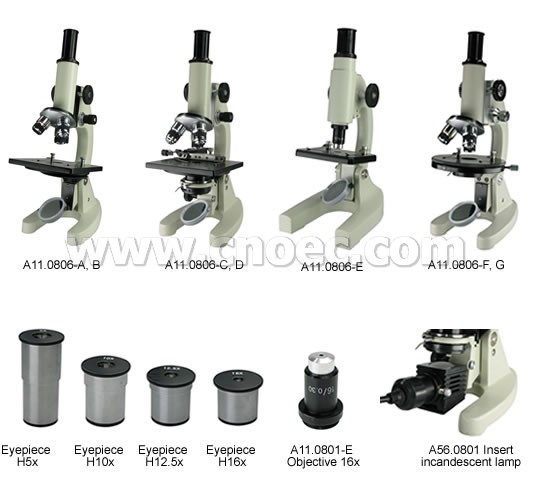

A11.0806 Specification | A | B | C | D | E | F | G | |
Total Magnification | 40x-500x | ● | ||||||
| 40x-640x | ● | |||||||
| 50x-1000x | ● | |||||||
| 50x-1600x | ● | |||||||
| 200x | ● | |||||||
| 20x-640x | ● | |||||||
| 20x-1008x | ● | |||||||
Eyepiece | Huygens H10x, H12.5x | ● | ||||||
| Huygens H10x, H16x | ● | |||||||
| Huygens H5x, H10x | ● | |||||||
| Huygens H5x, H10x, H16x | ● | ● | ● | |||||
| Huygens H12.5x | ● | |||||||
Head | Monocular head | ● | ● | ● | ● | ● | ● | ● |
Nosepiece | 3 holes revolving nosepiece | ● | ● | ● | ● | ● | ● | |
Objective | Achromatic 4x,10x, 40x (Spring) | ● | ● | ● | ||||
| Achromatic 10x, 40x, 100x (Spring, Oil ) | ● | ● | ||||||
| Achromatic 16x | ● | |||||||
| Achromatic 4x, 10x, 63x (Spring) | ● | |||||||
Focusing | Coarse focusing range 50mm | ● | ● | ● | ● | ● | ● | |
| Coarse focusing range 20mm | ● | |||||||
| Fine focusing range 1.8-2.2mm | ● | ● | ● | ● | ● | ● | ||
Stage | Single layer square stage with specimen clip, size 120x120mm | ● | ● | |||||
| Single layer square stage with verinal scale, size 120x120mm, moving range 60x30mm | ● | ● | ||||||
| Single layer square stage with specimen clip, size 84x88mm | ● | |||||||
| Single layer round stage with specimen clip, Ø120mm | ● | ● | ||||||
Condenser | Disc diaphragm 5 holes, Ø3.2, Ø4, Ø5, Ø8, Ø15 | ● | ● | ● | ||||
| Abbe condenser N.A.=1.25, with iris diaphragm & filter holder | ● | ● | ● | |||||
Light Source | Plane/Concave mirror Ø50mm | ● | ● | ● | ● | ● | ● | |
| Plane/Concave mirror Ø44mm | ● | |||||||
Packing | Wooden case | ● | ● | ● | ● | ● | ● | ● |
Optional Accessories | Item No. | |||||||
Light Source | Insert incandescent lamp 20W, 110V/220V | A56.0804 | ||||||
