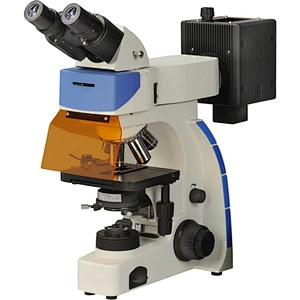

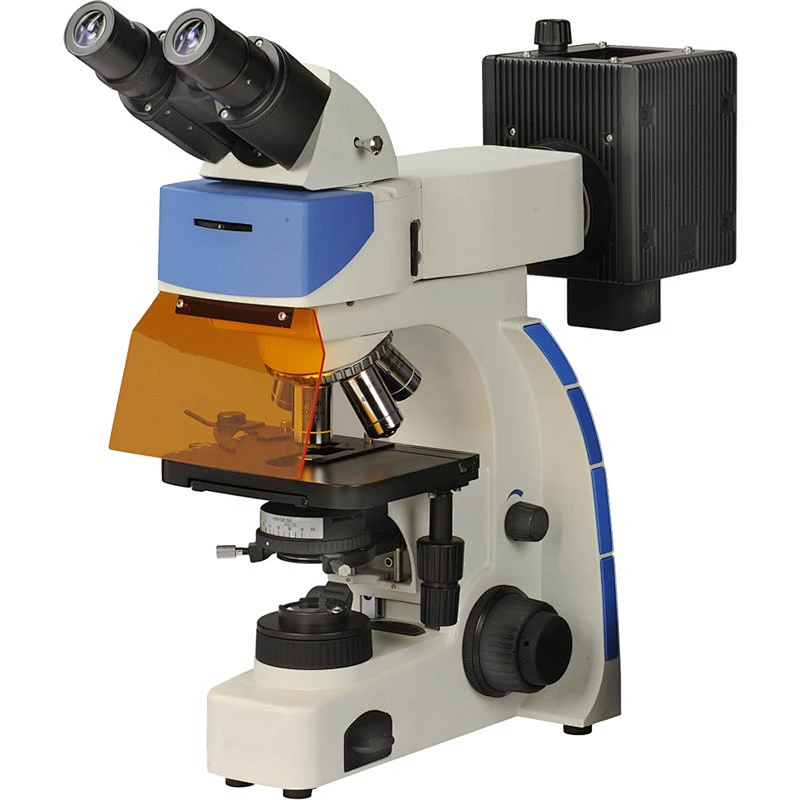

Pagtutukoy | A16.2701 Fluorescent Microscope | B2 | B4 | T2 | T4 |
|---|---|---|---|---|---|
| Optical System | UCIS infinity independent achromatic optical system | ||||
| Ulo | Seidentopf binocular head 30° inclined, rotatable 360°, interpupillary distance 52-75mm, Diopter Adjustable | ● | ● | ||
| Seidentopf trinocular head 30° inclined, rotatable 360°, interpupillary distance 52-75mm, Diopter Adjustable | ● | ● | |||
| Pagpapalaki | 40x - 1000x | ||||
| Eyepiece | WF10x/20mm, mataas na eyepoint hanggang 21mm, | ||||
| Layunin | Infinity plan achromatic na mga layunin 4x, 10x, 40x(s) at 100x (s/langis) | ||||
| Sistema ng Pagtutok | Low positioned, coaxial coarse at fine focusing system na may tension adjustment at up-limited, coarse 14mm/rot, fine 0.1mm/rot, minimum reading 1μm sa left-side fine knob, moving range 20mm | ||||
| Nosepiece | Quadruple, baligtad na uri na may positibong paghinto ng pag-click | ||||
| Pag-iilaw | Kohler Illumination, na may field diaphragm | ||||
| Condenser | Abbe condenser NA 1.25 na may iris diaphragm at phase contrast socket | ||||
| Yugto | Mga kontrol sa kanang kamay, adjustable ang liwanag, mababang posisyon, yugto ng mekanikal, 156mm x 138mm, saklaw ng paggalaw 76mm x 54mm | ||||
| Flourescent Attachment | Epi-reflected fluorescence illumination system: 100W mercury lamp house at 100W power supply unit | ||||
| Filter ng Excitation | B,G, OMEGA Brand | ● | ● | ||
| B,G,UV,V , OMEGA Brand | ● | ● | |||
| Pinagmulan ng Banayad | 250V/5A Φ5X20 fuse | ||||
| 6V20W Halogen lamp | |||||
| 250x/3.15A Φ5x20 fuse | |||||
| Iba pa | Asul Φ38 | ||||
| Langis sa Paglulubog | |||||
| Takip ng alikabok | |||||
| kurdon ng kuryente | |||||
Opsyonal na Mga Kagamitan | Item No. | ||||
| Ulo | Binocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 48-75m, ±5 Diopter Adjustment | A53.2702-2A | |||
| Trinocular Head,30° Inclined, 360° Rotatable, Interpupillary Distance 48-75mm, ±5 Diopter Adjustment | A53.2704-2A | ||||
| Eyepiece | Planuhin ang WF10x/22mm, mataas na eyepoint hanggang 21mm | A51.2701-10C | |||
| Plano ng WF16x/13mm, mataas na eyepoint | A51.2701-1613 | ||||
| Plano ng WF10x/20mm, reticule eyepiece | A51.2703-10A | ||||
Layunin | Infinity plan achromatic na mga layunin 4x | A52.2706-04C | |||
Infinity plan achromatic na mga layunin 20x (mga) | A52.2706-20C | ||||
Infinity plan achromatic na mga layunin 60x (mga) | A52.2706-60C | ||||
| Nosepiece | Quadruple, baligtad na uri na may positibong paghinto ng pag-click | A54.2704-B | |||
| Condenser | I-swing out ang condenser | A56.2701-30A | |||
Yugto | Mag-upgrade sa mechanical stage 185x177mm platform, moving range 75x50mm, low positioned xy coaxial control knob (kanan o kaliwang kamay), dalawang slide holder | A54.2701-2C | |||
Pag-iilaw | 6V/30W Halogen Illumination | A56.2703-30 | |||
6V30W Osram Halogen Bulb | A56.2703-30C | ||||
100W Osram Mercury Lamp | A5F.2716-I | ||||
LED Flourescent Attachment | 5W LED lamp house | ||||
| Power supply unit para sa 5W LED lamp house | |||||
| Exitation Filter UV, OMEGA Brand | A5F.2710-IUV | ||||
| Excitation Filter V, OMEGA Brand | A5F.2710-IV | ||||
| Excitation Filter B, OMEGA Brand | A5F.2710-IB | ||||
| Excitation Filter G, OMEGA Brand | A5F.2710-IG | ||||
| Salain Φ38 | Berde | A56.2706-G | |||
Dilaw | A56.2706-Y | ||||
Nagyelo na Salamin | A56.2706-F | ||||
| Adapter | 1.0x C-Mount | A55.2701-10 | |||
0.25x C-Mount | A55.2701-25 | ||||
