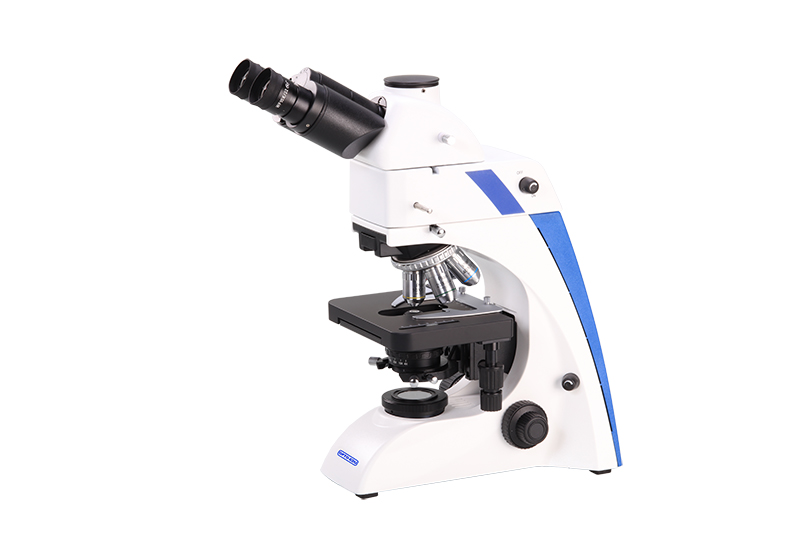

OPTO-EDU A16.2603-NL-1 LED Fluorescent Microscope

LED Fluorescent Microscope, Semi-APO, Trinocular, B O G

Built-in na All-in-One Fluorescent Media Unit 5W LED na May 1 o 2 Filter

Naa-upgrade sa Semi-APO Fluorescent Objectives at 100x Water Objective

Malaking Head Eyepiece Tube Dia.30mm + Super Wide Field SWF10x/22mm Eyepiece

Rackless Malaking Mechanical Stag 182x140mm/77x52m May Double Slide Holder

Swing Out Condenser NA 0.9/0.13 + High Brightness 6V30W Halogen Koehler Illumination

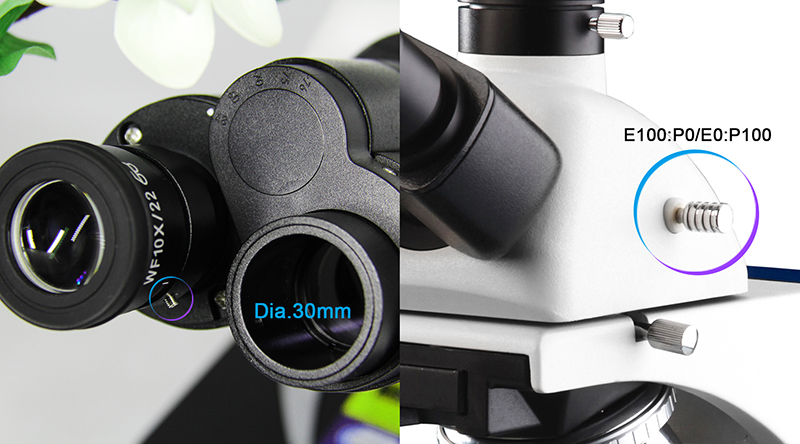

Super Wide Field Eyepiece
SWF10x/22mm
Eyepiece Dia.30mm Diopter Adjustable

May Fix Screw ang Eyepiece Tube
Para maiwasan ang pagkahulog ng eyepiece habang gumagalaw

Trinocular Head Light Split Opsyonal sa Pagitan ng Switch E100:P0/E0:P100 at Fixed E80:P20
Sa Fixed Light Split, Eyepiece 80% : Larawan 20% Maaaring Tingnan ng User ang Larawan Sa Sabay na Oras Sa Parehong Landas
Sa Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light Para sa Photo Capture.

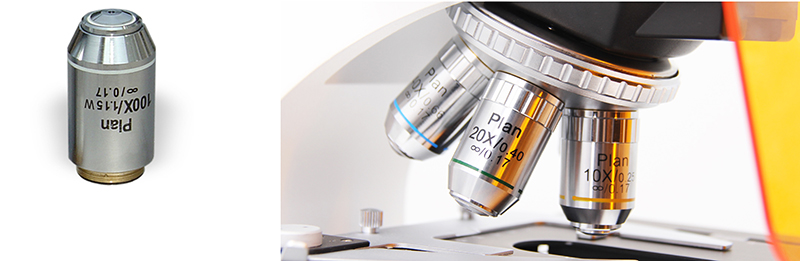

Malaking Sukat High Precision Quintuple Nosepiece, May Polarizing Analyzer Slot,
Layunin ng Infinity Plan 4x,10x,20x,40x,100x Available
Creative 100X Water Objective (Opsyonal) Sa halip na 100X Oil Objective, Mas Maginhawa Para sa Paggamit at Paglilinis Pagkatapos Gamitin

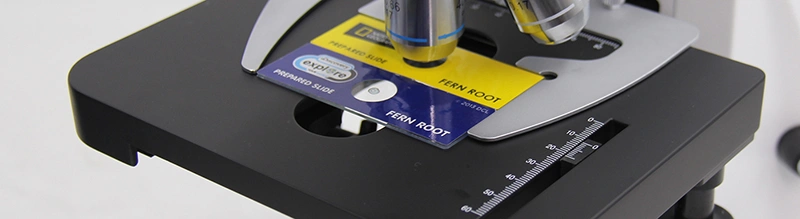

Rackless (Integrated) Mechanical Stage
Malaking Sukat 182×140mm, Double Slide Holder
Saklaw ng Paglalakbay 77×52mm

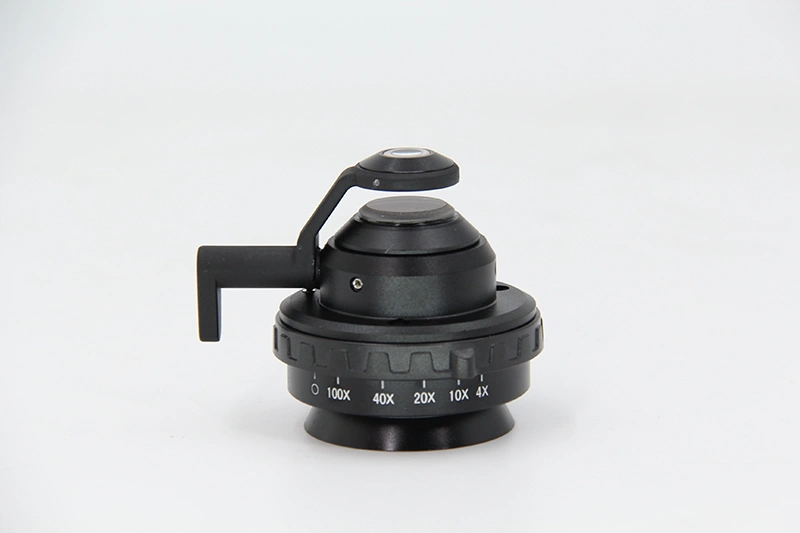

Swing-out Condenser,NA0.9/0.13,Iris Diaphragm
Kontrolin ang Dami ng Liwanag Ayon sa Demand, Mas Perpekto Ang Epekto.

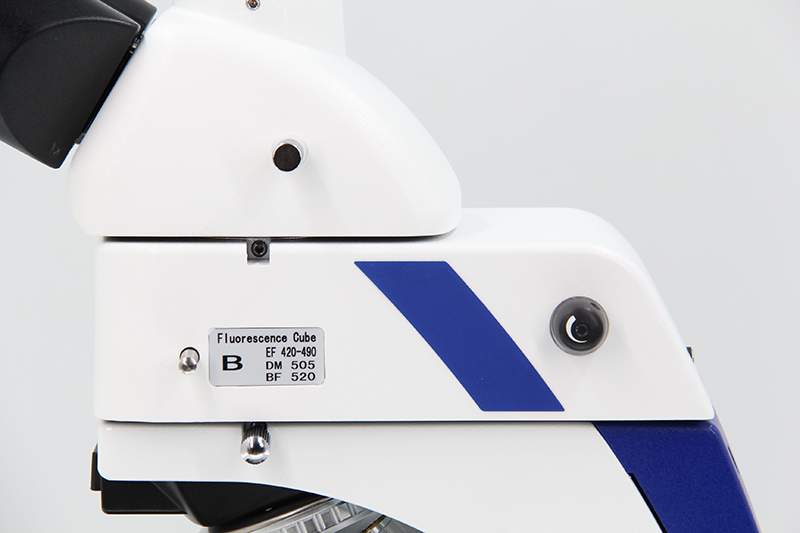

Yunit ng Fluorescence
Mag-upgrade Mula sa A12.2601-C/CT Biological Microscope Gamit ang:
5W LED Fluorescent Built-in na Media Device,
Single Band, China Filter B o G
Barrier ng Proteksyon ng Ultraviolet

Mga bagay	A16.2603-NL LED Fluorescent Microscope Detalye	-1	-2	Cata. Hindi.
Ulo	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Disstance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm	●	●	A53.2623-T
Eyepiece	WF10x/22mm,Dia.30mm,Mataas na Eyepoint, Diopter Adjustable	●●	●●	A51.2621-1022
Nosepiece	Quintuple	●	●	A54.2610-N01
Layunin ng Infinity Plan	PLANO 2.5X/0.07,WD=8.47mm	○	○	A52.2606-2.5
	PLANO 4X/0.10,WD=12.10mm	●	●	A52.2606-4
	PLANO 10X/0.25,,WD=4.64mm	●	●	A52.2606-10
	PLANO 20X/0.40(S),WD=2.41mm	●	●	A52.2606-20
	PLANO 40X/0.66(S),WD=0.65mm	●	●	A52.2606-40
	PLANO 60X/0.80(S),WD=0.33mm	○	○	A52.2606-60
	PLANO 100X/1.25(S, Langis),WD=0.12mm	●	●	A52.2606-100
	PLANO 100X/1.15(S,Tubig),WD=0.19mm	○	○	A52.2606-100W
Infinity Plan Semi-APOFluorescent na Layunin	UplanFLN 4x, NA0.16，WD=17.151mm	○	○	A5F.2611-4
	UplanFLN 10x, NA0.30，WD=7.68mm	○	○	A5F.2611-10
	UplanFLN 20x, NA0.50，WD=1.96mm	○	○	A5F.2611-20
	UplanFLN 40x, NA0.75，WD=0.78mm	○	○	A5F.2611-40
	UplanFLN 100x(Oil), NA1.30，WD=0.15mm	○	○	A5F.2611-100
Yugto ng Paggawa	Walang kwenta(Integrated) Mechanical Stage, Sukat 182×140mm, Travel Range 77×52mm, Double Slide Holder	●	●	A54.2601-S10
Yugto ng Paggawa	Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder	○	○	A54.2601-S01
Nakatutok	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm	●	●
Condenser	Swing-out Condenser,NA0.9/0.13,Iris Diaphragm	●	●	A56.2614-07a
Pag-iilaw	Magpadala ng Banayad na 6V30W Halogen Pag-iilaw ng Koehler, Malapad na Boltahe 100V~240V, Field Diaphragm	●	●	A56.2650-30W
Field Diaphragm	Para sa Kohler Illumnation	●	●	A56.2615-BK
Salain	Dia.45mm, Asul	●	●	A56.2616-45B
	Dia.45mm, Berde	○	○	A56.2616-45G
	Dia.45mm, Dilaw	○	○	A56.2616-45A
Madilim na Patlang	Dark Field Condenser, Dry, NA0.83-0.91, Para sa 4x10x40x Layunin	○	○	A5D.2610-BK
Madilim na Patlang	Dark Field Condenser, Immersion, NA1.3, Para sa 100x Layunin			A5D.2610-BKW
Polarizing	Analyzer + Polarizer Set	○	○	A5P.2601-BK

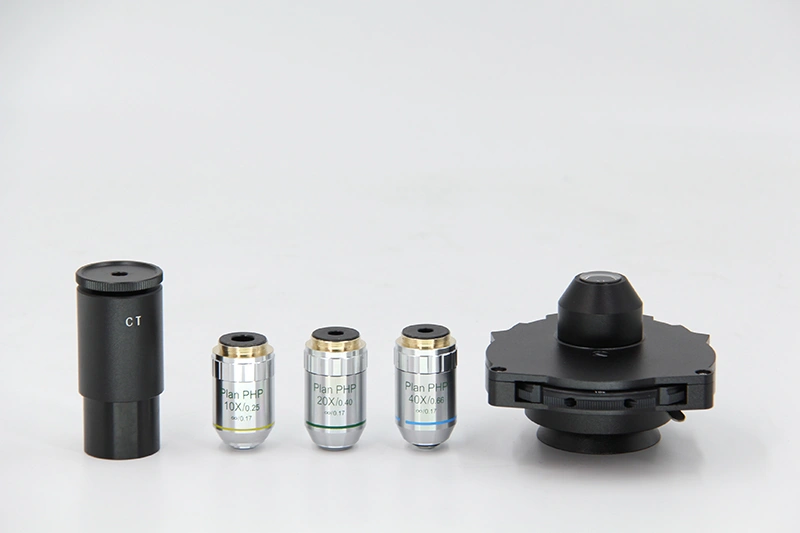

Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-10
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-20
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-40
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-100

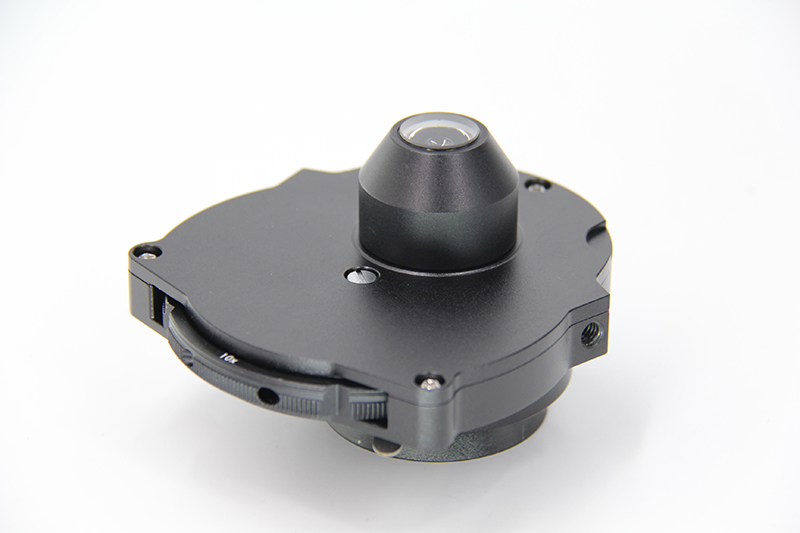

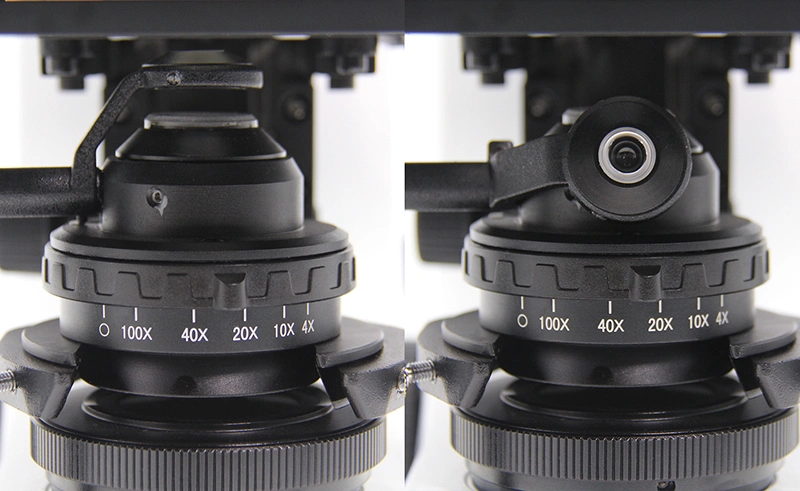

	Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Hole, Telescope 11x, Green Filter	○	○	A5C.2603-BK
Fluorescence	Mag-upgrade Mula sa A12.2603-B/T Biological Microscope Gamit 5W LED Fluorescent Built-in na Media Device, Single Band, China Filter B o G Barrier ng Proteksyon ng Ultraviolet	●		A5F.2605-1
Fluorescence	Mag-upgrade Mula sa A12.2603-B/T Biological Microscope Gamit 5W LED Fluorescent Built-in na Media Device, Double Band, China Filter B + G Barrier ng Proteksyon ng Ultraviolet		●	A5F.2605-2
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	A55.2601-75
	C-Mount 1.0x, Focus Adjustable	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	A55.2610
Package	Sukat ng karton 990×340×440mm, 1 pc / Ctn
Timbang	Kabuuang Timbang: 23 kg, Netong Timbang: 18 kg
Tandaan:"●"In Table Is Standard outfits,"○"Ay Opsyonal na Mga Kagamitan

Mas marami pang litrato

Pictures Hide Same Show Difference
Model No.	A16.2603-NL-1	A16.2603-NL-2
Iba pang Pagtutukoy	Field Diaphragm Para sa Kohler Illumnation Blue Filter Dia.45mm	Asul na Filter Dia.45mm
Fluorescene	B o G China Fluorescent Set 5W LED Lamp Built-in Media Ultraviolet Protection Barrier	B+G China Fluorescent Set 5W LED Lamp Built-in na Media Ultraviolet Protection Barrier
Fluorescent Band	1 banda	3 banda
Uri ng Power Supply	AC 110V-240V	——
Sumasalamin sa Liwanag	5W LED Fluorescent	5W LED Fluorescent
Magpadala ng Liwanag	6V30W Halogen	6V30W Halogen
Uri ng Light Source	LED Halogen Fluorescent	Fluurescent Halogen
Mga Tampok ng Light Source	Magpadala at Magmuni-muni Kohler	Banayad na Tagapagpahiwatig Kohler
Condenser NA	0.9/0.13	0.9/0.13
Uri ng Condenser	Iugoy	Iugoy
Mga Tampok ng Condenser	Iris diaphragm	Tagahawak ng Filter Center Adjustable Rack at Pinionↆ↑
Scale ng Pagtutok	0.002mm	0.002mm
Saklaw ng Pagtutok	22mm	22mm
Uri ng Pagtutok	Coaxial Coarse & Fine	——
Mga Tampok na Tumututok	Madaling iakma ang pag-igting	Madaling iakma ang pag-igting Safety Stop Screw
Paglipat ng Yugto ng Paggawa	77x52mm	77x52mm
Laki ng Yugto ng Paggawa	182x140mm	182x140mm
Uri ng Yugto ng Paggawa	2 Layers Mechanical	2 Layers Mechanical
Mga Tampok sa Yugto ng Paggawa	Double Slide Holder Sukat ≥140x140mm Rackless Safety Edge	Double Slide Holder Sukat ≥140x140mm Rackless Safety Edge
Layunin	Infinity Plan: PLAN 4x/0.10, WD=12.10mm PLAN 10x/0.25, WD=4.64mm PLAN 40x/0.66, WD=0.65mm PLAN 100x/1.25 (S,Oil), WD=0.12mm	Infinity Plan: PLAN 4x/0.10, WD=12.10mm PLAN 10x/0.25, WD=4.64mm PLAN 40x/0.66, WD=0.65mm PLAN 100x/1.25 (S,Oil), WD=0.12mm
Uri ng Layunin	Infinity Plan	Infinity Plan
Mga butas ng ilong	5 butas	5 butas
Mga Tampok ng Nosepiece	Sa loob	Sa loob
Eyepiece	WF10x/22mm, 2 pc.	WF10x/22mm, 2 pc.
Diameter ng eyepiece	30.0mm	30.0mm
Mga Tampok ng Eyepiece	Diopter Adjustable	Diopter Adjustable Super WF ≥23mm
Daan ng Head Light	E100:P0/E0:P100	E100:P0/E20:P80
Head Interpupillary	48~76mm	48~76mm
Pag-ikot ng Ulo	Iikot ang Ulo 360°	Umiikot ang Eyetube 360°
Pagkahilig sa Ulo	30°	——
Uri ng Ulo	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	40x-1000x	——
Optical System	Infinity Plan	Infinity Plan
Mga tampok	Infinity	Infinity
I-upgrade ang Function	BF+PH+DF+PL+FL	——
Karaniwang Pag-andar	BF+FL	——
Video Adapter	——	C-Mount 0.3x
Mga Tampok ng Layunin	——	Iris diaphragm

Pictures

Hide Same

Show Difference

LED Fluorescent Microscope, Semi-APO, Trinocular, B O G

LED Fluorescent Microscope, Semi-APO, Trinocular, B, G

Model No.

A16.2603-NL-1

A16.2603-NL-2

Iba pang Pagtutukoy

Field Diaphragm Para sa Kohler Illumnation Blue Filter Dia.45mm

Asul na Filter Dia.45mm

Fluorescene

B o G China Fluorescent Set 5W LED Lamp Built-in Media Ultraviolet Protection Barrier

B+G China Fluorescent Set 5W LED Lamp Built-in na Media Ultraviolet Protection Barrier

Fluorescent Band

1 banda

3 banda

Uri ng Power Supply

AC 110V-240V

——

Sumasalamin sa Liwanag

5W LED Fluorescent

Magpadala ng Liwanag

6V30W Halogen

Uri ng Light Source

LED
Halogen
Fluorescent

Fluurescent
Halogen

Mga Tampok ng Light Source

Magpadala at Magmuni-muni
Kohler

Banayad na Tagapagpahiwatig
Kohler

Condenser NA

0.9/0.13

Uri ng Condenser

Iugoy

Mga Tampok ng Condenser

Iris diaphragm

Tagahawak ng Filter
Center Adjustable
Rack at Pinionↆ↑

Scale ng Pagtutok

0.002mm

Saklaw ng Pagtutok

22mm

Uri ng Pagtutok

Coaxial Coarse & Fine

——

Mga Tampok na Tumututok

Madaling iakma ang pag-igting

Madaling iakma ang pag-igting
Safety Stop Screw

Paglipat ng Yugto ng Paggawa

77x52mm

Laki ng Yugto ng Paggawa

182x140mm

Uri ng Yugto ng Paggawa

2 Layers Mechanical

Mga Tampok sa Yugto ng Paggawa

Double Slide Holder
Sukat ≥140x140mm
Rackless Safety Edge

Layunin

Infinity Plan: PLAN 4x/0.10, WD=12.10mm PLAN 10x/0.25, WD=4.64mm PLAN 40x/0.66, WD=0.65mm PLAN 100x/1.25 (S,Oil), WD=0.12mm

Uri ng Layunin

Infinity Plan

Mga butas ng ilong

5 butas

Mga Tampok ng Nosepiece

Sa loob

Eyepiece

WF10x/22mm, 2 pc.

Diameter ng eyepiece

30.0mm

Mga Tampok ng Eyepiece

Diopter Adjustable

Diopter Adjustable
Super WF ≥23mm

Daan ng Head Light

E100:P0/E0:P100

E100:P0/E20:P80

Head Interpupillary

48~76mm

Pag-ikot ng Ulo

Iikot ang Ulo 360°

Umiikot ang Eyetube 360°

Pagkahilig sa Ulo

30°

——

Uri ng Ulo

Seidentopf Trinocular

Standard Magnification

40x-1000x

——

Optical System

Infinity Plan

Mga tampok

Infinity

I-upgrade ang Function

BF+PH+DF+PL+FL

——

Karaniwang Pag-andar

BF+FL

——

Video Adapter

——

C-Mount 0.3x

Mga Tampok ng Layunin

——

Iris diaphragm
