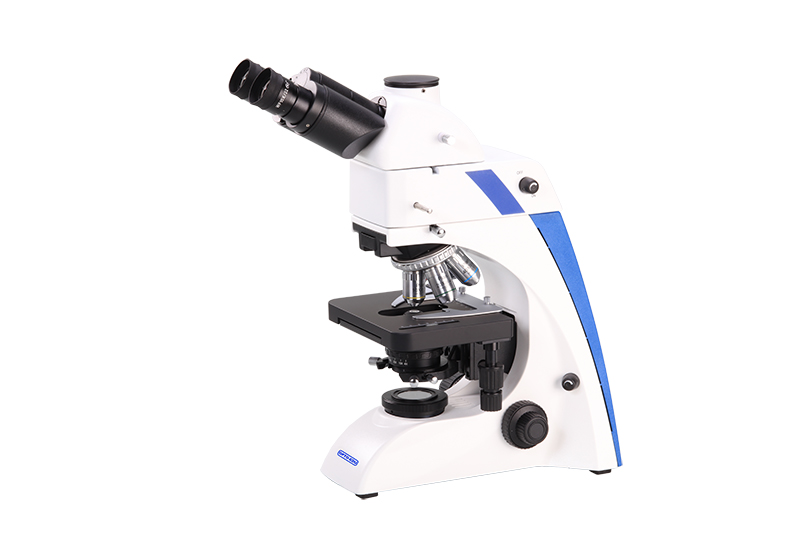

OPTO-EDU A16.2603-NL-1 LED Fluorescent Microscope

LED Fluorescent Microscope, Semi-APO, Trinocular, B Or G

Built-in All-in-One Fluorescent Media Unit 5W LED With 1 or 2 Filters

Upgradeable to Semi-APO Fluorescent Objectives & 100x Water Objective

Large Head Eyepiece Tube Dia.30mm + Super Wide Field SWF10x/22mm Eyepiece

Rackless Large Mechanical Stag 182x140mm/77x52m With Double Slide Holder

Swing Out Condenser N.A. 0.9/0.13 + High Brightness 6V30W Halogen Koehler Illumination

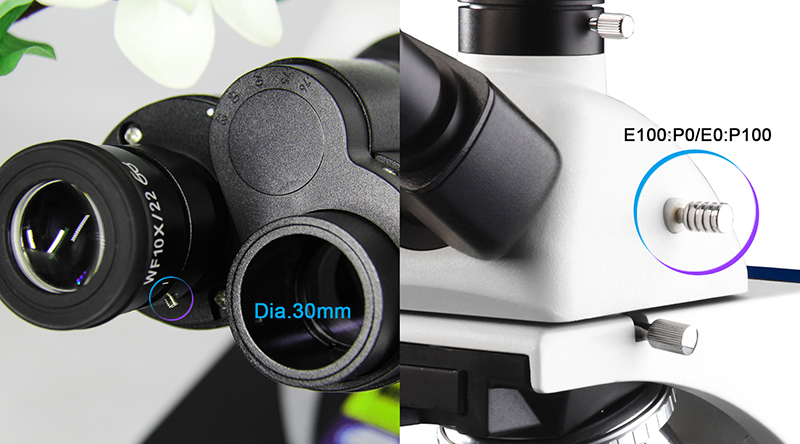

Super Wide Field Eyepiece
SWF10x/22mm
Eyepiece Dia.30mm Diopter Adjustable

The Eyepiece Tube Has Fix Screw
To Prevent Eyepiece Falling Damage During Move

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 & Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.

Large Size High Precision Quintuple Nosepiece, With Polarizing Analyzer Slot,

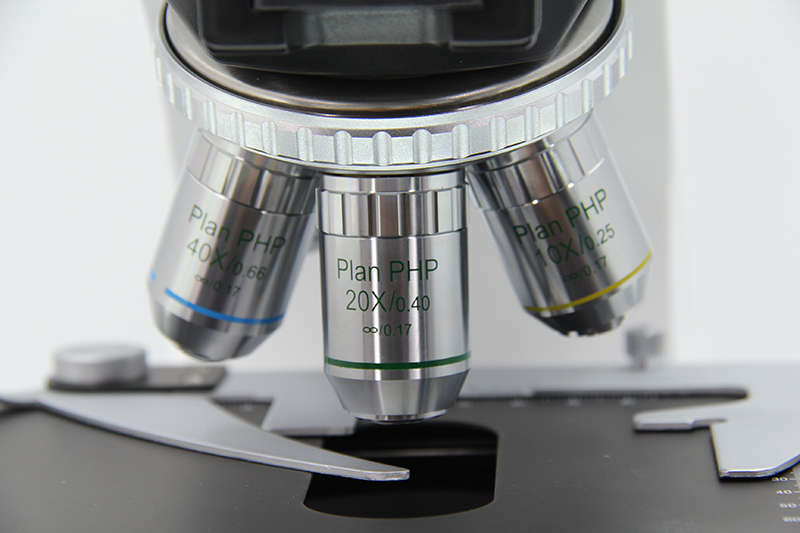

Infinity Plan Objective 4x,10x,20x,40x,100x Available

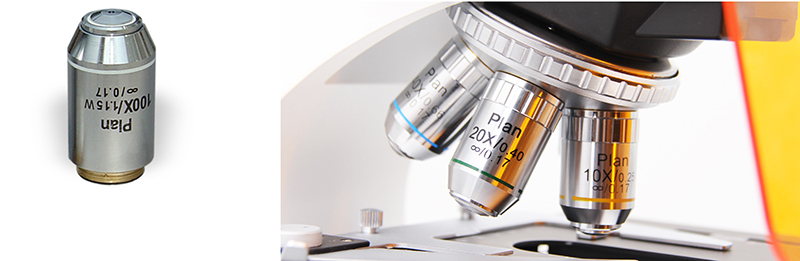

Creative 100X Water Objective (Optional) Instead Of 100X Oil Objective, More Convenient For Using & Cleaning After Use

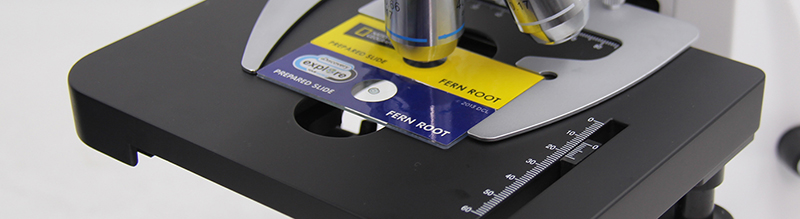

Rackless (Integrated) Mechanical Stage
Large Size 182×140mm, Double Slide Holder
Travel Range 77×52mm

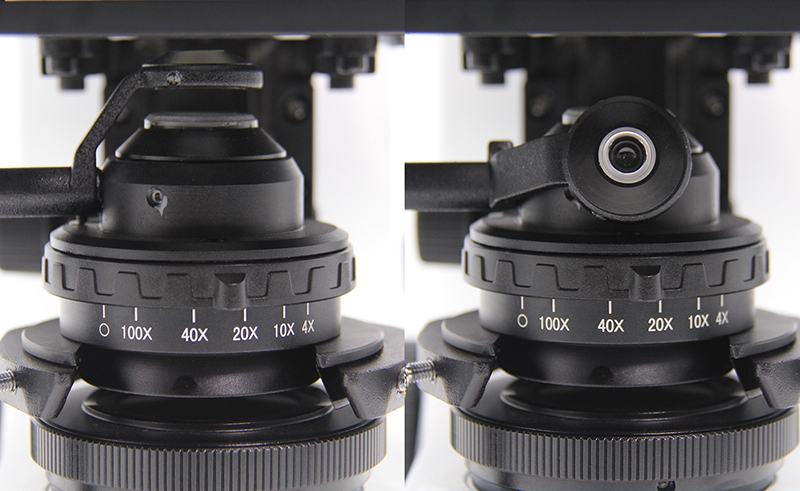

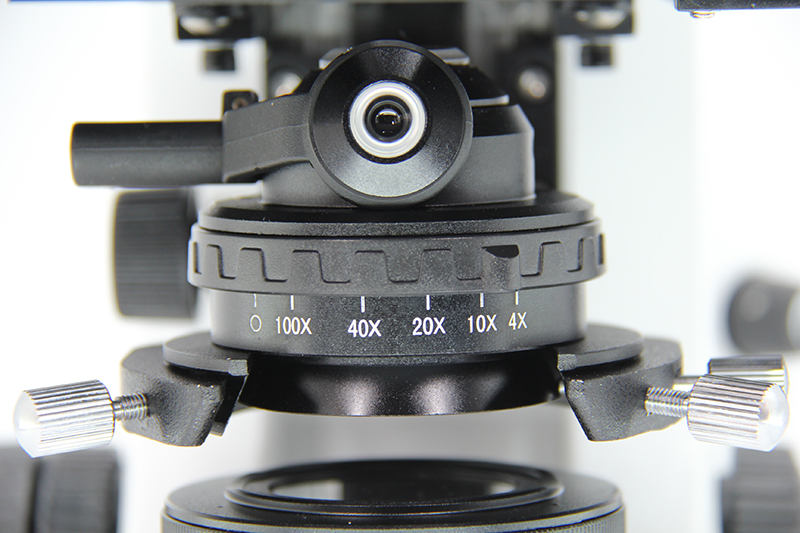

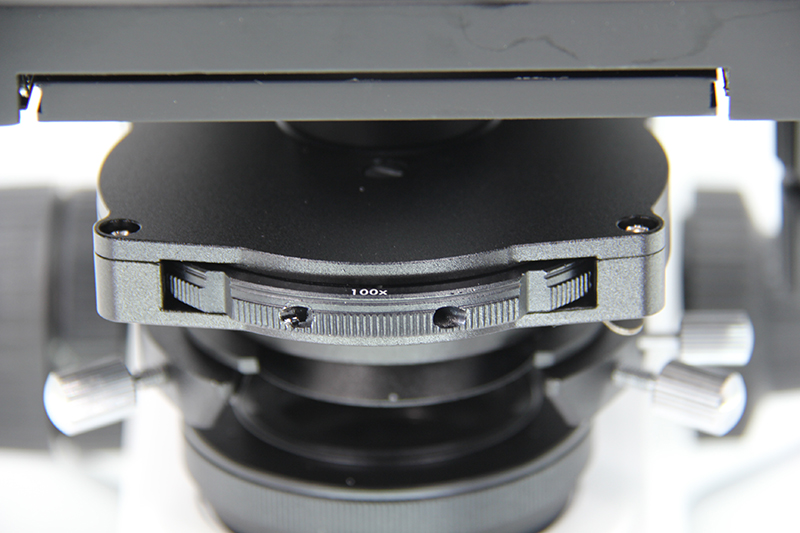

Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm
Control The Amount Of Light According To Demand, The Effect Is More Perfect.

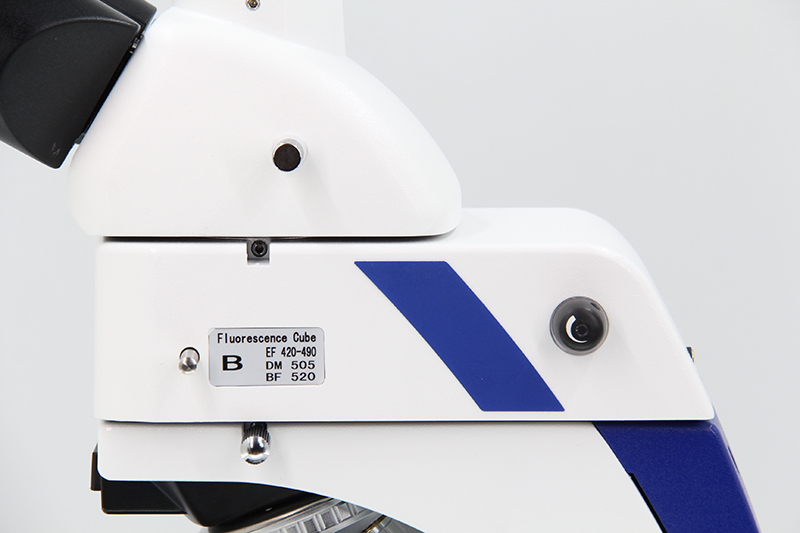

Fluorescence Unit
Upgrade From A12.2601-C/CT Biological Microscope With:
5W LED Fluorescent Built-in Media Device,
Single Band, China Filter B or G
Ultraviolet Protection Barrier

Items	A16.2603-NL LED Fluorescent Microscope Specification	-1	-2	Cata. No.
Head	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm	●	●	A53.2623-T
Eyepiece	WF10x/22mm,Dia.30mm, High Eyepoint, Diopter Adjustable	●●	●●	A51.2621-1022
Nosepiece	Quintuple	●	●	A54.2610-N01
Infinity Plan Objective	PLAN 2.5X/0.07,W.D.=8.47mm	○	○	A52.2606-2.5
	PLAN 4X/0.10,W.D.=12.10mm	●	●	A52.2606-4
	PLAN 10X/0.25,,W.D.=4.64mm	●	●	A52.2606-10
	PLAN 20X/0.40(S),W.D.=2.41mm	●	●	A52.2606-20
	PLAN 40X/0.66(S),W.D.=0.65mm	●	●	A52.2606-40
	PLAN 60X/0.80(S),W.D.=0.33mm	○	○	A52.2606-60
	PLAN 100X/1.25(S,Oil),W.D.=0.12mm	●	●	A52.2606-100
	PLAN 100X/1.15(S,Water),W.D.=0.19mm	○	○	A52.2606-100W
Infinity Plan Semi-APOFluorescent Objective	UplanFLN 4x, N.A.0.16，W.D.=17.151mm	○	○	A5F.2611-4
	UplanFLN 10x, N.A.0.30，W.D.=7.68mm	○	○	A5F.2611-10
	UplanFLN 20x, N.A.0.50，W.D.=1.96mm	○	○	A5F.2611-20
	UplanFLN 40x, N.A.0.75，W.D.=0.78mm	○	○	A5F.2611-40
	UplanFLN 100x(Oil), N.A.1.30，W.D.=0.15mm	○	○	A5F.2611-100
Working Stage	Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder	●	●	A54.2601-S10
Working Stage	Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder	○	○	A54.2601-S01
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm	●	●
Condenser	Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm	●	●	A56.2614-07a
Illumination	Transmit Light 6V30W Halogen Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm	●	●	A56.2650-6V30WH
Field Diaphragm	For Kohler Illumnation	●	●	A56.2615-BK
Filter	Dia.45mm, Blue	●	●	A56.2616-45B
	Dia.45mm, Green	○	○	A56.2616-45G
	Dia.45mm, Yellow	○	○	A56.2616-45A
Dark Field	Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective	○	○	A5D.2610-BK
Dark Field	Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective			A5D.2610-BKW
Polarizing	Analyzer + Polarizer Set	○	○	A5P.2601-BK
Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-10
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-20
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-40
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	A5C.2602-100
	Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter	○	○	A5C.2603-BK
Fluorescence	Upgrade From A12.2603-B/T Biological Microscope With 5W LED Fluorescent Built-in Media Device, Single Band, China Filter B or G Ultraviolet Protection Barrier	●		A5F.2605-1
Fluorescence	Upgrade From A12.2603-B/T Biological Microscope With 5W LED Fluorescent Built-in Media Device, Double Band, China Filter B + G Ultraviolet Protection Barrier		●	A5F.2605-2
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	A55.2601-75
	C-Mount 1.0x, Focus Adjustable	○	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	○	A55.2610

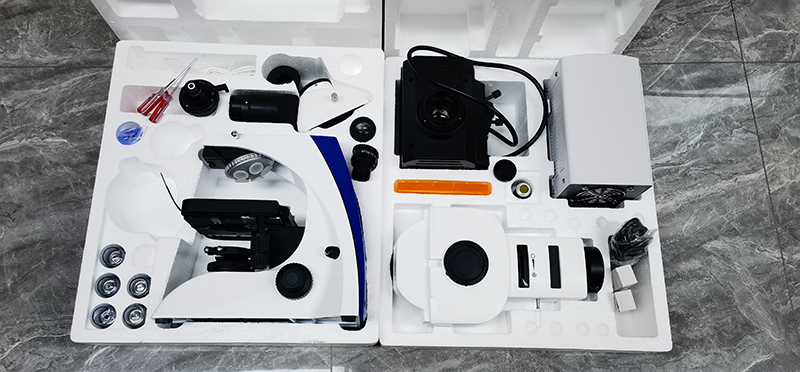

Package	Carton Size 990×340×440mm, 1 pc / Ctn
Weight	Gross Weight: 23 kgs, Net Weight: 18 kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories

More Pictures

Pictures Hide Same Show Difference
Model No.	A16.2603-NL-1	A16.2603-NL-2
Other Specification	Field Diaphragm For Kohler Illumnation Blue Filter Dia.45mm	Blue Filter Dia.45mm
Fluorescene	B or G China Fluorescent Set 5W LED Lamp Built-in Media Ultraviolet Protection Barrier	B+G China Fluorescent Set 5W LED Lamp Built-in Media Ultraviolet Protection Barrier
Fluorescent Band	1 Band	3 Bands
Power Supply Type	AC 110V-240V	——
Reflect Light	5W LED Fluorescent	5W LED Fluorescent
Transmit Light	6V30W Halogen	6V30W Halogen
Light Source Type	LED Halogen Fluorescent	Flourescent Halogen
Light Source Features	Transmit & Reflect Kohler	Light Indicator Kohler
Condenser N.A.	0.9/0.13	0.9/0.13
Condenser Type	Swing-Out	Swing-Out
Condenser Features	Iris Diaphragm	Filter Holder Center Adjustable Rack & Pinionↆ↑
Focusing Scale	0.002mm	0.002mm
Focusing Range	22mm	22mm
Focusing Type	Coaxial Coarse & Fine	——
Focusing Features	Tension Adjustable	Tension Adjustable Safety Stop Screw
Working Stage Moving	77x52mm	77x52mm
Working Stage Size	182x140mm	182x140mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical
Working Stage Features	Double Slide Holder Size ≥140x140mm Rackless Safety Edge	Double Slide Holder Size ≥140x140mm Rackless Safety Edge
Objective	Infinity Plan: PLAN 4x/0.10, W.D.=12.10mm PLAN 10x/0.25, W.D.=4.64mm PLAN 40x/0.66, W.D.=0.65mm PLAN 100x/1.25 (S,Oil), W.D.=0.12mm	Infinity Plan: PLAN 4x/0.10, W.D.=12.10mm PLAN 10x/0.25, W.D.=4.64mm PLAN 40x/0.66, W.D.=0.65mm PLAN 100x/1.25 (S,Oil), W.D.=0.12mm
Objective Type	Infinity Plan	Infinity Plan
Nosepiece Holes	5 Holes	5 Holes
Nosepiece Features	Inward	Inward
Eyepiece	WF10x/22mm, 2 pc.	WF10x/22mm, 2 pc.
Eyepiece Diameter	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable Super WF ≥23mm
Head Light Path	E100:P0/E0:P100	E100:P0/E20:P80
Head Interpupillary	48~76mm	48~76mm
Head Rotation	Head Rotate 360°	Eyetube Rotate 360°
Head Inclination	30°	——
Head Type	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	40x-1000x	——
Optical System	Infinity Plan	Infinity Plan
Features	Infinity	Infinity
Upgrade Function	BF+PH+DF+PL+FL	——
Standard Function	BF+FL	——
Video Adapter	——	C-Mount 0.3x
Objective Features	——	Iris Diaphragm

Pictures

Hide Same

Show Difference

LED Fluorescent Microscope, Semi-APO, Trinocular, B Or G

LED Fluorescent Microscope, Semi-APO, Trinocular, B, G

Model No.

A16.2603-NL-1

A16.2603-NL-2

Other Specification

Field Diaphragm For Kohler Illumnation Blue Filter Dia.45mm

Blue Filter Dia.45mm

Fluorescene

B or G China Fluorescent Set
5W LED Lamp Built-in Media
Ultraviolet Protection Barrier

B+G China Fluorescent Set
5W LED Lamp Built-in Media
Ultraviolet Protection Barrier

Fluorescent Band

1 Band

3 Bands

Power Supply Type

AC 110V-240V

——

Reflect Light

5W LED Fluorescent

Transmit Light

6V30W Halogen

Light Source Type

LED
Halogen
Fluorescent

Flourescent
Halogen

Light Source Features

Transmit & Reflect
Kohler

Light Indicator
Kohler

Condenser N.A.

0.9/0.13

Condenser Type

Swing-Out

Condenser Features

Iris Diaphragm

Filter Holder
Center Adjustable
Rack & Pinionↆ↑

Focusing Scale

0.002mm

Focusing Range

22mm

Focusing Type

Coaxial Coarse & Fine

——

Focusing Features

Tension Adjustable

Tension Adjustable
Safety Stop Screw

Working Stage Moving

77x52mm

Working Stage Size

182x140mm

Working Stage Type

2 Layers Mechanical

Working Stage Features

Double Slide Holder
Size ≥140x140mm
Rackless Safety Edge

Objective

Infinity Plan:
PLAN 4x/0.10, W.D.=12.10mm
PLAN 10x/0.25, W.D.=4.64mm
PLAN 40x/0.66, W.D.=0.65mm
PLAN 100x/1.25 (S,Oil), W.D.=0.12mm

Objective Type

Infinity Plan

Nosepiece Holes

5 Holes

Nosepiece Features

Inward

Eyepiece

WF10x/22mm, 2 pc.

Eyepiece Diameter

30.0mm

Eyepiece Features

Diopter Adjustable

Diopter Adjustable
Super WF ≥23mm

Head Light Path

E100:P0/E0:P100

E100:P0/E20:P80

Head Interpupillary

48~76mm

Head Rotation

Head Rotate 360°

Eyetube Rotate 360°

Head Inclination

30°

——

Head Type

Seidentopf Trinocular

Standard Magnification

40x-1000x

——

Optical System

Infinity Plan

Features

Infinity

Upgrade Function

BF+PH+DF+PL+FL

——

Standard Function

BF+FL

——

Video Adapter

——

C-Mount 0.3x

Objective Features

——

Iris Diaphragm
