A16.2603-NL-2

Like Favorites

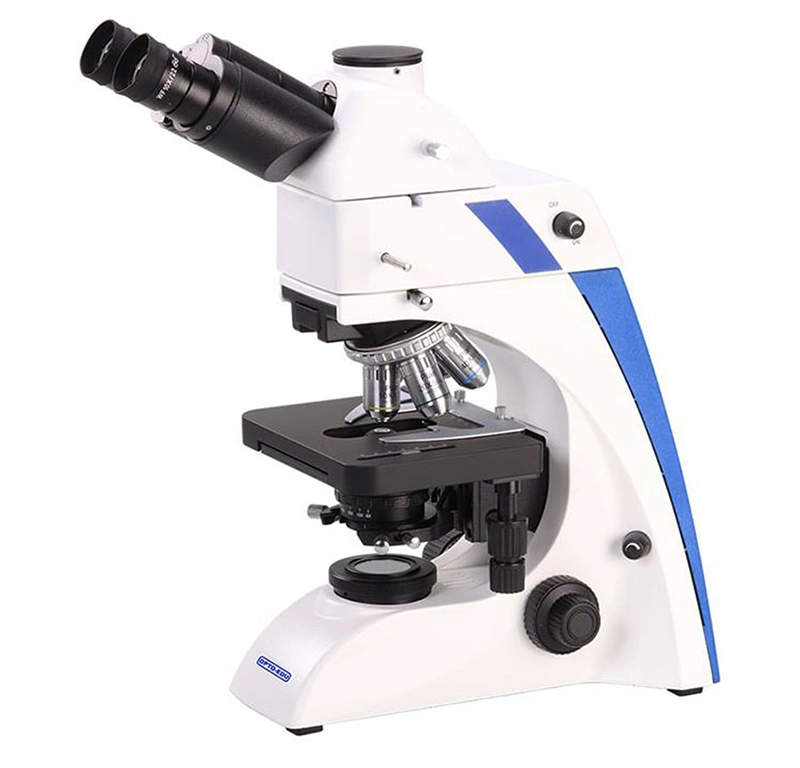

LED Fluorescent Microscope, Semi-APO, Trinocular, B, G


  • Built-in All-in-One Fluorescent Media Unit 5W LED With 1 or 2 Filters
  • Upgradeable to Semi-APO Fluorescent Objectives & 100x Water Objective
  • Large Head Eyepiece Tube Dia.30mm + Super Wide Field SWF10x/22mm Eyepiece
  • Rackless Large Mechanical Stag 182x140mm/77x52m With Double Slide Holder
  • Swing Out Condenser N.A. 0.9/0.13 + High Brightness 6V30W Halogen Koehler Illumination
Quantity:



Super Wide Field Eyepiece
SWF10x/22mm
Eyepiece Dia.30mm Diopter Adjustable



The Eyepiece Tube Has Fix Screw
To Prevent Eyepiece Falling Damage During Move


Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 & Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.


Large Size High Precision Quintuple Nosepiece, With Polarizing Analyzer Slot,
Infinity Plan Objective 4x,10x,20x,40x,100x Available
Creative 100X Water Objective (Optional) Instead Of 100X Oil Objective, More Convenient For Using & Cleaning After Use



Rackless (Integrated) Mechanical Stage
Large Size 182×140mm, Double Slide Holder
Travel Range 77×52mm


Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm
Control The Amount Of Light According To Demand, The Effect Is More Perfect.


Fluorescence Unit
Upgrade From A12.2601-C/CT Biological Microscope With:
5W LED Fluorescent Built-in Media Device,
Single Band, China Filter B or G
Ultraviolet Protection Barrier


ItemsA16.2603-NL LED Fluorescent Microscope Specification-1-2Cata. No.
HeadSeidentopf Trinocular  Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,
Eyepiece Tube Dia.30mm
A53.2623-T
EyepieceWF10x/22mm,Dia.30mm, High Eyepoint, Diopter Adjustable●●●●A51.2621-1022
NosepieceQuintupleA54.2610-N01
Infinity Plan ObjectivePLAN 2.5X/0.07,W.D.=8.47mmA52.2606-2.5
PLAN 4X/0.10,W.D.=12.10mmA52.2606-4
PLAN 10X/0.25,,W.D.=4.64mmA52.2606-10
PLAN 20X/0.40(S),W.D.=2.41mmA52.2606-20
PLAN 40X/0.66(S),W.D.=0.65mmA52.2606-40
PLAN 60X/0.80(S),W.D.=0.33mmA52.2606-60
PLAN 100X/1.25(S,Oil),W.D.=0.12mmA52.2606-100
PLAN 100X/1.15(S,Water),W.D.=0.19mmA52.2606-100W
Infinity Plan
Semi-APOFluorescent Objective
UplanFLN 4x, N.A.0.16W.D.=17.151mmA5F.2611-4
UplanFLN 10x, N.A.0.30W.D.=7.68mmA5F.2611-10
UplanFLN 20x, N.A.0.50W.D.=1.96mmA5F.2611-20
UplanFLN 40x, N.A.0.75W.D.=0.78mmA5F.2611-40
UplanFLN 100x(Oil), N.A.1.30W.D.=0.15mmA5F.2611-100
Working StageRackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide HolderA54.2601-S10
Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide HolderA54.2601-S01
FocusingCoaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm
CondenserSwing-out Condenser,N.A.0.9/0.13,Iris DiaphragmA56.2614-07a
IlluminationTransmit Light 6V30W Halogen
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
A56.2650-30W
Field DiaphragmFor Kohler IllumnationA56.2615-BK
FilterDia.45mm, Blue A56.2616-45B
Dia.45mm, GreenA56.2616-45G
Dia.45mm, YellowA56.2616-45A
Dark FieldDark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x ObjectiveA5D.2610-BK
Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective  A5D.2610-BKW
PolarizingAnalyzer + Polarizer SetA5P.2601-BK
Phase ContrastInfinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2602-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2602-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2602-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2602-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter
A5C.2603-BK
FluorescenceUpgrade From A12.2603-B/T Biological Microscope With
5W LED Fluorescent Built-in Media Device,
Single Band, China Filter B or G
Ultraviolet Protection Barrier
 A5F.2605-1
Upgrade From A12.2603-B/T Biological Microscope With
5W LED Fluorescent Built-in Media Device,
Double Band, China Filter B + G
Ultraviolet Protection Barrier
 A5F.2605-2
AdapterC-Mount 0.5x, Focus AdjustableA55.2601-05
C-Mount 0.75x, Focus AdjustableA55.2601-75
C-Mount 1.0x, Focus AdjustableA55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mmA55.2610
PackageCarton Size 990×340×440mm, 1 pc / Ctn
WeightGross Weight: 23 kgs, Net Weight: 18 kgs
Note:""In Table Is Standard outfits,""Is Optional Accessories






Pictures
Model No. A16.2603-NL-2 A16.2603-NL-1
Function
BF+FL BF+FL
Features
Infinity
Semi-APO
Infinity
Semi-APO
Optical System
Infinity Plan Infinity Plan
Standard Magnification
40x-1000x 40x-1000x
Optional Magnification
40x-2000x 40x-2000x
Head Type
Seidentopf Trinocular Seidentopf Trinocular
Head Inclination
30° 30°
Head Rotation
Eyetube Rotate 360° Eyetube Rotate 360°
Head Interpupillary
48~76mm 48~76mm
Head Light Path
Switch E100:P0/E20:P80 Switch E100:P0/E20:P80
Eyepiece Features
Super Wide Field >22mm
High Eyepoint
Diopter Adjustable
Super Wide Field >22mm
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
30.0mm 30.0mm
Eyepiece
WF10x/22mm, 2 pc. WF10x/22mm, 2 pc.
Nosepiece Holes
5 Holes 5 Holes
Nosepiece Features
Backward Backward
Objective Type
Infinity Plan Infinity Plan
Objective Features
With Iris Diaphragm With Iris Diaphragm
Objective
Infinity Plan:
PLAN 4x/0.10, W.D.=12.10mm
PLAN 10x/0.25, W.D.=4.64mm
PLAN 40x/0.66, W.D.=0.65mm
PLAN 100x/1.25 (S,Oil), W.D.=0.12mm
Infinity Plan:
PLAN 4x/0.10, W.D.=12.10mm
PLAN 10x/0.25, W.D.=4.64mm
PLAN 40x/0.66, W.D.=0.65mm
PLAN 100x/1.25 (S,Oil), W.D.=0.12mm
Working Stage Type
Double Layers Mechanical Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Safety Rackless Round Edge
Double Slide Holder
Large Size >140x140mm
Safety Rackless Round Edge
Working Stage Size
182x140mm 182x140mm
Working Stage Moving
77x52mm 77x52mm
Focusing Features
Safety Stop Screw
Tension Adjustable
Safety Stop Screw
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine Focus Coaxial Coarse & Fine Focus
Focusing Range
22mm 22mm
Focusing Scale
0.002mm 0.002mm
Condenser Type
Swing-Out Swing-Out
Condenser N.A.
0.9/0.13 0.9/0.13
Condenser Features
Rack & Pinion Up/Down
With Filter Holder
Center Adjustable
Rack & Pinion Up/Down
With Filter Holder
Center Adjustable
Light Source Feature
Brightness Adjustable
Kohler Illumination
Transmit Light
Brightness Adjustable
Kohler Illumination
Transmit Light
Light Source Type
Halogen
Flourescent
Halogen
Flourescent
Transmit Light
6V30W Halogen 6V30W Halogen
Reflect Light
5W LED Fluorescent 5W LED Fluorescent
Power Supply Type
AC 110V-240V Wide Voltage AC 110V-240V Wide Voltage
Fluorescene
B+G China Fluorescent Set
5W LED Lamp Built-in Media
Ultraviolet Protection Barrier
B or G China Fluorescent Set
5W LED Lamp Built-in Media
Ultraviolet Protection Barrier
Fluorescent Band
B,G B
Function Upgradeable
Dark Field
Polarizing
Phase Contrast
Dark Field
Polarizing
Phase Contrast
Other Specification
Blue Filter Dia.45mm Blue Filter Dia.45mm
