Ultra LED Fluorescent Microscope, Semi-APO Optional

Upgradeable to Semi-APO Fluorescent Objectives & 100x Water Objective

5W LED Fluorescent Light Source For Observe In Pathology, Clinical Lab Use

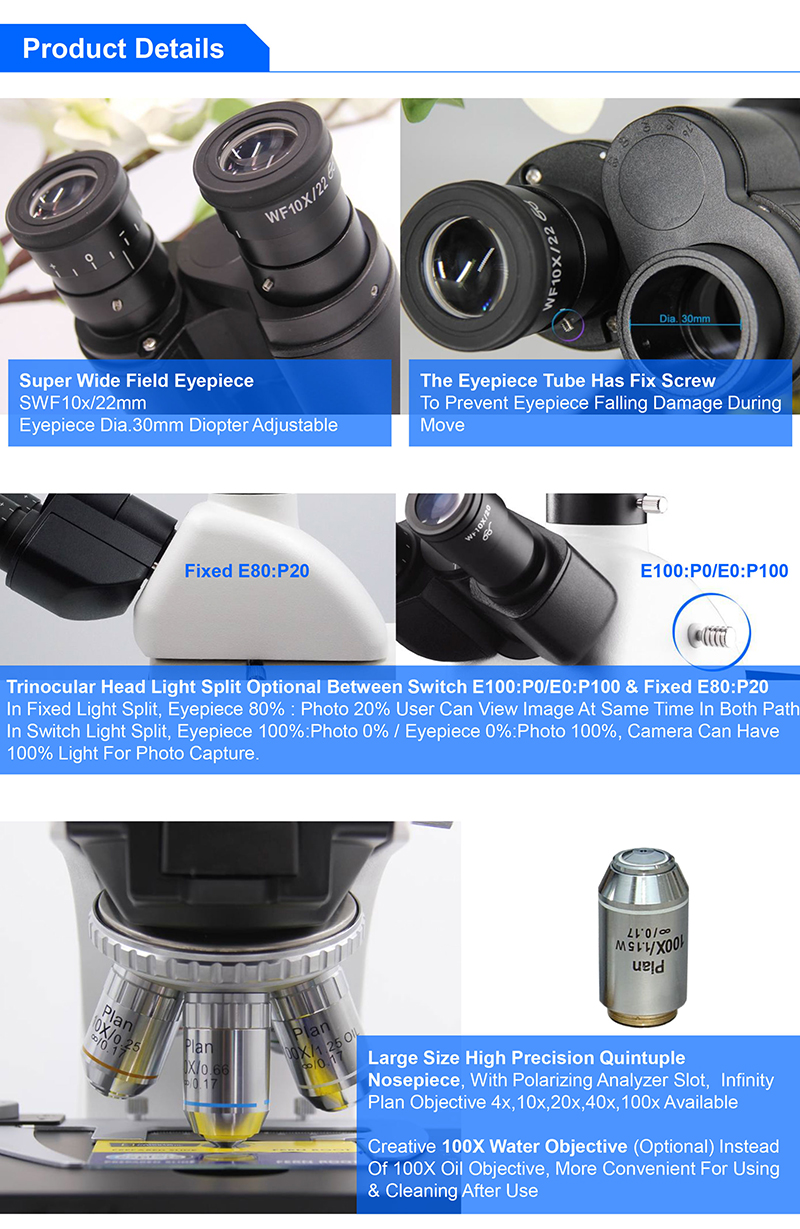

Large Head Eyepiece Tube Dia.30mm + Super Wide Field SWF10x/22mm Eyepiece

Rackless Large Mechanical Stag 182x140mm/77x52m With Double Slide Holder

Swing Out Condenser N.A. 0.9/0.13 + High Brightness 6V30W Halogen Koehler Illumination

Items	A16.2603-UL LED Fluorescent Microscope Specification		Cata. No.
Head	Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Eyepiece Tube Dia.30mm	●	A53.2623-B
Head	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm	○	A53.2623-T
Eyepiece	WF10x/22mm,Dia.30mm, High Eyepoint, Diopter Adjustable	●●	A51.2621-1022
Nosepiece	Quintuple	●	A54.2610-N01
Infinity Plan Objective	PLAN 2.5X/0.07,W.D.=8.47mm	○	A52.2606-2.5
	PLAN 4X/0.10,W.D.=12.10mm	●	A52.2606-4
	PLAN 10X/0.25,,W.D.=4.64mm	●	A52.2606-10
	PLAN 20X/0.40(S),W.D.=2.41mm	●	A52.2606-20
	PLAN 40X/0.66(S),W.D.=0.65mm	●	A52.2606-40
	PLAN 60X/0.80(S),W.D.=0.33mm	○	A52.2606-60
	PLAN 100X/1.25(S,Oil),W.D.=0.12mm	●	A52.2606-100
	PLAN 100X/1.15(S,Water),W.D.=0.19mm	○	A52.2606-100W
Infinity Plan Semi-APO Fluorescent Objective	UplanFLN 4x, N.A.0.16，W.D.=17.151mm	○	A5F.2611-4
	UplanFLN 10x, N.A.0.30，W.D.=7.68mm	○	A5F.2611-10
	UplanFLN 20x, N.A.0.50，W.D.=1.96mm	○	A5F.2611-20
	UplanFLN 40x, N.A.0.75，W.D.=0.78mm	○	A5F.2611-40
	UplanFLN 100x(Oil), N.A.1.30，W.D.=0.15mm	○	A5F.2611-100

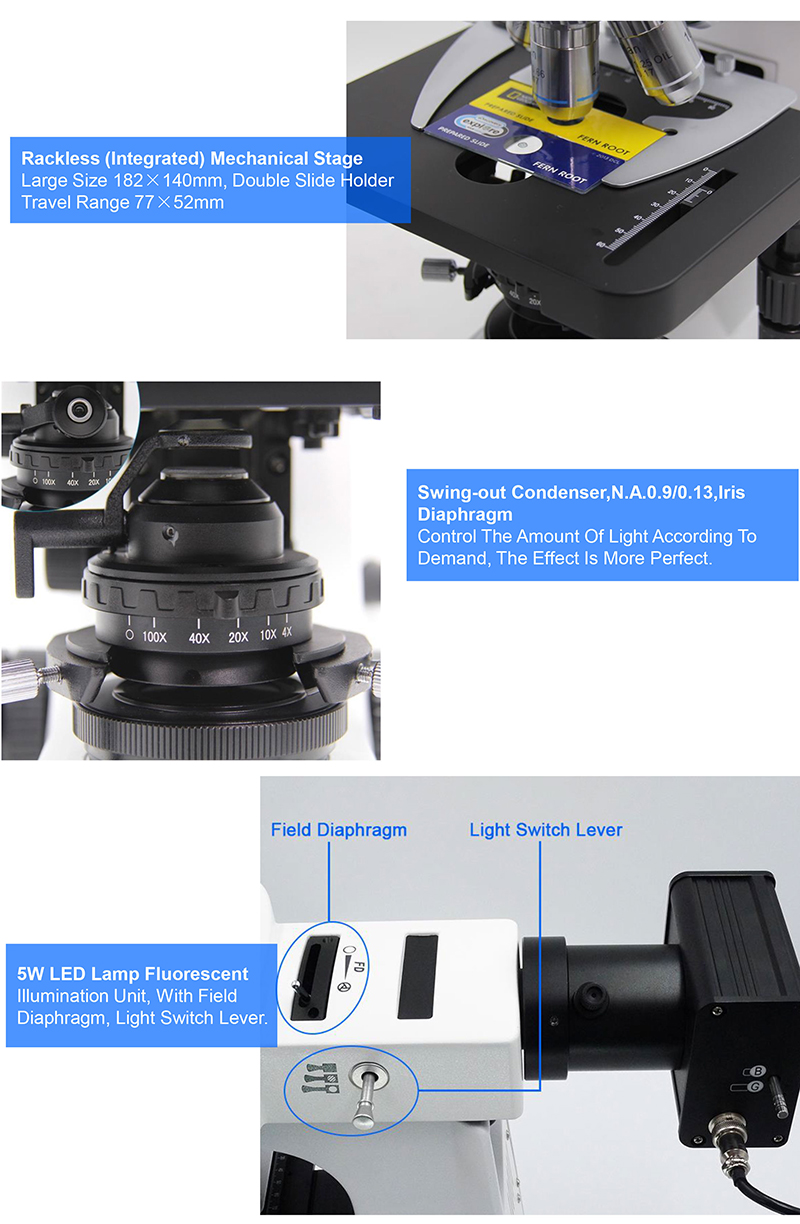

Working Stage	Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder	●	A54.2601-S10
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm	●
Condenser	Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm	●	A56.2614-07a
Illumination	Transmit Light 6V30W Halogen Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm	●	A56.2650-6V30WH
Illumination	Transmit 3W LED Koehler Illumination, Field Diaphragm Powered By Safety Low Voltage Charger, Input Wide Voltage 100V240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	○	A56.2650- 3WLED
Field Diaphragm	For Kohler Illumnation	●	A56.2615-BK
Filter	Dia.45mm, Blue	●	A56.2616-45B
	Dia.45mm, Green	○	A56.2616-45G
	Dia.45mm, Yellow	○	A56.2616-45A
Dark Field	Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective	○	A5D.2610-BK
Dark Field	Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective		A5D.2610-BKW

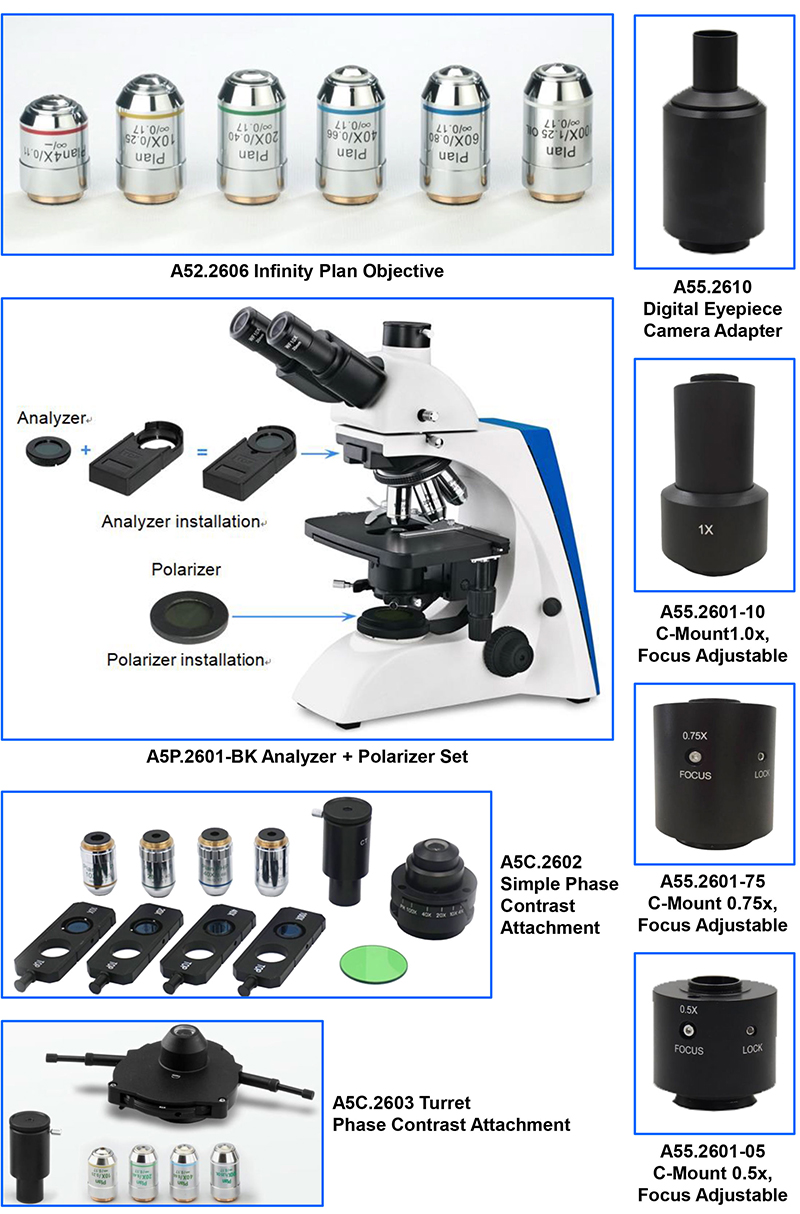

Polarizing	Analyzer + Polarizer Set	○	A5P.2601-BK
Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	A5C.2602-10
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	A5C.2602-20
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	A5C.2602-40
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	A5C.2602-100
	Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter	○	A5C.2603-BK

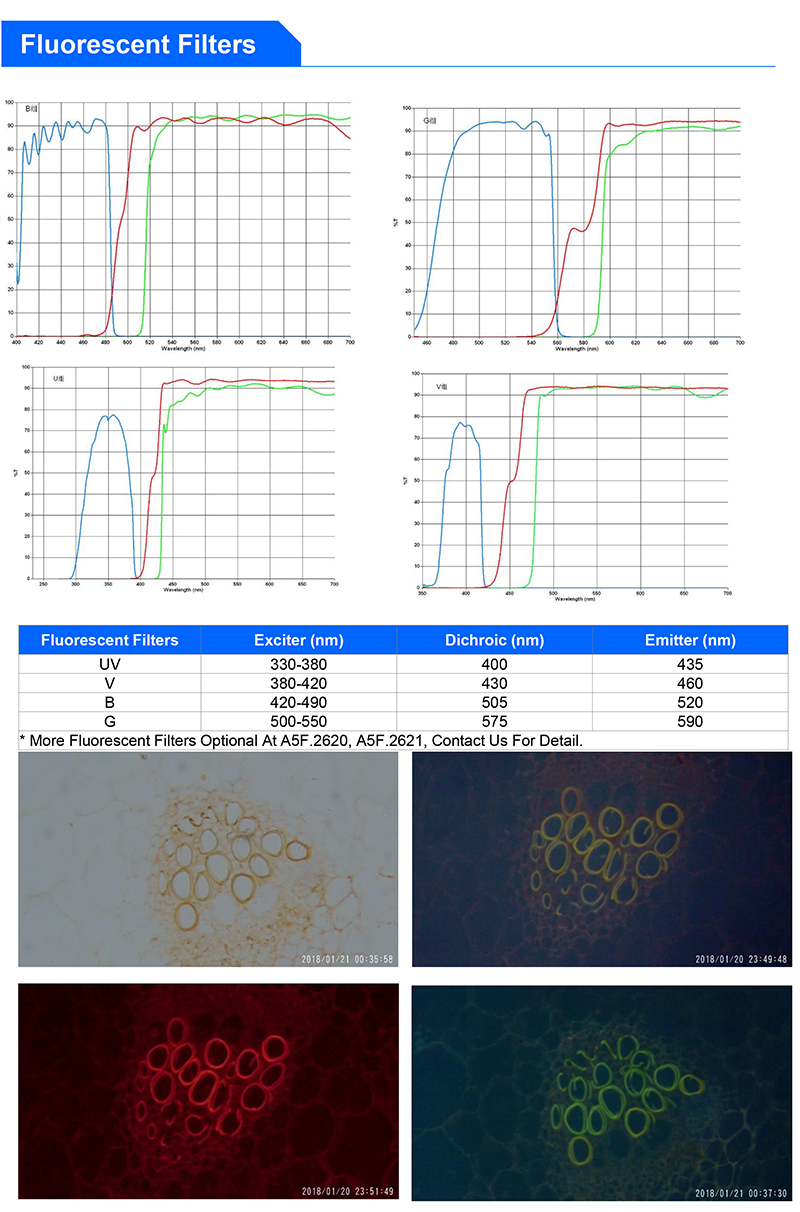

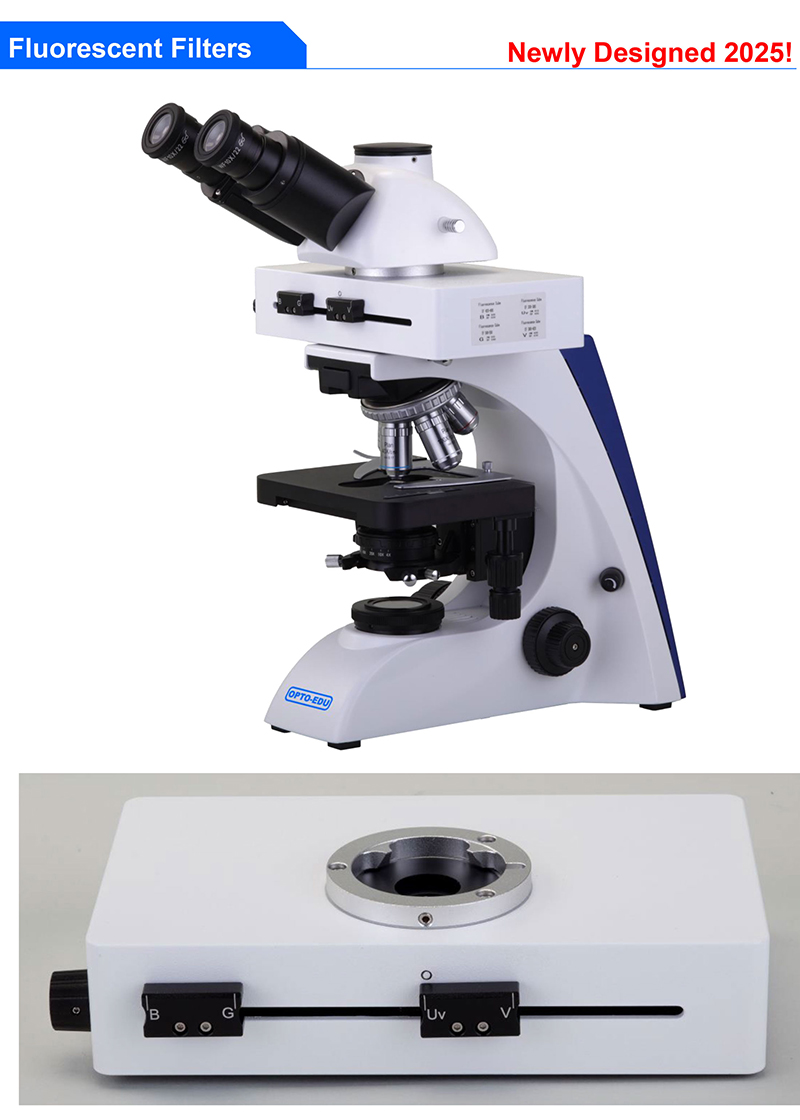

Fluorescence	Newly Design 2025! Ultra LED Inverted Fluorescent Microscope With All-in-One Filter + 5W LED System The LED Fluorescent Light Source And The Fluorescent Filter Are Fixed as One Unit And Move Together, Switch Easily And Providing An Ultra-high Brightness Fluorescent Light Source. A16.2603-UL2 B,G China Fluorescent Filters A16.2603-UL3 B,G,UV China Fluorescent Filters A16.2603-UL4 B,G,U,UV China Fluorescent Filters	●	A5F.2610-2 A5F.2610-3 A5F.2610-4
Adapter	C-Mount 0.5x, Focus Adjustable	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	A55.2601-75
	C-Mount 1.0x, Focus Adjustable	○	A55.2601-10
	Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm	○	A55.2610

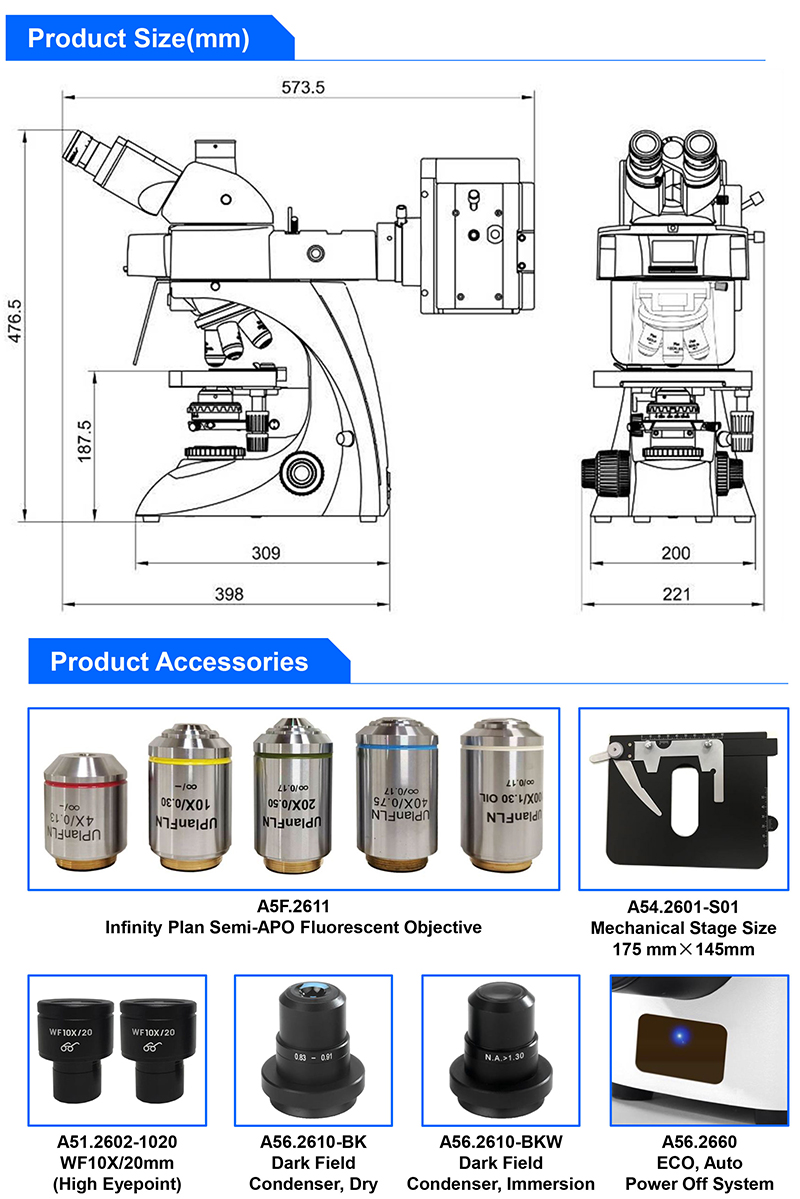

Package	Microscope 552736cm, 11kg, Fluorescent Unit 524724cm, 5kg
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories

Pictures

Ultra LED Fluorescent Microscope, Semi-APO Optional

Model No.

A16.2603-UL

Other Specification

Field Diaphragm For Kohler Illumnation Blue filter, Dia. 45mm

Fluorescene

B,G China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier

Fluorescent Band

2 Bands

Power Supply Type

AC 110V-240V

Reflect Light

5W LED

Transmit Light

6V30W Halogen

Light Source Type

LED
Halogen

Light Source Features

Halogen 30W
Transmit & Reflect
Kohler

Condenser N.A.

0.9/0.13

Condenser Type

Swing-Out

Condenser Features

Iris Diaphragm

Focusing Scale

0.002mm

Focusing Range

22mm

Focusing Type

Coaxial Coarse & Fine

Focusing Features

Tension Adjustable

Working Stage Moving

77x52mm

Working Stage Size

182x140mm

Working Stage Type

2 Layers Mechanical

Working Stage Features

Double Slide Holder
Size ≥140x140mm
Rackless Safety Edge

Objective

Infinity Plan:
PLAN 4x/0.10, W.D.=12.10mm
PLAN 10x/0.25, W.D.=4.64mm
PLAN 40x/0.66, W.D.=0.65mm
PLAN 100x/1.25 (S,Oil), W.D.=0.12mm

Objective Type

Infinity Plan

Nosepiece Holes

5 Holes

Nosepiece Features

Inward

Eyepiece

WF10x/22mm, 2 pc.

Eyepiece Diameter

30.0mm

Eyepiece Features

Diopter Adjustable

Head Light Path

E100:P0/E20:P80

Head Interpupillary

48~76mm

Head Rotation

Head Rotate 360°

Head Inclination

30°

Head Type

Seidentopf Trinocular

Standard Magnification

40x-1000x

Optical System

Infinity Plan

Features

Infinity
APO

Upgrade Function

BF+PH+DF+PL+FL

Standard Function

BF+FL

公用.产品备忘

LED荧光光源和荧光滤色片一体固定，一体移动，超高亮度荧光光源
The LED fluorescent light source and the fluorescent filter are fixed as one unit and move together, providing an ultra-high brightness fluorescent light source.
