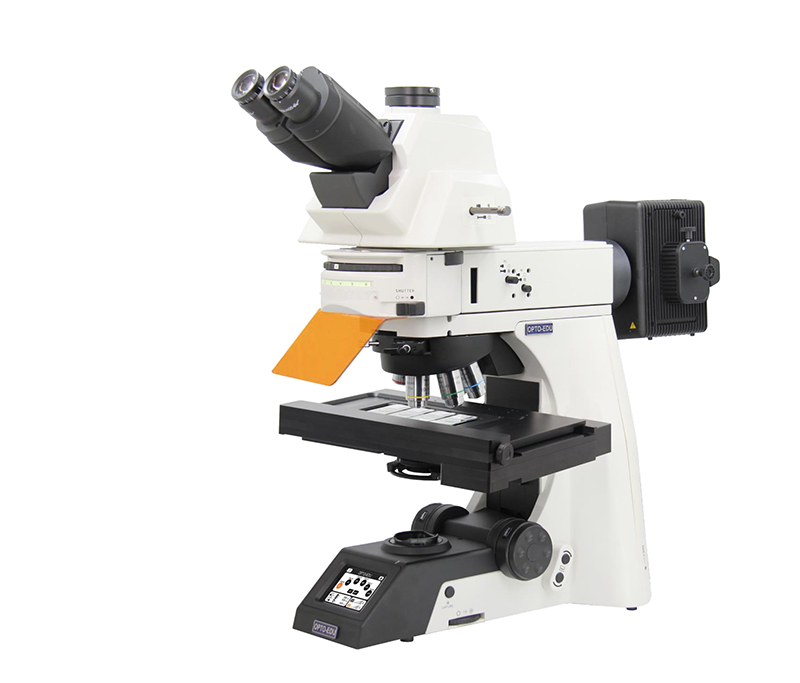

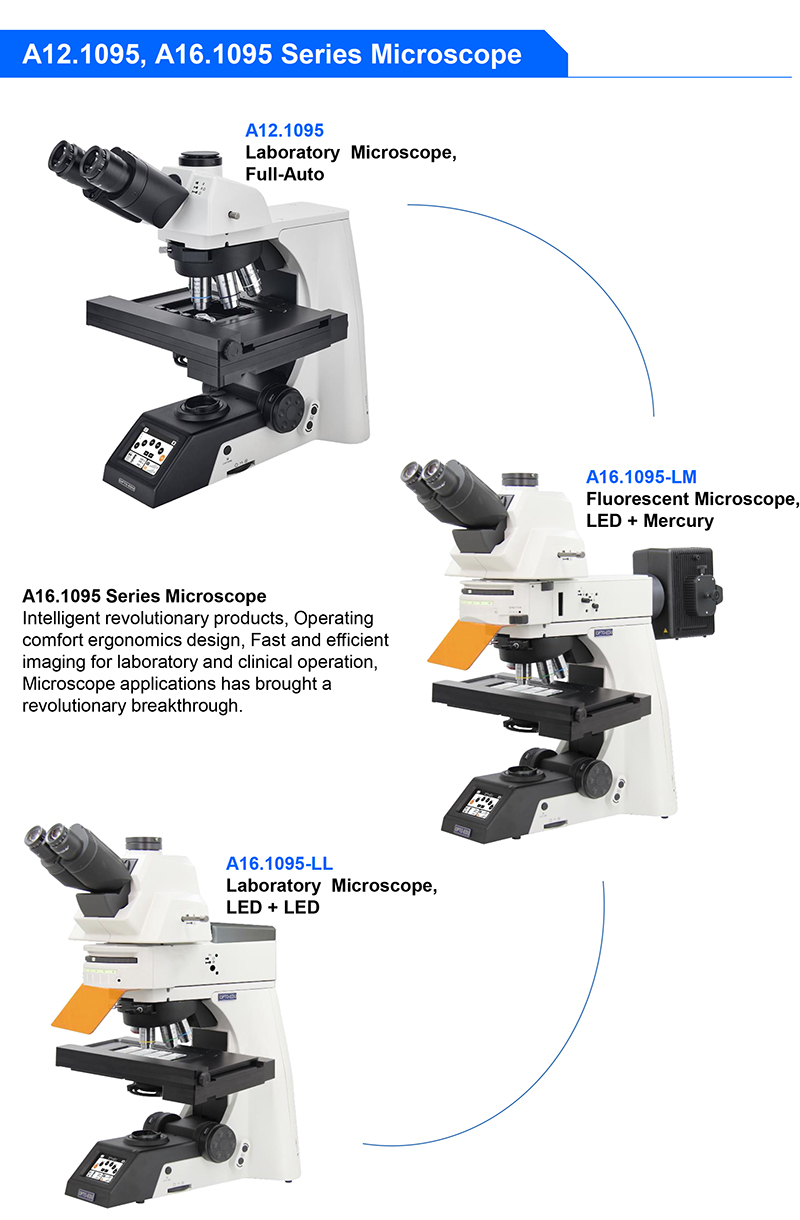

Upright Fluorescent Microscope, Semi-APO, Full Motorized, LED + Mercury

Full Motorized Research Level Fluorescent Microscope With 6 Position Turret Disc Epi-Fluorescent Illuminator

Motorized X/Y/Z Mechanical Stage Travel Range 125x75mm Including Control Stick

Reflect Epi-Fluorescent 100W HBO Mecury Light or LED Lights, Fluorescent Filter B,G,UV,V

Auto 6 Holes Nosepiece With Infinity Plan Objective 4x10x20x40x100x

Auto Brightness Adjust ECO Function Kohler Illumination 3W SLED Or 24V100W Halogen Optional

◆ Fluorescent Viewing

The compact epi-fluorescent components includes noise elimination feature which ensures images captured are bright, with high contrast and high signal-to-noise ratio.

Auto Light Intensity Management

The Management system can automatically adjust to the suitable light intensity according to the different setup of objectives from the low to high magnifications, and reduce the eye fatigue at the same time. The long-life LED lamp can keep the light intensity and easy for maintenance.

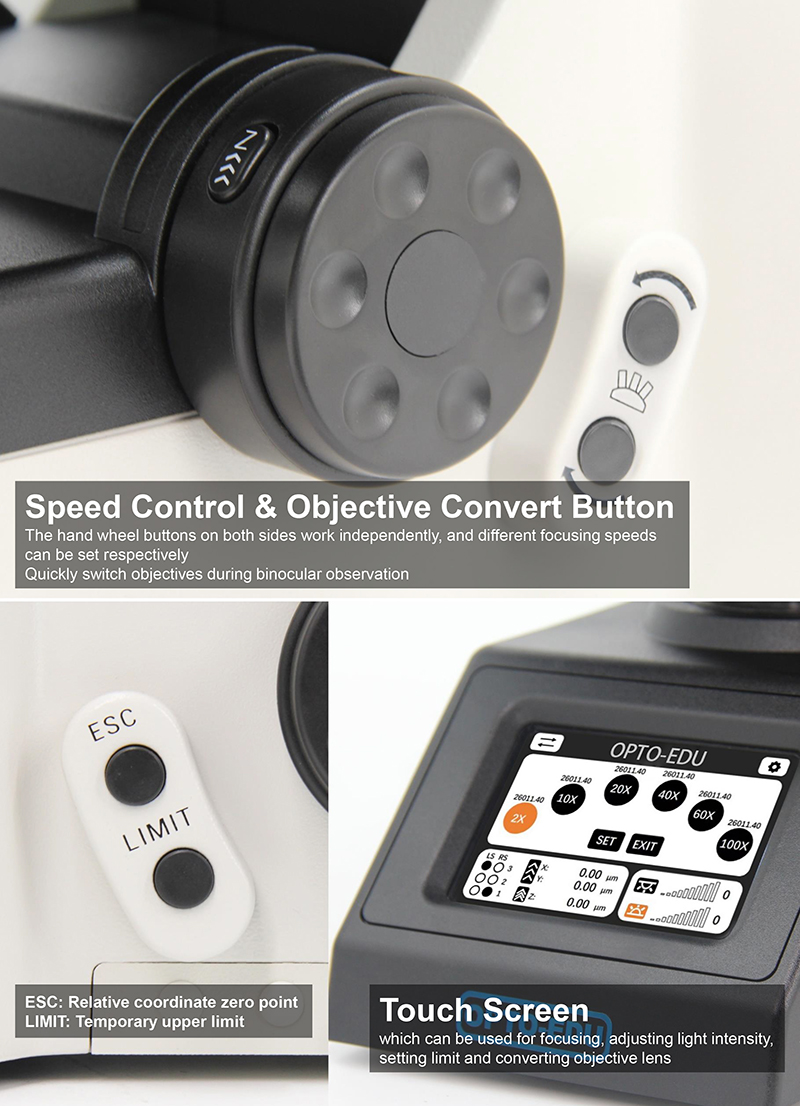

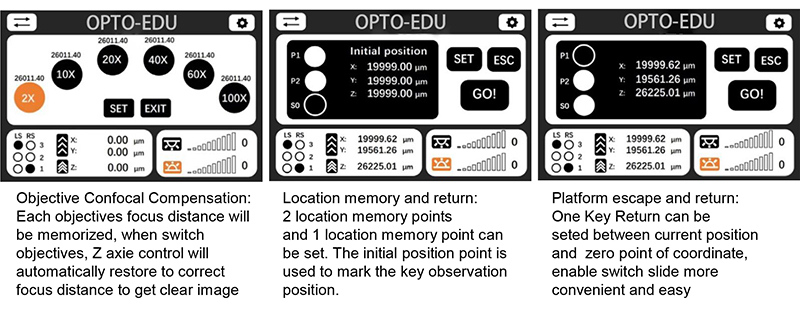

Touch Control Screen, Saving Space, Flexible Control

The front touch control screen integrated with the microscope does not occupy the desktop position. The interface is simple and easy to operate, and the programmable control simplifies the repeated observation and imaging process. Powerful functions: three axis coordinate display, speed gear display, objective electric switch, objective double hole directional switch, position memory and return, relative coordinate display, objective focus compensation, temporary upper limit setting, platform escape and recovery, display day / night mode, etc.

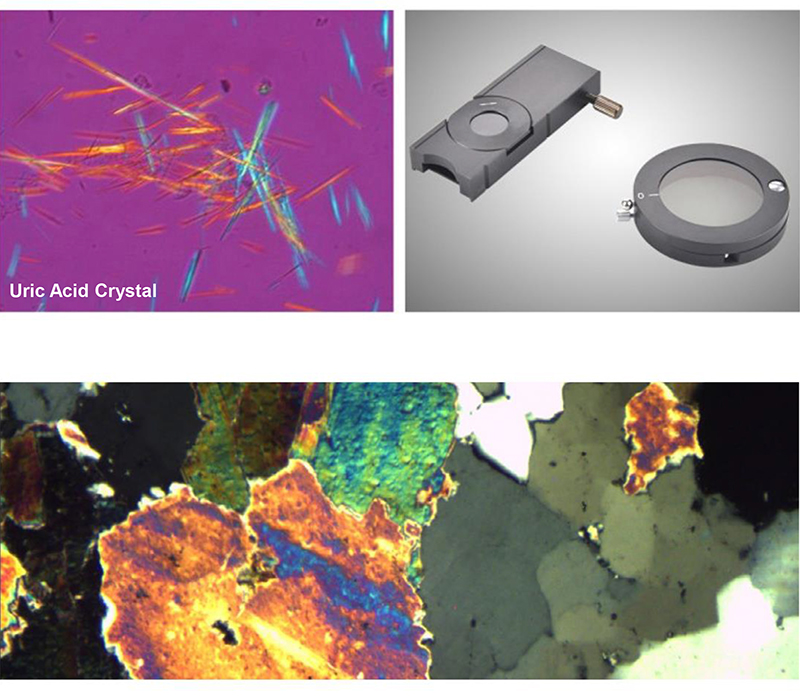

◆ Polarizing Viewing

It is quite suitable for viewing collagen, amyloid and crystal etc. double refracting specimen.

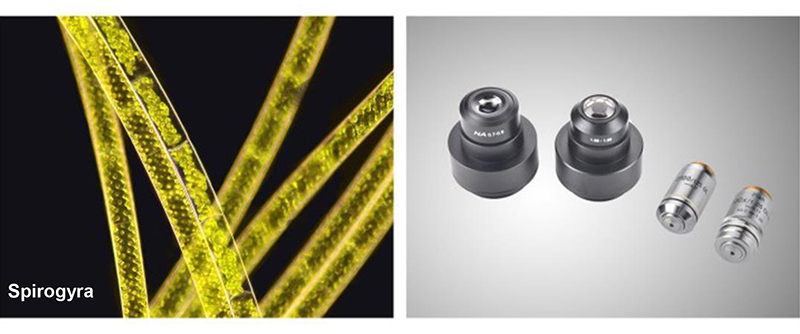

◆Dark-field Viewing

It can be used for clearly viewing of blood or flagellum etc. fine structure.

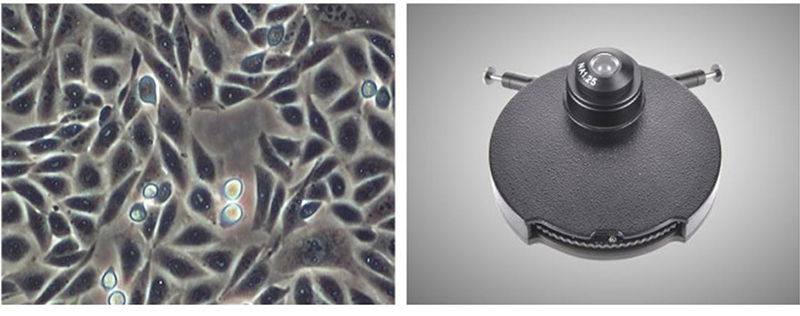

◆Phase Contrast Viewing

Operators can get high contrast image of neutral background color whatever the magnifications are. It is suitable for viewing non-stained specimen.

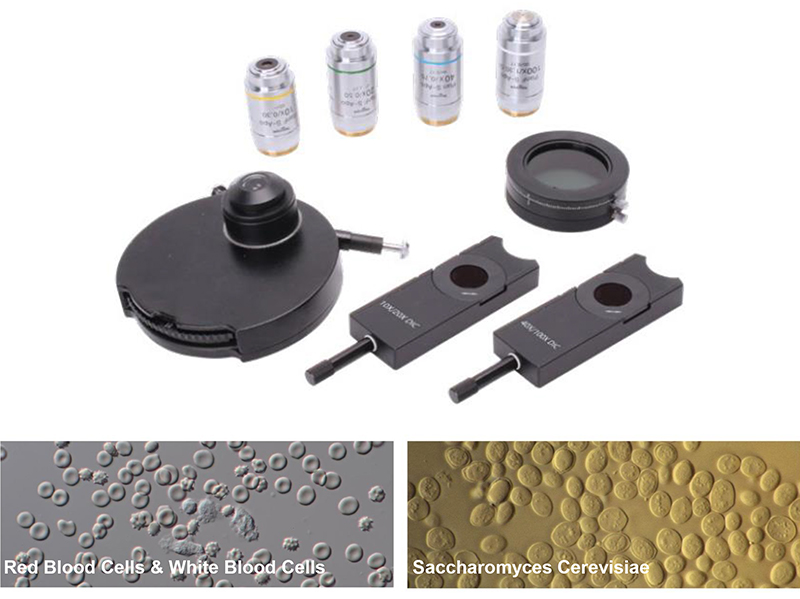

◆DIC Phase Contrast Viewing

DIC increases the contrast of the sample, and enables the nucleus and larger organelles such as mitochondria to have a strong three-dimensional effect, which is more suitable for micromanipulation. At present, it is mostly used for micromanipulation of gene injection, nuclear transfer, genetically modified animals and other bioengineering

A16.1095 Research Level Fluorescent Laboratory Microscope		A16.1095		Cata. No.
A16.1095 Research Level Fluorescent Laboratory Microscope		LM	LL	Cata. No.
Optical System	NIS60 Infinity Optical System	●	●
Observation Method	Bright Field	●	●
	Dark Field	○	○
	Polarizing	○	○
	Phase Contrast	○	○
	Flourescent	●	●
	DIC	○	○
Main Body	ATLSemi-Auto Body + LEDIllumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	●	●	A54.1090-ATL

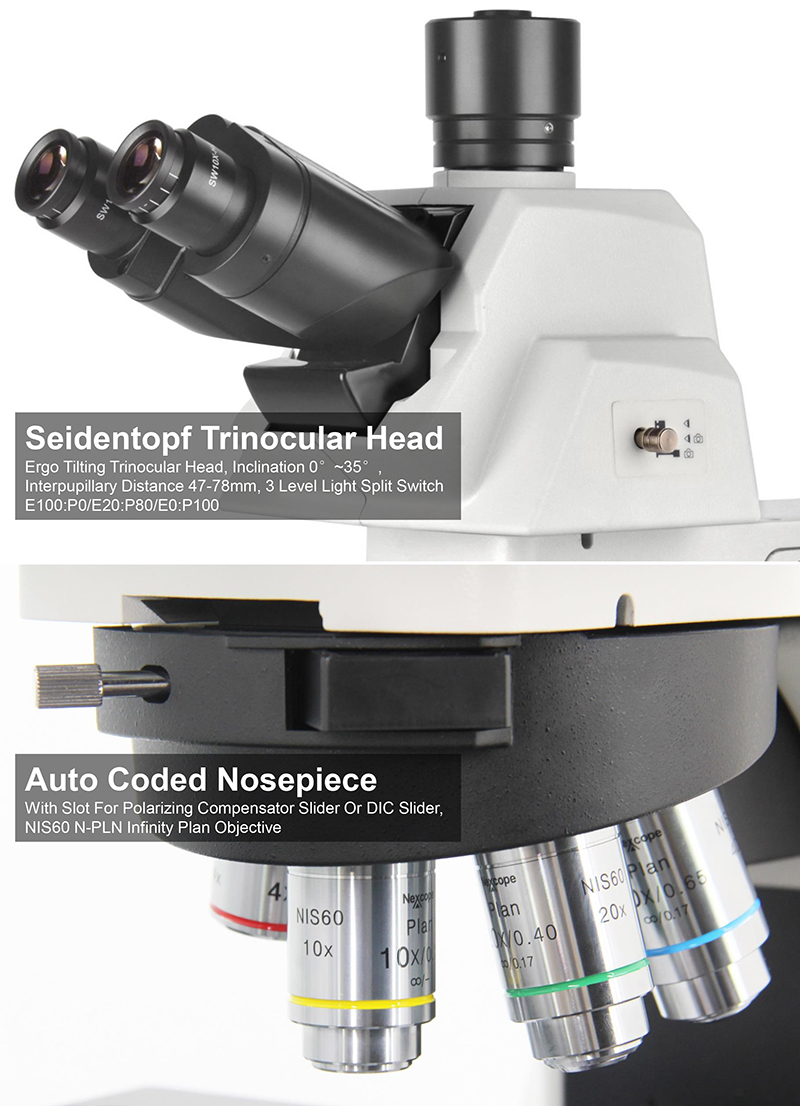

Head	Ergo Tilting Trinocular Head, Inclination 0°~35°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100	●	●	A53.1090-TT
Eyepiece	SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm	●●	●●	A51.1090-1025
	SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	A51.1090-1022
	EW12.5x/16mm, High Eyepoint	○	○	A51.1090-12516
	WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	A51.1090-1516
	WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	A51.1090-2012
Nosepiece	Auto Coded Nosepiece, Sextuple, Backward, Motorized Switch Objectives, Controled By: 1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly 2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them	●	●	A54.1091-6A
Nosepiece	With Slot For Polarizing Compensator Slider Or DIC Slider	●	●

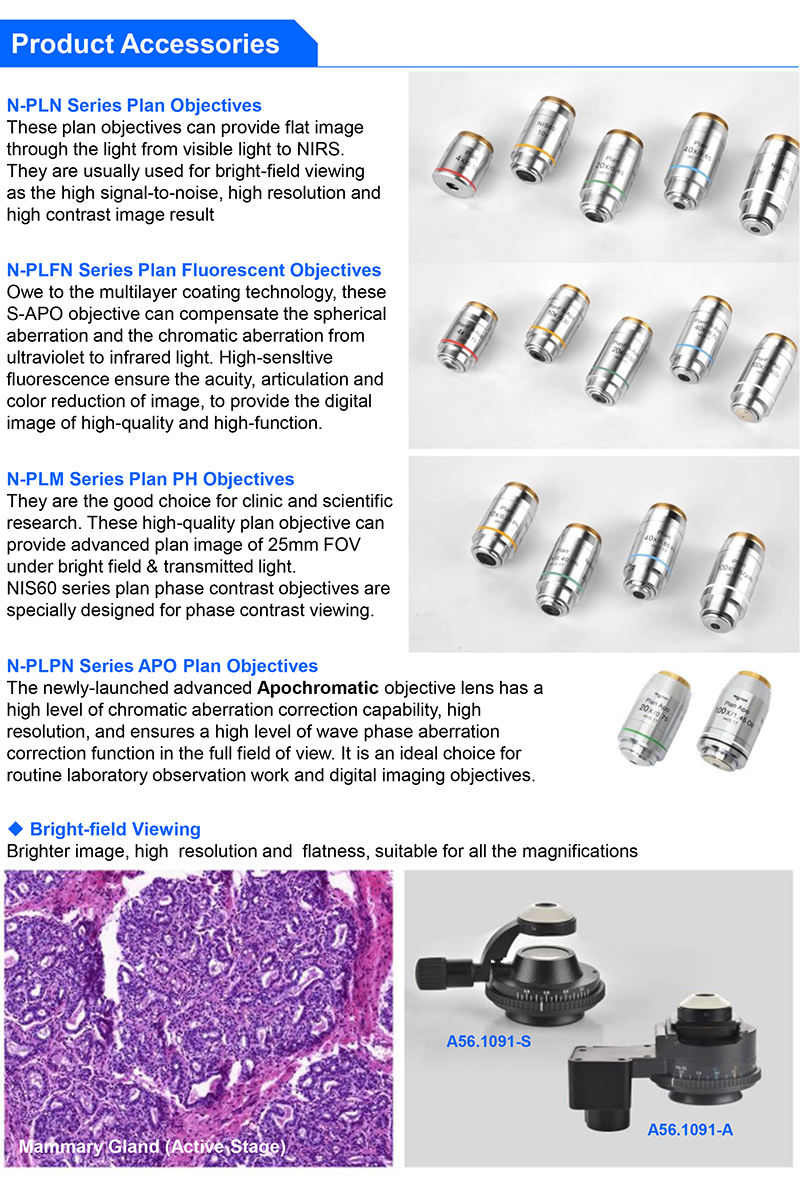

N-PLFN Infinity Plan Semi-APO Fluorescent Objective	PlanF S-APO 4x/0.13, W.D.16.5mm, Cover Glass 0.17mm	●	●	A5F.1091-4
	PlanF S-APO 10x/0.30, W.D.8.1mm, Cover Glass 0.17mm	●	●	A5F.1091-10
	PlanF S-APO 20x/0.50, W.D.2.1mm, Cover Glass 0.17mm	●	●	A5F.1091-20
	PlanF S-APO 40x/0.75, W.D.0.7mm, Cover Glass 0.17mm	●	●	A5F.1091-40
	PlanF S-APO 100x/1.30(Oil), W.D.0.15mm, Cover Glass 0.17mm	●	●	A5F.1091-100

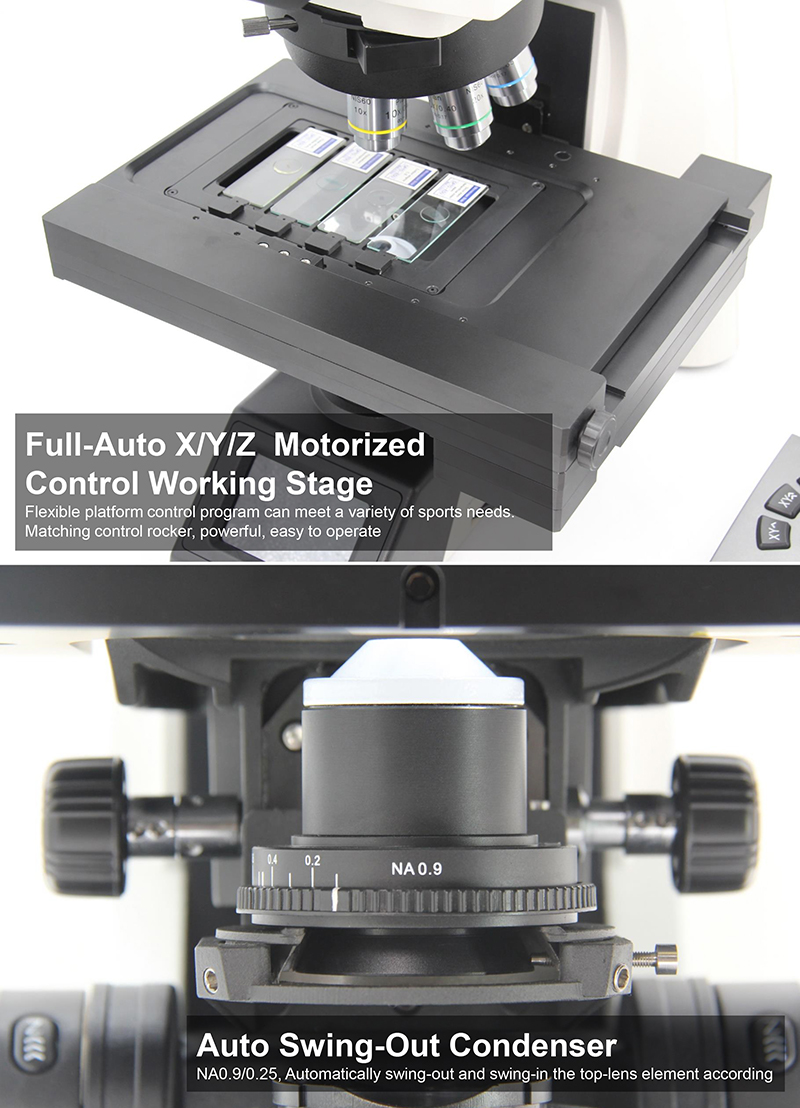

Working Stage	Full-Auto X/Y/Z Motorized Control Working Stage, Including Control Joy Stick, --Travel Range X:125mm, Y:75mmm, --Minimum Step 0.1um --Re-Position Accurate +/-1.5um --Max Speed 25mm/s --Size: 275x239x44.5mm --Soft Stop, Mechanical Stop, Opto -Electro Switch Stop --Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus +/-0.1um --Z Axis Max Speed 10r/s --3D Control Stick, 4 Speeds --Connection By USB2.0 & RS232 --Communication Speed 9600 bits	●	●	A54.1095-A
Working Stage	Z Axis Upgrade With Optical Grating Ruler	○	○	A54.1095-B
Condenser	AutoSwing-Out Condenser NA0.9/0.25	●	●	A56.1091-A
Focusing	Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ	●	●
Light Source	TransmitKohler Illumination, Brightness Adjustable, 12V100W Halogen, External Lamp House	○	○	A56.1090-12V100W
	TransmitKohler Illumination, Brightness Adjustable, 3W S-LED, Built-in Main Body	●	●	A56.1090-3WLED
	ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy	●	●	A56.1090-ECO
	AutoBrightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected	●	●	A56.1090-AB
Filter For Transmit Light	Filter Holder On Base, Can Hold 3 Filters	●	●	A56.1092-H
	Filter LBD	●	●	A56.1092-LBD
	Filter Green	●	●	A56.1092-G
	Filter Yellow	●	●	A56.1092-Y
	Filter ND6	●	●	A56.1092-ND6
	Filter ND25	●	●	A56.1092-ND25
Adapter	Eyepiece Adapter Dia.23.2mm	○	○	A55.1090-E
	C-Mount 1.0x	○	○	A55.1090-1.0x
	C-Mount 0.5x	○	○	A55.1090-0.5x

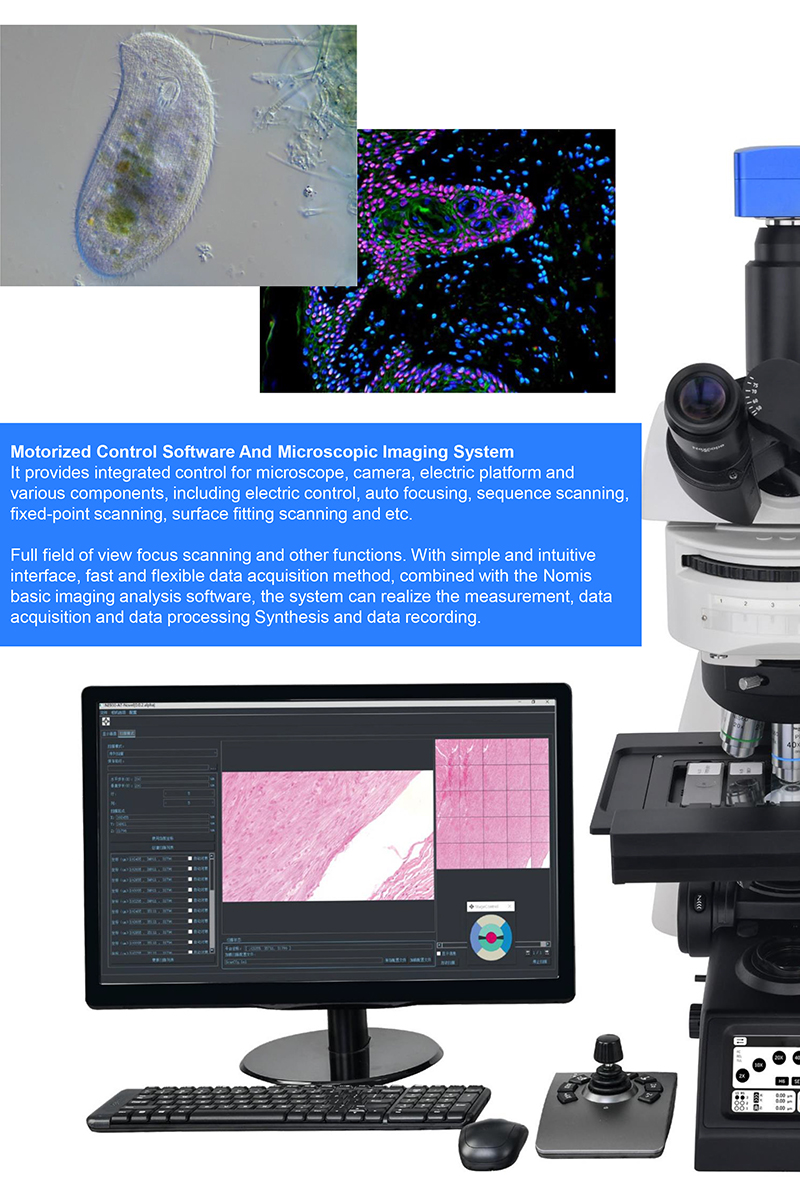

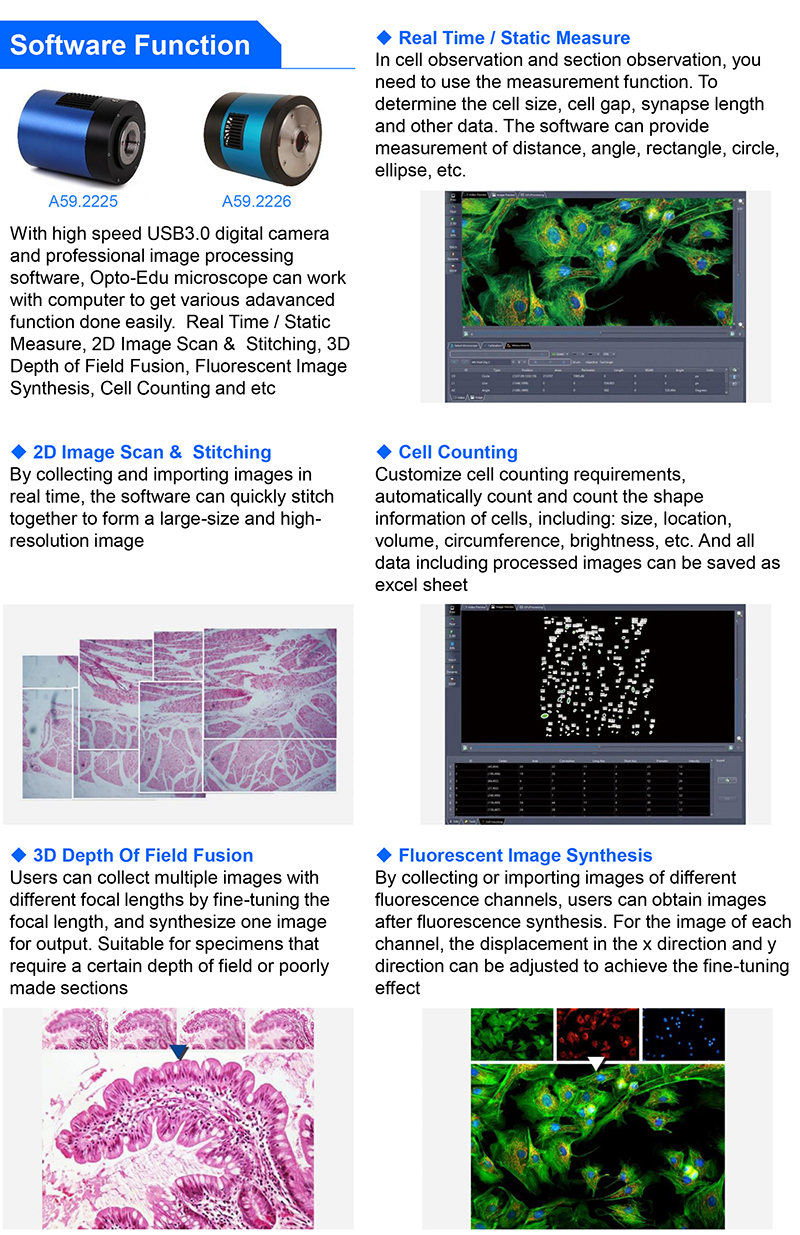

Software	NOMIS Basic Image Processiing Software	○	○	A30.1090
Dark Field	Dark Field Condenser, N.A. 0.7~0.9, Dry	○	○	A5D.1090-D
	Dark Field Condenser, N.A. 1.25~1.36, Immersion	○	○	A5D.1090-I
	Dark Field Objective, Infinity Plan 100X, For Immersion Dark Field Observation	○	○	A5D.1030-3
	Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm, For Immersion Dark Field Observation	○	○	A5D.1030-4
Polarizing	Polarizer For Transmit Light Source	○	○	A5P.1091-P
	Analyzer Slide For Transmit Light Source	○	○	A5P.1091-A
	Gout Set: Polarizer, λ Slide, Quaterz Wedge Slide	○	○	A5P.1091-T
	Upgrade To A15.1091Professional Polarizing Microscope			A15.1091
Phase Contrast	Turret Phase Contrast Condenser, Center Adjustable	○	○	A5C.1090
	Centering Telescope 10x	○	○	A5C.1092
	Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25	○	○	A5C.1091-10
	Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40	○	○	A5C.1091-20
	Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65	○	○	A5C.1091-40
	Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil)	○	○	A5C.1091-100
DIC	Polarizer For Transmit Light Source	○	○	A5P.1090-TP
	Turret DIC Condenser	○	○	A5C.1095
	DIC Slide 10x, Used With Semi-APO Fluorescent Objective	○	○	A5C.1095-10
	DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective	○	○	A5C.1095-2040
	DIC Slide 100x, Used With Semi-APO Fluorescent Objective	○	○	A5C.1095-10
	DIC Slide With Analyzer 10x-20x	○	○	A5C.1095-1020P
	DIC Slide With Analyzer 40x-100x	○	○	A5C.1095-40100P
Fluorescent Attachment	Reflect Mercury Epi-Fluorescent Illuminator, Turret Disc With 6 Positions For Fluroescent Filter Block, With Protect Barrier	●	○	A5F.1090
	Power Supply Box 220V/110V Interchargeable, Digital Display	●	○	A5F.1090-100WH
	100W Mercury Lamp Housing	●	○	A5F.1090-100WP
	Reflect LED Epi-Fluorescent Illuminator, Turret Disc With 6 Positions For Fluroescent Filter Block, With Protect Barrier	○	●	A5F.1090-LED
	LED Light Source Module, For Fluorescent Filter B	○	●	A5F.1090-LB
	LED Light Source Module, For Fluorescent Filter G	○	●	A5F.1090-LG
	LED Light Source Module, For Fluorescent Filter U	○	●	A5F.1090-LU
	LED Light Source Module, For Fluorescent Filter V	○	●	A5F.1090-LV

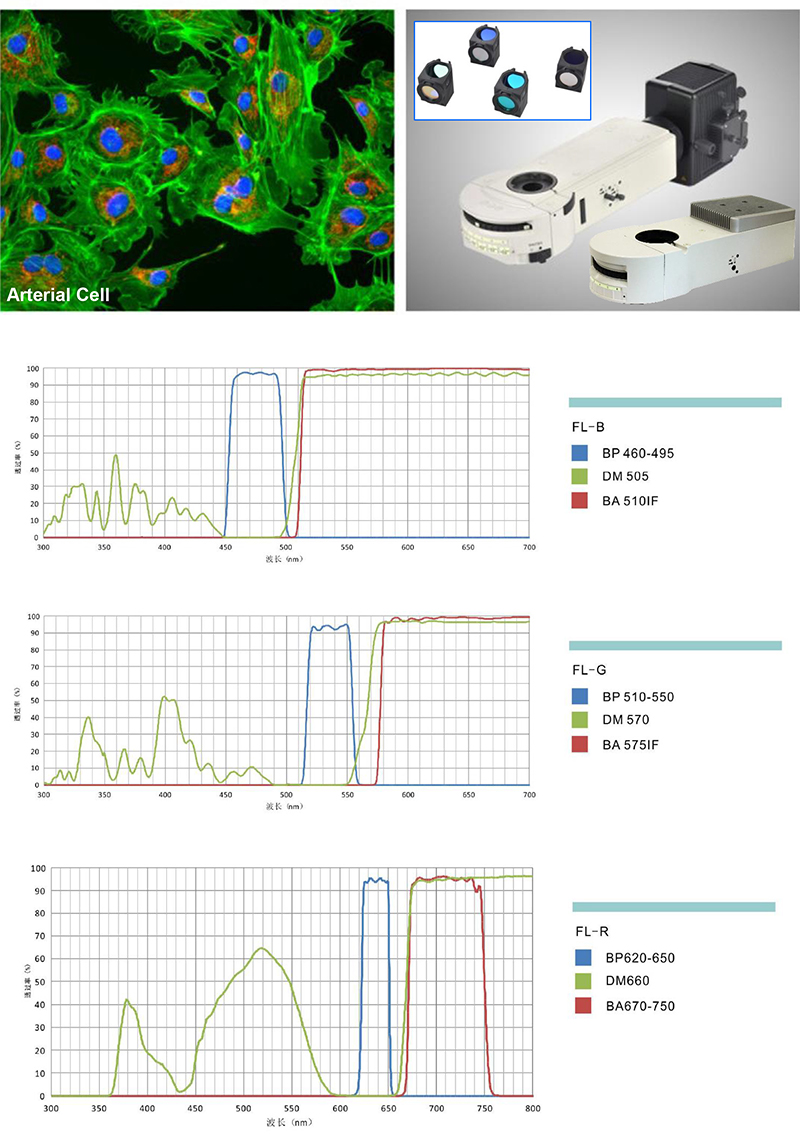

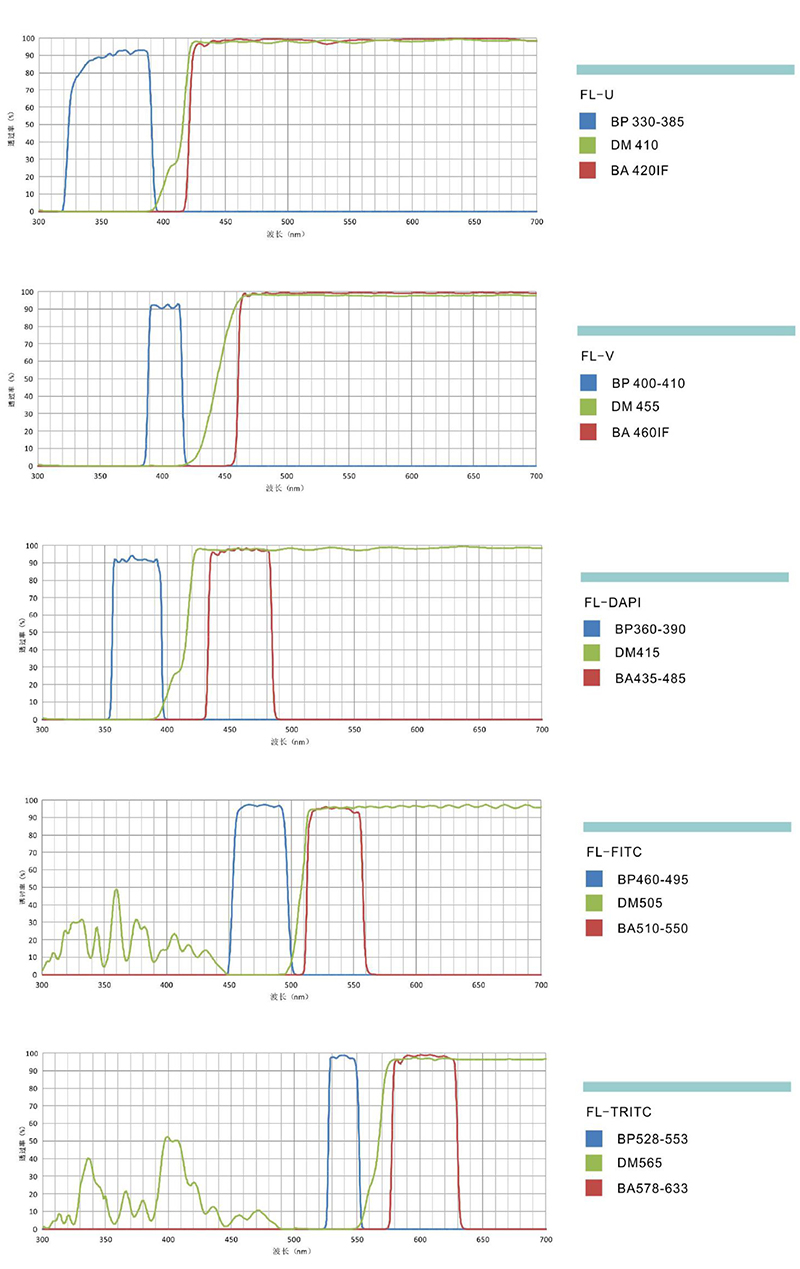

	Fluorescent Filter B, BP460-490, BA520, DM500	●	●	A5F.1090-B
	Fluorescent Filter G, BP510-550, BA590, DM570	●	●	A5F.1090-G
	Fluorescent Filter U, BP330-385, BA420, DM400	●	●	A5F.1090-U
	Fluorescent Filter V, BP400-410, BA455, DM455	●	●	A5F.1090-V
	Fluorescent Filter FITC, BP460-495, BA510-550, DM505	○	○	A5F.1090-FITC
	Fluorescent Filter DAPI, BP360-390, BA435-485, DM415	○	○	A5F.1090-DAPI
	Fluorescent Filter TRITC, BP528-553, BA578-633, DM565	○	○	A5F.1090-TRITC
	Fluorescent Filter R, BP620-650, BA670-750, DM660	○	○	A5F.1090-R
	Fluorescent Filter Empty Block	○	○	A5F.1090-E
	Filter ND6	●	●	A5F.1090-ND6
	Filter ND25	●	●	A5F.1090-ND25
	Centering Plate	○	○	A5F.1090-01
	Protect Cover For Reflect Fluorescent Light, Placed On Light Collectory On Stand, For Auto Model	○	○	A5F.1090-02
Other Accessories	Working Stage Holder Bracket	●	●	A54.1096
	Adapter To Adjust Eye Position	○	○	A54.1096-A1
	Adapter To Lower The Stage Position 1"	○	○	A54.1096-A2
	Immersion Oil	●	●	A50.1090-01
	Allen Wrench	●	●	A50.1090-02
	Power Cord	●	●	A50.1090-03
	Short Eye Cover, For Eyepiece	○	○	A50.1090-04
	Long Eye Cover, For Eyepiece	○	○	A50.1090-05
	Eyepiece Micrometer, Cross	○	○	A50.1090-06
	Adapter Ring To Install Eyepiece Micrometer	○	○	A50.1090-07
	USB Cable	○	○	A50.1090-08
Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable

Pictures Hide Same Show Difference
Model No.	A16.1095-LM	A16.1095-LL
Other Specification	Remote Control Pad, Shortcut Button To Motor Switch Objectives	Remote Control Pad, Shortcut Button To Motor Switch Objectives
Fluorescene	Turret Disc With 6 Positions Protect Barrier Power Supply Box 100W Mercury Lamp Housing Filter ND6 Filter ND25 Fluorescent Filter B,G,UV,U	Turret Disc With 6 Positions Protect Barrier Power Supply Box 100W Mercury Lamp Housing Filter ND6 Filter ND25 Fluorescent Filter B,G,UV,U
Power Supply Type	Power Cord Detachable AC 100V-240V Wide Voltage	Power Cord Detachable AC 100V-240V Wide Voltage
Reflect Light	Epi-Fluorescent Reflected Light 100W Mercury Lamp	Epi-Fluorescent Reflected Light 100W Mercury Lamp
Transmit Light	3W LED, With Lamp Box, ECO Function, Auto Adjust Brightness	3W LED, With Lamp Box, ECO Function, Auto Adjust Brightness
Light Source Type	LED Fluorescent	LED Fluorescent
Light Source Features	Halogen 100W Brightness Adjustable Kohler Illumination	Halogen 100W Brightness Adjustable Kohler Illumination
Condenser	Auto Swing-Out Condensor	Auto Swing-Out Condensor
Condenser N.A.	0.9/0.25	0.9/0.25
Condenser Type	Swing-Out	Swing-Out
Condenser Features	Rack & Pinionↆ↑	Rack & Pinionↆ↑
Focusing Knob	Can Exchange Hand Wheel Between Left/Right	Can Exchange Hand Wheel Between Left/Right
Focusing Scale	0.001mm	0.001mm
Focusing Range	35mm	35mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring
Working Stage	With Sapphire Crystal Glass Insert	With Sapphire Crystal Glass Insert
Working Stage Moving	78x32mm	78x32mm
Working Stage Size	190x152mm	190x152mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical
Working Stage Features	Double Slide Holder Size ≥140x180mm Ceramic Surface Rackless Safety Edge Knob Height Adjustable	Double Slide Holder Size ≥140x180mm Ceramic Surface Rackless Safety Edge Knob Height Adjustable
Objective	Infinity Plan Semi-APO Fluorescent Objectives N-PLFN 4x10x20x40x100x	Infinity Plan Semi-APO Fluorescent Objectives N-PLFN 4x10x20x40x100x
Objective Type	Infinity Plan Fluorescent Semi-APO (Apochromatic)	Infinity Plan Fluorescent Semi-APO (Apochromatic)
Objective Features	APO	APO
Nosepiece Holes	6 Holes	6 Holes
Nosepiece Features	Inward With DIC Slot With Polarzing Slot Coded Motorized	Inward With DIC Slot With Polarzing Slot Coded Motorized
Eyepiece	EW10x/22mm, 2pcs	EW10x/22mm, 2pcs
Eyepiece Diameter	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable
Head Light Path	E100:P0/E20:P80/E0:P100	E100:P0/E20:P80/E0:P100
Head Interpupillary	47~78mm	47~78mm
Head Rotation	Head Rotate 360°	Head Rotate 360°
Head Inclination	Tiltable	Tiltable
Head Type	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	40x-1000x	40x-1000x
Optical System	Infinity Plan	Infinity Plan
Features	Infinity APO DIC Coded Nosepiece Motorized ECO(Auto Power Off)	Infinity APO DIC Coded Nosepiece Motorized ECO(Auto Power Off)
Upgrade Function	BF+DF+PL+PH+FL+DIC	BF+DF+PL+PH+FL+DIC
Standard Function	BF+FL	BF+FL
New Product Year	2020	2020

Pictures

Hide Same

Show Difference

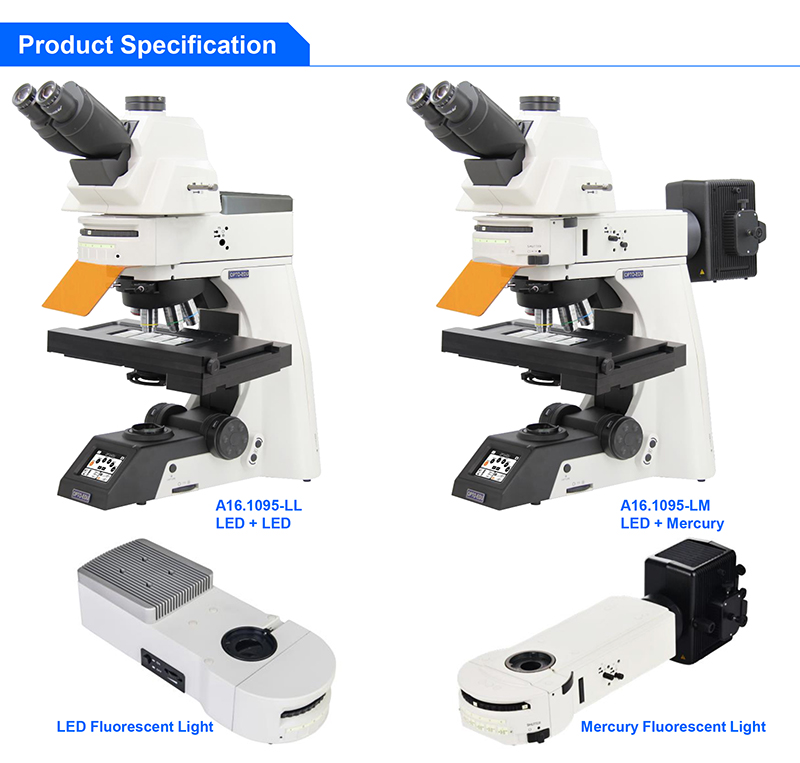

Upright Fluorescent Microscope, Semi-APO, Full Motorized, LED + Mercury

Upright Fluorescent Microscope, Semi-APO, Full Motorized, LED+LED

Model No.

A16.1095-LM

A16.1095-LL

Other Specification

Remote Control Pad, Shortcut Button To Motor Switch Objectives

Fluorescene

Turret Disc With 6 Positions

Protect Barrier

Power Supply Box

100W Mercury Lamp Housing

Filter ND6

Filter ND25

Fluorescent Filter B,G,UV,U

Power Supply Type

Power Cord Detachable
AC 100V-240V Wide Voltage

Reflect Light

Epi-Fluorescent Reflected Light 100W Mercury Lamp

Transmit Light

3W LED, With Lamp Box, ECO Function, Auto Adjust Brightness

Light Source Type

LED
Fluorescent

Light Source Features

Halogen 100W
Brightness Adjustable
Kohler Illumination

Condenser

Auto Swing-Out Condensor

Condenser N.A.

0.9/0.25

Condenser Type

Swing-Out

Condenser Features

Rack & Pinionↆ↑

Focusing Knob

Can Exchange Hand Wheel Between Left/Right

Focusing Scale

0.001mm

Focusing Range

35mm

Focusing Type

Coaxial Coarse & Fine

Focusing Features

Tension Adjustable
Safety Stop Lock Ring

Working Stage

With Sapphire Crystal Glass Insert

Working Stage Moving

78x32mm

Working Stage Size

190x152mm

Working Stage Type

2 Layers Mechanical

Working Stage Features

Double Slide Holder
Size ≥140x180mm
Ceramic Surface
Rackless Safety Edge
Knob Height Adjustable

Objective

Infinity Plan Semi-APO Fluorescent Objectives N-PLFN 4x10x20x40x100x

Objective Type

Infinity Plan
Fluorescent
Semi-APO (Apochromatic)

Objective Features

APO

Nosepiece Holes

6 Holes

Nosepiece Features

Inward
With DIC Slot
With Polarzing Slot
Coded
Motorized

Eyepiece

EW10x/22mm, 2pcs

Eyepiece Diameter

30.0mm

Eyepiece Features

Diopter Adjustable

Head Light Path

E100:P0/E20:P80/E0:P100

Head Interpupillary

47~78mm

Head Rotation

Head Rotate 360°

Head Inclination

Tiltable

Head Type

Seidentopf Trinocular

Standard Magnification

40x-1000x

Optical System

Infinity Plan

Features

Infinity
APO
DIC
Coded Nosepiece
Motorized
ECO(Auto Power Off)

Upgrade Function

BF+DF+PL+PH+FL+DIC

Standard Function

BF+FL

New Product Year

2020

Advanced Cookie Settings

Essential Cookies

These cookies enable core functionality such as security, verification of identity and network management. These cookies can’t be disabled.

Enable Marketing Cookies

These cookies are used to track advertising performance, consent to the sending of advertising-related user data to Google, and consent for the website to serve personalized advertising to provide more relevant services.

Enable Functional Cookies

These cookies collect data to remember choices users make to improve and give a more personalised experience.

Enable Analytics Cookies

These cookies help us to understand how visitors interact with our website, discover errors and provide a better overall analytics.

A16.1095-LM

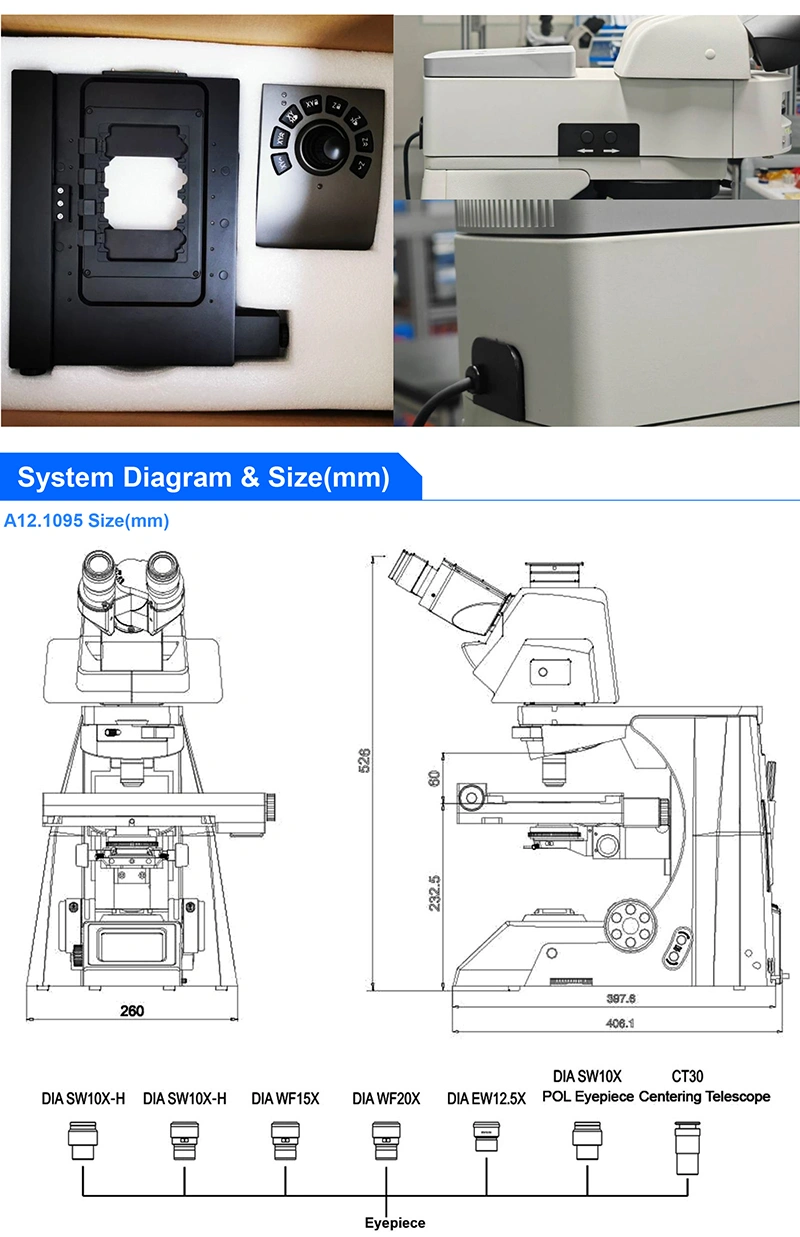

Upright Fluorescent Microscope, Semi-APO, Full Motorized, LED + Mercury

online service

Send Message

What's New

Hot Search

Contact Us

Service

INQUIRY LIST

COMPARE

Advanced Cookie Settings

Essential Cookies

Enable Marketing Cookies

Enable Functional Cookies

Enable Analytics Cookies
