A11.1313-M

Like Favorites

Biological Microscope, Monocular Head

Total Magnification 40x-1000x, Up To 40x-2500x With Optional Eyepieces

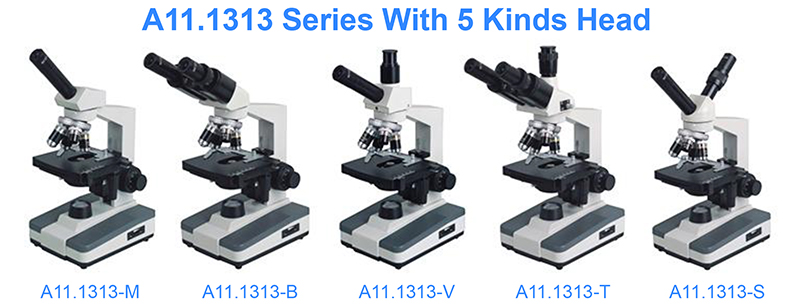

Monocular, Dual View, Binocular, Trinocular Heads Available For Photo Video Capture
Achromatic Objective 4x, 10x, 40x, 100x On 4 Holes Nosepiece
Double Layer Mechanical Stage 125x130mm, Moving Range 30x60mm
Light Source 6V20W Halogen Lamp, or LED 1W Optional

Specification:

A11.1313-M

Biological Microscope, Dual Viewing Head

A11.1313-S

A11.1313-V

Biological Microscope, Seidentopf Binocular

A11.1313-B

Biological Microscope, Seidentopf Trinocular Head

A11.1313-T

A11.1313 Biological Microscope		M	S	V	B	T
Head	Monocular Head, 45° Inclined, 360° Rotatable	●
	Dual Observation Head, 45°+45° Inclined		●
	Dual Observation Head, 30°+90° Inclined			●
	Seidentopf Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 55-75mm				●
	Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 55-75mm					●
Eyepiece	WF10x/18mm	●	●	●	●	●
Objective	Achromatic 4x	●	●	●	●	●
	Achromatic 10x	●	●	●	●	●
	Achromatic 40x(S)	●	●	●	●	●
	Achromatic 100x(S,Oil)	●	●	●	●	●
Nosepiece	Quadruple Revolving Nosepiece	●	●	●	●	●
Stage	Double Layers Mechanical Stage 125x130mm/60x30mm	●	●	●	●	●
Condenser	Abbe Condenser N.A.1.25, Φ2-Φ30mm Iris Diaphragm, With Filter Holder & Blue Filter Φ32	●	●	●	●	●
Focusing	Coarse & Fine Focusing Knob, Range 20mm, Scale 0.01mm	●	●	●	●	●
Light Source	Halogen Lamp 6V/20W	●	●	●	●	●
Optional Accessories
Light Source	LED Lamp 1W
Eyepiece	WF15x	A51.1303-15
	WF16x	A51.1303-16
	WF20x	A51.1303-20
	WF25x	A51.1303-25

Pictures Hide Same Show Difference
Model No.	A11.1313-M	A11.1313-S	A11.1313-V	A11.1313-B	A11.1313-T
Transmit Light	6V20W Halogen	6V20W Halogen	6V20W Halogen	6V20W Halogen	6V20W Halogen
Light Source Type	Halogen	Halogen	Halogen	Halogen	Halogen
Condenser	Abbe Condenser N.A.1.25, Φ2-Φ30mm Iris Diaphragm, With Filter Holder & Blue Filter Φ32	Abbe Condenser N.A.1.25, Φ2-Φ30mm Iris Diaphragm, With Filter Holder & Blue Filter Φ32	Abbe Condenser N.A.1.25, Φ2-Φ30mm Iris Diaphragm, With Filter Holder & Blue Filter Φ32	Abbe Condenser N.A.1.25, Φ2-Φ30mm Iris Diaphragm, With Filter Holder & Blue Filter Φ32	Abbe Condenser N.A.1.25, Φ2-Φ30mm Iris Diaphragm, With Filter Holder & Blue Filter Φ32
Condenser N.A.	1.25	1.25	1.25	1.25	1.25
Condenser Type	Abbe	Abbe	Abbe	Abbe	Abbe
Condenser Features	Iris Diaphragm Sprial ↆ↑	Iris Diaphragm Sprial ↆ↑	Iris Diaphragm Sprial ↆ↑	Iris Diaphragm Sprial ↆ↑	Iris Diaphragm Sprial ↆ↑
Focusing Scale	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm
Focusing Range	20mm	20mm	20mm	20mm	20mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Safety Stop Screw	Safety Stop Screw	Safety Stop Screw	Safety Stop Screw	Safety Stop Screw
Working Stage Moving	30x60mm	30x60mm	30x60mm	30x60mm	30x60mm
Working Stage Size	125x130mm	125x130mm	125x130mm	125x130mm	125x130mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Objective	Achromatic 4x10x40x(S)100x(S,Oil)	Achromatic 4x10x40x(S)100x(S,Oil)	Achromatic 4x10x40x(S)100x(S,Oil)	Achromatic 4x10x40x(S)100x(S,Oil)	Achromatic 4x10x40x(S)100x(S,Oil)
Objective Type	Achromatic	Achromatic	Achromatic	Achromatic	Achromatic
Nosepiece Holes	4 Holes	4 Holes	4 Holes	4 Holes	4 Holes
Nosepiece Features	Outward	Inward	Inward	Inward	Inward
Eyepiece	WF10x/18mm	WF10x/18mm	WF10x/18mm	WF10x/18mm	WF10x/18mm
Eyepiece Diameter	23.2mm	23.2mm	23.2mm	23.2mm	23.2mm
Eyepiece Features	Super WF ≥23mm	——	——	——	——
Head Rotation	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Inclination	45°	45°+45°	30°+90°	30°	30°
Head Type	Monocular	Dual-View	Dual-View	Seidentopf Binocular	Seidentopf Trinocular
Standard Magnification	40x-1000x	40x-1000x	40x-1000x	40x-1000x	40x-1000x
Optical System	Achromatic	Achromatic	Achromatic	Achromatic	Achromatic
Standard Function	BF	BF	BF	BF	BF
New Product Year	2022	——	——	——	——
Video Adapter	——	——	Digital Eyepice 23.2mm	——	Digital Eyepice 23.2mm
Head Diopter	——	——	——	Right Tube Adjustable	Right Tube Adjustable
Head Interpupillary	——	——	——	55~75mm	55~75mm
Head Light Path	——	——	——	——	E100:P0/E0:P100
