A12.0806-PT

Like Favorites

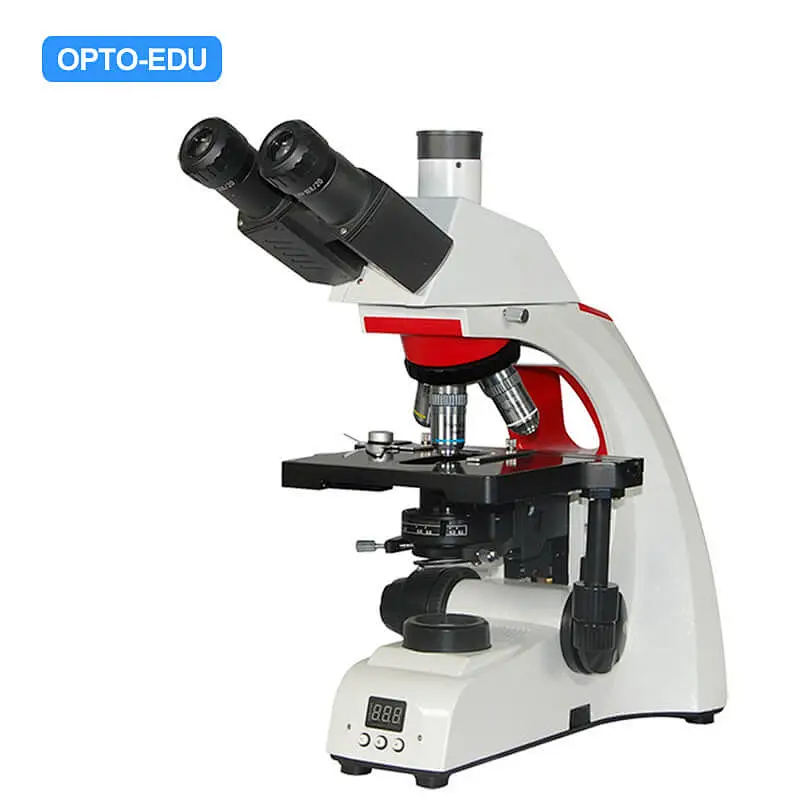

Heating Stage Biological Microscope, Trinocular

A12.0806 Heating Stage Biological Microscope Specification		PB	PT
Head	Compensation Binocular Head, 30° Inclined, Interpupillary Distance 48-75mm	●
Head	Compensation Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm		●
Eyepiece	WF10X/20mm	●	●
Eyepiece	WF16X/15mm	●	●
195 Plan Achromatic Objective	Plan 4x	●	●
	Plan 10x	●	●
	Plan 40x (s)	●	●
	Plan 100x (S, Oil)	●	●
Nosepiece	4 Holes Revolving Nosepiece, Inward	●	●
Focusing System	Coaxial Coarse & Fine Focusing Knob, Adjustable, Coarse Focusing Range 22mm, Fine Focusing Graduation 0.002mm	●	●
Stage	Double Layer Mechanical Stage, Size: 160x142mm Moving Range: 76x52mm Can Hold 2 Slides Temperature Control Range: Room Temperature 20℃-50℃ Temperature Control Accuracy: ﹤±1℃ Heating Power: 12V Power: 36W	●	●
Condenser	Abbe Condenser N.A.=1.25, Iris Diaphragm, Center Adjustable, With Height Adjust Knob	●	●
Power	Switch Power, Wide Voltage AC90-240V	●	●
Light Source	Bottom Light, LED 3W/1A, Stepless Adjustable Light, No Screen Flashing	●	●
Dimming System	Digital Circuits, Precision Stepless Adjustable Light, No Screen Flash	●	●
Packing	Foam + Carton	●	●
Adapter	0.5x C-Mount	○	○
	0.65x C-Mount	○	○
	1x C-Mount	○	○

Pictures
Model No.	A12.0806-PT
Function	BF
New Product Year	2018
Optical System	Plan
Standard Magnification	40x-1000x
Optional Magnification	40x-1600x
Head Type	Seidentopf Trinocular
Head Inclination	30°
Head Rotation	Head Rotate 360°
Head Interpupillary	48~75mm
Eyepiece Features	Wide Field High Eyepoint Diopter Adjustable
Eyepiece Diameter	30.0mm
Eyepiece	WF10x/20mm, 2 pcs WF16x/15mm, 2 pcs
Nosepiece Holes	4 Holes
Nosepiece Features	Backward
Objective Type	Plan
Objective	Plan 4x10x40x100x
Working Stage Type	Double Layers Mechanical
Working Stage Feature	Double Slide Holder Large Size >140x140mm Heating Stage
Working Stage Size	160x142mm
Working Stage Moving	76x52mm
Focusing Features	Safety Stop Screw Tension Adjustable
Focusing Type	Coaxial Coarse & Fine
Focusing Range	22mm
Focusing Scale	0.002mm
Condenser Type	Abbe + Iris Diaphragm
Condenser N.A.	1.25
Condenser Features	Rack & Pinion Up/Down Center Adjustable
Light Source Feature	Brightness Adjustable LED 3W
Light Source Type	LED
Transmit Light	3W LED
Power Supply Type	AC 110V-240V Wide Voltage
