▶ Condenser

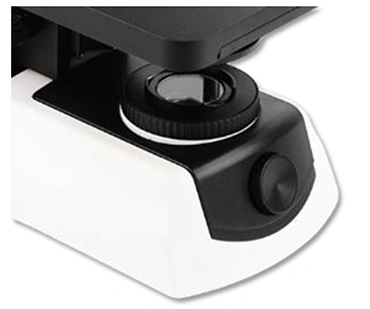

Kohler Condenser With Center Adjustable Diaphragm ，N.A=0.1~1.1，Polarizing & Brightness Attachment Surpported ▶ Illumination System Built-inLED White Light，3(W) Output, 6500K Color Temperature, Lifetime: ≥30，000 Hours |  |

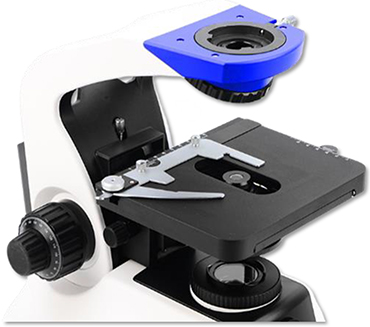

 | ▶ Nosepiece 4 Holes Inwards Nosepiece ▶ Working Stage Double Layer Mechanical Plate: Moving Range: 76 mm × 33 mm, Focusing Range: 16mm， ▶ Focusing System Coaxial Coarse And Fine Focusing System With Safety Stop Lock Ring & Tension Adjustable |

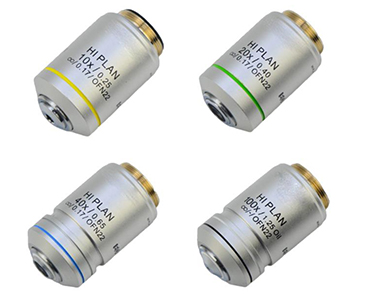

▶ Achromatic Objective Infinity Plan Achromatic Objective 4x, 10x, 40x, 100x |  |
▶ Condenser
Kohler Condenser With Center Adjustable Diaphragm ，N.A=0.1~1.1，Polarizing & Brightness Attachment Surpported ▶ Illumination System Built-inLED White Light，3(W) Output, 6500K Color Temperature, Lifetime: ≥30，000 Hours |  |

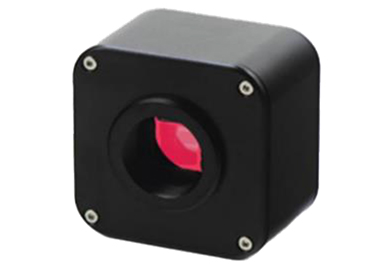

 | ▶ Camera (A59.2273-30M Optional) 30M Digital Camera, 1/2.2"CMOS, 30fps@1920x1080, USB 3.0, 8K High Resolution |

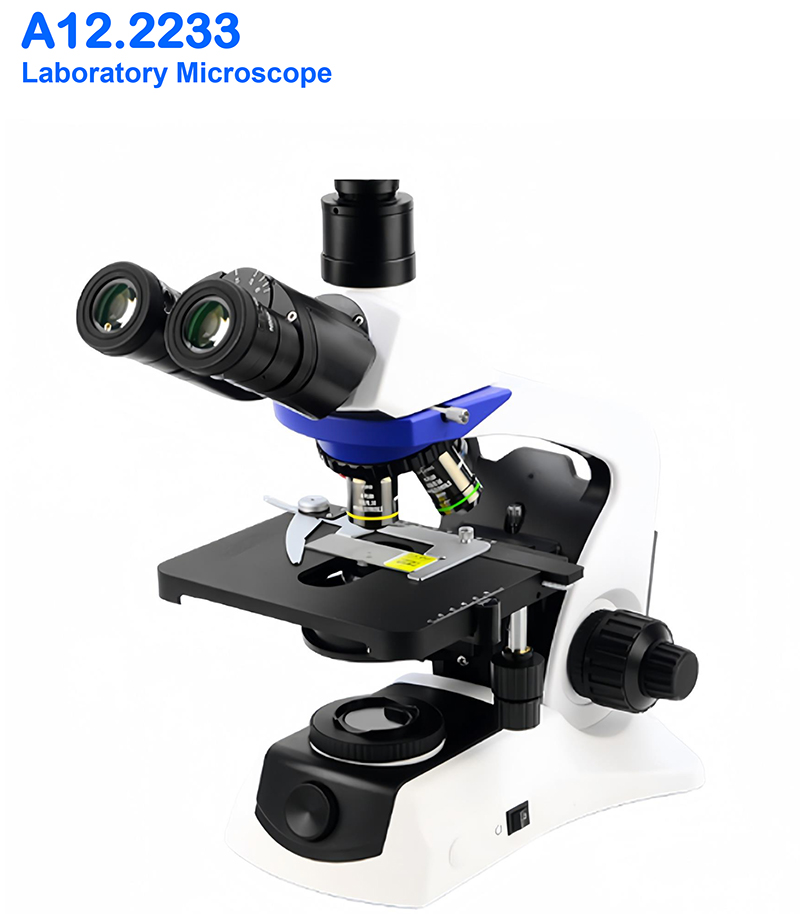

| A12.2233 Laboratory Microscope Specification | A12.2233 | Cata. No. | |
| Optical System | Infinity Plan Dual Achromatic Optical System, Confocal 45mm | ● | |

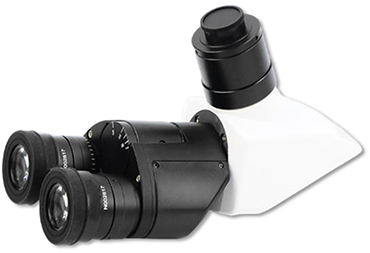

| Head | Seidentopf Trinocular Head, Inclinded 30°, Interpupillary 48-76mm, Light Split 50/50, Left Eyepiece Tube Diopter Adjustable +/-5 | ● | A53.2201-C33T |
| Eyepiece | Wide Field 10x/22mm, With Eyecup, Dia.30mm | ● | A51.2201-1022 |
| Objective | HI PLAN Infinity Plan Achromatic Objective | ||
| 4x, N.A=0.10, CG=0.17, W.D=17mm, OFN=23 | ● | A51.2201-4 | |
| 10x, N.A=0.25, CG=0.17, W.D=10mm, OFN=23 | ● | A51.2201-10 | |
| 40x, N.A=0.65, CG=0.17, W.D=0.6mm, OFN=23, Spring | ● | A51.2201-40 | |
| 100x, N.A=1.25, CG=0.17, W.D=0.25mm, OFN=23, Spring, Oil | ● | A51.2201-100 | |
| PLCN Infinity Plan Achromatic Objective, | |||
| 4x, N.A=0.10, CG=0.17, W.D=17mm, OFN=23 | ○ | A51.2202-4 | |
| 10x, N.A=0.25, CG=0.17, W.D=10mm, OFN=23 | ○ | A51.2202-10 | |
| 20x,N.A=0.40, CG=0.17,W.D=3mm,OFN=23 | ○ | A51.2202-20 | |
| 40x, N.A=0.65, CG=0.17, W.D=0.6mm, OFN=23, Spring | ○ | A51.2202-40 | |
| 60x,N.A=0.80, CG=0.17,W.D=3mm,OFN=23 | ○ | A51.2202-60 | |
| 100x, N.A=1.25, CG=0.17, W.D=0.25mm, OFN=23, Spring, Oil | ○ | A51.2202-100 | |
| Body & Nosepiece | A12.2233 Main Body, With 4 Holes Inwards Nosepiece, Standard RMS Screw, 100V-230V Wide Voltage Power Supply | ● | A54.2201-C33F |
| Working Stage | Double Layer Mechanical Stage, Size 175x145, Moving Range 76×33mm, Spring Loaded Slide Holder For Slow Back | ● | |
| Focusing | Coaxial Coarse & Fine Focusing, Focusing Range 16mm, Fine Scale 2μm, With Safety Stop Lock Ring, Tension Adjustable | ● | |
| Condenser | Abbe Condenser N.A.1.25, For 4x~100x | ● | |
| Illumination | 3W LED Illuminator, 6500K Color Temperature White Light, Lamp Life Time >30000 Hours, Support Dia.45mm Filter | ● | |
| Immersion Oil | 8ml, Reflect Ratio=1.518, Low Viscosity (135CST) | ● | A50.2201-1 |
| Adapter | 0.5x C-Mount, Focus Adjustable, For 1/2”~ 1/1.8”Sensor | ○ | A59.2273-30M |
| Camera | 30M Digital Camera, 1/2.2"CMOS, 30fps@1920x1080, USB 3.0, 8K High Resolution | ||
