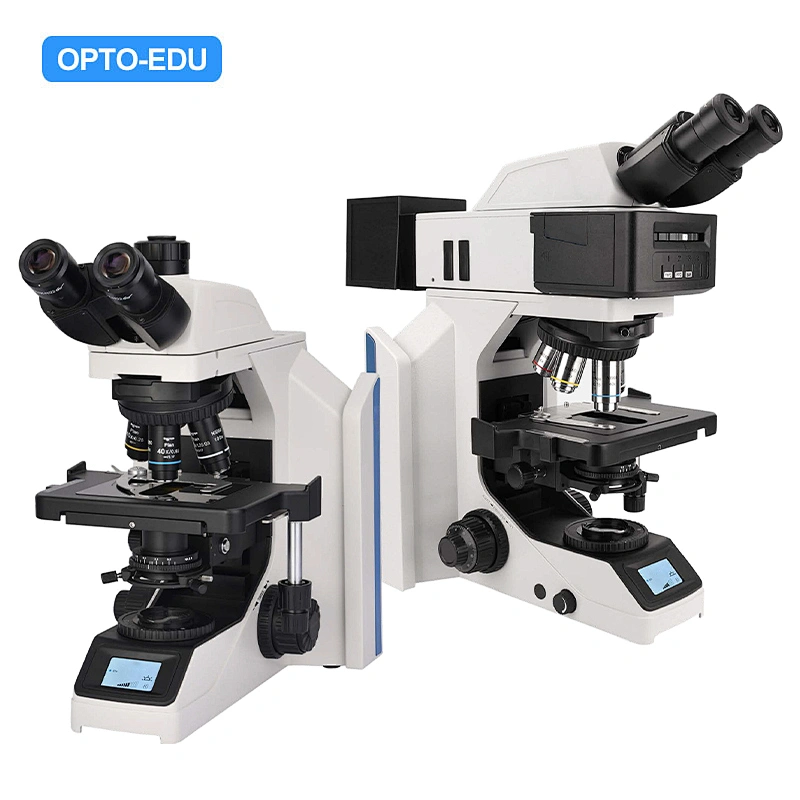

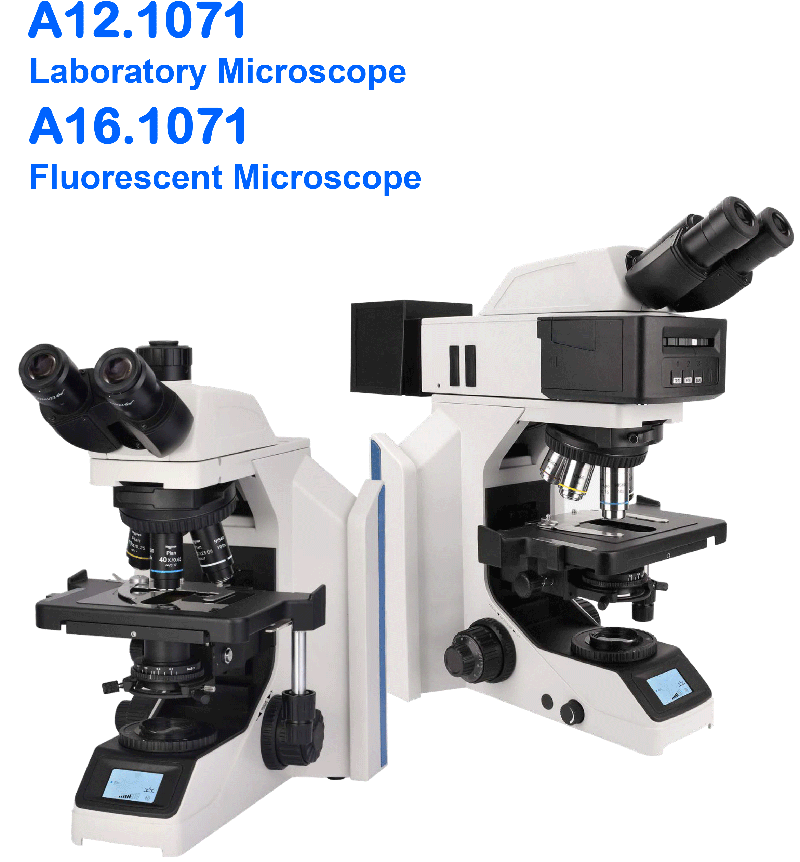

| A12.1071 Laboratory Microscope, A16.1071 Fluorescent Microscope | Model No. | A12.1071 | A16.1071 | |
| Head | Seidentopf Binocular, Diopter, Head Inclined 30°, Head Interpupillary: 47~78mm, Dia.30mm | A53.1070-B | ○ | ○ |

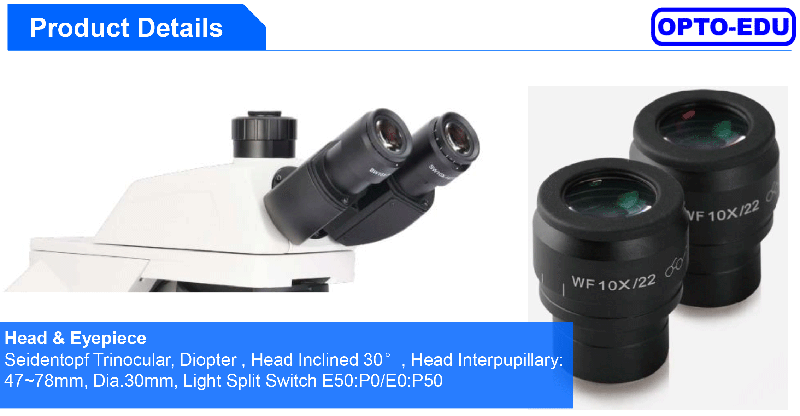

| Seidentopf Trinocular, Diopter, Head Inclined 30°, Head Interpupillary: 47~78mm, Dia.30mm, Light Split Switch E50:P0/E0:P50, Photography Attachment Not Included | A53.1070-T | ● | ● | |
| Seidentopf Trinocular, Diopter, Head Inclined 30°, Head Interpupillary: 47~78mm, Dia.30mm, Light Split Switch E100:P0/E0:P100, Photography Attachment Not Included | A53.1070-T2 | ○ | ○ | |
| Digital Head, 8 million Pixel(Color, 1/2.5' Sony)，WIFI (Work With 12V), HDMI, Network Port, USB And Mini USB Output Interface | A53.1070-8.0W | ○ | / | |
| Eyepiece | 10×/FN22, Dia.30mm, Diopoter Adjustable: -5～+5 | A51.1006-1022 | ● | ● |
| 12.5×/FN16, Dia.30mm | ○ | ○ | ||
| 15×/FN16, Dia.30mm, Diopoter Adjustable: -5～+5 | A51.1006-1516 | ○ | ○ | |
| 20×/FN12, Dia.30mm, Diopoter Adjustable: -5～+5 | A51.1006-2012 | ○ | ○ | |
| 20×/FN12, Dia.30mm, Diopoter Adjustable: -5～+5 | A51.1006-3008 | ○ | ○ | |
| 10×/FN22, Dia.30mm, Diopoter Adjustable: -5～+5 | ○ | ○ | ||
| 10×/FN22, Dia.30mm, Diopoter Adjustable: -5～+5, Reticle Eyepiece | A51.1009-1020 | ○ | ○ | |
| 10×/FN22, Dia.30mm, Diopoter Adjustable: -5～+5, Reticle Eyepiece With Grid | A51.1008-1022G | ○ | ○ | |
| Centering Telescope Dia.30mm | ○ | ○ | ||

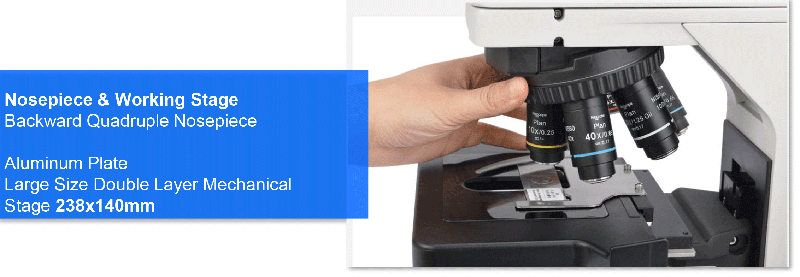

| Nosepiece | 5 Holes Coded Stage, M25×0.75 | A54.1070-5 | ● | ● |
| 6 Holes Coded Stage, M25×0.75 | A54.1070-6 | ○ | ○ | |

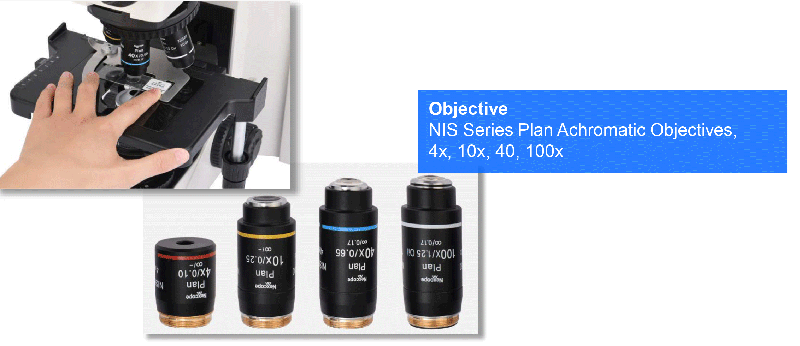

| Objective | NIS60 Infinity Plan Objective, Tube 200mm，Confocal 60mm,M25×0.75，Cover Glass 0.17 | A52.1012 | ||
| 4x, NA=0.10,WD=30 | ● | ○ | ||
| 10x, NA=0.25,WD=10.2 | ● | ○ | ||
| 20x, NA=0.40,WD=4.8 | ○ | ○ | ||
| 40x, NA=0.65,WD=1.5 | ● | ○ | ||
| 100x(Oil), NA=1.25,WD=0.2 | ● | ○ | ||
| 100x(Water), NA=1.10,WD=0.16 | ○ | ○ | ||
| 100x, NA=0.5-1.25, WD=0.2 Plan Iris Diaphragm Objective, For Dark Field Use | ○ | ○ | ||
| NIS60 Plan Phase Contrast Objective, Tube 200mm，Confocal 60mm,M25×0.75，Cover Glass 0.17 | A5C.1033 | |||
| 10X, NA=0.25, WD=10.2 | ○ | ○ | ||
| 20X, NA=0.4, WD=13.36 | ○ | ○ | ||
| 40X(S), NA=0.65, WD=0.7 | ○ | ○ | ||
| 100X(S,Oil), NA=1.25, WD=0.22 | ○ | ○ | ||
| NIS60 Infinity Plan Semi-APO Fluorescent Objective, Tube 200mm，Confocal 60mm,M25×0.75，Cover Glass 0.17 | A5F.1033 | |||
| 4X, NA=0.13 WD=17 Cover Glass：0.17 | ○ | ● | ||
| 10X, NA=0.3 WD=15.8 Cover Glass：0.17 | ○ | ● | ||
| 20X, NA=0.5 WD=2.7 Cover Glass：0.17 | ○ | ● | ||
| 40X, NA=0.75 WD=1.35 Cover Glass：0.17 | ○ | ● | ||
| 100X, NA=1.4 WD=0.18 Cover Glass：0.17 | ○ | ● | ||
| Working Stage | Size Of The Stage: 1.78(X)×54(Y)mm, 1mm/grid, Accuracy 0.1mm; Size Of The Plate: 238x140mm, 195x140mm not counting the wings; Holder Included | A54.1070-WS | ● | ● |
| Aluminum Plate, 128×100×1.5 | A54.1070-AP | ● | ● | |
| Corning Glass Plate, 128×100×1.5 | A54.1070-CGP | ○ | ○ | |
| Sapphire Glass Plate, 128×100×1.5 | A54.1070-BGP | ○ | ○ | |

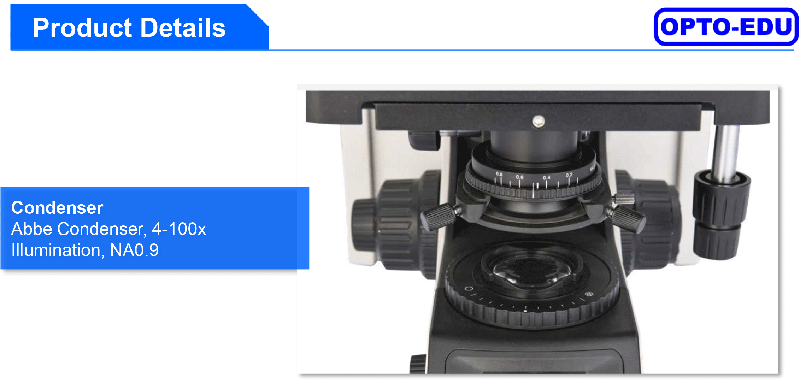

| Condenser | Universal Condenser, 4-100x，NA0.9 | A56.1070 | ● | ● |
| Swing-Out Condenser, NA 0.9/ 0.25 | A56.1070-SW | ○ | ○ | |
| Immersion, N.A. 1.25-1.36, Used With 100x Dark Field Objective | A5D.1010-I | ○ | ○ | |
| Dry, N.A. 0.7~0.9, Used with 40x Or Lower Objective | A5D.1010-D | ○ | ○ | |
| Video Adapter | C-Mount 1.0x | A55.1070-10 | ○ | ○ |
| C-Mount 0.5x | A55.1070-05 | ● | ● | |
| Polarizing | Polarizer, For A12.1071, A12.1072 | A5P.1070-P | ○ | ○ |
| Analyzer, Can Insert Compensator | A5P.1070-A | ○ | ○ | |
| Compensator Slider Works With Analyzer | A5P.1070-AS | ○ | ○ | |
| λ Test Plate (Gypsum) | A5P.1070-λ | ○ | ○ | |
| 1/4λ Test Plate (Mica), 0-4 Level Red | A5P.1070-1/4λ | ○ | ○ | |
| Quartz Wedge | A5P.1070-QW | ○ | ○ | |
| Blank Slide | A5P.1070-BS | ○ | ○ | |
| Gout Test Kit | A5P.1070-Gout | ○ | ○ | |
| Phase Contrast | 10X Phase Contrast Aperture Group | A5C.1070-10 | ○ | ○ |
| 20X Phase Contrast Aperture Group | A5C.1070-20 | ○ | ○ | |
| 40X Phase Contrast Aperture Group | A5C.1070-40 | ○ | ○ | |
| 100X Phase Contrast Aperture Group | A5C.1070-100 | ○ | ○ | |
| Fluorescent | A Type Mercury Fluorescent Illuminator | A5F.1070 | ||
| Mercury Fluorescent Illuminator, 4 Holes, (3 Holes for Excitation and 1 for Bright Filed), Kohler Illumination System, UV Eye-Protect Screen, (Without Excitation And LED Lamp House) | A5F.1070-MER | / | ● | |
| Multi LED Light House, 3 Color LED, 3W，365nm，485nm，525nm | A5F.1070-LED | / | ● | |
| FL-FITC Excitation Filter System BP460-495, DM505, BA510-550 | A5F.1070-FITC | / | ● | |
| FL-FTRITC Excitation Filter System BP528-553, DM565, BA578-633 | A5F.1070-TRITC | / | ● | |
| FL-DAPI Excitation Filter System BP360-390, DM415, BA435-485 | A5F.1070-DAPI | / | ● | |
| B Excitation Filter System BP460-495, DM505, BA510-550 | A5F.1070-B | / | ○ | |
| G Excitation Filter System BP510-550, DM570, BABA590 | A5F.1070-G | / | ○ | |
| U Excitation Filter System BP330-385, DM410, BA420 | A5F.1070-U | / | ○ | |
| Multi-Viewing Head | 2 People, Right-sided Double Position, with Secondary Lens Binocular and Eyepiece, with teaching pointer box, (Head and Eyepiece Not Included) | A53.1071-2R | ○ | ○ |
| 2 People, Left-sided Double Position, with Secondary Lens Binocular and Eyepiece, with teaching pointer box, (Head and Eyepiece Not Included) | A53.1071-2L | ○ | ○ | |
| 2 People, Face to Face Position, with Secondary Lens Binocular and Eyepiece, with teaching pointer box, (Head and Eyepiece Not Included) | A53.1071-2F | ○ | ○ | |
| Note:"●"In Table ls Standard Outfits"○"In Table ls Optional Outfits | ||||
