A12.3630

Like Favorites

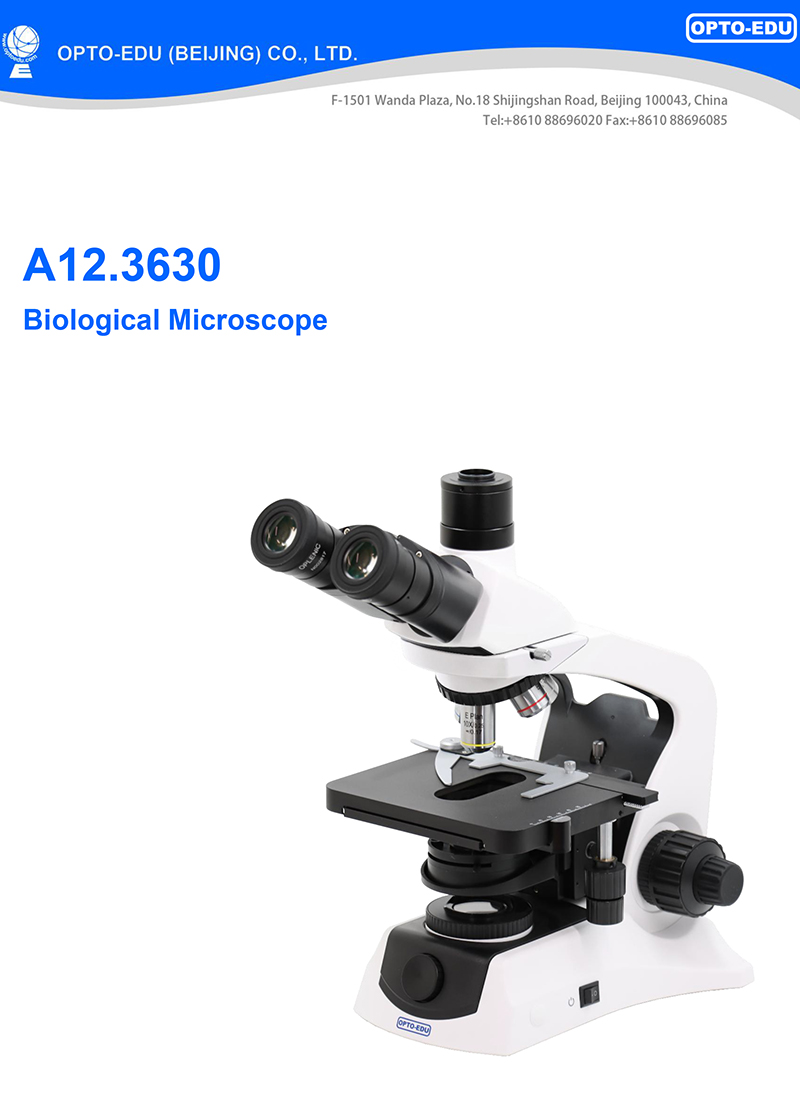

Biological Microscope

Brand New Design Biological Microscope 2024
Sedentopf Trinocular Head With WF10x/22mm Eyepiece
Infinity Plan Objective 4x10x40x100x, Quarduple Nosepiece
Double Layer Working Stage 175x145mm, Moving Range 75x50mm
3W LED Illumination Brightness Adjustable

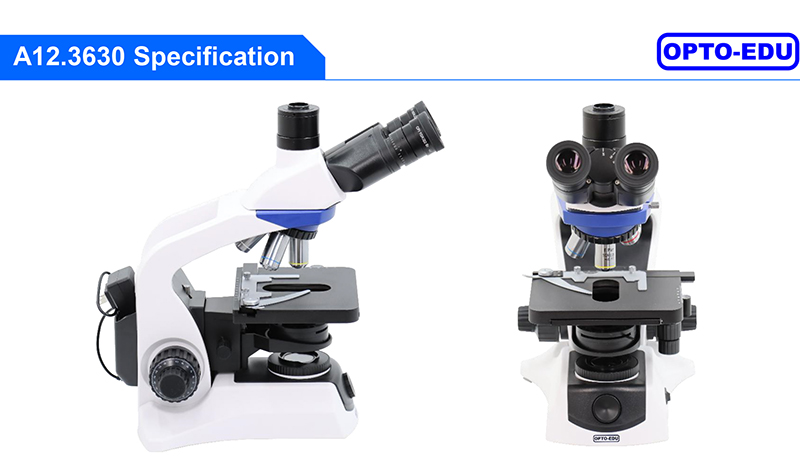

A12.3630 Biological Microscope Specification

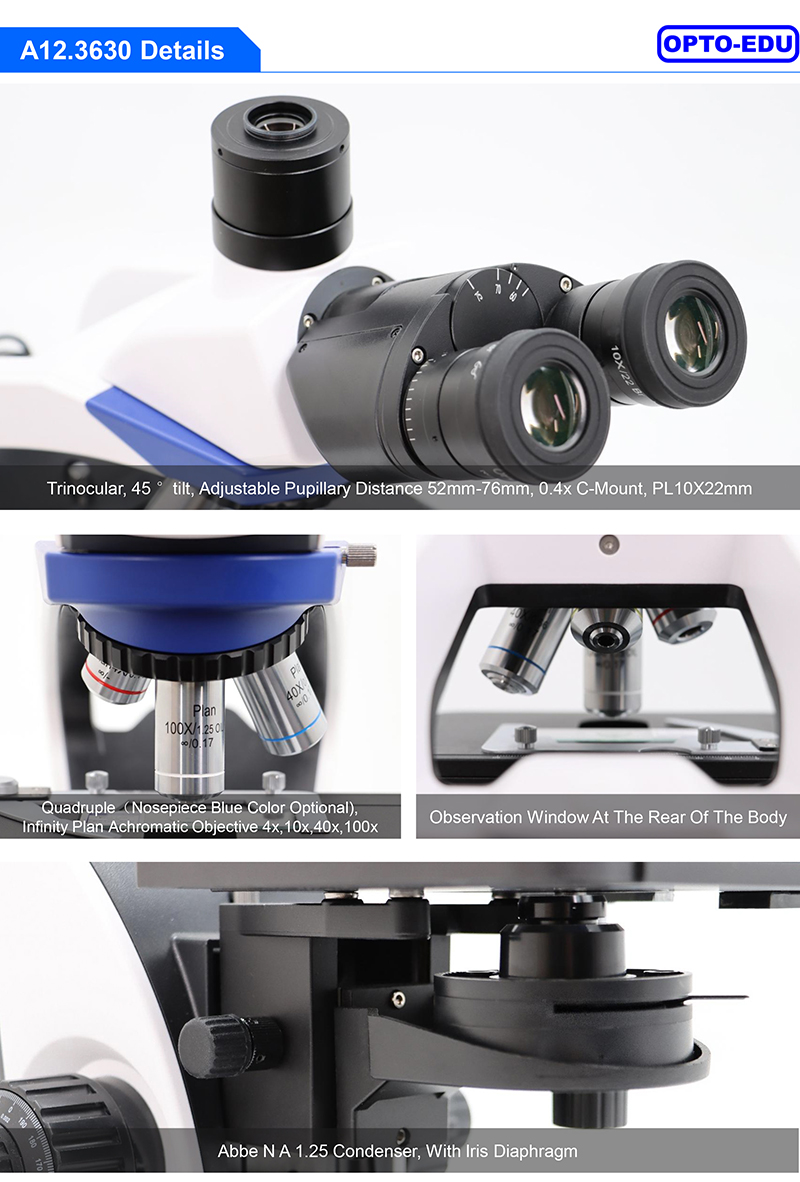

Head	Trinocular, 45° Tilt, Adjustable Pupillary Distance 52mm-76mm
Eyepiece	PL10X22mm
Objective	Infinity Plan Achromatic Objective Lens 4x,10x,40x,100x
Nosepiece	Quadruple (Blue Color Optional)
Condenser	Abbe N A 1.25, With Iris Diaphragm

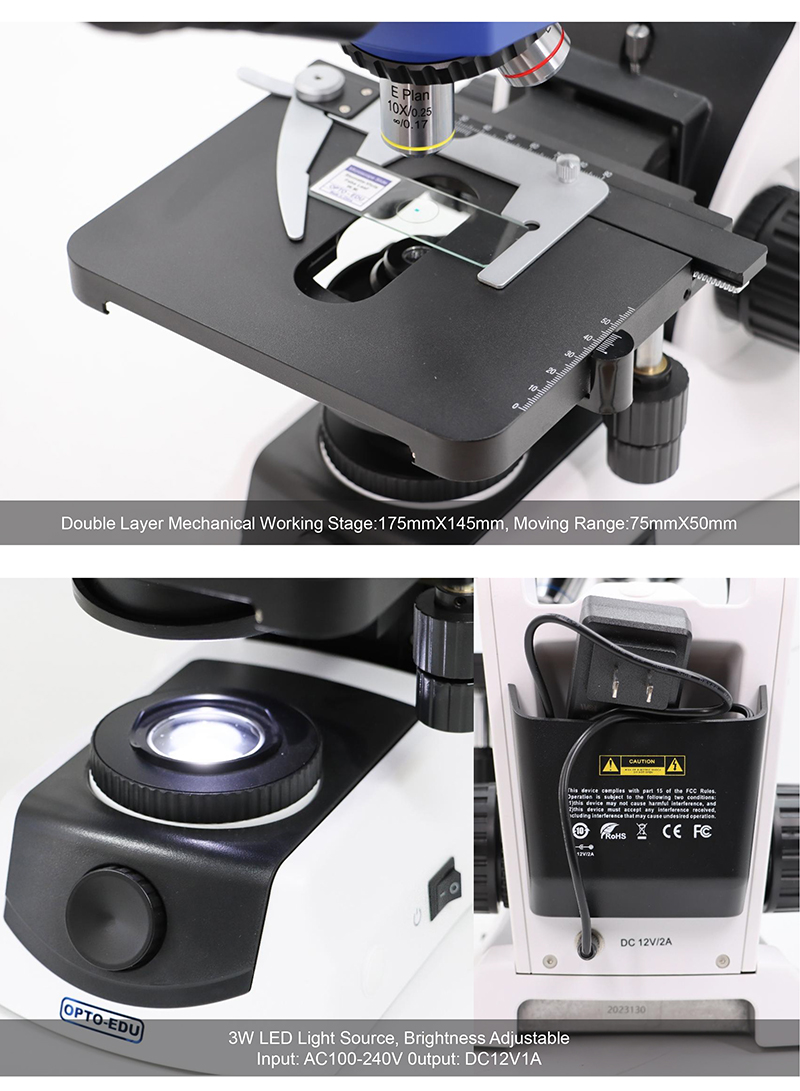

Working Stage	Double Layer Mechanical Working Stage:175mmX145mm, Moving Range:75mmX50mm
Focusing System	Coaxial Coarse & Fine Focusing, Fine Focusing Accuracy 0.02mm
lllumination	LED 3W, Brightness Adjustable
C-Mount	0.4x
Ac Adapter	Input: AC100-240V 0utput: DC12V1A
Optional	1.Eyepiece: WF20X
	2.Infinity Plan Achromatic 20x Objective
	3.C-Mount:0.3x, 0.75x
	4.Nosepiece: Quintuple, Blue Color
	5.Condenser: Dark Field Condenser
	6.Light Source: White + Yellow (Wavelength: 450-455μm)

Model	Magnification	Numerical Aperture	Working Distance	Cover Slide Thickness	Parfocal Distance	Conjugate Distance
Model	Factor	(N.A.)	WD(mm)	(mm)	(mm)	(mm)
Infinity Achromatic Objective	4x	0.1	43.07	—	45	∞
	10x	0.25	6.78	—
	20x	0.4	2.67	—
	40x	0.65	0.65	0.17
	60x	0.85	0.3	0.17
	100x(OIL)	1.25	0.19	0.17
Infinity Plan Achromatic Objective	4x	0.1	19.37	—	45	∞
	10x	0.25	15.86	—
	20x	0.4	1.04	—
	40x	0.65	0.67	0.17
	L-40x	0.68	2.8	0.17
	60x	0.8	0.5	0.17
	100x(OIL)	1.25	0.25	0.17

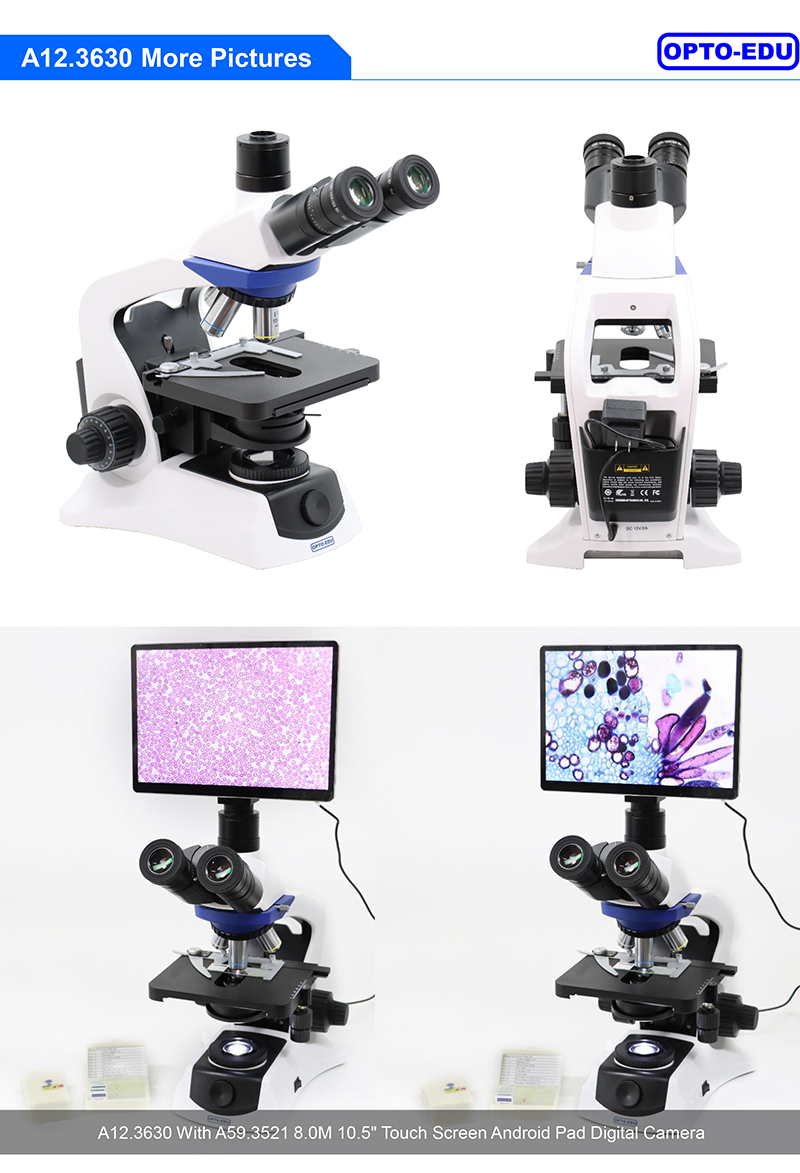

Pictures
Model No.	A12.3630
Other Specification	标配其他配件功能
Stereo Stand	标配底座描述
Working Distance	格式:1.0,或1.0~2.0
Fluorescene	标配荧光装置, 包括电源
Metallurgical	标配金相装置
Polarizing	标配偏光装置
Phase Contrast	标配相衬装置
Dark Field	标配暗场装置
Power Supply	电源其他描述
Reflect Light	反射光源描述
Transmit Light	透射光源描述
Condenser	聚光镜其他描述
Focusing Knob	调焦其他描述
Focusing Scale	标准写法：0.01mm
Focusing Range	标准写法：25mm
Working Stage	工作台其他描述
Working Stage Moving	标准写法： Moving Range 50x76mm Precision 0.1mm
Working Stage Size	标准写法: 100x100mm, 或 Dia.100mm
Objective	标配物镜写法： 4×/0.1, W.D.25mm 10×/0.25, W.D.11mm 20×/0.4, W.D.9mm 40×/0.6(S), W.D.3.8mm 100x/1.25(S,O), W.D.0.1mm
Eyepiece	标配目镜写法： WF10x/18mm, 2 pcs WF16x/13mm, 2 pcs
Head Specification	头部其他描述
New Product Year	2023
