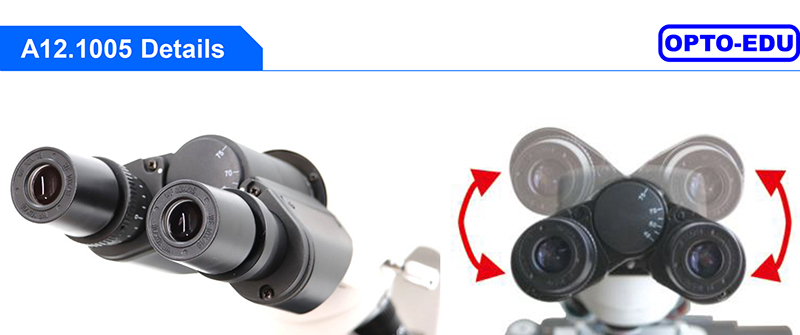

Interpupillary Distance 180° Adjustable |
Achromatic Objective | Double Layers Mechanical Stage |
Abbe Condenser N.A.1.25 | LED 3W, Brightness Adjustable |

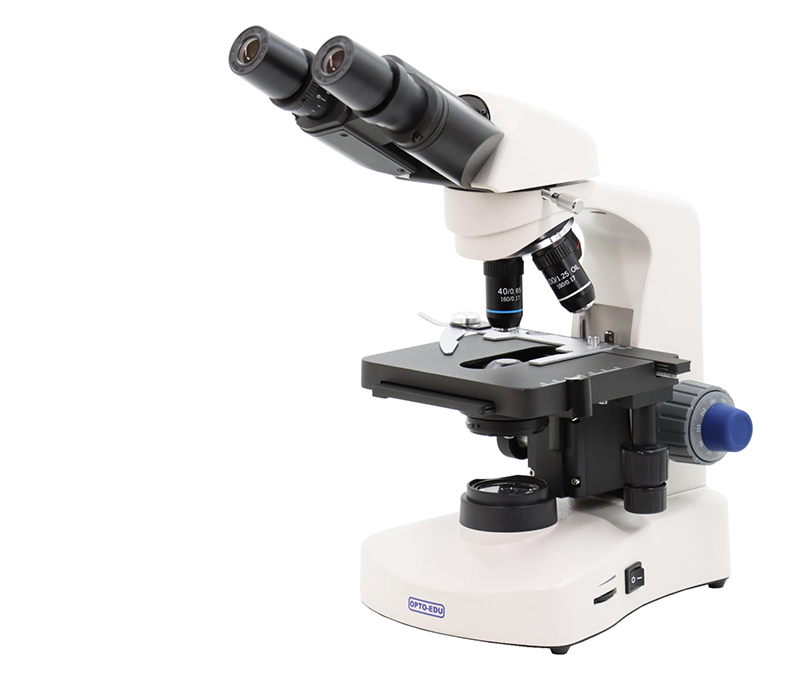

| A12.1005 Biologcial Microscope | A | B | |
| Head | Siedentopf binocular head, inclined at 30°, interpupilary distance 48-75mm | ● | |
| Siedentopf trinocular head, inclined at 30°, interpupilary Distance 55-75mm | ● | ||
| Eyepiece | Wide field eyepiece WF10x/ 18 | ● | ● |

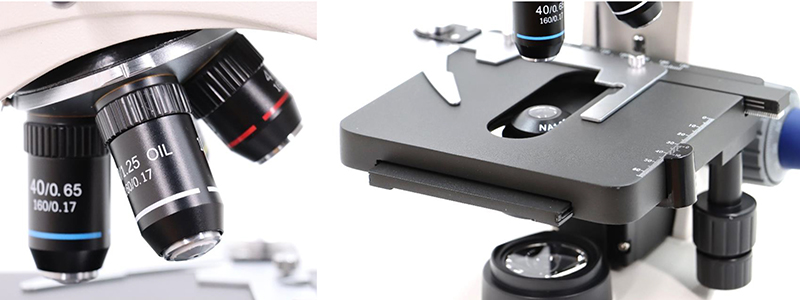

| Objective | Achromatic objective 4x | ● | ● |
| Achromatic objective 10x | ● | ● | |
| Achromatic objective 40x | ● | ● | |
| Achromatic objective 100x | ● | ● | |
| Nosepiece | Backward quadruple nosepiece | ● | ● |
| Stage | Double layers mechanical stage132x142mm/ 75x40mm | ● | ● |
| Focusing | Coaxial coarse & fine knob, moving range 24mm, fine division 0.004mm | ● | ● |

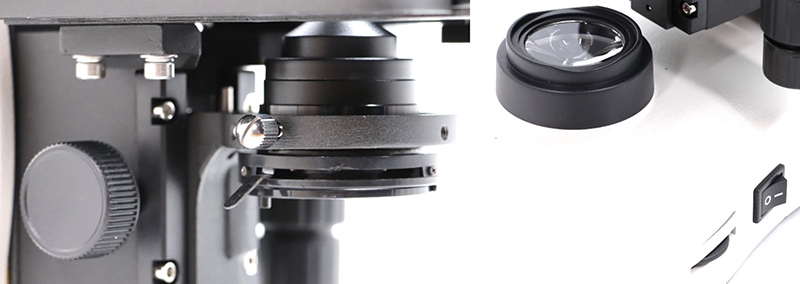

| Condenser | Abbe condenser N.A.1.25 with Iris diaphram & filter | ● | ● |
| Illumination | LED 3W, brightness adjustable | ● | ● |
| Optional Accessories | Item No. | ||
| Eyepiece P16x/11 | A51.1002-16 | ||
| Phase Contrast Kit | A5C.1009 | ||
| Polarization Attachment | A5P.1003 | ||
| Illumination Halogen lamp 6V/ 20W, brightness adjustable | A56.1003 | ||
| Dark Field Condensor | A5D.1005 | ||
