Precision Measuring Metallurgical Microscope, BD, DIC

A13.0921-21

Like Favorites

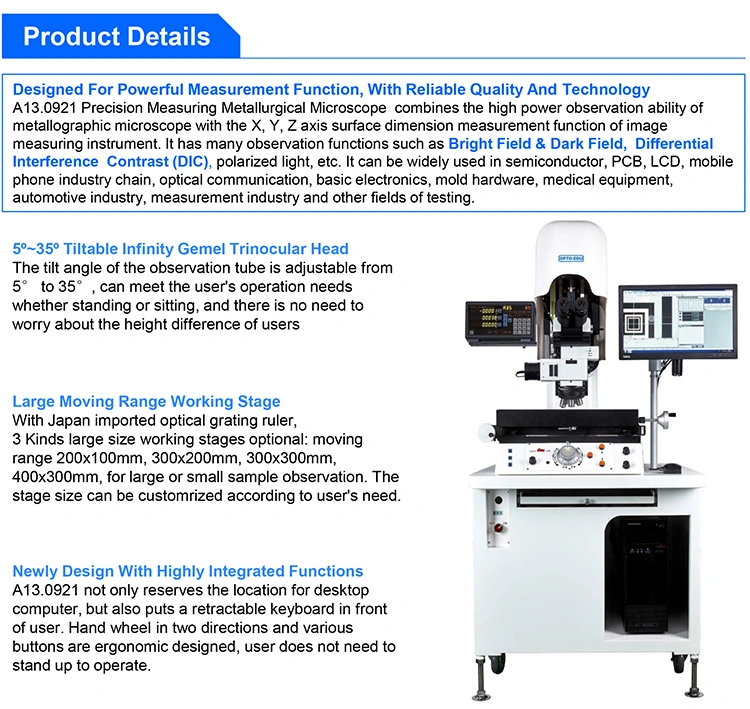

Precision Measuring Metallurgical Microscope, BD, DIC

Precise 3D Measuring 0.1um For X/Y/Z Axies With Motorized Optical Grating Ruler
Reversed Sextuple Nosepiece, With DIC Slot, For Bright & Dark Field
Long Working Distance Infinity Plan Achromatic BD Metallurgical Objective
Large Size Manual Stage, With Digital Indicator. Z Axis With Auto-control Box For Focusing
Include Simple & Powerful Measure Software Used In Computer

Specification:

A13.0921-21

A13.0921-32

A13.0921-43

A13.0921-33

A13.0921 Precision Measuring Metallurgical Microscope, BD, DIC		-21	-32	-33	-43
Magnification	Optical Magnification 50x~1000x, Total Magnification 135x~2700x	●	●	●	●
Eyepiece	High Eyepoint Plan Eyepiece PL10x/22mm, Diopter Adjustable	●	●	●	●
Head	5º~35º Infinity Gemel Trinocular Head, Erect Image, 360° Rotating, Interpupillary Range 50~76mm; Light Spliting Ratio Switch E0:P100/E100:P0	●	●	●	●
Objective	Long Working Distance Infinity Plan Achromatic Metallurgical Objective
	5x-DIC LMPL5x/0.15 W.D.10.8mm	●	●	●	●	A5M.0932-5
	10x-DIC LMPL10x/0.3 W.D.12.20mm	●	●	●	●	A5M.0932-10
	20x-DIC LMPLanFL20x/0.4 W.D.8.8mm,	●	●	●	●	A5M.0932-20
	50x LMPLFL50x/0.55 W.D.7.9mm	●	●	●	●	A5M.0933-50
	100x LMPLFL100x/0.80 W.D.2.1mm	○	○	○	○	A5M.0933-100
	Long Working Distance Infinity Plan Achromatic BD Metallurgical Objective
	5x-DIC/0.15 W.D.9.0mm	○	○	○	○	A5M.0939-5
	10x-DIC/0.3 W.D.9.0mm	○	○	○	○	A5M.0939-10
	20x-DIC/0.45 W.D.3.4mm	○	○	○	○	A5M.0939-20
	50x/0.55 W.D.7.5mm, Semi-APO	○	○	○	○	A5M.0940-50
	100x/0.80 W.D.2.1mm, Semi-APO	○	○	○	○	A5M.0940-100
DIC	DIC Prism (Reflection)	○	○	○	○	A5M.0950
Nosepiece	Reversed Sextuple Nosepiece, With DIC Slot, For BrightField	●	●	●	●	A54.0930-MX6
Nosepiece	Reversed Sextuple Nosepiece, With DIC Slot, For Bright & DarkField	○	○	○	○	A54.0930-MX6BD
Base	Marble base, Z axis with auto-control box for focusing,Z axia move range 150mm. Z axis repeatability precision 2μM(20X objective) ; with 5W LED transmitted illumination. Size:500x770x960mm, weight 155kgs	●	●
Base	Marble base, Z axis with auto-control box for focusing,Z axia move range 150mm. Z axis repeatability precision 2μM(20X objective) ; with 5W LED transmitted illumination. Size:670x940x960mm, weight 200kgs			●	●

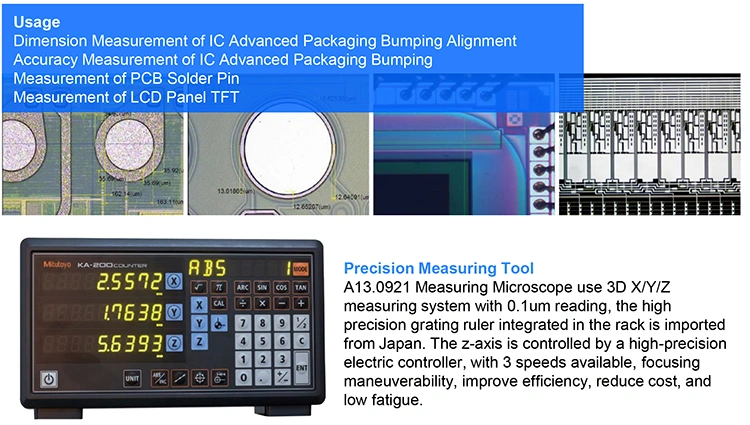

Digital indicator	Digital indicator, display accuracy 0.1um(X/Y/Z), optional unit: mm or inch.	●	●	●	●
Working Stage	Manual stage, moving range: 200mm(X) x 100mm(Y), Measuring precision: X/Y (2+L/100)um, Accuracy assurance weight 10kgs, stage size: 258x358mm.	●
	Manual stage, moving range: 300mm(X) x 200mm(Y), Measuring precision: X/Y (3+L/100)um, Accuracy assurance weight 15kgs, stage size: 350x500mm.		●
	Manual stage, moving range: 300mm(X) x 300mm(Y), Measuring precision: X/Y (3+L/100)um, Accuracy assurance weight 20kgs, stage size: 500x500mm.			●
	Manual stage, moving range: 400mm(X) x 300mm(Y), Measuring precision: X/Y (3+L/100)um, Accuracy assurance weight 20kgs, stage size: 458x620mm.				●
Table	Table for machine, 1075x995x685mm, weight 120kgs	○	○	○	○	A54.0970
Illumination	Reflect Bright & Dark Field Illumination, With BD Switch Device; With Filter Slots For Filters And Polarizing Kit; 5W LED, Intensity Adjustable;	●	●	●	●
Focusing	Focus assist, with double reticle; 5W LED (green), 100V-240V,with BF/DF switch device.	●	●	●	●
Polarizing	polarizer & 360 degree rotatry analyser inserter (for reflection)	○	○	○	○	A5P.0970
Adapter	0.5x C-Mount, Focus Adjustable	○	○	○	○
Adapter	0.65x C-Mount, Focus Adjustable	●	●	●	●
Digital Camera	3M Camera,Pixel: 1600(H) x 1200(V); frame rate: 20fps; digital sensor: CMOS (color)	●	●	●	●
Filter	Interference filter,blue(for reflection)≦480nm	○	○	○	○	A5M.0951-B
	Interference filter,green(for reflection)520nm-570nm	○	○	○	○	A5M.0951-G
	Interference filter,red(for reflection)630nm-750nm	○	○	○	○	A5M.0951-R
Calibration plate	Calibration plate	●	●	●	●

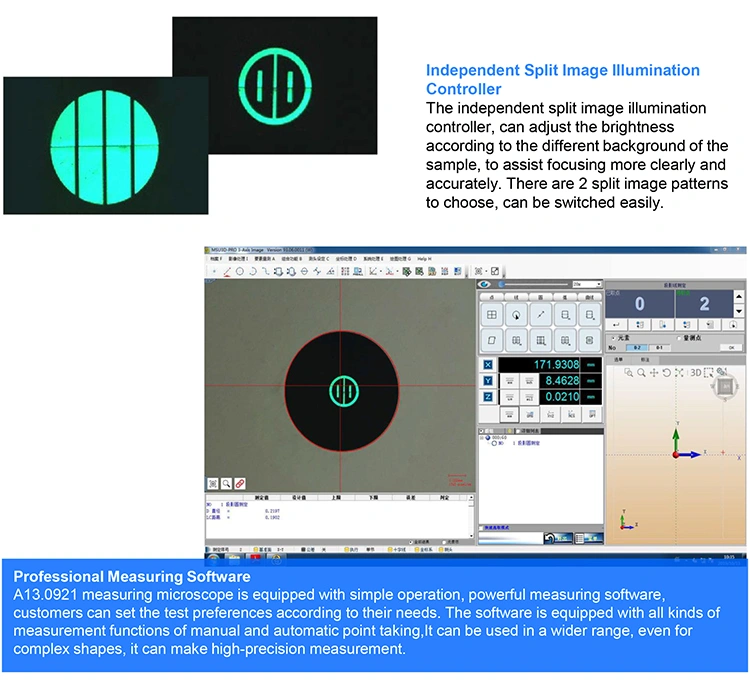

Software	MSU3D-Pro Measurment software	●	●	●	●
Computer	Lenovo M400Q, desktop computer (i5-10400 8G 1T) 21.5 inches	●	●	●	●
Spanner	Spanner M5	●	●	●	●
Spanner	Spanner M4	●	●	●	●
Packing	Foam+ Master Carton	●	●	●	●
Micrometer	High Quality Micrometer Slide 0.01mm	○	○	○	○	A58.0903-1

Pictures Hide Same Show Difference
Model No.	A13.0921-21	A13.0921-33	A13.0921-32	A13.0921-43
Working Distance	——	格式:1.0,或1.0~2.0	格式:1.0,或1.0~2.0	格式:1.0,或1.0~2.0
Polarizing	--Polarizer Slide For Reflect Illumination --360° Rotatry Analyser Slide For Reflect Illumination	——	——	——
Video Adapter	C-Mount 0.5x	C-Mount 0.3x	C-Mount 0.3x	C-Mount 0.3x
Power Supply Type	AC 110V-240V Wide Voltage	——	——	——
Reflect Light	Reflect Bright & Dark Field Illumination, With BD Switch Device With Filter Slots For Filters And P	——	——	——
Light Source Type	LED	——	——	——
Light Source Features	LED 5W Brightness Adjustable	——	——	——
Focusing Knob	Focus Assist Controlled By High-Precision Electric Controller, With 3 Speeds Available, With Double Reticle	——	——	——
Focusing Scale	——	0.000000	0.000000	0.000000
Focusing Range	>400mm	0.000000	0.000000	0.000000
Focusing Type	Coaxial Coarse & Fine	——	——	——
Working Stage	X/Y With Digital Indicator. Z Axis With Auto-control Box For Focusing	——	——	——
Working Stage Moving	200mm(X) x 100mm(Y), 175mm(Z)	——	——	——
Working Stage Size	——	格式:100x100mm,或 Dia.100mm	格式:100x100mm,或 Dia.100mm	格式:100x100mm,或 Dia.100mm
Working Stage Type	Motorized Control Stage	——	——	——
Objective	Long Working Distance Infinity Plan Achromatic Metallurgical Objective 5x10x20x50x	——	——	——
Objective Type	Infinity Plan	——	——	——
Nosepiece Holes	5 Holes	——	——	——
Nosepiece Features	With DIC Slot	——	——	——
Eyepiece	PL10x/22mm, 2 pcs	——	——	——
Eyepiece Diameter	23.2mm	——	——	——
Head Specification	Erect Image	——	——	——
Head Interpupillary	50~76mm	——	——	——
Head Rotation	Head Rotate 360°	——	——	——
Head Type	Seidentopf Trinocular	——	——	——
Standard Magnification	50x-500x	——	——	——
Optical System	Infinity Plan	——	——	——
Standard Function	BF+DF+PL+DIC	——	——	——
New Product Year	2018	2018	2018	2018
