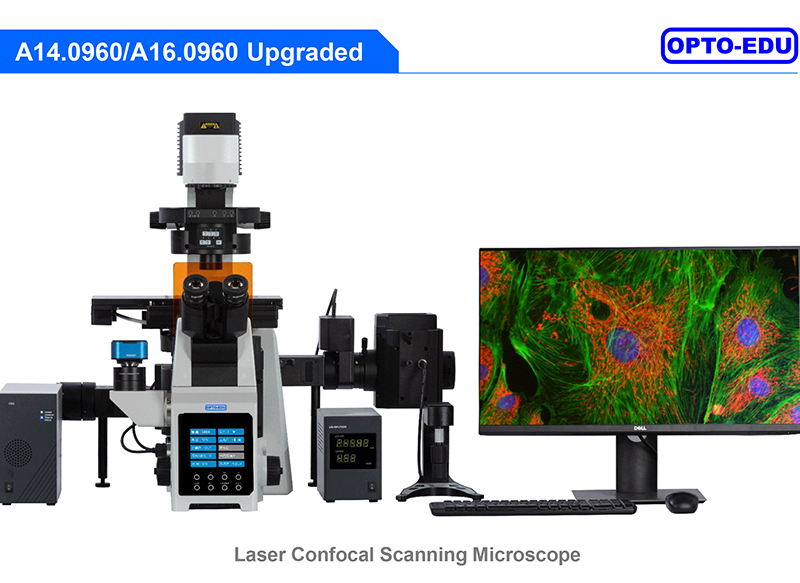

Research Level Inverted Biological Microscope, BF+PH+POL+DIC+Relief Hoffoman PH

A14.0960

Like Favorites

Research Level Inverted Biological Microscope, BF+PH+POL+DIC+Relief Hoffoman PH

Multi Function Research Level Inverted Motorized Microscope Work For BF, PH, POL, DIC
Motorized 6 Holes Nosepiece, LWD Infinity Plan Semi-APO Positive PH Objective 4x,10x,20x,40x,60x
Mortorized 7 Positions LWD Unviersal Condenser NA0.55, With 3 Phase Contrast Aperture, Optional PH, DIC
Motorized Coarse & Fine Coaxial Focusing, Range 10.5mm, Precision 1 μm
Motorized Digital Camera Port on Left Side and Upper Side, Splitting 0:100/50:50/100:0, Include 0.65x C-Mount, Digital Camera 5.0M, 35fps@5MP, USB3.0

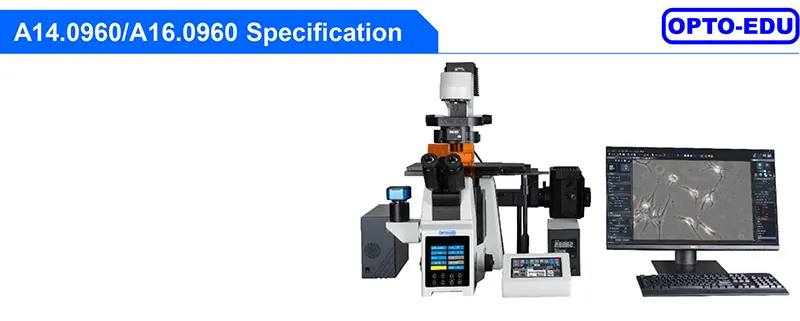

Specification:

A14.0960

Research Level Inverted Fluorescent Microscope, BF+DF+PH+POL+DIC+Relief Hoffoman PH

A16.0950

Research Level Inverted Fluorescent Microscope, BF+PH+POL+DIC+Relief Hoffoman PH

A16.0960

Research Level Inverted Biological Microscope, BF+DF+PH+POL+DIC+Relief Hoffoman PH

A14.0950

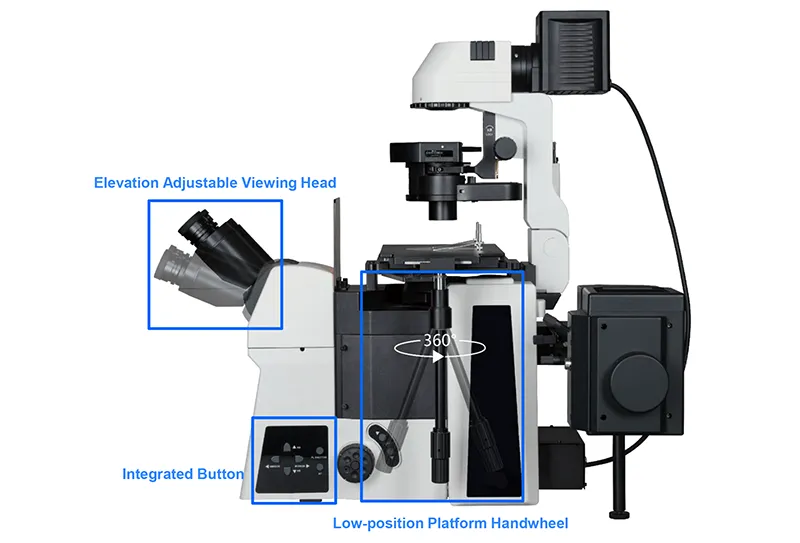

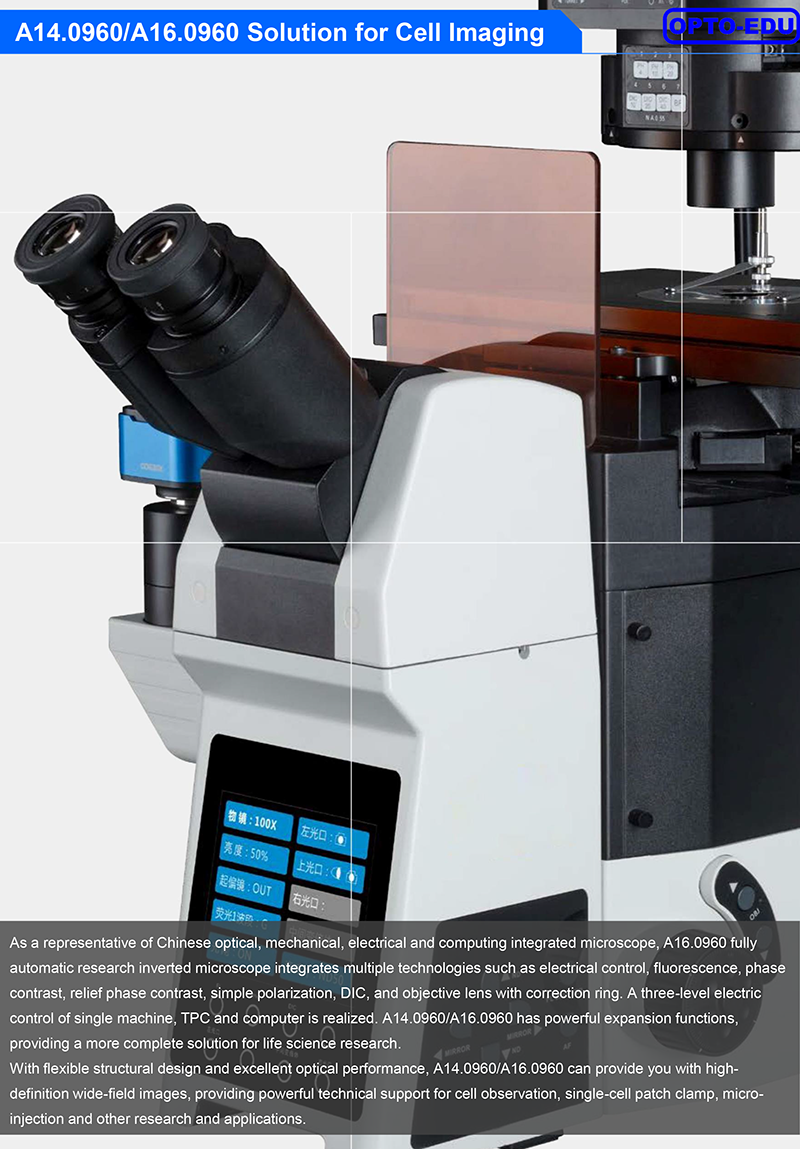

▶Elevation Adjustable Viewing Head

The A14.0960/A16.0960 is equipped with a 20-45° adjustable binocular viewing head, which can raise the eye point by 78mm

(65mm interpupillary distance) as required. It can be observed easily and quickly even in a standing state, which

is effective avoiding fatigue of eyes and limbs.

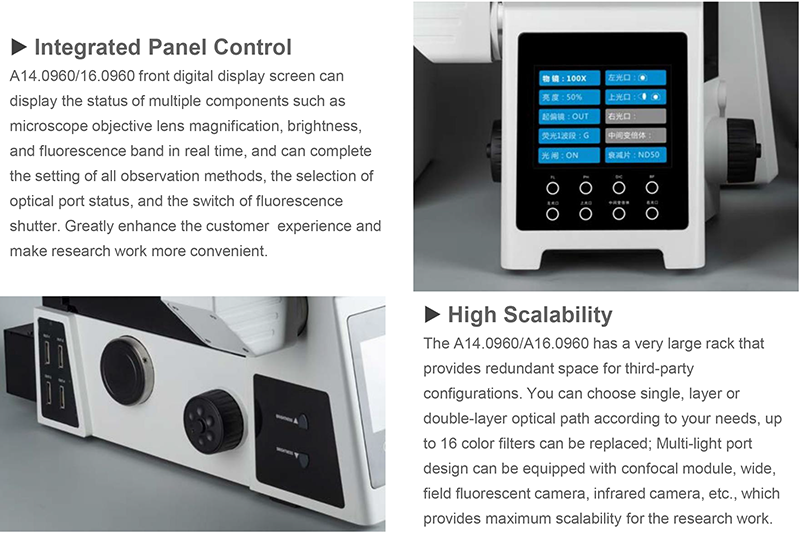

▶Integrated Button

A14.0960/A16.0960 retains the traditional coarse and fine adjustment mode, cancels the gear mechanism, integrates electric

control technology and realizes manual and automatic integration. The brightness, objectives, attenuator turntable

and fluorescent turntable can be quickly switched or rotated through the corresponding buttons on the button

panels on both sides. AF one-key auto focus can quickly adjust the Z-axis height according to the real-time image,

and eliminates the need for fine-adjusting steps and improves work efficiency.

▶Low-position Platform Handwheel

The low-position platform handwheel can be rotated 360° ,which can effectively reduce the hand fatigue caused by long-term operation and is ergonomic and improves the convenience of operation.

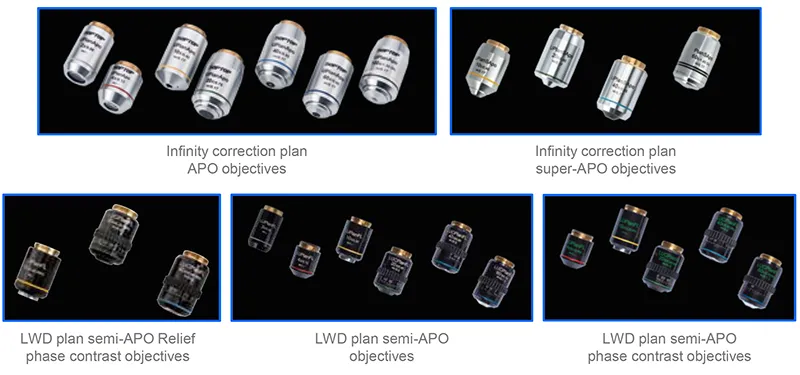

▶LWD Semi-APO Series Objectives

Full series of LWD semi-APO objectives were developed for cell culture. The objectives with correction ring have significant advantage for the observation of glass substrates and culture vessels with different thickness, and achieves accurate focusing by correcting the cover glass thickness.

		BF	DF	DIC	POL	FL	PH	RPC
LWD Infinity Plan Positive Phase Contrast Objective	4X/0.13, WD=17mm,	√			√	√	√		A5C.0960-4
	10X/0.30, WD=8.8mm,	√		√	√	√	√		A5C.0960-10
	20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness	√	√	√	√	√	√		A5C.0960-20
	40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness	√	√	√	√	√	√		A5C.0960-40
	60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness	√	√	√	√	√	√		A5C.0960-60
LWD Infinity PlanSemi-APO Objective	4X/0.13, WD=17mm,	√			√	√			A5F.0961-4
	10X/0.30, WD=8.8mm,	√		√	√	√			A5F.0961-10
	20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness	√	√	√	√	√			A5F.0961-20
	40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness	√	√	√	√	√			A5F.0961-40
	60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness	√	√	√	√	√			A5F.0961-60
Infinity Plan APOchromatic Objective	4X/0.16, WD=12.8mm	√			√	√			A5F.0962-4
	10X/0.40, WD=3.2mm	√	√	√	√	√			A5F.0962-10
	20X/0.75, WD=0.6mm	√	√	√	√	√			A5F.0962-20
	40X/0.95, WD=0.15mm	√		√	√	√			A5F.0962-40
	60X/0.90, WD=0.26mm	√		√	√	√			A5F.0962-60
	60X/1.25, WD=0.14mm Oil	√			√	√			A5F.0962-60S
	100X/1.35, WD=0.13mm Oil	√			√	√			A5F.0962-100
Infinity Plan Super APO Objective	10X/0.14, WD=3.1mm	√			√	√			A5F.0963-10
	20X/0.80, WD=0.6mm	√			√	√			A5F.0963-20
	40X/0.95, WD=0.18mm	√			√	√			A5F.0963-40
	60X/1.42, WD=0.17mm Oil	√			√	√			A5F.0963-60
	100X/1.45, WD=0.14mm Oil (Under development)	√			√	√			A5F.0963-100
LWD Infinity Plan Semi-APO Relief Hoffman Phase Contrast Objectives	10X/0.30, WD=8.8mm,	√	√	√	√	√		√	A5C.0965-10
	20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness	√	√	√	√	√		√	A5C.0965-20
	40X/0.45, WD=2.85~4.05mm, 0~2mm Cover glass thickness	√	√	√	√	√		√	A5C.0965-40

A14.0960 Research Level Inverted Biological Microscope A16.0960 Research Level Inverted Fluorescent Microscope			A14.0960	A16.0960
Function	BF, Bright Field		●	●
	PH, Phase Contrast		●	●
	POL, Polarizing		o	o
	DIC, Differential Interfied Contrast		o	o
	Relief Hoffoman Phase Contrast		o	o
Head	20º-45º tilting Binocular head, inverted image,interpupillary distance: 50mm~76mm	A53.0960	●	●
Eyepiece	High eyepoint plan eyepiece PL10X/22mm，diopter adjustment	A51.0904-1022T	●●	●●
Nosepiece	Motorizedbright filed sextuple nosepiece with DIC slot.		●	●
LWD Infinity Plan Semi-APO Positive Phase Contrast Objective	4X/0.13, WD=17mm,	A5C.0960-4	●	●
	10X/0.30, WD=8.8mm,	A5C.0960-10	●	●
	20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness	A5C.0960-20	●	●
	40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness	A5C.0960-40	●	●
	60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness	A5C.0960-60	●	●
LWD Infinity Plan Semi-APO Objective	4X/0.13, WD=17mm,	A5F.0961-4	o	o
	10X/0.30, WD=8.8mm,	A5F.0961-10	o	o
	20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness	A5F.0961-20	o	o
	40X/0.60, WD=2.85~4.05mm, 0~2mm Cover glass thickness	A5F.0961-40	o	o
	60X/0.70, WD=1.42~2.10mm, 0~1.3mm Cover glass thickness	A5F.0961-60	o	o
Infinity Plan APOchromatic Objective	4X/0.16, WD=12.8mm	A5F.0962-4	o	o
	10X/0.40, WD=3.2mm	A5F.0962-10	o	o
	20X/0.75, WD=0.6mm	A5F.0962-20	o	o
	40X/0.95, WD=0.15mm	A5F.0962-40	o	o
	60X/0.90, WD=0.26mm	A5F.0962-60	o	o
	60X/1.25, WD=0.14mm Oil	A5F.0962-60S	o	o
	100X/1.35, WD=0.13mm Oil	A5F.0962-100	o	o
Infinity Plan Super APO Objective	10X/0.14, WD=3.1mm	A5F.0963-10	o	o
	20X/0.80, WD=0.6mm	A5F.0963-20	o	o
	40X/0.95, WD=0.18mm	A5F.0963-40	o	o
	60X/1.42, WD=0.17mm Oil	A5F.0963-60	o	o
	100X/1.45, WD=0.14mm Oil (Under development)	A5F.0963-100	o	o
Working Stage	Manual mechanical stage, 300mm (X) × 240mm (Y), moving range is 135mm (X) × 85mm (Y),stage thickness is 30mm. Lower universal right side handle. With lock function. During locking, moving range 50mm (X) × 50mm (Y). It can use with 35mm petri dish holder, culture flask holder, sliced holder, Φ110mm replaceable disc stage with clips.	A54.0960	●	●
Working Stage	Stage: Motorized, 260153mm with working range 11075mm, The maximum speed is 3mm/s, the repeat positioning accuracy is ±1um, and it can be adapted to petri dish and slice observation	A54.0963	o	o
Marzhauser MotorizedStage	MarzhauserMotorizedstage, moving range: 120mm(X) x 80mm(Y); resolution: 0.02μm, repeatability <1μm, with control box and operating handle, with slider holder.	A54.0961	o	o
	φ36 Petri dish holder，used with Marzhauser-SCAN		o	o
	96-well plate petri dish holder,used with Marzhauser-SCAN		o	o
	Teraseki holder,used with Marzhauser-SCAN		o	o
Prior MotorizedStage	PriorMotorized stage, moving range: 114mm(X) x 75mm(Y), resolution: 0.01μm, repeatability:0.2 μm, with control box and operating handle.	A54.0962	o	o
	φ36 Petri dish holder，used with Prior stage.		o	o
	96-well plate petri dish holder,used with Prior stage.		o	o
	Teraseki holder,used with Prior stage.		o	o
	Motorized coarse & fine coaxial focusing, range: 10.5mm, precision: 1 μm. Motorized left camera port, splitting ratio:0:100, 50:50, 100:0. Motorizedupper camera port, splitting ratio: 100:0, 0:100,with CTV adapter Dual optical path, with fluorescent light barrier.		●	●
	Base mounting bracket anti-vibration	A54.0960-AV	o	o
	Right camera port, manual two gears switching, splitting ratio: 100:0, 0:100, POV16mm, built-in C-mount 1X. (MUST ordered with whole unit, cannot be added later as optional)	A55.0960	o	o
CondenserB	Mortorized LWD unviersal 7 positions condensor with N.A.0.55, W.D.27mm. 3 positions ø30mm for Phase contrast observation. 4 positions ø38mm, External connecting cable 100cm Work For BF, PH, DIC.	A56.0962	●	●
Phase Contrast for B	4X phase contrast aperture group	A5C.0962-4	●	●
	10X phase contrast aperture group	A5C.0962-10	●	●
	20X/40X/60X phase contrast aperture group	A5C.0962-204060	●	●
DIC for A,B	DIC slider & Analyzer for transmitted light, Need to select Objectives: A5F.0961-10x,20x,40x,60x A5F.0962-10x,20x,40x,60x A5C.0960-10x,20x,40x,60x	A5C.0964	Bo	Bo
	10X DIC ring, compatible with condenser B	A5C.0964-10	Bo	Bo
	20X DIC ring, compatible with condenser B	A5C.0964-20	Bo	Bo
	40X/60X DIC ring, compatible with condenser B	A5C.0964-4060	Bo	Bo
CondenserC	Manual 5 positions LWD condenser, NA0.30, WD73mm, to meet 4X-60X phase contrast, simple polarization or 10X-40X RPC relief contrast. Work For BF, PH, POL, Relief	A56.0963	o	o
Phase Contrast for C	4X phase contrast aperture group	A5C.0963-4	Co	Co
	10X phase contrast aperture group	A5C.0963-10	Co	Co
	20X/40X/60X phase contrast aperture group	A5C.0963-204060	Co	Co
Polarizing for C	Analyzer,MUSTbe selected for Reflief Hoffman	A5P.0963-A	Co	Co
Polarizing for C	360° rotatable polarizer, MUSTbe selected for Reflief Hoffman	A5P.0963-P	Co	Co
Relief Hoffman Phase Contrast Slide & Objective	10X aperture group, compatible with condenser C	A5C.0965-10S	Co	Co
	20X aperture group, compatible with condenser C	A5C.0965-20S	Co	Co
	40X aperture group, compatible with condenser C	A5C.0965-40S	Co	Co
	LWD Infinity Plan Semi-APO Relief Hoffman Phase Contrast Objectives	A5C.0965	Co	Co
	10X/0.30, WD=8.8mm,	A5C.0965-10	Co	Co
	20X/0.45, WD=6.5~7.6mm, 0~2mm Cover glass thickness	A5C.0965-20	Co	Co
	40X/0.45, WD=2.85~4.05mm, 0~2mm Cover glass thickness	A5C.0965-40	Co	Co
Transmit Light	Tilting transmited light system, transmited Kohler light system, Condenser lifting adjustable, range: 65mm, able to set 4 filters.	A56.0960	●	●
	10W Cool LED Light Box, color temperature 5000K	A56.0960-LED	o	o
	12V100W halogen illumination box, filament center preset.	A56.0960-HAL	●	●
	12V100W halogen lamp PHILIPS 7724	A56.0960-12100	●●	●●
	LBD filter	A56.0960-LBD	●	●
	Green filter	A56.0960-G	●	●
Reflect Fluorescent Mercury Light	L-shaped design reflection fluorescence illuminator.with attenuation plate.	A5F.0960-MER	x	●
	100W Fluorescence mercury light box		x	●
	100W mercury lamp power supply unit (U5 power supply unit)		x	●
	100W Mercury Lamp (OSRAM)		x	●
	5 positions Motorized filter wheel is offered for both excitation and observation, BF/Shutter/ND6/ND25/ND50; External connecting cable 100cm	A5F.0960-FW	x	o
	Extension accessories	A5F.0960-EX	x	●

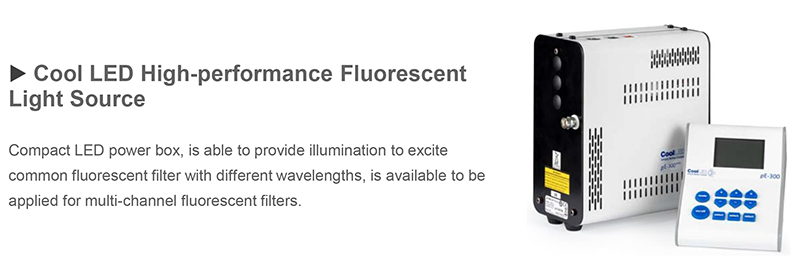

	Multi-band LED Light Source Module, with four excitation channels,10W high-power LED	A5F.0960-LED4	x	o
Fluorescent Filter	Motorized turret with 8 positions, built-in shutter, External connecting cable 20cm	A5F.0960-60	x	●
	Rotary disk dustproof box	A5F.0960-DB	x	●
	Fluorescence filter(B) (CHROMA)	A5F.0960-B	x	●
	Fluorescence filter(G) (CHROMA)	A5F.0960-G	x	●
	Fluorescence filter(UV) (CHROMA)	A5F.0960-UV	x	●
	Fluorescence filter(R1) (CHROMA) EX:AT620/50X, BS: AT655DC, EM: AT690/50M	A5F.0960-R1	x	o
CAN Card	Need buy computer too to meet electric control, including MV-image-Research	A54.0966-USB	●	●
CAN Card	Need buy computer too to meet electric control, including MV-image-Research	A54.0966-PCIE	o	o
Computer	Dell Computer Precision T3650(i7 11700/16GB/256GB+1TB/P620) + P2722H	A54.0966-PC	o	o
	7"screen, Motorized control unit	A54.0966-TPC	o	o
	External connecting cable 200cm, computer connect with power supply box.	A54.0966-EC	●	●
Power supply	External system controller.All motorized units are powered by this. Voltage input:90-265V,output:12V100W/24V5A/15V5A/5V5A		●	●
Power supply	External connecting cable 200cm, power supply box connect to microscope		●	●
Digital Camera	SONY IMX267 color camera,CCD 8.9M, [email protected],USB3.0,Sensor 1"	A59.0960-8.9M	o	o
	SONY IMX264 color camera,CCD 5.0M, 35fps@5MP,USB3.0,Sensor 2/3"	A59.0960-5.0M	●	●
	SONY ICX695 color camera,CCD 6.0M, 7.5fps@6MP,USB3.0,Sensor 1"	A59.0960-6.0M	o	o
	SONY ICX695 color cold camera,CCD 6.0M, 7.5fps@6MP,USB3.0,Sensor 1"	A59.0960-6.0MC	o	o
	SONY ICX695 mono color camera,6.0M, 7.5fps@6MP,USB3.0,CCD 1"	A59.0960-6.0MM	o	o
	SONY ICX695 mono color cold camera,6.0M, 7.5fps@6MP,USB3.0,CCD 1"	A59.0960-6.0MMC	o	o
	RISI 9.9M mono color camera(2960x2960), field of view 17.8mm, pixel size 4.25x 4.25um, 30 fps, 73% quantum efficiency, sensor 17.8mm	A59.0960-9.9M	o	o
Telescope	Phase Contrast Telescope Φ30	A5C.0910-30	●	●
Telescope	Fluorescence Telescope	A5F.0930-2	x	●
C-mount adaptor	C-mount adaptor 0.5X	A55.0930-05	o	o
	C-mount adaptor 0.65X	A55.0930-65	●	●
	C-mount adaptor 1X	A55.0930-10	o	o
Accessories	Allen wrench M3		●●	●●
	Allen wrench M4		●●	●●
	Allen wrench M5		●	●
	Non-fluorescing immersion oil		o	o
Packaging	Carton and foam		●	●
Remark	●' means standard outfit, 'o' means optional outfit, 'x' means not compatible, 'A','B','C' means only compatible for specific condenser A,B or C

Pictures Hide Same Show Difference
Model No.	A14.0960	A14.0950	A16.0950	A16.0960
System Support	Win11 Win10	Win11 Win10	Win11 Win10	Win11 Win10
Camera Output	USB	USB	USB	USB
Camera Mounting	C-Mount	C-Mount	C-Mount	C-Mount
Camera Sensor Size	2/3”	2/3”	2/3”	2/3”
Camera Pixel	5.0MP	5.0MP	5.0MP	5.0MP
Fluorescene	——	——	Manual turret with 8 positions, built-in shutter, B/G/UV	——
Phase Contrast	Phase Contrast Aperture In Condenser , for 4X,10X, 20X/40X/60X	Phase Contrast Aperture In Condenser , for 4X,10X, 20X/40X/60X	Phase Contrast Aperture In Condenser , for 4X,10X, 20X/40X/60X	Phase Contrast Aperture In Condenser , for 4X,10X, 20X/40X/60X
Video Adapter	C-Mount 0.65x	C-Mount 0.65x	C-Mount 0.65x	C-Mount 0.65x
Power Supply	External system controller.All motorized units are powered by this. Voltage input:90-265V,output:12V100W/24V5A/15V5A/5V5A	External system controller.All motorized units are powered by this. Voltage input:90-265V,output:12V100W/24V5A/15V5A/5V5A	External system controller.All motorized units are powered by this. Voltage input:90-265V,output:12V100W/24V5A/15V5A/5V5A	External system controller.All motorized units are powered by this. Voltage input:90-265V,output:12V100W/24V5A/15V5A/5V5A
Power Supply Type	AC 110V-240V	AC 110V-240V	AC 110V-240V	AC 110V-240V
Reflect Light	——	——	Reflect Fluorescent 100W Mercury Light	——
Transmit Light	Tilting transmited light system, transmited Kohler light system, Condenser lifting adjustable	Tilting transmited light system, transmited Kohler light system, Condenser lifting adjustable	Tilting transmited light system, transmited Kohler light system, Condenser lifting adjustable	Tilting transmited light system, transmited Kohler light system, Condenser lifting adjustable
Light Source Type	Halogen	LED	LED	Halogen
Light Source Features	Halogen 100W Kohler	LED 10W Kohler	LED 10W Kohler	Halogen 100W Kohler
Condenser	Mortorized LWD unviersal 7 positions condensor with N.A.0.55, W.D.27mm. 3 positions ø30mm for Phase contrast observation. 4 positions ø38mm, External connecting cable 100cm Work For BF, PH, DIC	Manual 7 positions LWD condenser, WD27mm, 3 positions(Ø30mm) to meet phase contrast, 4 positions(Ø38mm) Work For BF, PH, DF, POL, DIC.	Manual 7 positions LWD condenser, WD27mm, 3 positions(Ø30mm) to meet phase contrast, 4 positions(Ø38mm) Work For BF, PH, DF, POL, DIC.	Mortorized LWD unviersal 7 positions condensor with N.A.0.55, W.D.27mm. 3 positions ø30mm for Phase contrast observation. 4 positions ø38mm, External connecting cable 100cm Work For BF, PH, DIC
Condenser N.A.	0.55	0.55	0.55	0.55
Condenser Type	DIC Phase Contrast Abbe	DIC Phase Contrast Dark Field Abbe	DIC Phase Contrast Dark Field Abbe	DIC Phase Contrast Abbe
Condenser Features	Slot For DIC Slide Slot For PH Slide Rack & Pinionↆ↑	Slot For DIC Slide Slot For PH Slide Slot For DF Slide Rack & Pinionↆ↑	Slot For DIC Slide Slot For PH Slide Slot For DF Slide Rack & Pinionↆ↑	Slot For DIC Slide Slot For PH Slide Rack & Pinionↆ↑
Focusing Scale	0.001mm	0.001mm	0.001mm	0.001mm
Focusing Range	10.5mm	10.5mm	10.5mm	10.5mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Motorized Auto Focus	Motorized Auto Focus	Motorized Auto Focus	Motorized Auto Focus
Working Stage	With lock function. During locking, moving range 50mm (X) × 50mm (Y). It can use with 35mm petri dish holder, culture flask holder, sliced holder, Φ110mm replaceable disc stage with clips.	With lock function. During locking, moving range 50mm (X) × 50mm (Y). It can use with 35mm petri dish holder, culture flask holder, sliced holder, Φ110mm replaceable disc stage with clips.	With lock function. During locking, moving range 50mm (X) × 50mm (Y). It can use with 35mm petri dish holder, culture flask holder, sliced holder, Φ110mm replaceable disc stage with clips.	With lock function. During locking, moving range 50mm (X) × 50mm (Y). It can use with 35mm petri dish holder, culture flask holder, sliced holder, Φ110mm replaceable disc stage with clips.
Working Stage Moving	135x85mm	135x85mm	135x85mm	135x85mm
Working Stage Size	300x240mm	300x240mm	300x240mm	300x240mm
Working Stage Type	3 Layers Mechanical	3 Layers Mechanical	3 Layers Mechanical	3 Layers Mechanical
Working Stage Features	Size ≥140x140mm	Size ≥140x140mm	Size ≥140x140mm	Size ≥140x140mm
Objective	LWD Infinity Plan Semi-APO Positive Phase Contrast Objective 4x,10x,20x,40x,60x	LWD Infinity Plan Semi-APO Positive Phase Contrast Objective 4x,10x,20x,40x,60x	LWD Infinity Plan Semi-APO Positive Phase Contrast Objective 4x,10x,20x,40x,60x	LWD Infinity Plan Semi-APO Positive Phase Contrast Objective 4x,10x,20x,40x,60x
Objective Type	Infinity Plan Phase Contrast	Infinity Plan Phase Contrast	Infinity Plan Phase Contrast	Infinity Plan Phase Contrast
Objective Features	APO LWD	APO LWD	APO LWD	APO LWD
Nosepiece Holes	6 Holes	6 Holes	6 Holes	6 Holes
Nosepiece Features	With DIC Slot Coded Motorized	With DIC Slot Coded Motorized	With DIC Slot Coded Motorized	With DIC Slot Coded Motorized
Eyepiece	High Eyepoint PL10X/22mm	High Eyepoint PL10X/22mm	High Eyepoint PL10X/22mm	High Eyepoint PL10X/22mm
Eyepiece Diameter	30.0mm	30.0mm	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable
Head Specification	Inverted Image	Inverted Image	Inverted Image	Inverted Image
Head Interpupillary	50~76mm	50~76mm	50~76mm	50~76mm
Head Inclination	45°	45°	45°	45°
Head Type	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Binocular
Standard Magnification	40x-600x	40x-600x	40x-600x	40x-600x
Optical System	Infinity Plan	Infinity Plan	Infinity Plan	Infinity Plan
Features	APO DIC Hoffman Coded Nosepiece	Infinity APO DIC BF+DF Hoffman Coded Nosepiece	Infinity APO DIC BF+DF Hoffman Coded Nosepiece	APO DIC Hoffman Coded Nosepiece
Upgrade Function	POL+DIC+Relief Hoffoman PH	DF+POL+DIC+Relief Hoffoman PH	DF+POL+DIC+Relief Hoffoman PH	POL+DIC+Relief Hoffoman PH
Standard Function	BF+PH	BF+PH	BF+PH	BF+PH
New Product Year	2022	2022	2022	2022
