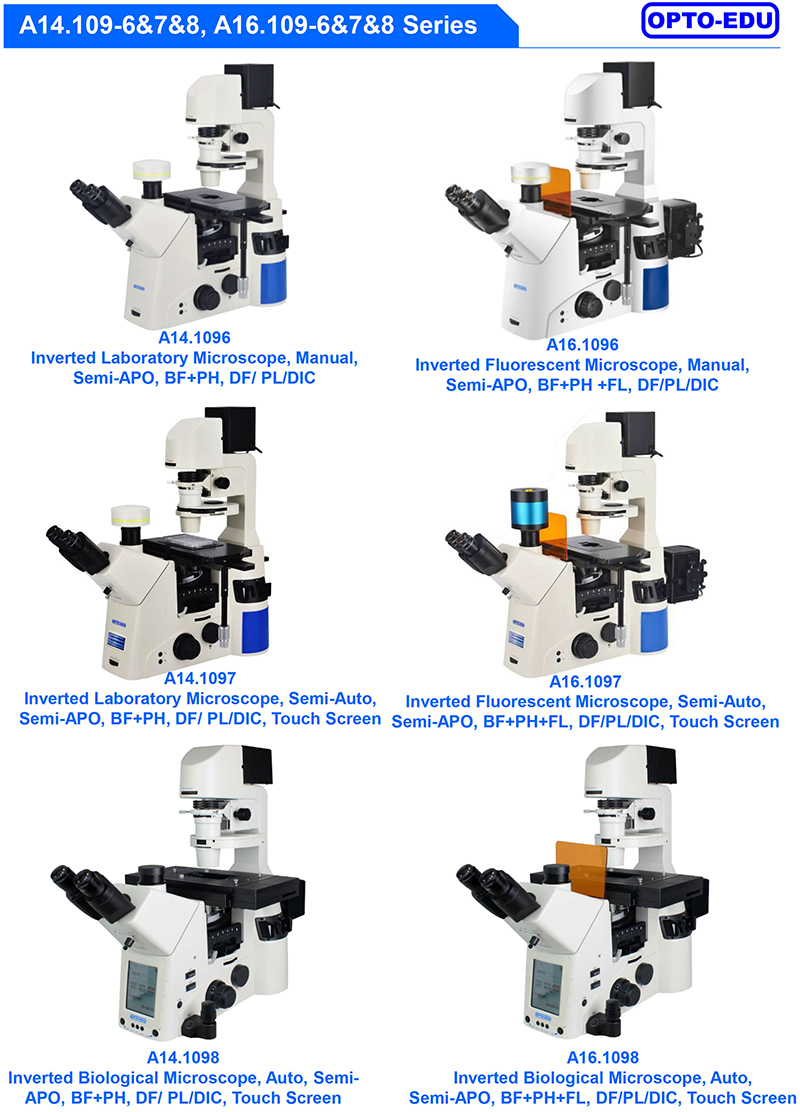

A14.1096 & A16.1096, A14.1097 & A16.1097, Research Level Microscope A14.1096 & A16.1096 are manual model equipped with multiple image ports for optical output, it is convenient to connect the camera and detector. Multi-port imaging is supported, and multiple cameras can simultaneously shoot images at different wavelengths. |

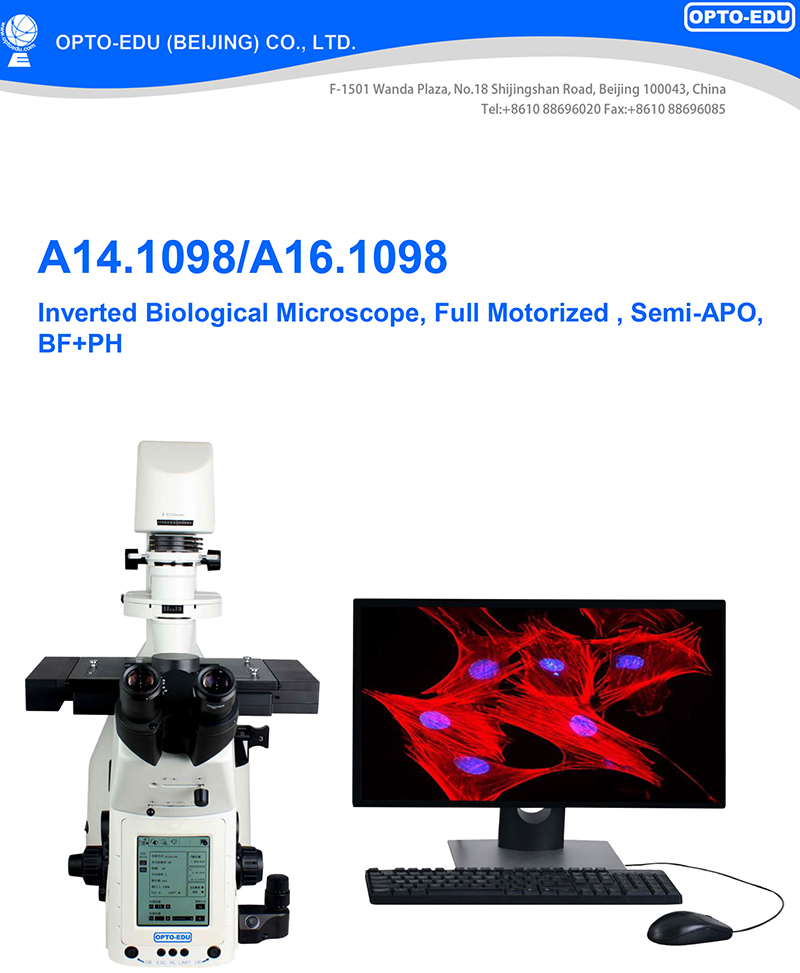

A14.1098 & A16.1098, Research Inverted Microscope A14.1098 & A16.1098 are motorized model upgraded from A14.1097 & A16.1097 Designed to meet the needs of advanced life science research, can meet your various needs. It is an all-round microscope, which can realize bright field, phase contrast, polarization, DIC, fluorescence and other observation methods. Even the confocal and super-resolution required by top life science research can be realized on this microscope. Fully consider the user's operating habits and adopt ergonomic design, which greatly reduces the mechanical fatigue caused by long-term observation. It also adopts high-speed electric control, which simplifies and visualizes the complicated operation and makes the operation easier and simpler. |
▶ The system Condenser Brightfield observation, phase contrast observation and DIC observation provide the maximum choice for your experiment. | ▶ Ergonomic Transmitted Illumination Ergonomic transmission lighting column ensures that users have a larger working space and is convenient for changing samples. |

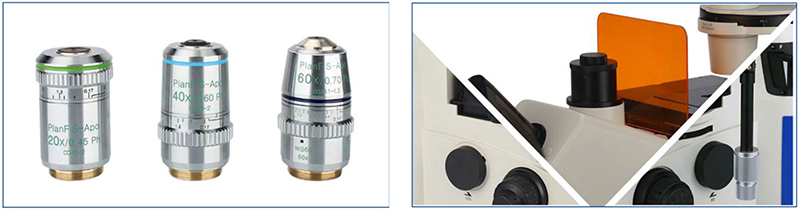

▶ N-iPLFN PH Plan Semi-apochromatic Objective Semi-apochromatic objective lenses have built-in correction rings, which can correct the poor coverage caused by nonstandard cover glass thickness. | ▶ Multi-end Optical Path Exit The left side of the microscope is provided with an optical output selection dial, which is convenient for distributing optical images to different ports and provides expanded space for more optical image applications. |

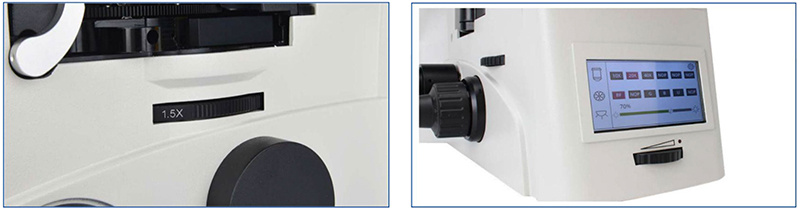

▶ Switching Intermediate Magnification Through smooth turntable operation, the intermediate magnification can be quickly switched between 1 and 1.5 times. | ▶ Microscope Use Status Display Screen In order to facilitate the use of microscope in darkroom, A14.1097&A16.1097adds a 4.3-inch touch screen on the front panel to show the use status of microscope. |
A Variety of Electric Components Are Combined To Realize Fast Reading and Accurate Operation You can control a variety of electric parts of the microscope through software, such as objective lens conversion, focusing, condenser conversion, fluorescent module conversion and so on. Quick and simple operation of this scientific inverted microscope not only increases your work efficiency, but also reduces the exposure time of cells and phototoxicity, and the experimental results obtained are more accurate and valuable. |

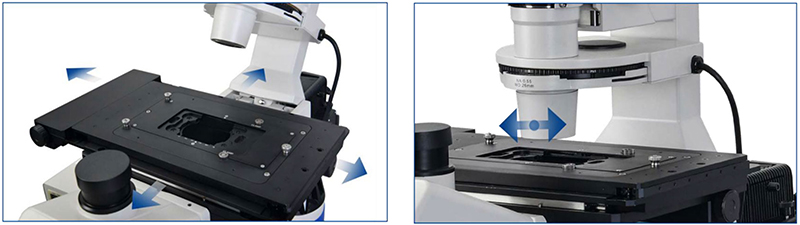

▶ Motorized Stage Large stroke, high precision, quick positioning, suitable for multi-point observation. | ▶ Motorized Universal Condenser The conversion of electric condenser module can be carried out. |

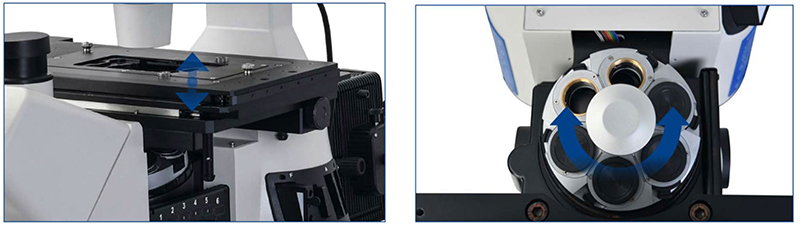

▶ Z-axis Autofocus Fast and accurate Z-axis control can be performed. | ▶ Motorized DIC Sextuple Nosepiece It can realize the arbitrary conversion of six objective lenses. |

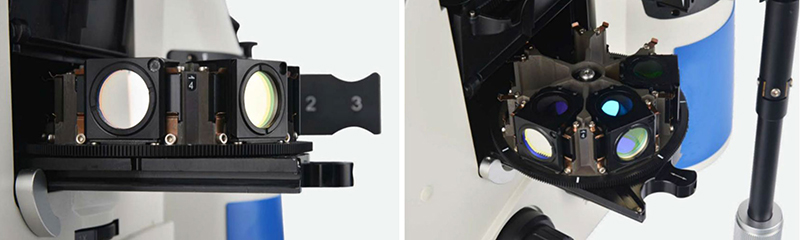

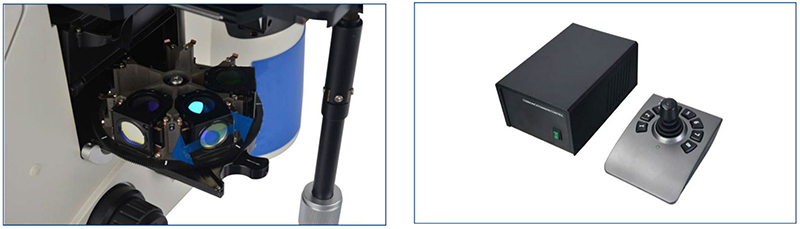

▶ Motorized Filter Cube Turret It can realize the random conversion of 6-hole fluorescent module. | ▶ Joystick Module Flexible positioning of the electric stage is carried out. |

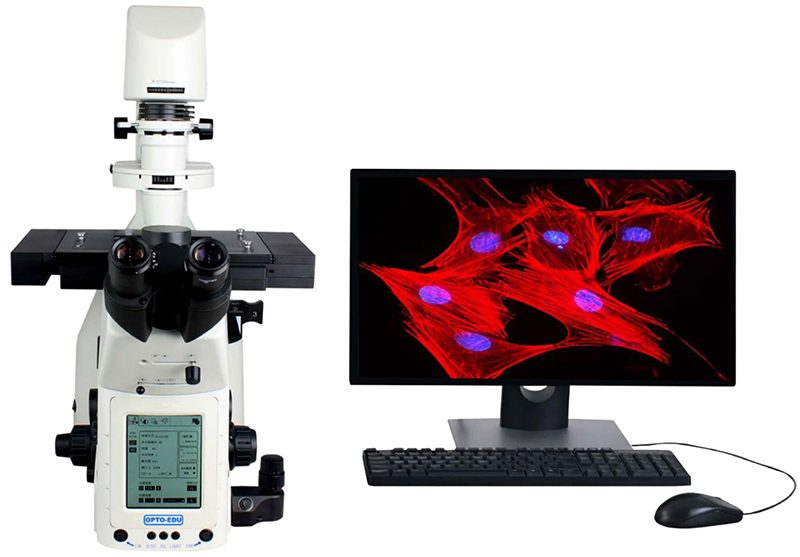

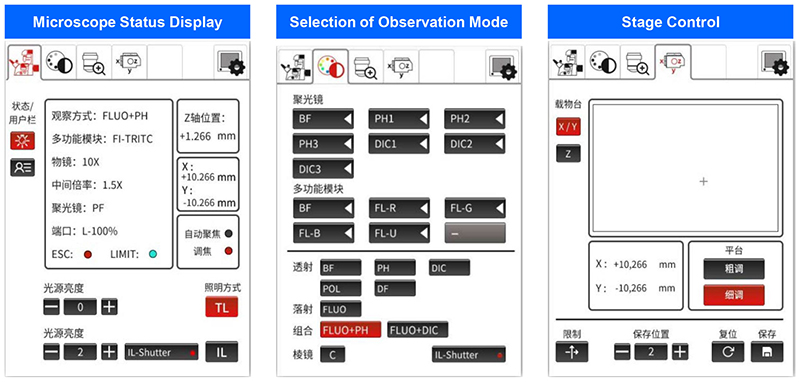

Front Microscope Operation Screen To Realize Full Electric Control. A14.1098&A16.1098 adds a microscope operation screen at the front of the microscope, which can realize almost all microscope operations, including electric focusing, stage movement, objective lens selection, condenser module conversion, intermediate magnification conversion, side port output selection, aperture stop adjustment, multi-function turntable conversion and other functions, and integrates the operation handle on the right side of the fuselage, greatly reducing the desktop space. |
Clear Observation Can Be Obtained By Using Various Fluorescent Dyes. |

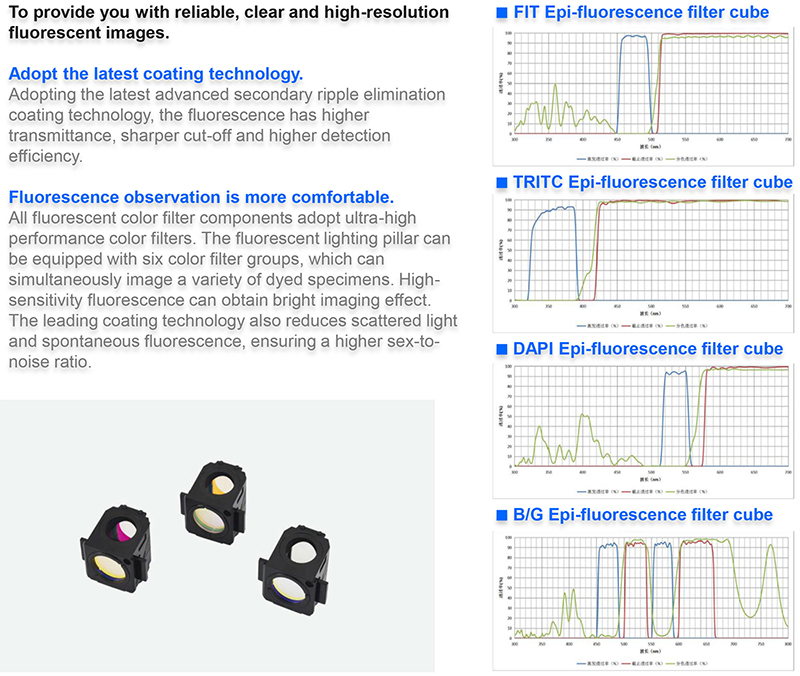

▶ Fluorescent Excitation Module Turntable: Easier And More Flexible Adopt multifunctional six-station fun table structure, which can be easily taken out from the main machine and convenient to replace Various fluorescent excitation modules. |

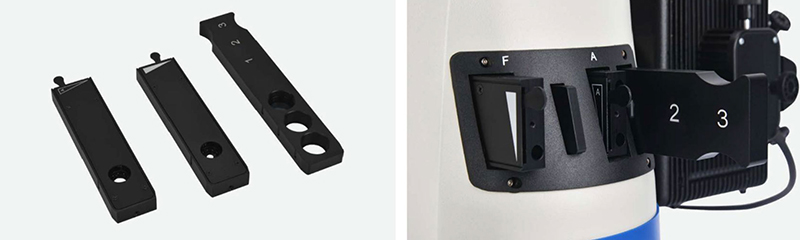

▶ Simple And Fast Operation, A14.1096/97/98&A16.1096/97/98 Diaphragm Slider Reflective field diaphragm, aperture diaphragm and fitter insert plate, and three different types of diaphragm siders show the versatility of NIBs00in the study of living cells. When the aperture stop and the fluorescent fitter board are used together, the optimal fluorescence intensity can be adjusted according to the selected fluorescent module and objective lens. |
| A14.1090 Research Level Inverted Biological Microscope | A14.1096 | A14.1097 | A14.1098 | A16.1096 | A16.1097 | A16.1098 | Cata.No. | |
| Optical System | NIS60 Infinite Optical System, Semi-APO | ● | ● | ● | ● | ● | ● | |
| Observation Method | Bright Field | ● | ● | ● | ● | ● | ● | |
| Dark Field | ○ | ○ | ○ | ○ | ○ | ○ | ||
| Phase Contrast | ● | ● | ● | ● | ● | ● | ||
| Polarizing | ○ | ○ | ○ | ○ | ○ | ○ | ||
| Flourescent | ○ | ○ | ○ | ● | ● | ● | ||
| DIC | ○ | ○ | ○ | ○ | ○ | ○ | ||
| LCD Screen | 4.3"LCD Information Touch Screen In Front of Main Body, For Easy Use in Dark Working Condition. --Show Objectives In Use In Nosepiece --Show Cubes In Use In Multi Function Turret --Brightness Memorize & Restore Function --Touch To Adjust Brightness --Touch To Set The System | - | ● | - | - | ● | - | |
| 5.7"LCD Information Touch Screen In Front of Main Body, consolidating all traditional mechanical controls into a intelligent interface. --Power on self test --User Switch and Memorize --Touch To Set Objectives and its magnification --Touch To Set Cubes In Use In Multi Function Turret --Touch To Set Condensor and its hole position --Touch To Set parameters of Working Stage --Touch To Set Eyepiece and magnification --Touch To Adjust Brightness （LIM） --Touch To Set The System & Language | - | - | ● | - | - | ● | ||
| Head | Seidentopf Trinocular Head, Inclined 45°, Interpupillary Distance 47-78mm, Ligth Split Switch E100:P0/E20:P80/E0:P100, With Built-in BertrandLens Which Can Be Used As Centering Telescope | ● | ● | ● | ● | ● | ● | |
| Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ○ | ○ | ○ | ○ | A51.1090-1025 |
| SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ● | ● | ● | ● | ● | ● | A51.1090-1022 | |
| EW12.5x/17.5mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ○ | ○ | ○ | ○ | A51.1090-12517 | |
| WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ○ | ○ | ○ | ○ | A51.1090-1516 | |
| WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ○ | ○ | ○ | ○ | A51.1090-2012 | |
| Media Lens | Built-in Media Lens Magnification Switch 1.0x/1.5x, Under Nosepiece | ● | ● | - | ● | ● | - | |
| Built-in Media Lens Magnification Switch 1.0x/1.5x CF, Under Nosepiece | - | - | ● | - | - | ● | ||
| Nosepiece | Manual Sextuple Nosepiece, With DIC Slot | ● | - | - | ● | - | - | |
| Coded Manual Sextuple Nosepiece, With DIC Slot | - | ● | - | - | ● | - | ||
| Motorized Coded Manual Sextuple Nosepiece, With DIC Slot, With Objective Protection Function When Switch The Objectives | - | - | ● | - | - | ● | ||
| N-iPLFN PH Infinity Plan Semi-APO Phase Contrast Objective | 4x/0.13, W.D.16.5mm, No Cover Glass | ○ | ○ | ○ | ○ | ○ | ○ | A5C.1098-4 |
| 10x/0.30, W.D.7.4mm, Cover Glass 1.2mm | ● | ● | ● | ● | ● | ● | A5C.1098-10 | |
| 20x/0.45, W.D.7.5-8.8mm, Cover Glass 0-2mm, With Built-in Correct Ring | ● | ● | ● | ● | ● | ● | A5C.1098-20 | |
| 40x/0.6, W.D.3-4.4mm, Cover Glass 0-2mm, With Built-in Correct Ring | ● | ● | ● | ● | ● | ● | A5C.1098-40 | |
| 60x/0.75, W.D.1.8-2.6mm, Cover Glass 0.1-1.3mm, With Built-in Correct Ring | ○ | ○ | ○ | ○ | ○ | ○ | A5C.1098-60 | |
| Focusing | Coaxial Coarse & Fine Focusing, Focusing Range 9mm (Up 7mm, Down 2mm), Coarse Stroke 2mm, Fine Stroke 0.2mm | ● | ● | - | ● | ● | - | |
| Motorized Z Axies (Optical Grating Type) Focusing System, Focusing Range 9mm (Up 7mm, Down 2mm), Focusing Resloution 0.02um With Optical Grating, Movement Repeat Positioning Accuracy +/-0.1um, Prevent Stage Fall Down Function | - | - | ● | - | - | ● | ||
| Working Stage | Three Layer Mechnical Stage, Size 340x230mm, Moving Range 130x85mm, Flexible Knob, Available For Different Size Small Stage Mounted on Top Layer | ● | ● | - | ● | ● | - | A54.1098 |
| Dia.38mm Holder For Slide & Petri Dish | ● | ● | - | ● | ● | - | A54.1098-38 | |
| Dia.54mm Holder For Petri Dish | ● | ● | - | ● | ● | - | A54.1098-54 | |
| 96 Holes Plate Holder | ● | ● | - | ● | ● | - | A54.1098-96 | |
| Terasaki Holder | ● | ● | - | ● | ● | - | A54.1098-TH | |
| Universal Holder | ● | ● | - | ● | ● | - | A54.1098-UH | |
| Motorized X/Y Axies (Optical Grating Type) Mechanical Stage, Size 390x230mm,Moving Range 114x76mm, Max Speed 71mm/s, Resolution 0.1um, Repeat Accuracy +/-0.5um, Available For Different Size Small Stage Mounted on Top Layer, With Separate Communication/Main Control Box & Stick | - | - | ● | - | - | ● | A54.1098-M4 | |
| Sample Holder, For Motorized Stage | - | - | ● | - | - | ● | A54.1098-M1 | |
| 96 Holes Plate Holder, For Motorized Stage | - | - | ● | - | - | ● | A54.1098-M2 | |
| 6 Holes Petri Dish Holder, For Motorized Stage | - | - | ● | - | - | ● | A54.1098-M3 | |
| Condenser | Long Working Distance Turret Condenser, N.A.0.55, W.D.26mm, With 6 Positions For Phase Contrast Annulus, DIC Annulus, And Bright Field View | ● | ● | - | ● | ● | - | A56.1098 |
| MotorizedLong Working Distance Turret Condenser, N.A.0.55, W.D.26mm, With 6 Positions For Phase Contrast Annulus, DIC Annulus, And Bright Field View | - | - | ● | - | - | ● | A56.1098-M | |
| Multi Function Turret | Multi Function Turret Under Nosepice, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods | ● | - | - | ● | - | - | |
| CodedMulti Function Turret Under Nosepice, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods | - | ● | - | - | ● | - | ||
| Motorized Coded Multi Function Turret Under Nosepice, With 6 Positions For Cubes Of Bright Field, Dark Field, Phase Contrast, Polarizing, Fluorescent View, Turning The Disc To Easily Switch Observation Methods | - | - | ● | - | - | ● | ||
| Dark Field | Dark Field Block, Put In Multi Function Turret, For Reflect Light Source | ○ | ○ | ○ | ○ | ○ | ○ | A5D.1098 |
| Polarizing For Transmit Light | Polarizer Filter On LWD Turret Condenser | ○ | ○ | ○ | ○ | ○ | ○ | A5P.1098-P |
| Analyzer Slide, Insert Into Slot On Nosepiece, 360° Rotatable | ○ | ○ | ○ | ○ | ○ | ○ | A5P.1098-A | |
| Polarizing For Reflect Light | Polarizer Light Block, Put In Multi Function Turret | ○ | ○ | ○ | ○ | ○ | ○ | A5P.1098-PL |
| Circularly Polarized Light Block, Put In Multi Function Turret | ○ | ○ | ○ | ○ | ○ | ○ | A5P.1098-CP | |
| Phase Contrast | Phase Contrast Annulus 10x/20x, Put In Turret Condenser | ● | ● | ● | ● | ● | ● | A5C.1096-1020 |
| Phase Contrast Annulus 40x, Put In Turret Condenser | ● | ● | ● | ● | ● | ● | A5C.1096-40 | |
| Phase Contrast Annulus 60x, Put In Turret Condenser | ○ | ○ | ○ | ○ | ○ | ○ | A5C.1096-60 | |

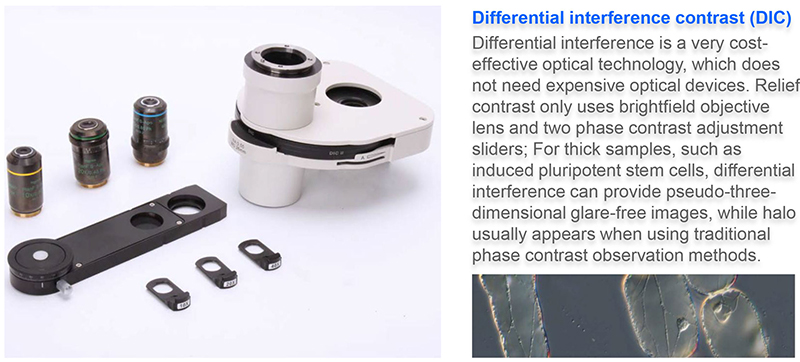

| DIC | DIC Full Set, For A14.109, A16.109 Series --Transmit DIC Sliders 10x20x40x60x, Insert Under Nosepiece --Transmit DIC Prism 10x20x40x60x, Put Into LWD Condenser Disc --Polarizing Analyizer 360° Rotateable | ○ | ○ | ○ | ○ | ○ | ○ | A5C.1097 |
| Illumniation | Transmit/Reflect Illumnation Switch Knob, On Right Side Of Main Body, Press To Switch Transmit And Reflect Switch Light Quickly | ● | ● | ● | ● | ● | ● | |
| Transmit Light Source | 12V100W Halogen Kohler Illumination, Brightness Adjustable, Flexible Illuminator Body Can Retrovert From Optical Path For Large Space of Operation And Sample Exchange | ● | - | - | ● | - | - | A56.1095-12V100W |
| 5W LED Kohler Illumination | - | ● | ● | - | ● | ● | A56.1095-5WLED | |
| Reflect Light Source | Large Filter Holder Slide With 3 Holes | ○ | ○ | ○ | ● | ● | ● | A56.1095-LS |
| Field Diaphram Slide, Center Adjustable, | ○ | ○ | ○ | ● | ● | ● | A56.1095-FS | |
| Small Empty Slide | ○ | ○ | ○ | ● | ● | ● | A56.1095-ES | |
| Aperture Diaphragm Slide | ○ | ○ | ○ | ● | ● | ● | A56.1095-AS | |
| Netural Filter | ○ | ○ | ○ | ● | ● | ● | A56.1095-NE | |

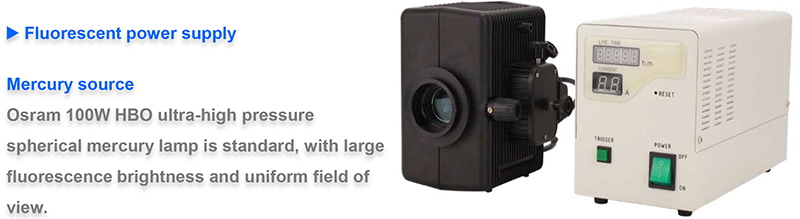

| ReflectFluorescent Light Source | Reflect 100W Osram Mercury HBO Fluorescent Light House Intelligent Power Supply Control Box With Barrier To Stop/Recover Fluorescent Illumination Quickly | ○ | ○ | ○ | ● | ● | ● | A5F.1095-100W |

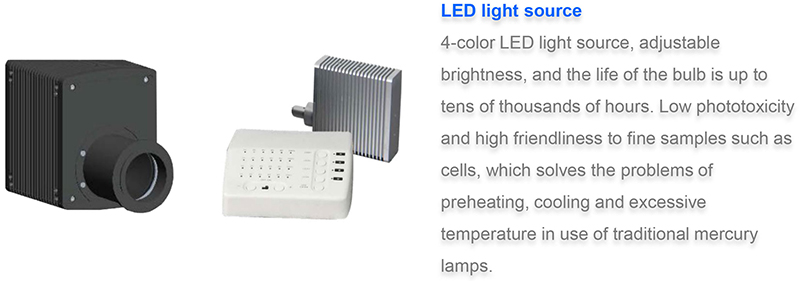

| 10W S-LED Fluorescent Light, 4 Color Bands, Brightness Adjustable By Control Box | ○ | ○ | ○ | ○ | ○ | ○ | A5F.1095-10WLED | |
| 75W Metal Halide Light Source, Life Time 2000 Hours | ○ | ○ | ○ | ○ | ○ | ○ | A5F.1095-75WM | |
| Fluorescent Filter B Block, Put In Multi Function Turret | ○ | ○ | ○ | ● | ● | ● | A5F.1095-B | |
| Fluorescent Filter G Block, Put In Multi Function Turret | ○ | ○ | ○ | ● | ● | ● | A5F.1095-G | |
| Fluorescent Filter U Block, Put In Multi Function Turret | ○ | ○ | ○ | ● | ● | ● | A5F.1095-U | |
| Fluorescent Filter V Block, Put In Multi Function Turret | ○ | ○ | ○ | ○ | ○ | ○ | A5F.1095-V | |
| Metallurgical | Upgrade To A13.1090Inverted Metallurgical Microscope | ○ | ○ | ○ | ○ | ○ | ○ | A13.1090 |
| Adapter | 3 Camera Ports, On Both Side Of Main Body And Head, Turret Switch Between: --Trinocular Port Switch E100:P0/E20:P80/E0:P100 --Left Port C-Mount 1.0x E0:P100 --Right Port C-Mount 1.0x E20:P80 | ● | ● | ● | ● | ● | ● | |
| C-Mount 0.4x | ○ | ○ | ○ | ○ | ○ | ○ | A55.1095-04 | |
| C-Mount 0.5x | ○ | ○ | ○ | ○ | ○ | ○ | A55.1095-05 | |
| C-Mount 1.0x | ● | ● | ● | ● | ● | ● | A55.1095-10 | |
| Software | NOMISPROX Image Processing Software | ○ | ○ | ○ | ○ | ○ | ○ | A30.1090 |
Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable | ||||||||
