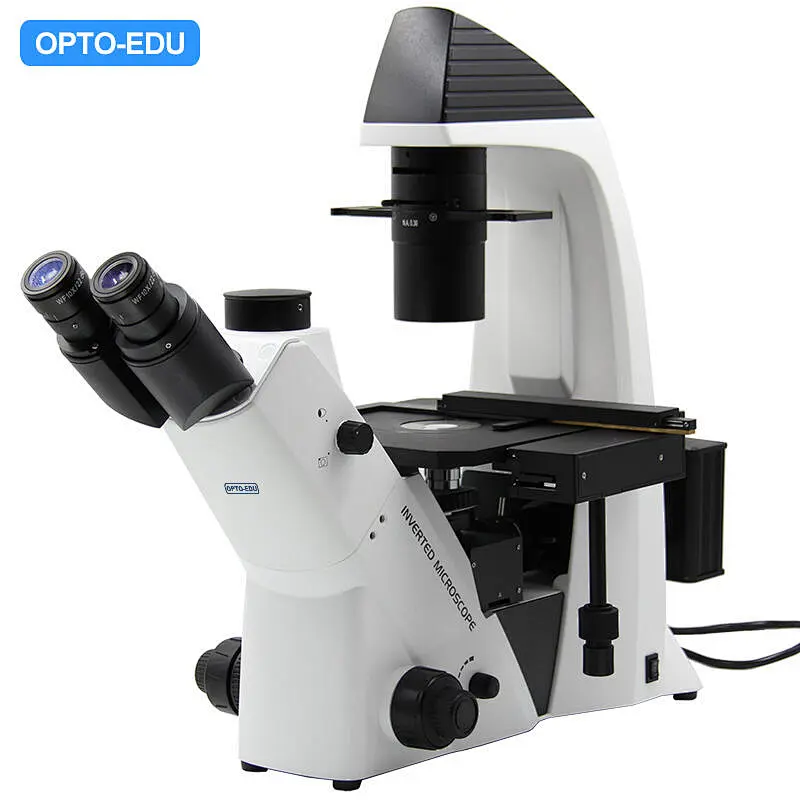

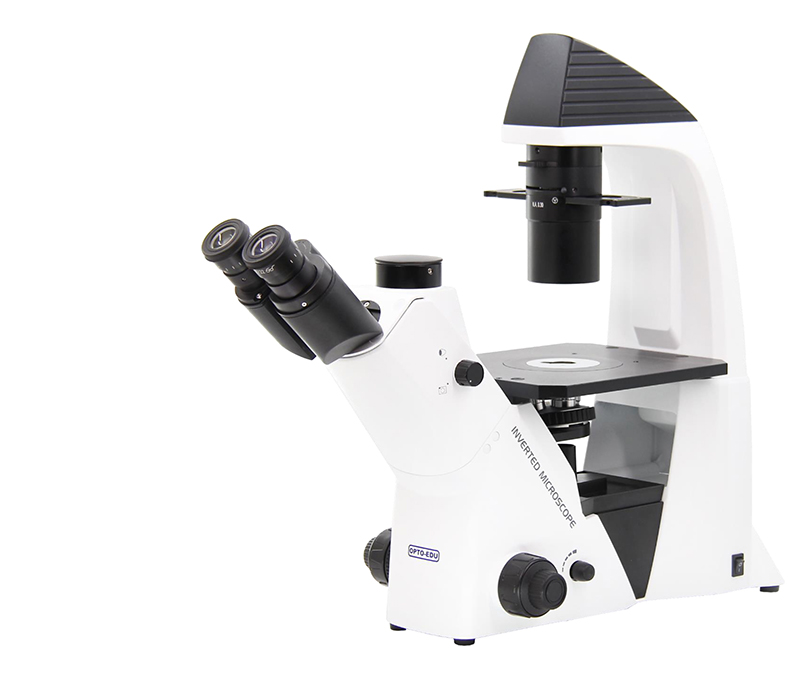

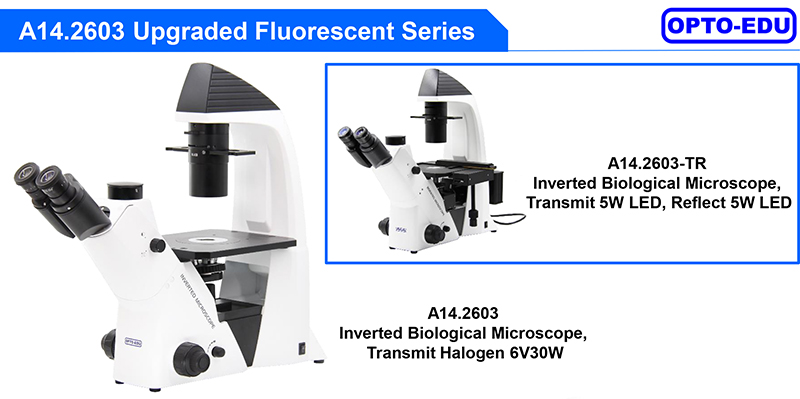

Inverted Microscope, Transmit & Relfect Light

Transmit & Reflect 5W LED Koehler Illumination

Seidentopf Trinocular Head, Light Split Switch E100:P0 / E20:P80

LWD Infinity Plan Fluorescent Objectives Bright Field & Phase Contrast Observation Supported

LWD Condenser N.A.0.3 Working Distance 72mm, Up To 195mm Without Condenser

Attachable Mechanical Stage For 96 Holes Plate Moving Range 128x80mm Included

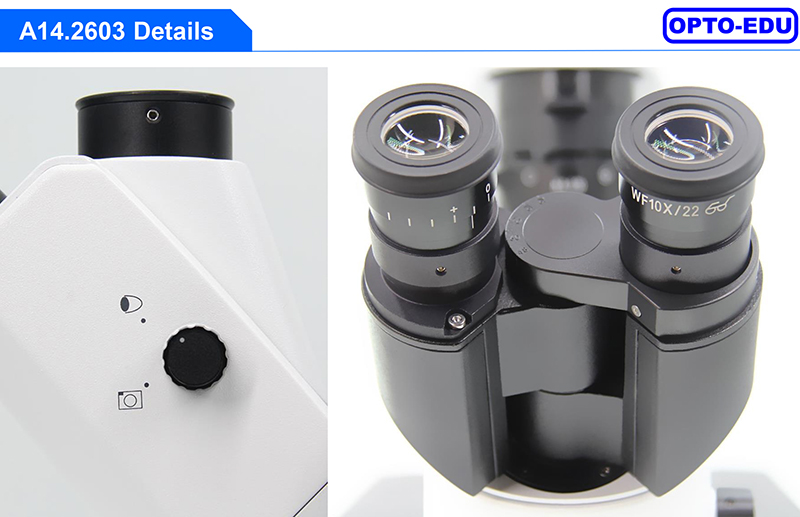

Head & Eyepiece

Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80;WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

Condenser & Light Source

Condenser & Light Source With Filters: Blue, Dia.34mm; Green, Dia.34mm

Koehler Illumination Halogen 6V/30W For A14.2603

Koehler Illumination 5W LED For A14.2603-TR

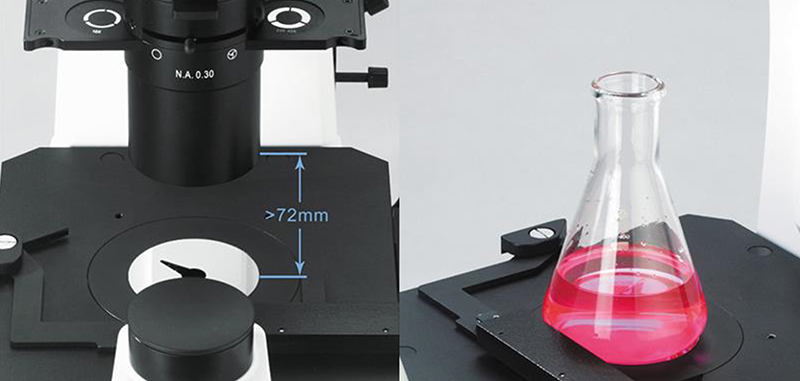

Long Working Distance

Working Distance 72mm (With Condenser), 195mm (Without Condenser)

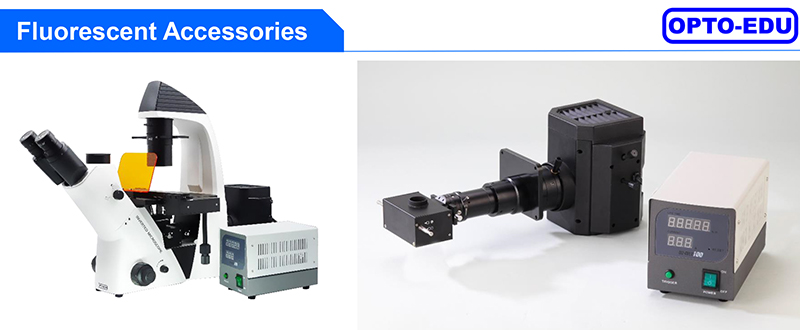

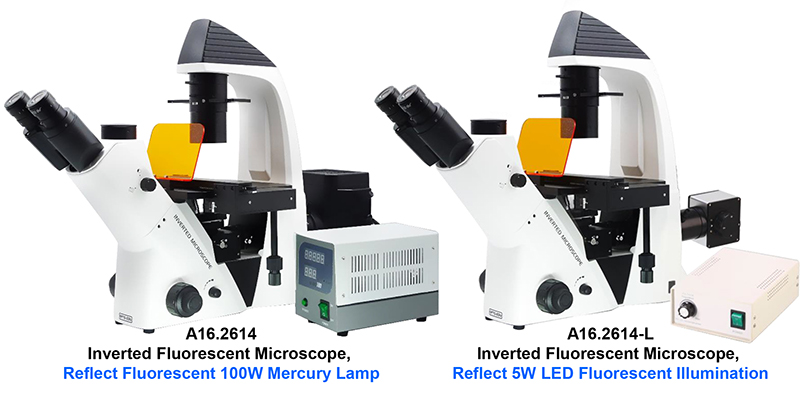

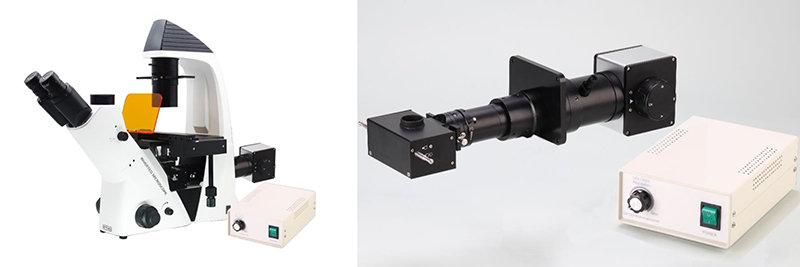

A5F.2603 Epi Fluorescence Accessories For A16.2614

3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
100W Mercury Lamp House, 100W Mercury Power Box, Digital Disp. Ultraviolet Protection Barrier

A5F.2604 Epi Fluorescence Accessories For A16.2614-L

3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
5W LED Lamp House, 5W LED Power Box. Ultraviolet Protection Barrier

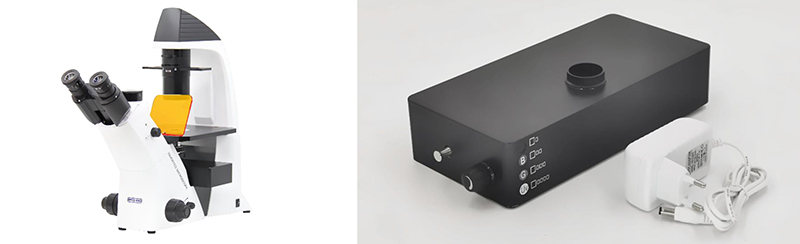

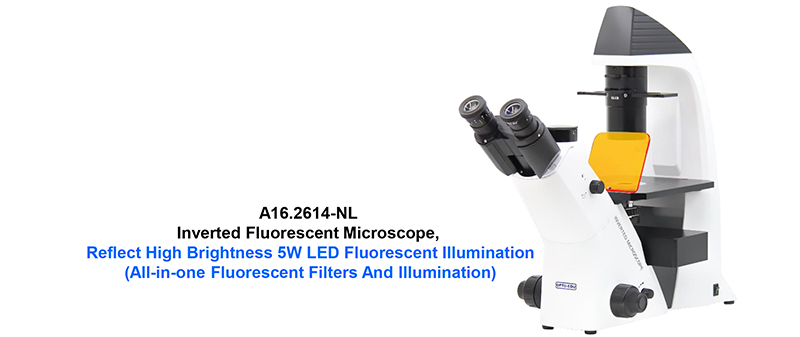

A5F.2606 Epi Fluorescence Accessories For A16.2614-NL

All-in-One, B+G Fluorescent Filter + 5W LED Fluorescent Light Source

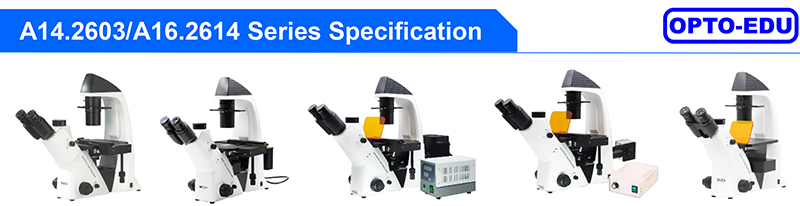

Items	A14.2603 Inverted Biological Microscope A16.2614 Inverted Fluorescent Microscope	A14.2603		A16.2614			Cata. No.
Items			-TR		-L	-NL

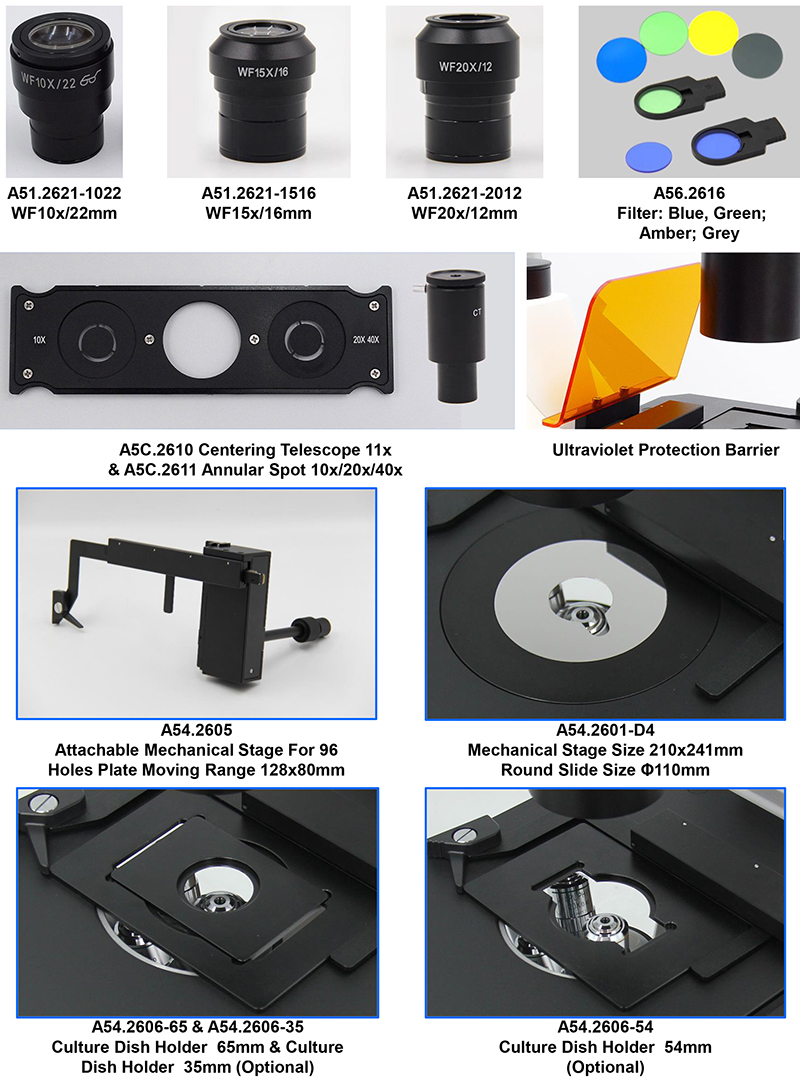

Head	Seidentopf Trinocular Head Inclined 45°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80	●	●	●	●	●	A53.2643
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable	●●	●●	●●	●●	●●	A51.2621-1022
	WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○○	○○	○○	○○	○○	A51.2621-1516
	WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○○	○○	○○	○○	○○	A51.2621-2012
Nosepiece	Quintuple	●	●	●	●	●	A54.2610-N925

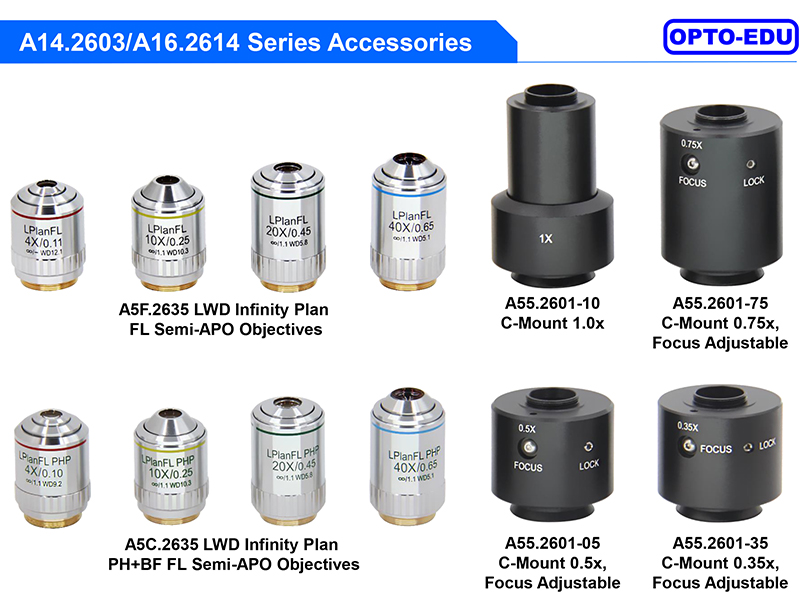

LWD Infinity Plan FL Semi-APO Objectives	Plan FL 2x/0.06 W.D.=7.2mm	○	○	○	○	○	A5F.2635-2
	L Plan FL 4x/0.11 W.D.=12.1mm	○	○	○	○	○	A5F.2635-4
	L Plan FL 10x/0.25 W.D.=10.3mm	○	○	○	○	○	A5F.2635-10
	L Plan FL 20x/0.45 W.D.=5.8mm	○	○	○	○	○	A5F.2635-20
	L Plan FL 40x/0.65 W.D.=5.1mm	○	○	○	○	○	A5F.2635-40

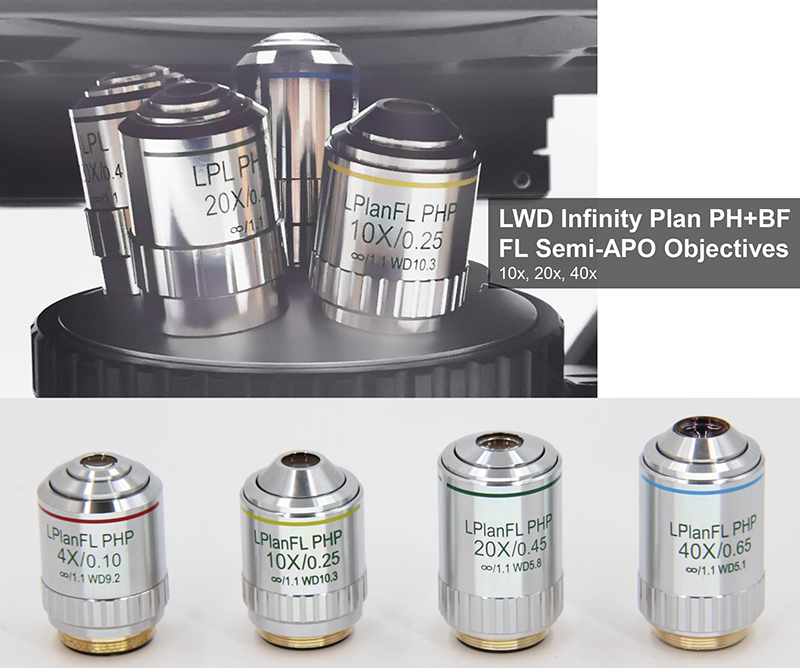

LWD Infinity Plan FL Semi-APO BF+PH Objectives	L Plan FL PHP 4x/0.10 W.D.=9.2mm	○	○	○	○	○	A5C.2635-4
	L Plan FL PHP 10x/0.25 W.D.=10.3mm	●	●	●	●	●	A5C.2635-10
	L Plan FL PHP 20x/0.45 W.D.=5.8mm	●	●	●	●	●	A5C.2635-20
	L Plan FL PHP 40x/0.65 W.D.=5.1mm	●	●	●	●	●	A5C.2635-40
LWD Infinity Plan Fluorescent Objectives	New Update 2024 Specialized For Fluorescent Observation!
	L PLAN Fluor 10x, N.A.0.3，W.D.=14.0mm	-	-	●	●	●	A5F.2636-10
	L PLAN Fluor 20x, N.A.0.45，W.D.=6.6mm	-	-	●	●	●	A5F.2636-20
	L PLAN Fluor 40x, N.A.0.65，W.D.=3.9mm	-	-	○	○	○	A5F.2636-40

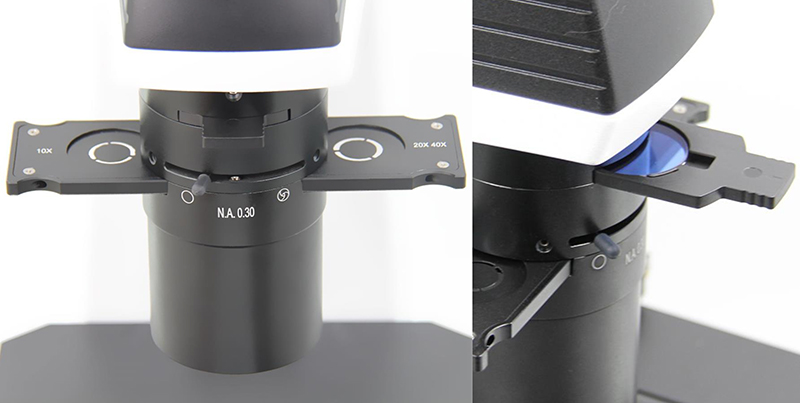

Phase Contrast	Centering Telescope 11x	○	○	○	○	○	A5C.2610
	Annular Spot 4x	○	○	○	○	○	A5C.2611-4
	Annular Spot 20x/ 40x	●	●	●	●	●	A5C.2611-10
	Annular Spot 10x	●	●	●	●	●	A5C.2611-20/40

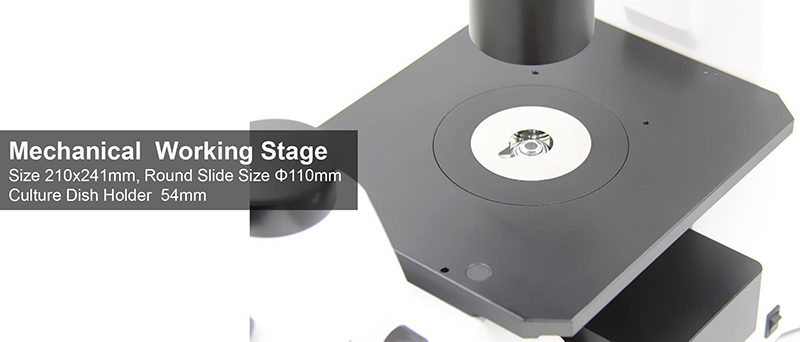

Working Stage	Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm	●	●	●	●	●	A54.2601-D4

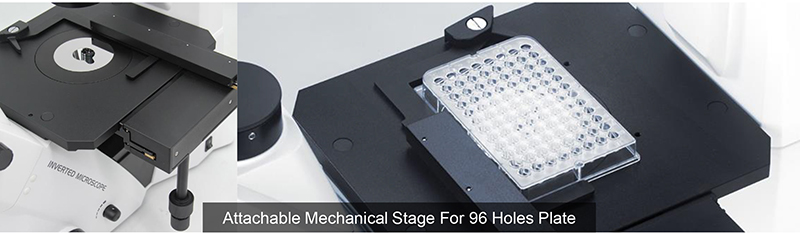

	Attachable Mechanical Stage For 96 Holes Plate Moving Range 128x80mm	○	○	○	○	○	A54.2605
	Culture Dish Holder 65mm	○	○	○	○	○	A54.2606-65
	Culture Dish Holder 54mm	○	○	○	○	○	A54.2606-54
	Culture Dish Holder 35mm	○	○	○	○	○	A54.2606-35
	Holder For Blood Cell Counter	○	○	○	○	○	A54.2606-BC
	Universal Holder (New Accessory 2021)	○	○	○	○	○	A54.2606-UH
	Round Glass Holder (New Accessory 2021)	○	○	○	○	○	A54.2606-GL
Condenser	Long Working Distance, Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser).	●	●	●	●	●	A56.2614-D4
Tranmist Illumination	Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V	●	○	●	●	●	A56.2650-6V30WH
Tranmist Illumination	Koehler Illumination 5W LED, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	○	●	○	○	○	A56.2650-5WLED
Reflect Illumination	Koehler Illumination 5W LED, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	-	●	-	-	-	A56.2650-5WLED
Reflect Illumination	Polarizing Set	-	●	-	-	-
Power	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually	○	○	○	○	○	A56.2660
Filter	Blue, Dia.34mm	●	●	●	●	●	A56.2616-34B
	Green, Dia.34mm	●	●	●	●	●	A56.2616-34G
	Amber, Dia.34mm	○	○	○	○	○	A56.2616-34A
	Grey, Dia.34mm	○	○	○	○	○	A56.2616-34N
Adapter	C-Mount 0.35x, Focus Adjustable	○	○	○	○	○	A55.2601-35
	C-Mount 0.5x, Focus Adjustable	○	○	○	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	○	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	○	○	○	A55.2601-10

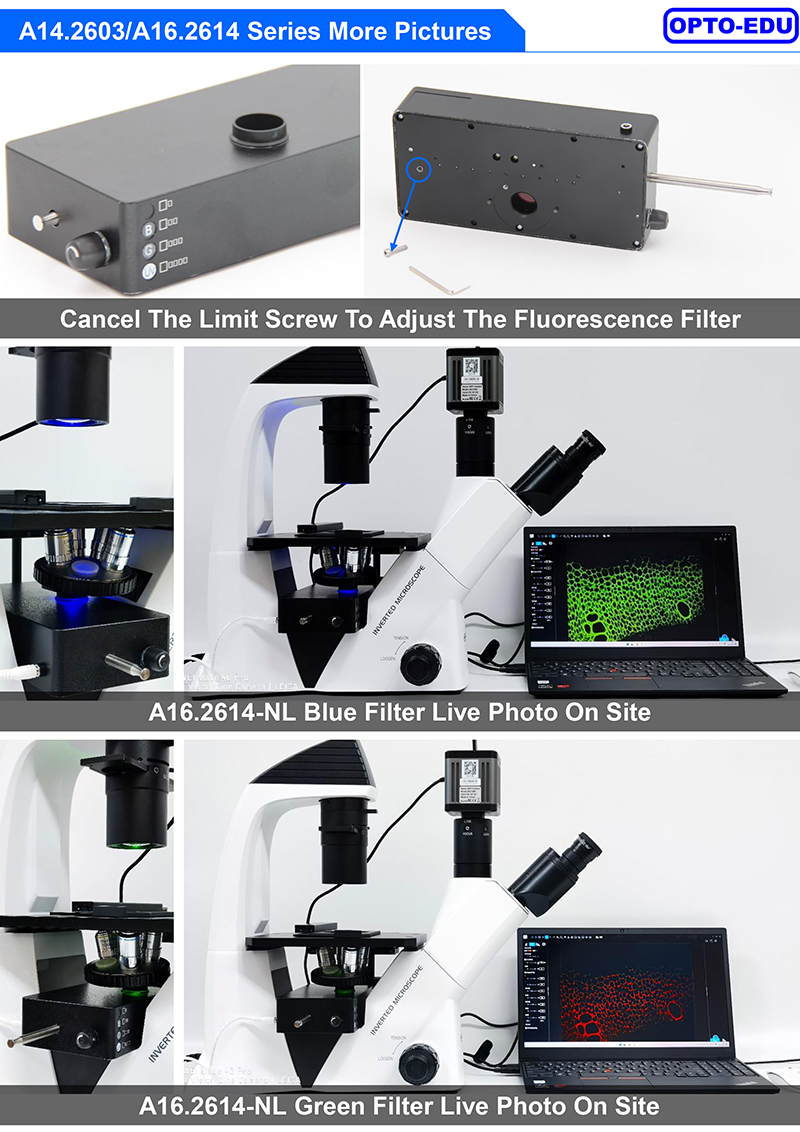

Epi Fluorescence Illumination	A16.2614 Inverted Fluorescence Microscope With: 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Ultraviolet Protection Barrier A16.2614-2 B,G China Fluorescent Filters A16.2614-4 B,G,U,UV China Fluorescent Filters	○	-	●			A5F.2603
	A16.2614-L Inverted LED Fluorescence Microscope With: B,G China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier A16.2614-L2 B,G China Fluorescent Filters A16.2614-L4 B,G,U,UV China Fluorescent Filters	○	-		●		A5F.2604
	All-in-One, B+G Flourescent Filter + 5W LED Fluorescent Light Source	○	-			●	A5F.2606
Package	Packing Size: 660mmx590mmx325mm Fluorescence Carton Size: 520x470x235mm
Weight	Gross Weight: 18 kgs, Net Weight: 13.5 kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.

Pictures Hide Same Show Difference
Model No.	A14.2603-TR	A14.2603
Other Specification	——	Blue & Green Filter, Dia. 34mm
Polarizing	Polarizing Set	——
Phase Contrast	——	Infinity Phase Contrast LWD Semi-APO FL20x Objective, Annular Spot 10x & 20x/40x
Power Supply Type	DC USB Adapter	AC 110V-240V
Reflect Light	5W LED
Transmit Light	5W LED	6V/30W Halogen
Light Source Type	LED	Halogen
Light Source Features	LED 5W Kohler	Halogen 30W Kohler
Condenser	——	Working Distance 72mm (With Condenser), 195mm (Without Condenser).
Condenser N.A.	0.3	0.3
Condenser Type	LWD/ELWD	LWD/ELWD
Condenser Features	Slot For PH Slide Filter Holder Disc Diaphragm	Slot For PH Slide Filter Holder Disc Diaphragm
Focusing Scale	0.002mm	0.002mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable	Tension Adjustable
Working Stage	Culture Dish Holder 54mm	Round Slide Size Φ110mm, Culture Dish Holder 54mm
Working Stage Size	210x241mm, Round Slide Size Dia. 110mm	210x241mm
Working Stage Type	Fixed Plain Stage	Fixed + Attachable
Working Stage Features	Size ≥140x180mm	Size ≥140x180mm
Objective	LWD Infinity Plan Fluorescent: LPL FL10x/0.25, W.D.=10.3mm LPL FL20x/0.45, W.D.=5.8mm LPL FL40x/0.65, W.D.=5.1mm LWD Infinity Plan Fluorescent Phase Contrast: LPL PhP FL20x/0.45, W.D.=5.8mm	Infinity Plan LWD Semi-APO FL10x20x40x, Infinity Phase Contrast LWD Semi-APO FL20x
Objective Type	Infinity Plan Phase Contrast	Infinity Plan Phase Contrast Fluorescent
Nosepiece Holes	5 Holes	5 Holes
Eyepiece	WF10x/22mm, 2 pc	WF10x/22mm, 2 pc
Eyepiece Diameter	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable
Head Light Path	E100:P0/E20:P80	E100:P0/E20:P80
Head Interpupillary	48~76mm	48~76mm
Head Rotation	Eyetube Rotate 360°	Eyetube Rotate 360°
Head Inclination	45°	45°
Head Type	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	100x-400x	100x-400x
Optical System	Infinity Plan	Infinity Semi-Plan
Upgrade Function	BF+PH+PL+FL	BF+FL+PH
Standard Function	BF+PH+PL	BF+PH
New Product Year	2020	——
Objective Features	——	APO LWD
Head Diopter	——	Both Tube Adjustable
Features	——	Infinity APO
