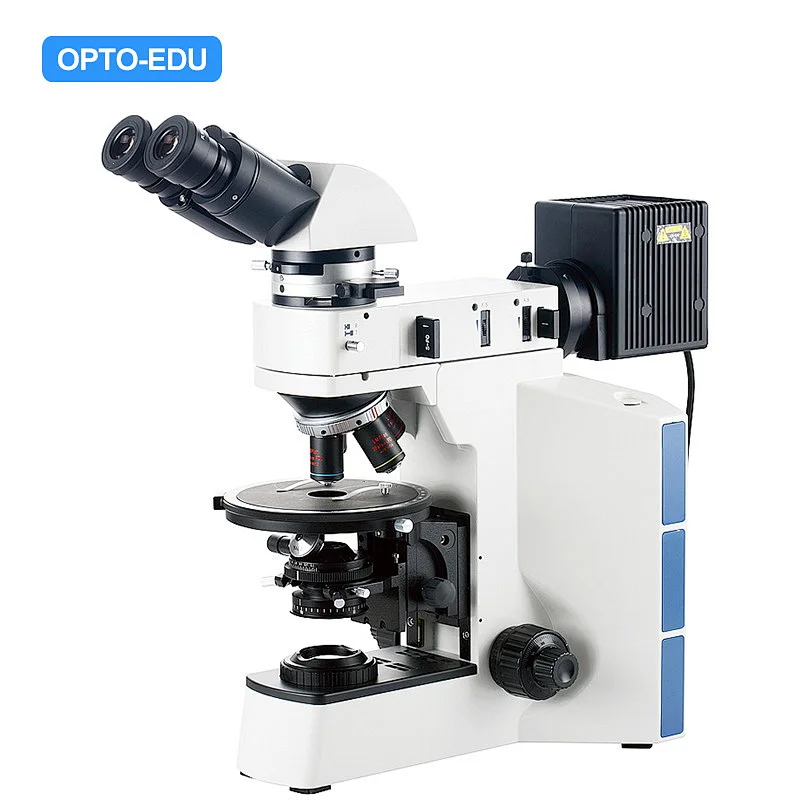

OPTO-EDU A15.0908-RT Polarizing Microscope, Reflect & Transmit Light

Polarizing Microscope, Reflect & Transmit Light

Infinity Color Corrected Optical System

Pluggable Analyzer, 360° Rotatable, 2° Increments, Precision 6', With Locking Device

Circular Metal Stage Dia.160mm, Graphite Coating, Anti-corrosive And Anti-friction, 360° Rotatable, 1° Increment, Precision 6′

Reflected Light, 12V/50W Halogen Lamp House, Imported Bulb, Center presetting,

Transmitted Light, 12V/50W Halogen Lamp House, Imported Bulb, Center Presetting,

A15.0908 Polarizing Microscope		T	R	RT
Optical System	Infinity Color Corrected Optical System
Head	Compensation Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Diopter +/-5 Adjustable.
Eyepiece	High Eye-point Wide Field Plan Eyepiece PL10x22mm
Objective	Infinity Plan Destressing Objectives 4x, 10x, 40x, 60x	●
	LWD Infinity Plan Destressing Objectives 5x, 10x, 20x, 50x		●	●
Nosepiece	4 Holes Revolving Nosepiece, Inward, Center Adjustable
Intermediate Tube	With Removable Internal Bertrand Lens, Analyzer And Compensators. Bertrand Lens With Rotating Switch, Focusing Recyclable, Center Adjustable
Analyzer	Pluggable Analyzer, 360° Rotatable, 2° Increments, Precision 6', With Locking Device
Compensator	Gyps 1λ（ Φ18mm, Optical Path Difference 551nm）;
	Mical 1/4λ (Φ18mm, Optical Path Difference 147.3nm);
	Quartz Wedge ( I-IV )
Focusing	Coaxial Focus System With Upper Limited And Tension Adjustment; Coarse Range 25mm; Fine Precision 0.002mm
Stage	Circular Metal Stage Dia.160mm, Graphite Coating, Anti-corrosive And Anti-friction, 360° Rotatable, 1° Increment, Precision 6′
Condenser	Swing-out Achromatic Condenser N.A.0.9, With 360° Rotatable Polarizer, Four Adjustable Scale: 0/90/180/270
Light Source	Reflected Light, 12V/50W Halogen Lamp House, Imported Bulb, Center presetting, Reflected Illuminator With LBD Filter And Pluggable Polarizer, Field Diaphragm And Aperture Diaphragm Adjustable		●	●

	Transmitted Light, 12V/50W Halogen Lamp House, Imported Bulb, Center Presetting, With Iris Diaphragm, Filter For Transmitted Light Yellow, Neutral, IF550, LBD	●		●


Power	Wide Range Voltage 100~240V AC 50/60Hz

A15.0908 Polarizing Microscope Optional Accessories
Eyepiece	High Eye-point PL10x/22mm with Micrometer, Diopter Adjustable	A51.0905-1022R
	High Eye-point PL15x/16mm	A51.0903-1516
Working Stage	Attachable Mechanical Moving Stage For Circular Stage, Moving Range: 30mm*40mm; High Precision Micrometer, 0.01mm Increment	A54.0946
CCD Adapter	1x C-Mount, Focus Adjustable	A55.0926-10
	0.50x, For 1/2” C-Mount, Focus Adjustable	A55.0926-50
	0.67x, For 2/3” C-Mount, Focus Adjustable	A55.0926-67

Pictures Hide Same Show Difference
Model No.	A15.0908-RT	A15.0908-T	A15.0908-R
Working Distance	格式:1.0,或1.0~2.0	——	格式:1.0,或1.0~2.0
Polarizing	Intermediate Tube With Removable Internal Bertrand Lens, Analyzer And Compensators. Bertrand Lens With Rotating Switch, Focusing Recyclable, Center Adjustable Pluggable Analyzer, 360° Rotatable, 2° Increments, Precision 6', With Locking Device Compensator Gyps 1λ（ Φ18mm, Optical Path Difference 551nm） Mical 1/4λ (Φ18mm, Optical Path Difference 147.3nm) Quartz Wedge ( I-IV )	Intermediate Tube With Removable Internal Bertrand Lens, Analyzer, Compensators λ, 1/4λ, Quartz Wedge I-IV, Transmit Polarizer On Condenser	Intermediate Tube With Removable Internal Bertrand Lens, Analyzer And Compensators. Bertrand Lens With Rotating Switch, Focusing Recyclable, Center Adjustable Pluggable Analyzer, 360° Rotatable, 2° Increments, Precision 6', With Locking Device Compensator Gyps 1λ（ Φ18mm, Optical Path Difference 551nm） Mical 1/4λ (Φ18mm, Optical Path Difference 147.3nm) Quartz Wedge ( I-IV )
Polarizing Features	Center Adj. Nosepiece	Center Adj. Stage Center Adj. Condenser Center Adj. Nosepiece Strain-Free Objective	Center Adj. Nosepiece
Power Supply	Wide Range Voltage 100~240V AC 50/60Hz	——	Wide Range Voltage 100~240V AC 50/60Hz
Reflect Light	Reflected Light, 12V/50W Halogen Lamp House, Imported Bulb, Center presetting, Reflected Illuminato	——	Reflected Light, 12V/50W Halogen Lamp House, Imported Bulb, Center presetting, Reflected Illuminato
Transmit Light	Transmitted Light, 12V/50W Halogen Lamp House, Imported Bulb, Center Presetting, With Iris Diaphra	12V/50W Halogen Lamp House, Imported Bulb, Center Presetting, With Iris Diaphra	——
Light Source Type	Halogen	Halogen	Halogen
Condenser	Swing-out Achromatic Condenser N.A.0.9, With 360° Rotatable Polarizer, Four Adjustable Scale: 0/90/180/270	——	Swing-out Achromatic Condenser N.A.0.9, With 360° Rotatable Polarizer, Four Adjustable Scale: 0/90/180/270
Condenser N.A.	1.25	0.9/0.25	1.25
Condenser Type	Swing-Out	Swing-Out	Swing-Out
Condenser Features	Slot For PH Slide	Slot For Polarizer Center Adjustable Rack & Pinionↆ↑	Slot For PH Slide
Focusing Knob	Coaxial Focus System With Upper Limited And Tension Adjustment Coarse Range 25mm Fine Precision 0.002mm	——	Coaxial Focus System With Upper Limited And Tension Adjustment Coarse Range 25mm Fine Precision 0.002mm
Focusing Scale	0.002	0.002mm	0.002
Focusing Range	25	25mm	25
Focusing Features	Safety Stop Screw	Tension Adjustable Safety Stop Lock Ring	Safety Stop Screw
Working Stage	Circular Metal Stage Dia.160mm, Graphite Coating, Anti-corrosive And Anti-friction, 360° Rotatable, 1° Increment, Precision 6′	Circular Metal Stage Dia.160mm, Graphite Coating, Anti-corrosive And Anti-friction, 360° Rotatable, 1° Increment, Precision 6′	Circular Metal Stage Dia.160mm, Graphite Coating, Anti-corrosive And Anti-friction, 360° Rotatable, 1° Increment, Precision 6′
Working Stage Moving	——	360° Rotatable, 1° Increment, Precision 6′	——
Working Stage Size	Dia.160mm	Dia.160mm	Dia.160mm
Working Stage Type	Round Stage	Round Stage	Round Stage
Objective	Infinity Plan Destressing Objectives 4x, 10x, 40x, 60x	Infinity Plan Strain-Free Objectives 4x10x40x60x	Infinity Plan Destressing Objectives 4x, 10x, 40x, 60x
Objective Type	Plan	Infinity Plan	Plan
Objective Features	LWD	Strain-Free	LWD
Nosepiece Holes	4 Holes	4 Holes	4 Holes
Nosepiece Features	With DIC Slot	Center Adjustable	With DIC Slot
Eyepiece	High Eye-point Wide Field Plan Eyepiece PL10x22mm	PL10x/22mm 1 pc, PL10x/22 Cross 1 pc	High Eye-point Wide Field Plan Eyepiece PL10x22mm
Eyepiece Diameter	23.2mm	30.0mm	23.2mm
Head Specification	Compensation Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Diopter +/-5 Adjustable.	——	Compensation Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 54-75mm, Diopter +/-5 Adjustable.
Head Light Path	E100:P0/E20:P80/E0:P100	E80:P20	E100:P0/E20:P80/E0:P100
Head Type	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Binocular
Standard Magnification	——	40X-600X	——
Optical System	Plan	Plan	Plan
Features	Infinity	Infinity	Infinity
Power Supply Type	——	AC 110V-240V	——
Focusing Type	——	Coaxial Coarse & Fine	——
Working Stage Features	——	Ceramic Surface 360° Rotatable Center Adjustable	——
Eyepiece Features	——	Micrometer	——
Head Diopter	——	Left Tube Adjustable	——
Head Interpupillary	——	54~75mm	——
Head Rotation	——	Head Rotate 360°	——
Head Inclination	——	30°	——
Standard Function	——	BF+PL	——
