Research Flourescence Microscope, Mercury + LED, B,G,UV, Semi-APO, Upgrade BF+DF+PL+PH+FL+DIC
Research Flourescence Microscope, Mercury + LED, B,G,UV, Semi-APO, Upgrade BF+DF+PL+PH+FL+DIC

A16.0910-LM

Like Favorites

Research Flourescence Microscope, Mercury + LED, B,G,UV, Semi-APO, Upgrade BF+DF+PL+PH+FL+DIC

  • Infinity Plan Semi-APO Fluorescent Microscope, Upgrade APO BF+DF+PL+PH+FL+DIC, Metallurgical

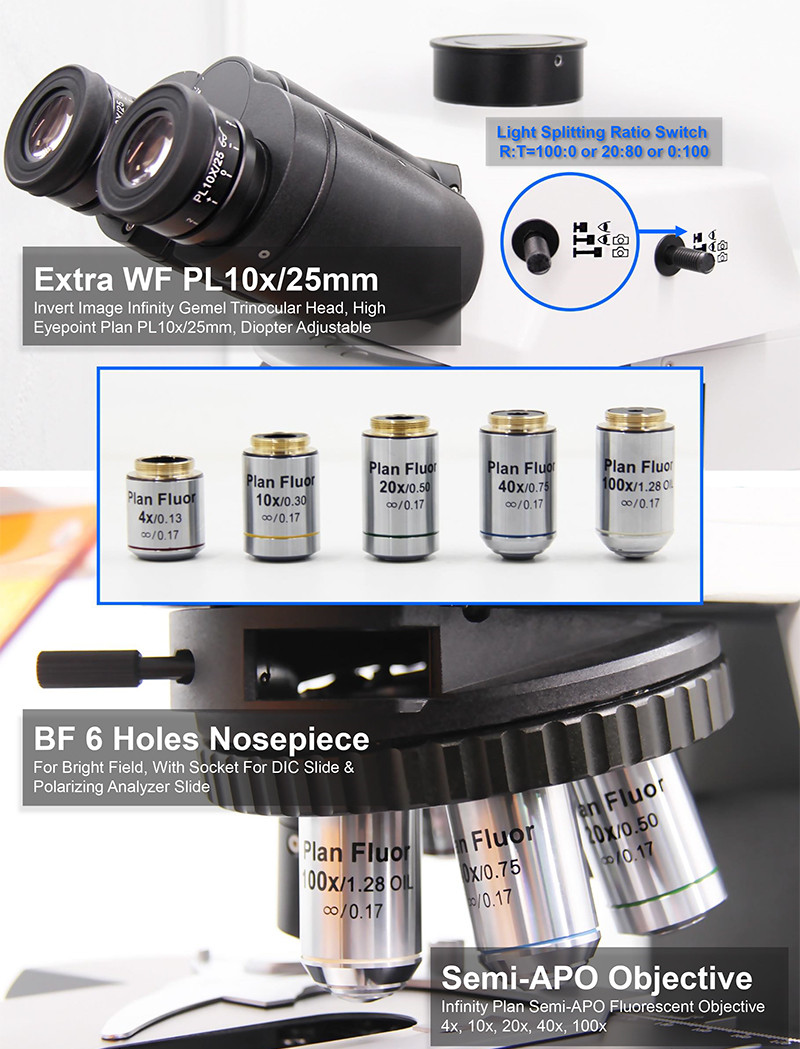

  • Trinocular Head With Inverted/Erect Image, Three Split Ratio E100:P0/E20:P80/E0:P100
  • Super Wide Field Plan Eyepiece 10x/25mm, 10x/26.5mm & Infinity Plan Semi-APO Fluorescent 4x,10x,20x,40x,100x

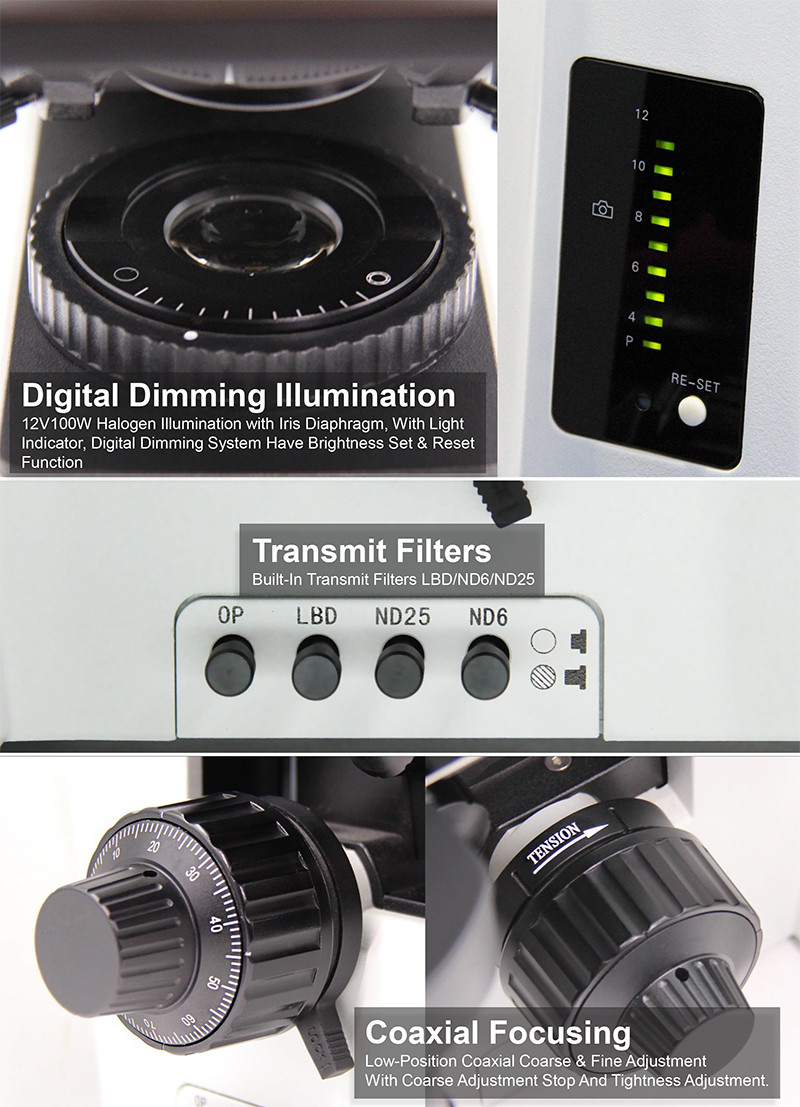

  • Transmit 12V100W Halogen or LED Light With Digital Dimming System & Brightness Memory Function
  • Reflect 100W Mecury Fluorescent or LED Khohler Illumination With Fluorescent Filter B,G,UV,
Quantity:

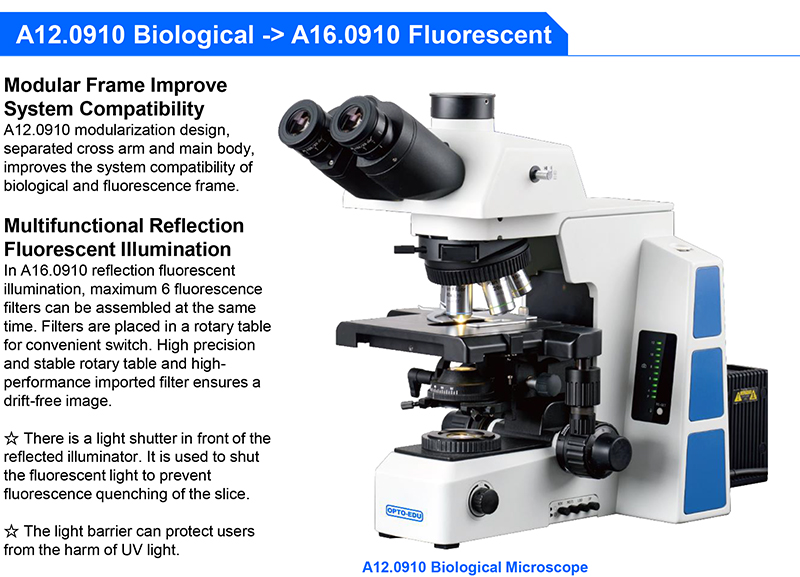

ItemA12.0910 Biological Microscope
A16.0910 Fluorescent Microscope
A12.0910A16.0910Cata. No.
  -H-L-HM-HL-LM-LL
Optical SystemInfinity Optical System, BF Bright Field
Semi-APO, Semi Apochromatic
APO, Apochromatic
DF, Dark Field
PL, Polarzing
PH, Phase Contrast
DIC, Different Interference Contrast
FL, Fluorescent
IlluminationTransmitHalogen Light Source
TransmitLED Light Source
ReflectMercury Fluorescent Light--
ReflectLED Fluorescent Light--

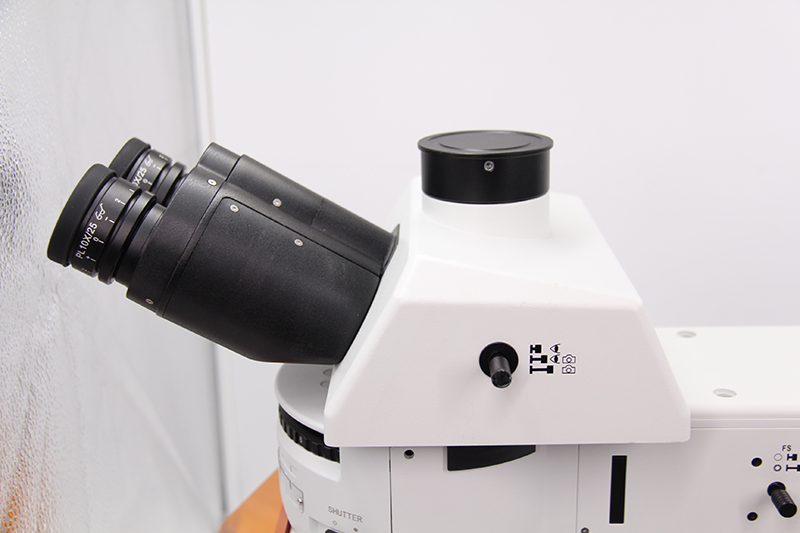

Head30° InclinedErectImage Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm, Light Spiltting Ratio Switch E100:P0/E0:P100, A53.0913-T30E
30° Inclined, Invert Image Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio Switch R:T=100:0 or 20:80 or 0:100A53.0913-T30
5-35° Tiltable, Inverted Image, Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio 50:50 or 100:0 or 0:100A53.0913-T535
Adapter0.5x C-Mount, For 1/2"CCD, Focus AdjustableA55.0930-05
0.35x C-Mount, For 1/2"CCD, Focus AdjustableA55.0930-35
0.65x C-Mount, For 1/2"CCD, Focus AdjustableA55.0930-65
1.0x C-Mount, For 1"CCD, Focus AdjustableA55.0930-10
EyepieceHigh Eyepoint Plan PL10x/25mm, Diopter Adjustable●●●●●●●●●●●●A51.0904-1025T
High Eyepoint Plan PL10x/26.5mm, Diopter AdjustableA51.0904-10265T
High Eyepoint Plan PL10x/25mm, Diopter Adjustable, With ReticleA51.0905-1025T
High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable, With ReticleA51.0905-10265T
NosepieceBF 6 Holes,  With Socket For DIC Slide & Polaring Analyzer Slide---A54.0930-R6
BF 6 Holes,  With Socket For DIC Slide & Polaring Analyzer Slide
Coded For Brightness Memory Function In Transmit LED Light
---A54.0930-R6L
BF 7 Holes,  With Socket For DIC Slide & Polaring Analyzer SlideA54.0930-R7

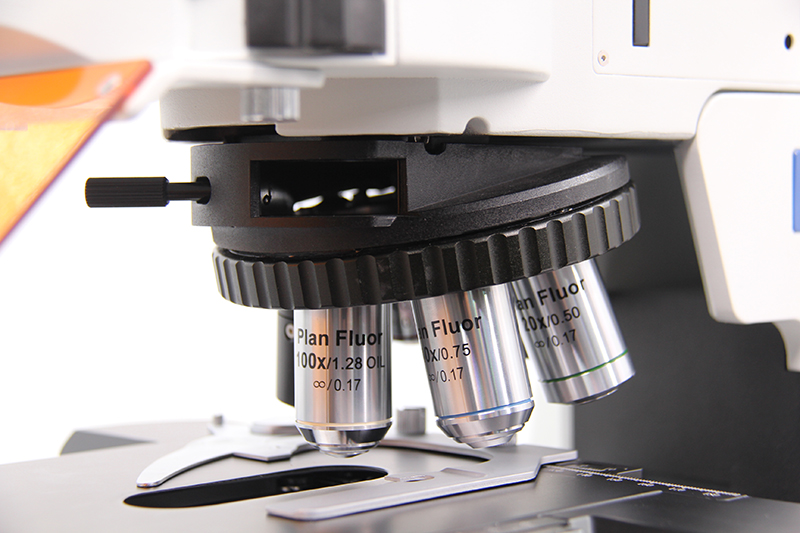

ObjectiveInfinity Plan Semi-APO Fluorescent Objective
Semi-APO Fluorescent 4x/0.13,  W.D.=16.43mmA5F.0950-4
Semi-APO Fluorescent 10x/0.3,  W.D.=8.13mmA5F.0950-10
Semi-APO Fluorescent 20x/0.5,  W.D.=2.03mmA5F.0950-20
Semi-APO Fluorescent 40x/0.75,  W.D.=0.74mmA5F.095040
Semi-APO Fluorescent 100x/1.3,  W.D.=0.18mmA5F.0950-100
Infinty Plan APO Flourscent Objective
APO Fluorescent 2x/0.08, WD=6.2mmA5F.0951-2
APO Fluorescent 4x/0.13, WD=16.6mmA5F.0951-4
APO Fluorescent 10x/0.40, WD=2.1mmA5F.0951-10
APO Fluorescent 20x/0.75, WD=0.6mmA5F.0951-20
APO Fluorescent 40x/0.95, WD=0.15mmA5F.0951-40
APO Fluorescent 60x/0.90, WD=0.26mmA5F.0951-60
APO Fluorescent 100x/1.35, WD=0.13mmA5F.0951-100

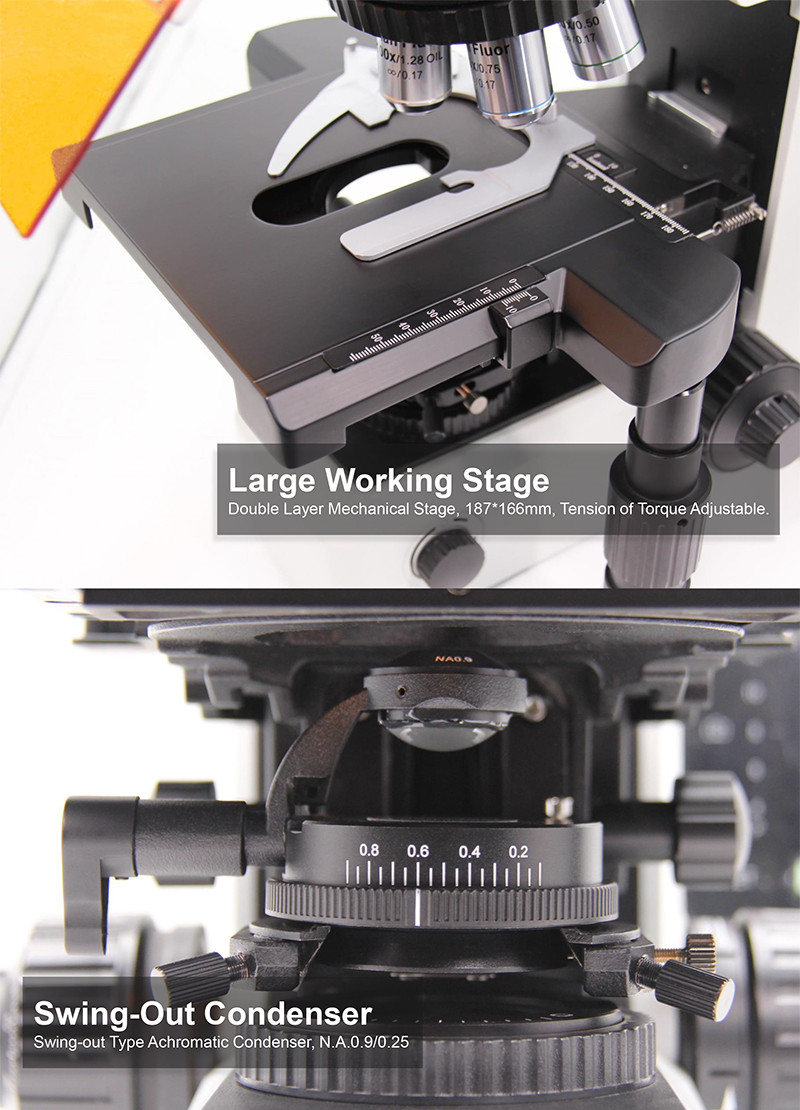

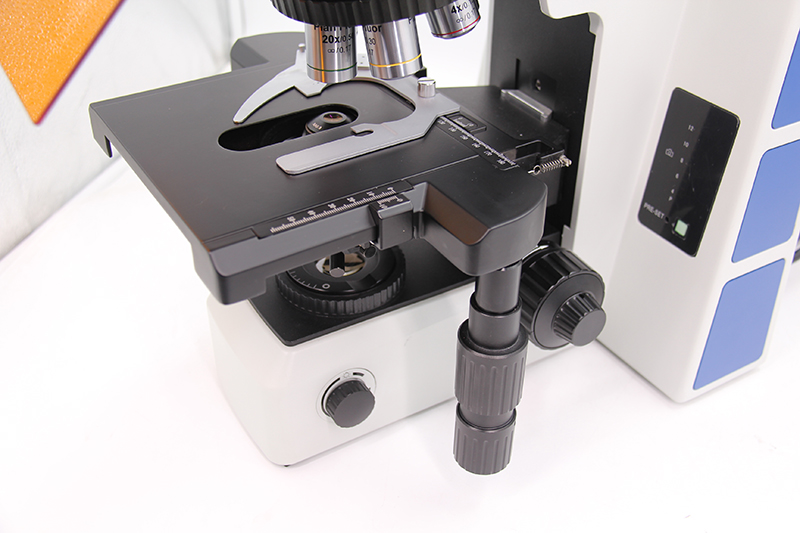

Working StageDouble Layer Mechanical Stage, 187*166mm,  Moving Range 80*55mm,  Precision 0.1mm,  Double Direction Transmission,  Left/Right Position Handle For Option,  Tension of Torque Adjustable.A54.0950-BF
FocusingLow-Position Coaxial Coarse & Fine Adjustment, Coarse Adjustment Distance: 25mm; Fine Precision: 0.001mm. With Coarse Adjustment Stop And Tightness Adjustment.

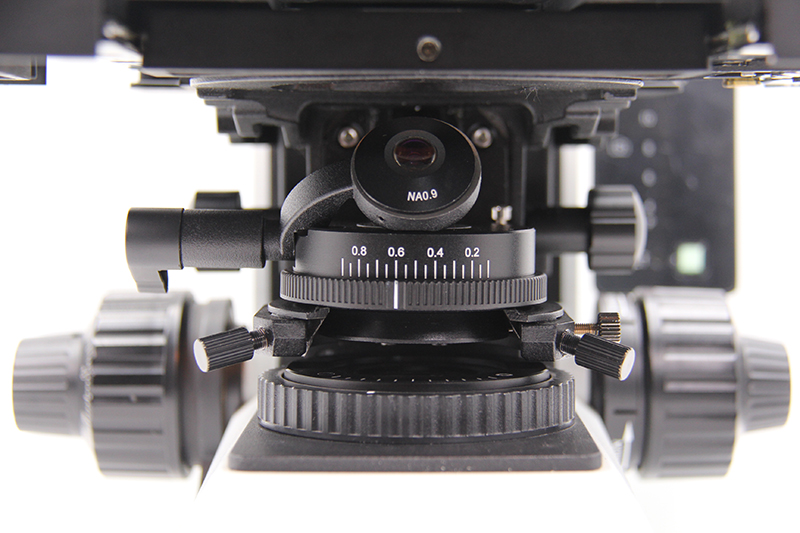

CondenserSwing-out Abbe Condenser, N.A.0.9/0.25   A56.0934-10
Abbe Condenser N.A.1.1, With Aperture Diaphragm   A56.0933-10
Transmit
Light
12V100W Halogen Light, Center Pre-setted
--Digital Dimming System With Light Indicator On Main Body,
--Brightness Set & Reset Function
--Built-In Transmit Filters LBD/ND6/ND25
   A56.0950-HAL
--12V100W Halogen Lamp House, Pre-Centered   A56.0950-HALH
--12V100W Halogen Bulb (Philps 7724)   A56.0950-HALB

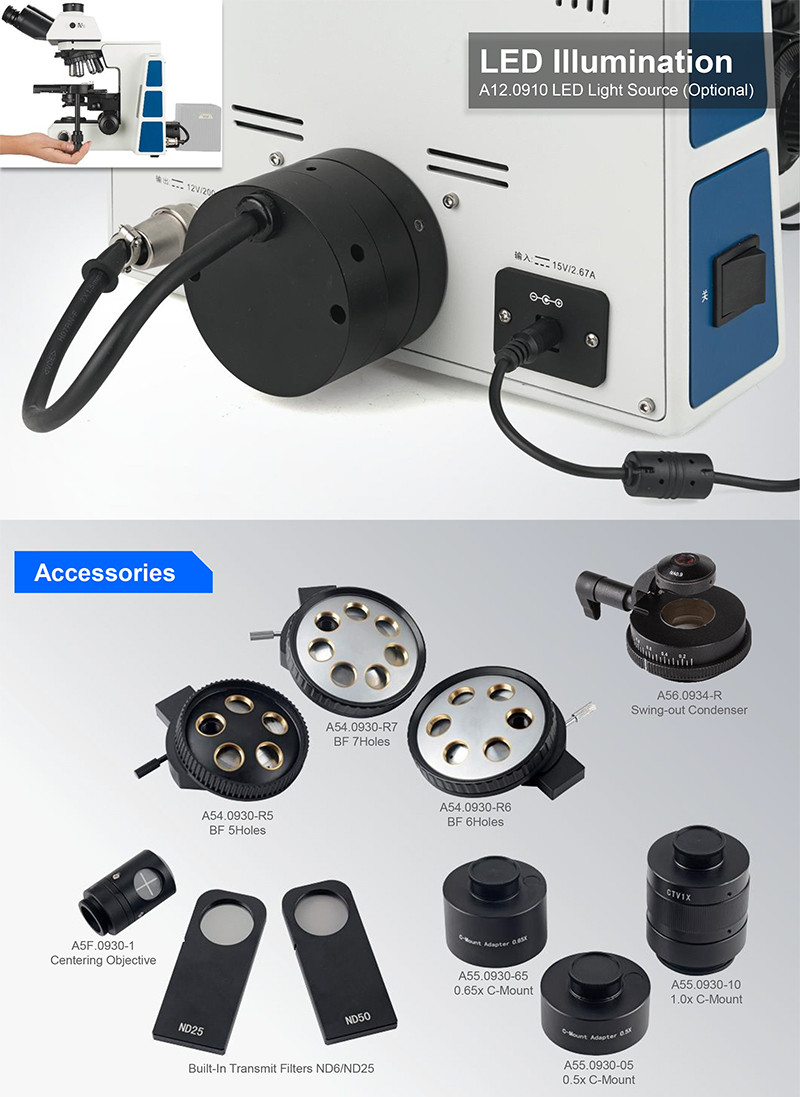

3W LED Light, Center Pre-setted
--Digital Dimming System With Light Indicator On Main Body
--Brightness Memory Function
   A56.0950-LED
Reflect
Fluorescent Light

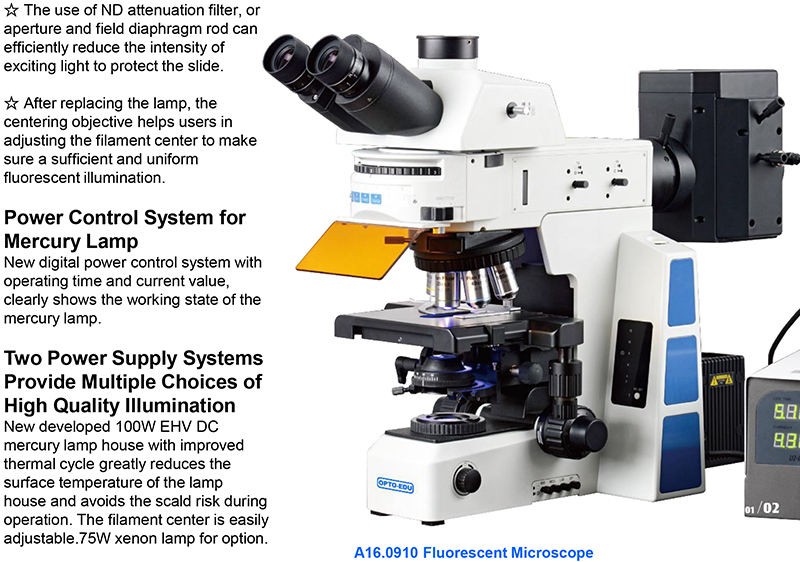

100WMercury Lamp Reflection Fluorescence Illumination

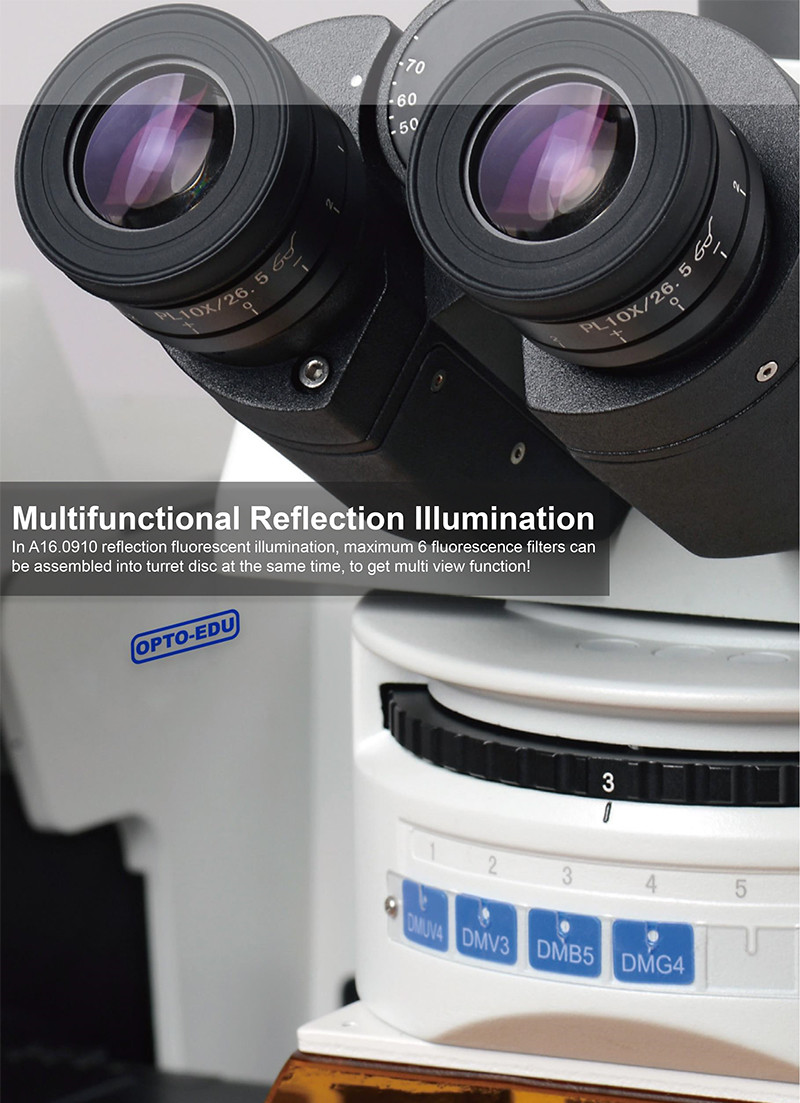

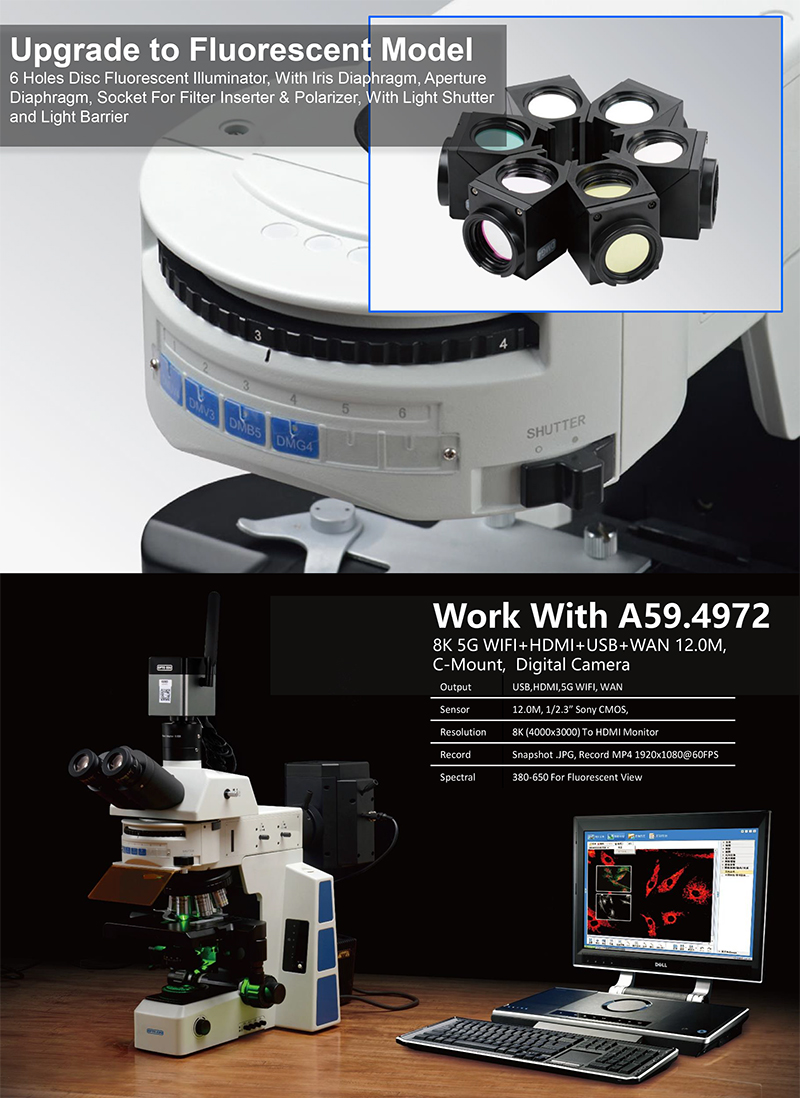

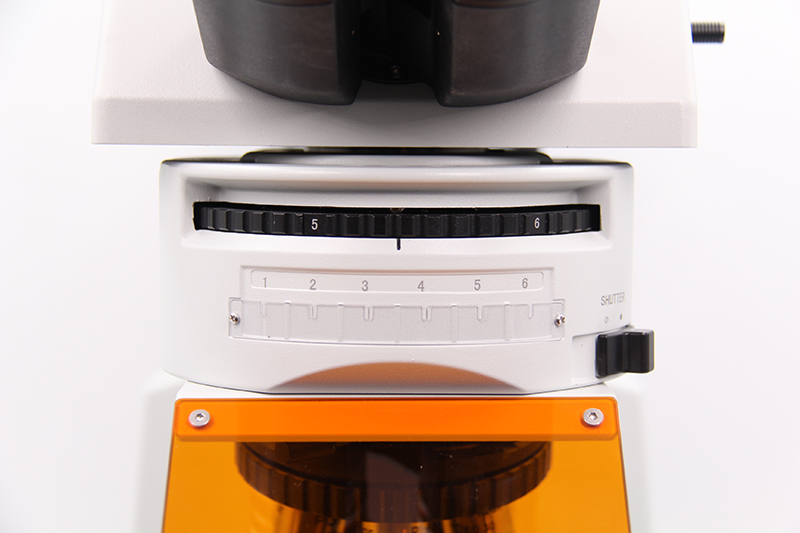

--6 Holes Disc Fluorescent Illuminator, With Iris Field Diaphragm, Aperture Diaphragm, Center Adjustable, Socket For Filter Inserter & Polarizer
--100W Mercury Lamp House, Filament Center & Focus Adjustable, With Reflect Mirror, Mirror Center & Focus Adjustable
--OSRAM 100W Mercury Bulb
--Digital Power Supply Control Box, Wide Voltage AC100~240V
--Attenuation Plate ND50 Transmittance 50%
--Fluorescent Light Shield In The Front

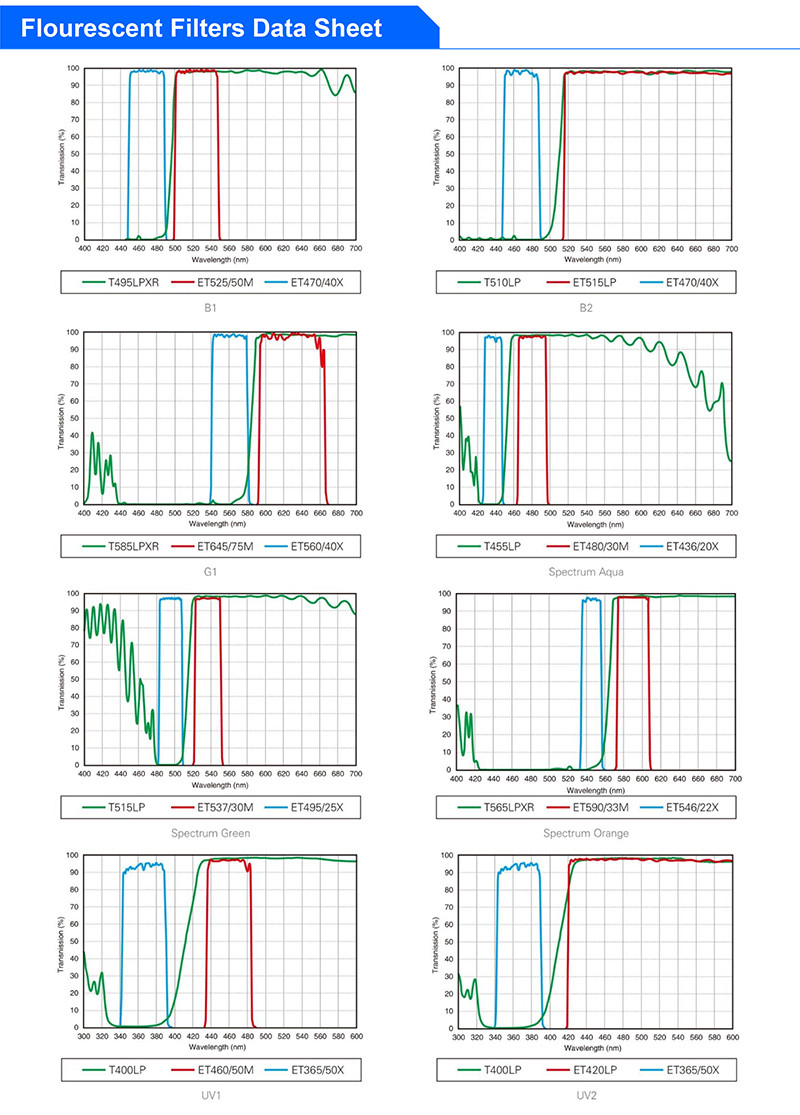

--Fluorescence Filter B,G,UV
--  A5F.0906-MER
LED Reflection Fluorescence Illumination, Up to 4 Bands Channel With Corresponding LED Module Inside, External Wide Voltage Transformer, 100V-240V Input, 6V2A Output
--B1,Wavelength 470nm (EX 480/30X, BS 505DC, EM535/40M)
--G1, Wavelength 560nm (EX 560/40X, BS 600DC, EM635/60M)
--UV1, Wavelength 385nm (EX 375/28X, BS 415DC, EM460/50M)
--  A5F.0906-LED
Centering Objective For FluorescentA5F.0930-1
PowerBuilt-In 100-240V Wide Voltage Transformer
External 100-240V Wide Voltage Transformer
OtherAllen Key M4
Package1 pc/ctn, Polyethylene & Carton, 89x52x57cm, G.W.28Kgs, N.W.23Kgs
1 pc/ctn, Polyethylene & Carton, 89x52x82cm, G.W.39Kgs, N.W.26Kgs

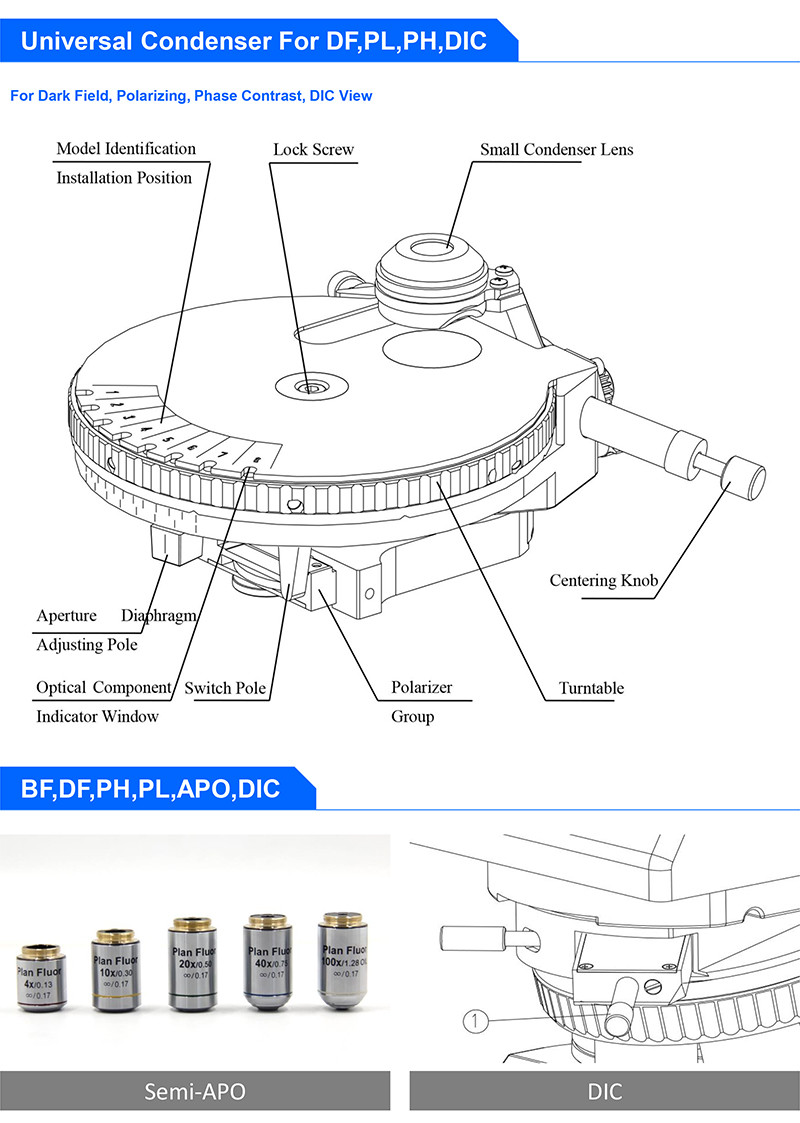

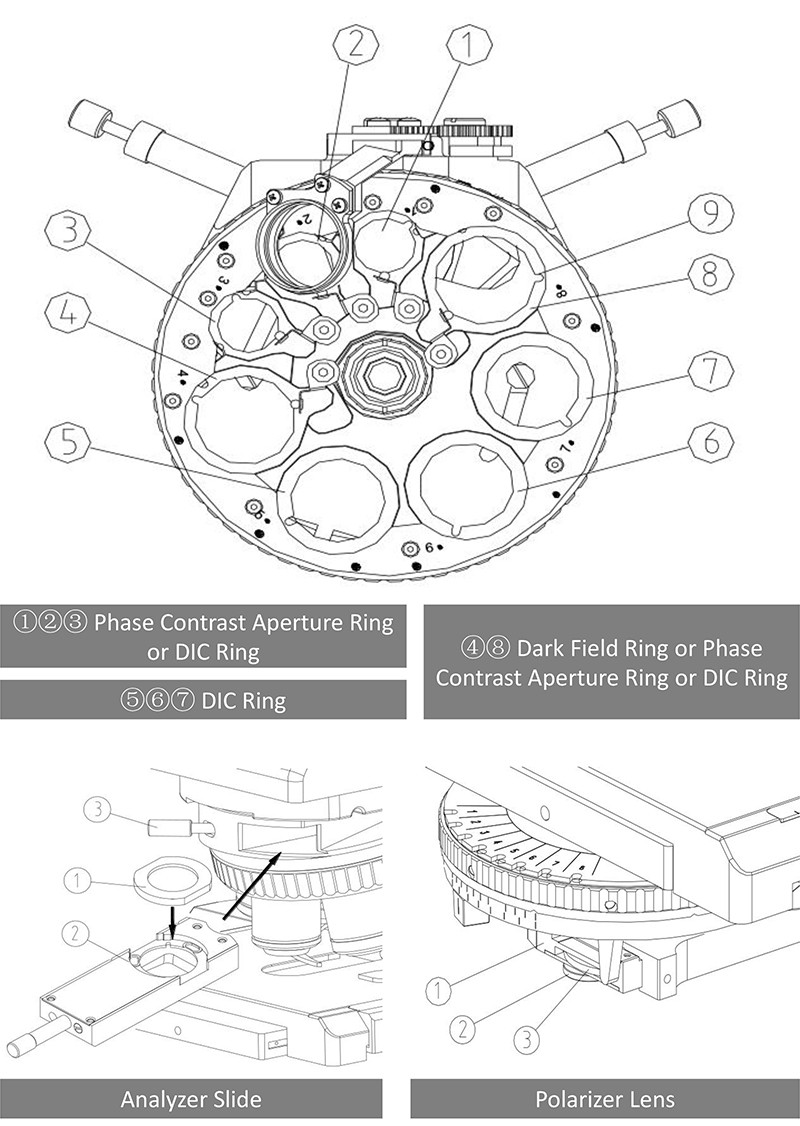

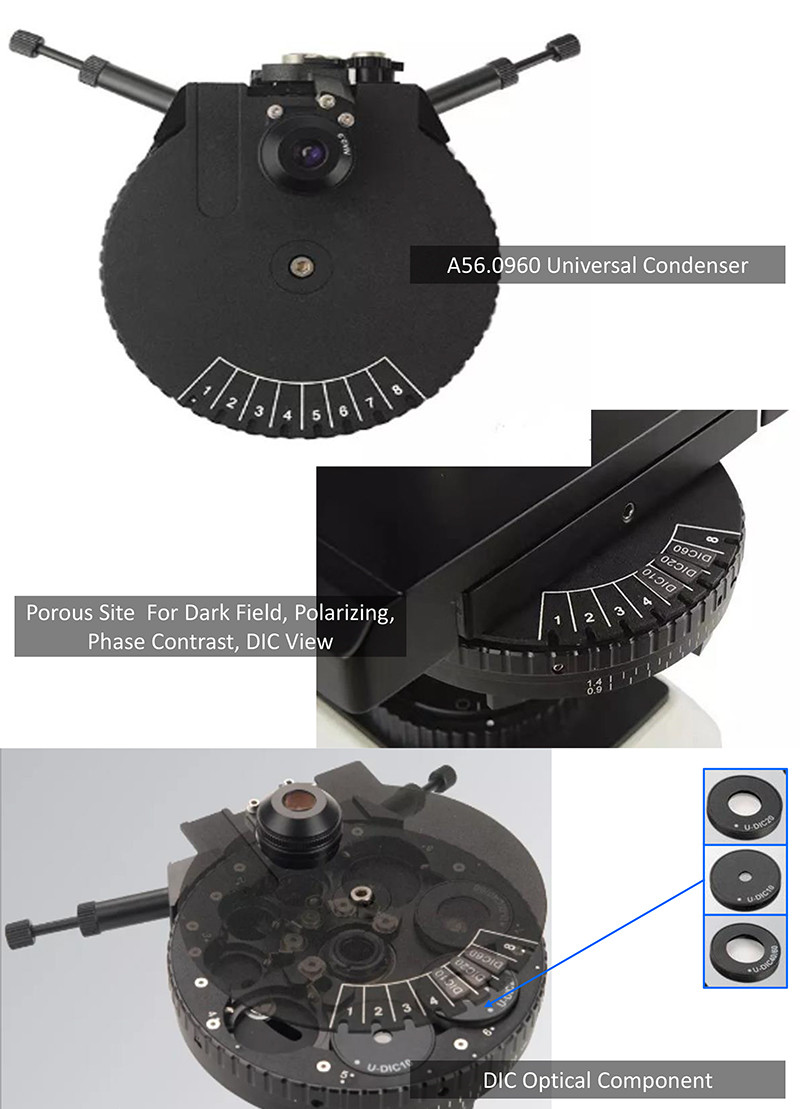

 Universal Condenser  For Dark Field, Polarzing, Phase Contrast, DIC View
Universal Condenser Universal Condenser,  Disc With 8 Holes For Function DF, PL, PH, DIC
--3 Small Holes For Phase Contrast Rings A5C.0960, PH Objectives A5C.0961
--3 Big Holes Only For DIC Rings A5M.0960
--2 Big Holes Center Adjustable, For Dark Field Ring A5D.0960 or DIC Ring A5M.0960
--
Polarizier Lens Included In Socket Under Universal Condenser
--
Must Select N.A.0.9 Condenser Lens As Standard
○A○A○A○A○A○AA56.0950
N.A.0.9 Condenser Lens, Standard Selection, For Objective 10x20x40x60x100x
Screw On Universal Condenser Disc
○A○A○A○A○A○AA59.0950-09
N.A.0.2 Condenser Lens, Optional Selection, For Objective 4x
Screw On Universal Condenser Disc
A59.0950-02
N.A.1.4 Condenser Lens, Optional Selection, For Objective 20x40x60x100x
Screw On Universal Condenser Disc
A59.0950-14
Dark FieldDark Field Ring, Dry Type N.A.0.9, For Objective 10x,20xA5D.0950-D
Dark Field Ring, Immersion Oil Type N.A.1.4, For Objective 40x,60xA5D.0950-I
Phase ContrastPhase Contrast Aperture Ring 4x A5C.0950-R4
Phase Contrast Aperture Ring 10x/20xA5C.0950-R1020
Phase Contrast Aperture Ring 40xA5C.0950-R40
Phase Contrast Aperture Ring 100xA5C.0950-R100
Phase Contrast
APOObjective
Infinity Plan Apochromatic Positive Phase Contrast  Objective
APO PH 4x/0.16, WD=12.8mA5C.0950-4
APO PH 10x/0.40, WD=2.5mmA5C.0950-10
APO PH 20x/0.75, WD=0.6mmA5C.0950-20
APO PH 40x/0.95, WD=0.15mA5C.0950-40
APO PH 60x/0.90, WD=0.26mmA5C.0950-60
APO PH 100x/1.35, WD=0.13mmA5C.0950-100
DICTransmission DIC Slide,  Insert To DIC Socket On NosepieceA5C.0951
Transmission DIC Ring 10x A5C.0951-10
Transmission DIC Ring 20x A5C.0951-20
Transmission DIC Ring 40x/60x A5C.0951-4060
Polarizing--Analyizer Slide + Ring, Insert in Socket on Nosepiece
--Must Use With A56.0950 Universal Condenser (Has Built-in Polarizer))
A5P.0950-A
Analyzer & Polarizer Set Newly Designed 2024
--Analyzer Slide Insert in Socket on Nosepiece
--Polzrizer Lens Put On Transmit Light
A5P.0950-AP

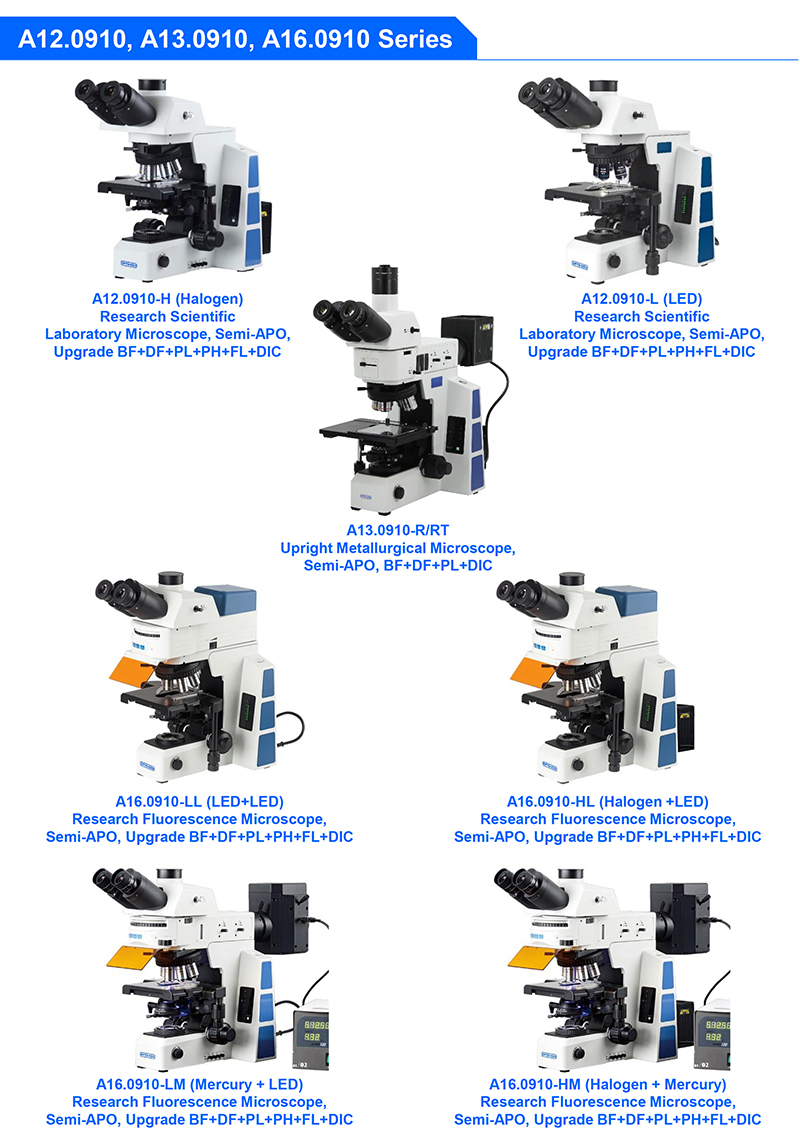

 Upgrade Series Model
MetallurgicalUpgrade to A13.0910 DIC Metallurgical Microscope,  APO      A13.0910
Remark:  '' Means Standard Outfit, '' Means Optional, 'A' Means Must Be Ordered Together Optional Items






Pictures
Model No. A16.0910-LM A16.0910-HL A16.0910-HM A16.0910-LL
Fluorescene
Reflect 100W Mecury Lamp 6 Holes Fluorescent Illuminator, 100W Mercury Lamp House, Digital Power Supply Box 100-240V, With Fluorescent Filter B,G,UV Reflect LED Fluorescence Illumination, Up to 4 Bands Channel With Corresponding LED Module Inside, External Wide Voltage Transformer, 100V-240V Input, 6V2A Output, With Fluorescent Filter B,G,UV Reflect 100W Mecury Lamp 6 Holes Fluorescent Illuminator, 100W Mercury Lamp House, Digital Power Supply Box 100-240V, With Fluorescent Filter B,G,UV Reflect LED Fluorescence Illumination, Up to 4 Bands Channel With Corresponding LED Module Inside, External Wide Voltage Transformer, 100V-240V Input, 6V2A Output, With Fluorescent Filter B,G,UV
Fluorescent Band
3 Bands 3 Bands 3 Bands 3 Bands
Power Supply Type
AC 110V-240V AC 110V-240V AC 110V-240V AC 110V-240V
Reflect Light
Reflect 100W Mecury Lamp 6 Holes Fluorescent Illuminator, 100W Mercury Lamp House, Digital Power Sup Reflect LED Fluorescence Illumination, Up to 4 Bands Channel With Corresponding LED Module Inside, E Reflect 100W Mecury Lamp 6 Holes Fluorescent Illuminator, 100W Mercury Lamp House, Digital Power Sup Reflect LED Fluorescence Illumination, Up to 4 Bands Channel With Corresponding LED Module Inside, E
Transmit Light
Transmit 3W LED, Digital Dimming System With Light Indicator, Flyeye Lens, Brightness Memory Functio Transmit 12V100W Halogen, Digital Dimming System With Light Indicator, Brightness Set & Reset Functi Transmit 12V100W Halogen, Digital Dimming System With Light Indicator, Brightness Set & Reset Functi Transmit 3W LED, Digital Dimming System With Light Indicator, Flyeye Lens, Brightness Memory Functio
Light Source Type
Mercury
LED
Fluorescent
LED
Halogen
Fluorescent
Mercury
Halogen
Fluorescent
LED
Fluorescent
Light Source Features
Fluorscent 100W
Halogen 100W
Light Indicator
Transmit & Reflect
Kohler
Fluorscent 100W
Halogen 100W
Light Indicator
Transmit & Reflect
Kohler
Fluorscent 100W
Halogen 100W
Light Indicator
Transmit & Reflect
Kohler
Fluorscent 100W
Halogen 100W
Light Indicator
Transmit & Reflect
Kohler
Condenser N.A.
1.1 0.9/0.25 0.9/0.25 1.1
Condenser Type
Abbe Swing-Out Swing-Out Abbe
Condenser Features
Center Adjustable
Iris Diaphragm
Rack & Pinionↆ↑
Center Adjustable
Iris Diaphragm
Rack & Pinionↆ↑
Center Adjustable
Iris Diaphragm
Rack & Pinionↆ↑
Center Adjustable
Iris Diaphragm
Rack & Pinionↆ↑
Focusing Scale
0.001mm 0.001mm 0.001mm 0.001mm
Focusing Range
25mm 25mm 25mm 25mm
Focusing Type
Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine
Focusing Features
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Lock Ring
Working Stage
Left & Right Position Handle For Option. Tension Of The Torque Adjustable. Left & Right Position Handle For Option. Tension Of The Torque Adjustable. Left & Right Position Handle For Option. Tension Of The Torque Adjustable. Left & Right Position Handle For Option. Tension Of The Torque Adjustable.
Working Stage Moving
85x55mm 85x55mm 85x55mm 85x55mm
Working Stage Size
187x166mm 187x166mm 187x166mm 187x166mm
Working Stage Type
2 Layers Mechanical 2 Layers Mechanical 2 Layers Mechanical 2 Layers Mechanical
Working Stage Features
Double Slide Holder
Size ≥140x140mm
Size ≥140x180mm
Ceramic Surface
Rackless Safety Edge
Knob Switchable L/R
Double Slide Holder
Size ≥140x140mm
Size ≥140x180mm
Ceramic Surface
Rackless Safety Edge
Knob Switchable L/R
Double Slide Holder
Size ≥140x140mm
Size ≥140x180mm
Ceramic Surface
Rackless Safety Edge
Knob Switchable L/R
Double Slide Holder
Size ≥140x140mm
Size ≥140x180mm
Ceramic Surface
Rackless Safety Edge
Knob Switchable L/R
Objective
Infinity Plan Semi-APO Fluorescent 4x,10x,20x,40x,100x Infinity Plan Semi-APO Fluorescent 4x,10x,20x,40x,100x Infinity Plan Semi-APO Fluorescent 4x,10x,20x,40x,100x Infinity Plan Semi-APO Fluorescent 4x,10x,20x,40x,100x
Objective Type
Infinity Plan
Fluorescent
Infinity Plan
Fluorescent
Infinity Plan
Fluorescent
Infinity Plan
Fluorescent
Objective Features
DIC
APO
DIC
APO
DIC
APO
DIC
APO
Nosepiece Holes
6 Holes 6 Holes 6 Holes 6 Holes
Nosepiece Features
Inward
With DIC Slot
Inward
With DIC Slot
Inward
With DIC Slot
Inward
With DIC Slot
Eyepiece
PL10x/25mm, Diopter Adjustable, 2 pcs PL10x/25mm, Diopter Adjustable, 2 pcs PL10x/25mm, Diopter Adjustable, 2 pcs PL10x/25mm, Diopter Adjustable, 2 pcs
Eyepiece Diameter
30.0mm 30.0mm 30.0mm 30.0mm
Eyepiece Features
Diopter Adjustable
Super WF ≥23mm
Diopter Adjustable
Super WF ≥23mm
Diopter Adjustable
Super WF ≥23mm
Diopter Adjustable
Super WF ≥23mm
Head Specification
Inverted Image/Erect Image Optional Inverted Image/Erect Image Optional Inverted Image/Erect Image Optional Inverted Image/Erect Image Optional
Head Light Path
E100:P0/E20:P80/E0:P100 E100:P0/E20:P80/E0:P100 E100:P0/E20:P80/E0:P100 E100:P0/E20:P80/E0:P100
Head Interpupillary
50~76mm 50~76mm 50~76mm 50~76mm
Head Rotation
Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360°
Head Inclination
30° 30° 30° 30°
Head Type
Seidentopf Trinocular Seidentopf Trinocular Seidentopf Trinocular Seidentopf Trinocular
Standard Magnification
40x-1000x 40x-1000x 40x-1000x 40x-1000x
Optical System
Infinity Plan Infinity Plan Infinity Plan Infinity Plan
Features
Infinity
APO
DIC
BF+DF
Infinity
APO
DIC
BF+DF
Infinity
APO
DIC
BF+DF
Infinity
APO
DIC
BF+DF
Upgrade Function
BF+DF+PL+PH+FL+DIC BF+DF+PL+PH+FL+DIC BF+DF+PL+PH+FL+DIC BF+DF+PL+PH+FL+DIC
Standard Function
BF+FL BF+FL BF+FL BF+FL
New Product Year
2014 2014 2014 2014

online service

online service
We are here online to support!

Send Message

*
*
*
*
*
7
close
7

Service

Scan the QR code Close
qr code

INQUIRY LIST

Empty List

COMPARE

Empty List

Advanced Cookie Settings

Essential Cookies

These cookies enable core functionality such as security, verification of identity and network management. These cookies can’t be disabled.

Enable Marketing Cookies

These cookies are used to track advertising performance, consent to the sending of advertising-related user data to Google, and consent for the website to serve personalized advertising to provide more relevant services.

Enable Functional Cookies

These cookies collect data to remember choices users make to improve and give a more personalised experience.

Enable Analytics Cookies

These cookies help us to understand how visitors interact with our website, discover errors and provide a better overall analytics.

Essential cookies can't be disabled.
