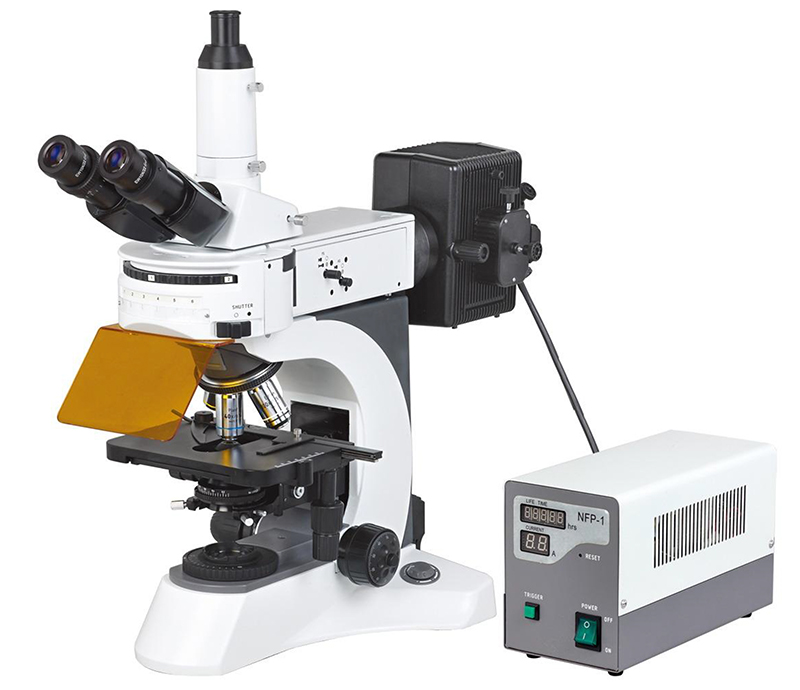

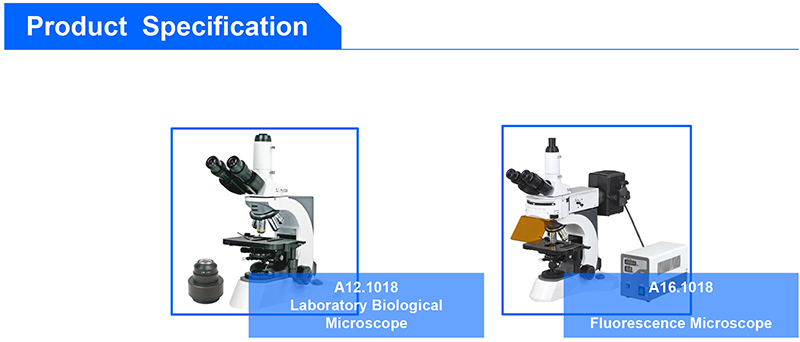

| A12.1018 Laboratory Biological Microscope, A16.1018 Fluorescent Microscope | Model No. | A12.1018 | A16.1018 | |
| Optical System | Infinity Plan Optical System | |||
| Function | Bright Field, Dark Field, Polarizing, Phase Contrast, Fluorescent | |||

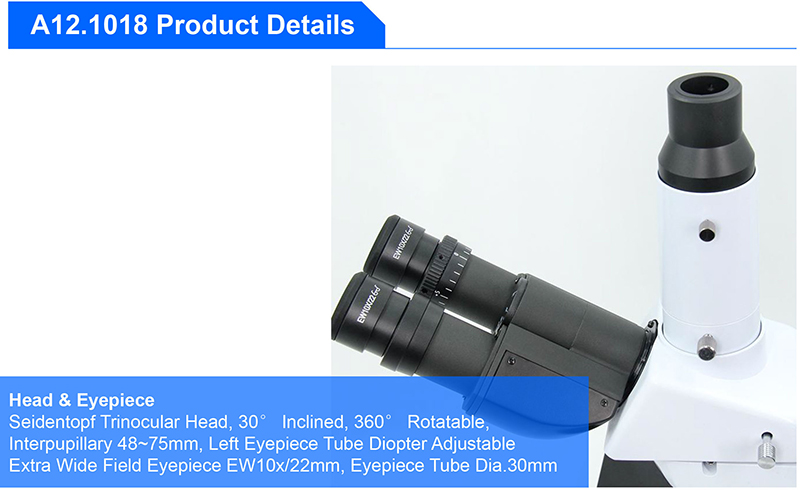

| Head | Seidentopf Binocular Head, Inclined 30°, Interpupillary 47~78mm, Dia.23.2mm, Single Diopter Adjustable, | A53.1080-B1 | ○ | ○ |
| Seidentopf Binocular Head, Inclined 30°, Interpupillary 47~78mm, Dia.23.2mm, Double Diopter Adjustable, | A53.1080-B2 | ○ | ○ | |
| Tiltable Seidentopf Binocular Head, Inclined 5~35°, Interpupillary: 48~75mm, Dia.23.2mm, White Color, Single Diopter Adjustable | A53.1080-AB1 | ○ | ○ | |
| Tiltable Seidentopf Binocular Head, Inclined 5~35°, Interpupillary: 48~75mm, Dia.23.2mm, Black Color, Single Diopter Adjustable | A53.1080-AB2 | ○ | ○ | |
| Trinocular Head Adapter For Tiltable Binocular Head -AB1 and AB2, C-Mount Not Included | A53.1080-AT | ○ | ○ | |
| For Biological Microscope, Seidentopf Trinocular Head, Inclined 30°, Interpupillary 48~75mm, Dia.30mm, Light Split E100:P0/E0:P100, Single Diopter Adjustable, With 0.5x C-Mount Focus Adjustable | A53.1080-BT05 | ● | / | |
| For Fluorescent Microscope， Seidentopf Trinocular Head, Inclined 30°, Interpupillary 48~75mm, Dia.30mm, Light Split E100:P0/E0:P100, Single Diopter Adjustable, With 0.5x C-Mount Focus Adjustable | A53.1080-FT05 | / | ● | |
| Digital Binocular Head, Inclined 30°, Interpupillary 48~75mm, Dia.30mm, Built-in Digital Camera 5.0M CMOS 1/2.5"(3.0M Optional), USB Output, Single Diopter Adjustable | A53.1080-5.0M | ○ | / | |
| Eyepiece | Wide Field Eyepiece, WF10x/20mm, Dia.30mm | A51.1003-1020 | ○ | ○ |
| Wide Field Eyepiece, EW10x/22mm, Dia.30mm | A51.1003-1022 | ● | ● | |
| Wide Field Eyepiece, WF10x/20mm, Dia.30mm, Diopter Adjustable | A51.1006-1020 | ○ | ○ | |
| Wide Field Eyepiece, EW10x/22mm, Dia.30mm, Diopter Adjustable | A51.1006-1022 | ○ | ○ | |
| Wide Field Eyepiece, WF30x/8mm, Dia.30mm, Diopter Adjustable | A51.1006-3008 | ○ | ○ | |
| Retical Eyepiece, EW10x/22mm With Cross Micrometer, Dia.30mm | A51.1008-1022 | ○ | ○ | |
| Retical Eyepiece, WF10x/20mm With Cross Micrometer, Dia.30mm, Diopter Adjustable | A51.1009-1020 | ○ | ○ | |
| Retical Eyepiece, EW10x/22mm With Cross Micrometer, Dia.30mm, Diopter Adjustable | A51.1009-1022 | ○ | ○ | |

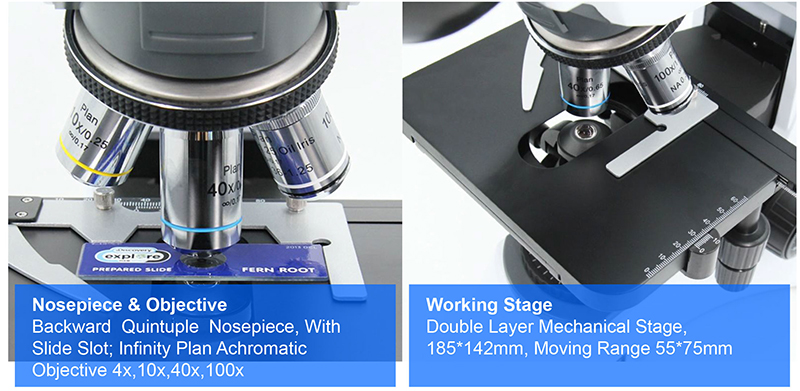

| Nosepiece | 5 Holes Nosepiece | ● | ● | |
| 6 Holes Nosepiece | ○ | ○ | ||
| Objective | NIS45 Infinity Plan Achromatic Objective, 2x, NA=0.05 WD=18.5 Cover Glass - | A52.1008-2 | ○ | ○ |
| NIS45 Infinity Plan Achromatic Objective, 4x, NA=0.1 WD=28 Cover Glass - | A52.1008-4 | ● | ● | |
| NIS45 Infinity Plan Achromatic Objective, 10x, NA=0.25 WD=7.4 Cover Glass 0.17 | A52.1008-10 | ● | ● | |
| NIS45 Infinity Plan Achromatic Objective, 20x, NA=0.4 WD=6.2 Cover Glass 0.17 | A52.1008-20 | ○ | ○ | |
| NIS45 Infinity Plan Achromatic Objective, 40x, NA=0.65 WD=0.7 Cover Glass 0.17 | A52.1008-40 | ● | ● | |
| NIS45 Infinity Plan Achromatic Objective, 60x, NA=0.8 WD=- Cover Glass 0.17 | A52.1008-60 | ○ | ○ | |
| NIS45 Infinity Plan Achromatic Objective, 100x(Oil), NA=1.25 WD=0.14 Cover Glass 0.17 | A52.1008-100 | ● | ● | |
| Working Stage | Double Layers Mechanical Stage, Size 185*142mm, Moving Range 75*55mm | ● | ● | |
| Double Layers Mechanical Rackless Stage, Size 243*158mm, Moving Range 75*55mm, None-Ceramic Surface | ○ | ○ | ||

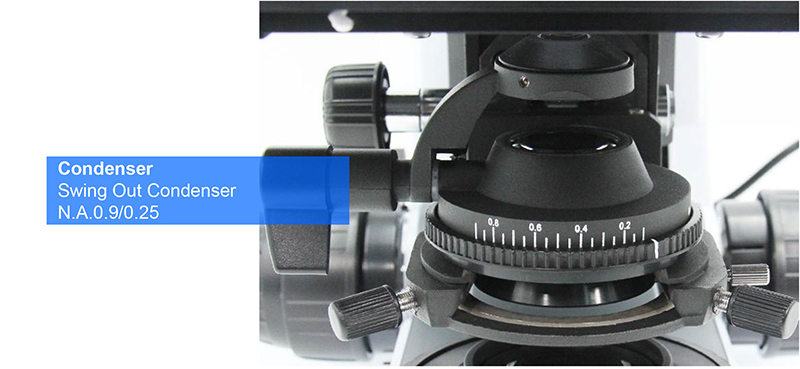

| Condenser | Swing-Out Condenser NA 0.9/0.25 | A56.1018-S925 | ● | ● |
| Abbe Condenser NA 1.25 | A56.1018-A125 | ○ | ○ | |

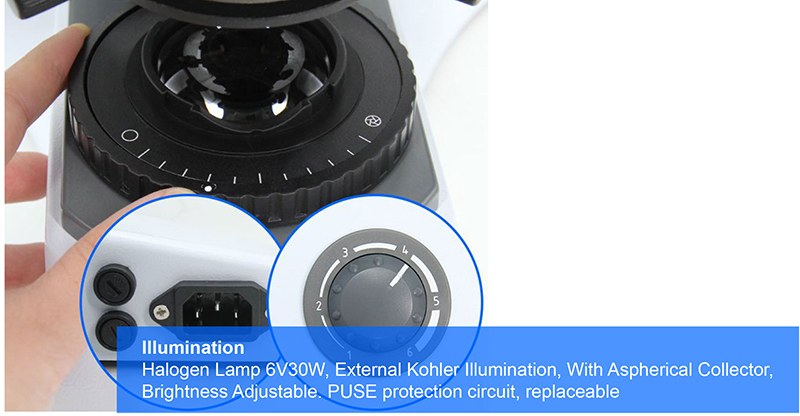

| Transmit Illumination | 6V30W Halogen Light Source | A56.1018-30W | ● | ● |
| 6V30W Halogen Lamp Bulb | A56.1018-30WHB | ● | ● | |
| 6V30W Halogen Lamp House | A56.1018-30WH | ● | ● | |
| 24V100W Halogen Light Source | A56.1018-100W | ○ | ○ | |
| 24V100W Halogen Lamp Bulb | A56.1018-100WHB | ○ | ○ | |
| 24V100W Halogen Lamp House | A56.1018-100WH | ○ | ○ | |
| 5W LED Light Source | A56.1018-5WLED | ○ | ○ | |
| 3W SLED Light Source | A56.1018-3WLED | ○ | ○ | |
| White Filter, Dia.45mm for Transmit Illumination | A56.1018-45W | ○ | ○ | |
| Blue Filter, Dia.45mm for Transmit Illumination | A56.1018-45B | ○ | ○ | |
| Green Filter, Dia.45mm for Transmit Illumination | A56.1018-45G | ○ | ○ | |

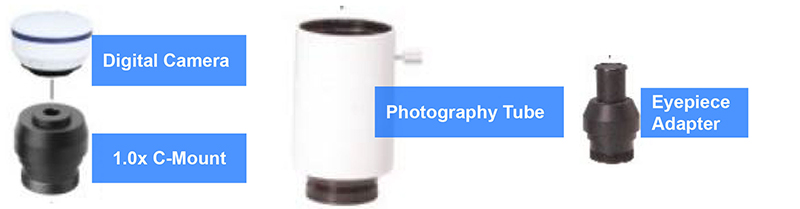

| Video Adapter | Eyepiece Adapter, Dia.23.2mm | A55.1018-E | ○ | ○ |
| C-Mount 0.45x, Dia.23.2mm, Work With Eyepiece Adapter | A55.1018-45 | ○ | ○ | |
| C-Mount 1.0x | A55.1018-10 | ○ | ○ | |
| C-Mount 0.5x, Focus Adjustable | A55.1018-05 | ● | ● | |

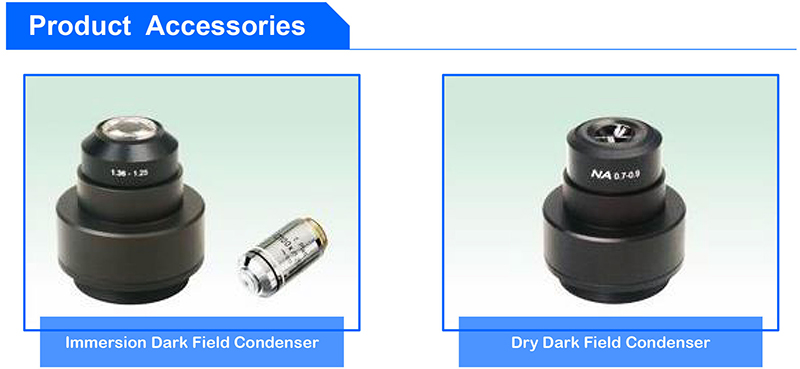

| Dark Field | Dark Field Condenser(Dry), N.A.0.9 | A5D.1010-D | ○ | ○ |
| Dark Field Condenser(Immersion), N.A. 1.25-1.36, Used With 100x Dark Field Objective | A5D.1010-I | ○ | ○ | |
| Infinite Plan Dark Field Objective 100x (Oil), With Iris Diaphram | A5D.1030-IP100x | ○ | / | |

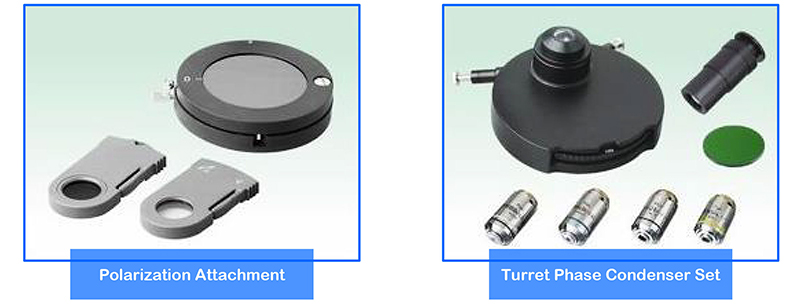

| Polarizing | Polarizer, For A12.1018 Biological Microscope Transmit Light | A5P.1080-P | ○ | ○ |
| Analyzer, For A12.1018 Biological Microscope Transmit Light | A5P.1080-A | ○ | ○ | |
| Phase Contrast | Turret Phase Contrast Condenser, For Infinity Plan Phase Contrast Objective 10x20x40x100x | A5C.1080-C | ○ | ○ |
| Centering Telescope,Dia.30mm | A5C.1080-CT | ○ | ○ | |
| Green Filter, Dia.45mm for Transmit Illumination | A5C.1080-G | ○ | ○ | |
| NIS45 Infinity Plan Phase Contrast Objective, 10x, NA=0.25 WD=10.5 Cover Glass 0.17 | A5C.1080-10 | ○ | ○ | |
| NIS45 Infinity Plan Phase Contrast Objective, 20x, NA=0.4 WD=5.5 Cover Glass 0.17 | A5C.1080-20 | ○ | ○ | |
| NIS45 Infinity Plan Phase Contrast Objective, 40x, NA=0.65 WD=0.7 Cover Glass 0.17 | A5C.1080-40 | ○ | ○ | |
| NIS45 Infinity Plan Phase Contrast Objective, 100x(Oil), NA=- WD=- | A5C.1080-100 | ○ | ○ | |
| Fluorescent | A Type Mercury Fluorescent Illuminator | |||
| Mecury Fluorscent Illuminator, 6 Excitation Positions, Kohler Illumination System, UV Eye-Protect Screen, With Mercury Lamp Centering Plate | A5F.1080-MER | / | ● | |
| 24V100W Mercury Lamp House, Center Adjustable, With Collimation System | A5F.1080-100WH | / | ● | |
| 24V100W OSRAM Mercury Lamps | A5F.1080-100WHB | / | ● | |
| 24V100W Mercury Power Box | A5F.1080-100WP | / | ● | |
| Filter ND6, 6% Transmittance | A5F.1080-ND6 | / | ○ | |
| Filter ND25, 25% Transmittance | A5F.1080-ND25 | / | ○ | |
| B Excitation Filter System BP460-490, DM500, BA520 | A5F.1080-B | / | ● | |
| G Excitation Filter System BP510-550, DM570, BA590 | A5F.1080-G | / | ● | |
| U Excitation Filter System BP330-385, DM400, BA420 | A5F.1080-U | / | ○ | |
| V Excitation Filter System BP400-410, DM455, BA455 | A5F.1080-V | / | ○ | |
| R Excitation Filter System BP620-650, DM660, BA670-750 | A5F.1080-R | / | ○ | |
| FL-FITC Excitation Filter System BP460-495, DM505, BA510-550 | A5F.1080-FITC | / | ○ | |
| FL-DAPI Excitation Filter System BP360-390, DM415, BA435-485 | A5F.1080-DAPI | / | ○ | |
| FL-TRITC Excitation Filter System BP528-553, DM565, BA578-633 | A5F.1080-TRITC | / | ○ | |
| FL-BG Excitation Filter, BP 453-490/533-588, DM 495-548/595-705, BA 500-540/603-664 | A5F.1080-BG | / | ○ | |
| Empty Filter Cube Φ25, Split Mirror 25.8X37.5/1mm | A5F.1080-EC | / | ○ | |
| B Type LED Fluorescent Illuminator | ||||
| LED Fluorescent Illuminator, 3W LED, Power Input DC7.5V 1000mA, B Excite Filter 465~475nm, Use With -BL LED (465-475nm) | A5F.1080-LEDB | / | ○ | |
| LED Fluorescent Illuminator, 3W LED, Power Input DC7.5V 1000mA, G Excite Filter 525~530nm, Use With -GL LED (525~530nm) | A5F.1080-LEDG | / | ○ | |
| LED Fluorescent Illuminator, 3W LED, Power Input DC7.5V 1000mA, U Excite Filter 365~370nm, Use With -UL LED (365~370nm) | A5F.1080-LEDU | / | ○ | |
| LED Fluorescent Illuminator, 3W LED, Power Input DC7.5V 1000mA, B Excite Filter BP460~490, G Excite Filter BP510~550, Use With -GL LED(525-530nm) | A5F.1080-LEDBG | / | ○ | |
| B LED Lamp, 3W LED (465-475nm) | A5F.1080-BL | / | ○ | |
| G LED Lamp, 3W LED (525-530nm) | A5F.1080-GL | / | ○ | |
| U LED Lamp, 3W LED (365-370nm) | A5F.1080-UL | / | ○ | |
| Fluorescent Objective | NIS45 Infinity Plan Fluorescent Objective, 4×, NA=0.13 WD=16.4 Cover Glass- | A5F.1031-4 | / | ○ |
| NIS45 Infinity Plan Fluorescent Objective, 10×, NA=0.3 WD=12 Cover Glass 0.17 | A5F.1031-10 | / | ○ | |
| NIS45 Infinity Plan Fluorescent Objective, 20×, NA=0.5 WD=1.4 Cover Glass 0.17 | A5F.1031-20 | / | ○ | |
| NIS45 Infinity Plan Fluorescent Objective, 40×, NA=0.75 WD=- Cover Glass 0.17 | A5F.1031-40 | / | ○ | |
| NIS45 Infinity Plan Fluorescent Objective, 100x (Oil), NA=1.3 WD=- Cover Glass 0.17 | A5F.1031-100 | / | ○ | |
| Multi-Viewing Head | 2 People, Right-sided Double Position, Green Color Pointer, With Secondary Binocular and Eyepiece, Without Main Head and Eyepiece | A53.1081-2R1 | ○ | ○ |
| 2 People, Right-sided Double Position, Green & Red Color Pointer, With Secondary Binocular and Eyepiece, Without Main Head and Eyepiece | A53.1081-2R2 | ○ | ○ | |
| 2 People, Face to Face Position, Green & Red Color Pointer, With Secondary Binocular and Eyepiece, Without Main Head and Eyepiece | A53.1081-2F | ○ | ○ | |
| 3 People, Face to Face Position, Green Color Pointer, With Secondary Binocular and Eyepiece, Without Main Head and Eyepiece | A53.1081-31 | ○ | ○ | |
| 3 People, Face to Face Position, Green & Red Color Pointer, With Secondary Binocular and Eyepiece, Without Main Head and Eyepiece | A53.1081-32 | ○ | ○ | |
| 5 People, Face to Face Position, Green Color Pointer, With Secondary Binocular and Eyepiece, Without Main Head and Eyepiece | A53.1081-51 | ○ | ○ | |
| 5 People, Face to Face Position, Green & Red Color Pointer, With Secondary Binocular and Eyepiece, Without Main Head and Eyepiece | A53.1081-52 | ○ | ○ | |
| Note:"●"In Table ls Standard Outfits"○"In Table ls Optional Outfits | ||||
