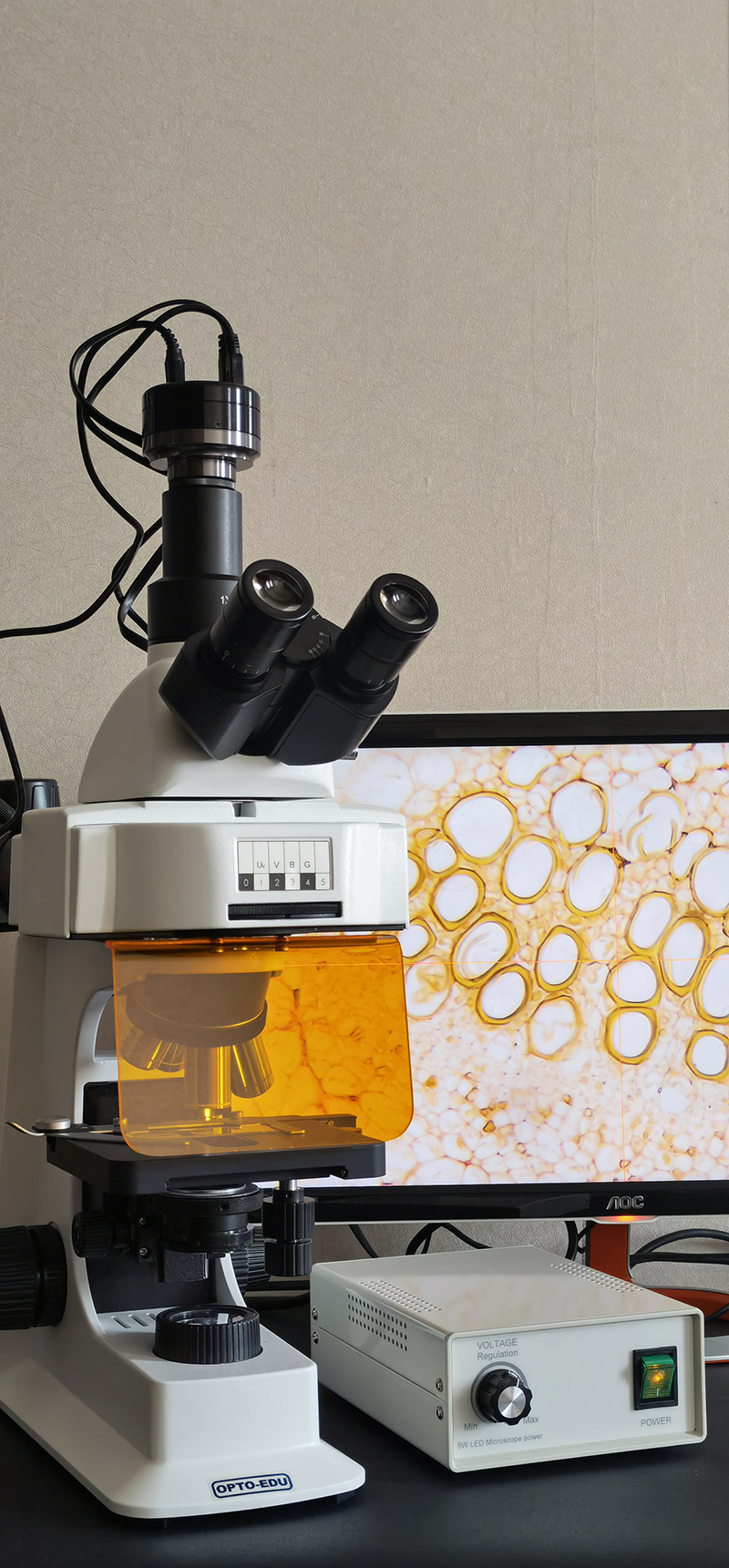

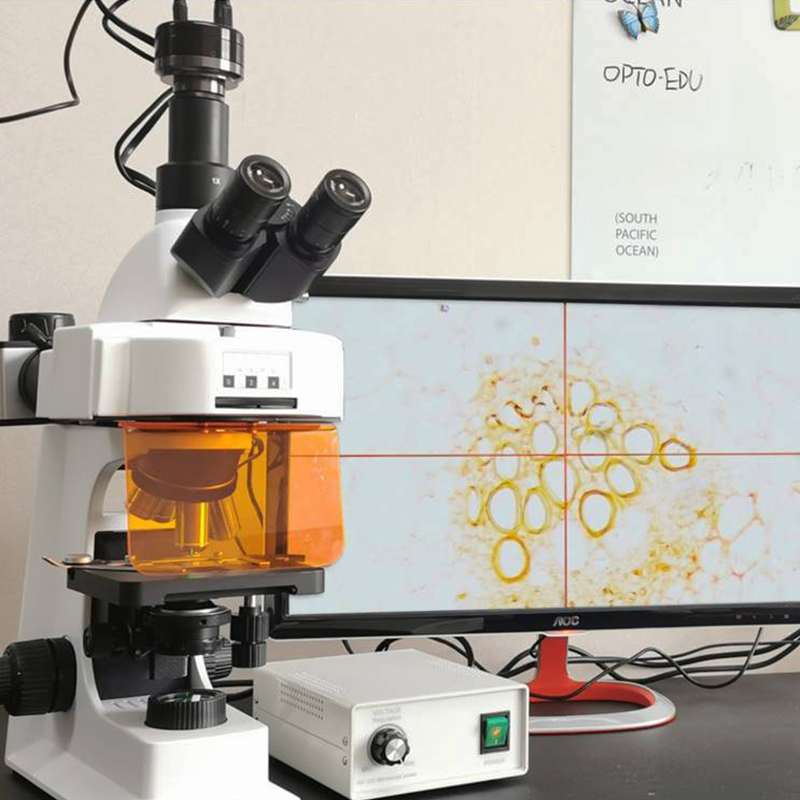

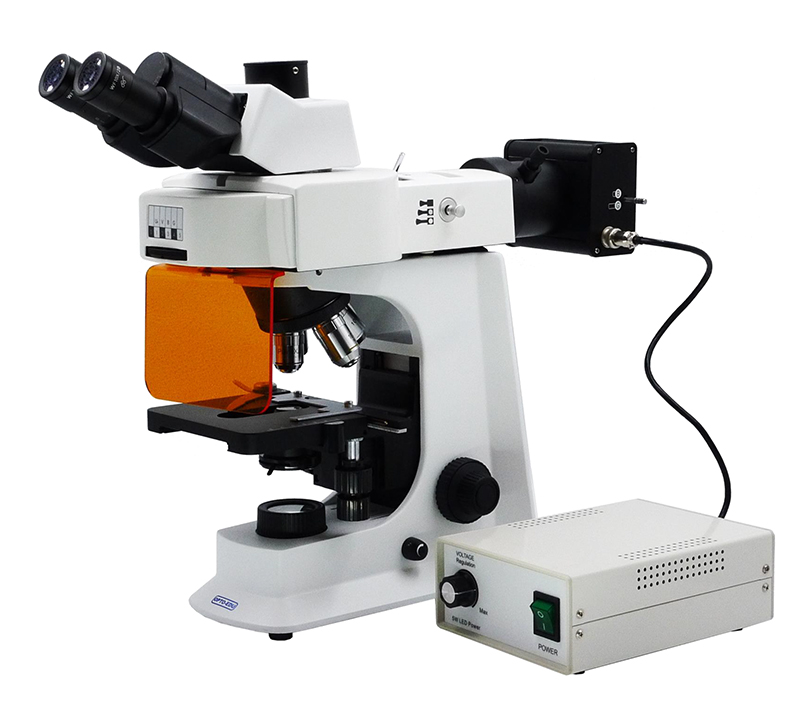

LED Fluorescent Microscope, Trinocular, B,G

A16.2601-L-T2

Like Favorites

LED Fluorescent Microscope, Trinocular, B,G

Six Holes Fluorescent Unit Can Hold Up To 5 Fluorescent Filter + Bright Field View
5W LED Fluorescent Light Source For Observe In Pathology, Clinical Lab Use
Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil
High Rigidity Body Structure Design Supply High Steady And Easy Handle
Different Color Available To Customize Your Model!

Specification:

A16.2601-L-T2

LED Fluorescent Microscope, Trinocular, B,G,U,UV

A16.2601-L-T4

LED Fluorescent Microscope, Binocular, B,G

A16.2601-L-B2

LED Fluorescent Microscope, Binocular, B,G,U,UV

A16.2601-L-B4

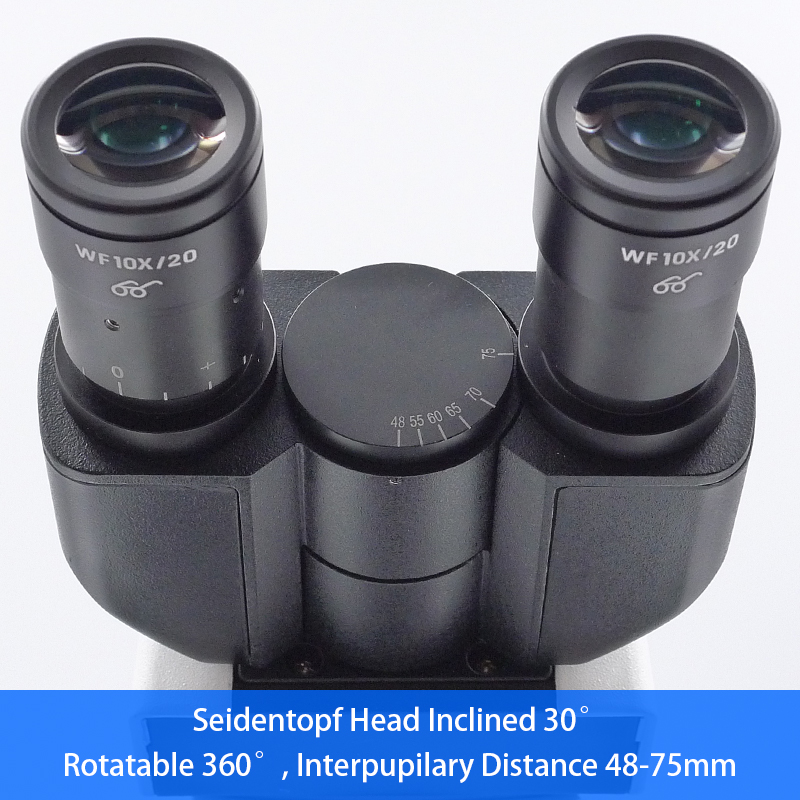

Seidentopf Head
Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece, Which Is Convenient For People With Different Sitting Height;
The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope

Quadruple, Backward

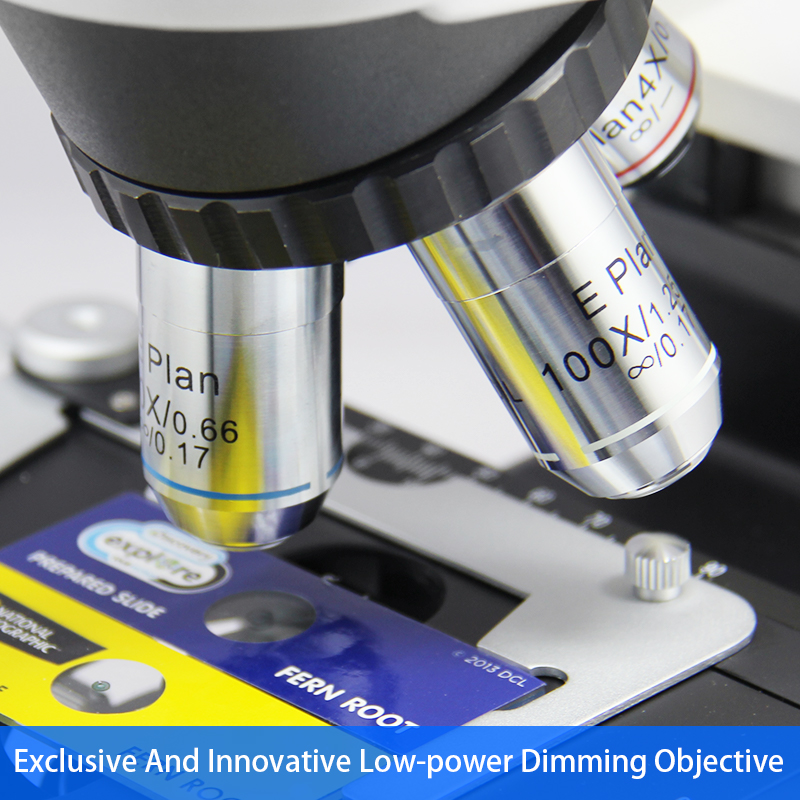

4 Sets Objective Available: Achromatic, Plan, Infinity E-Plan, Infinity Plan.

Double Slide Holder Working Stage

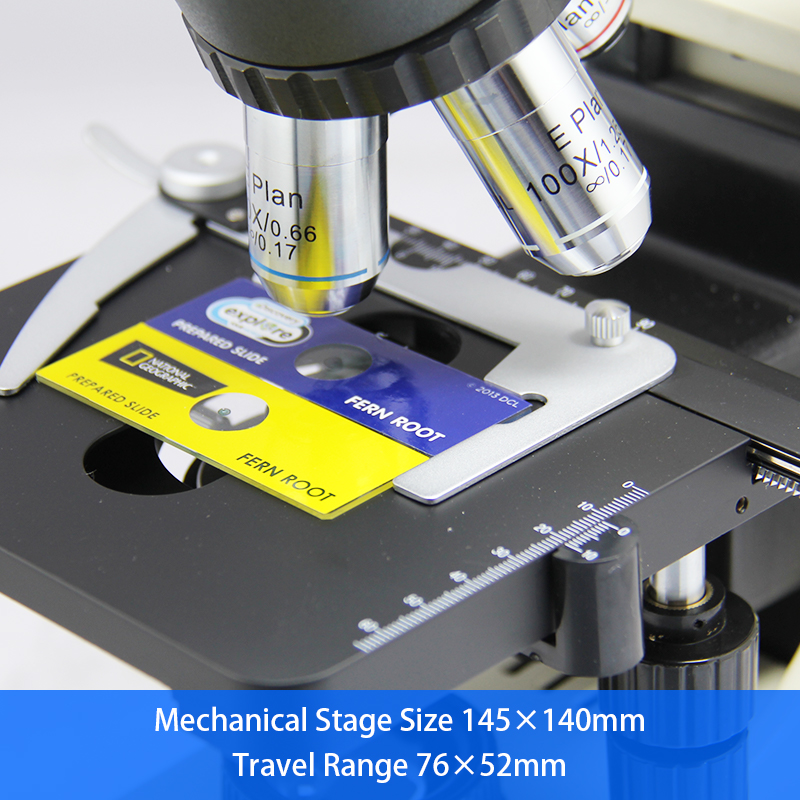

Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm

Condenser & Light Source

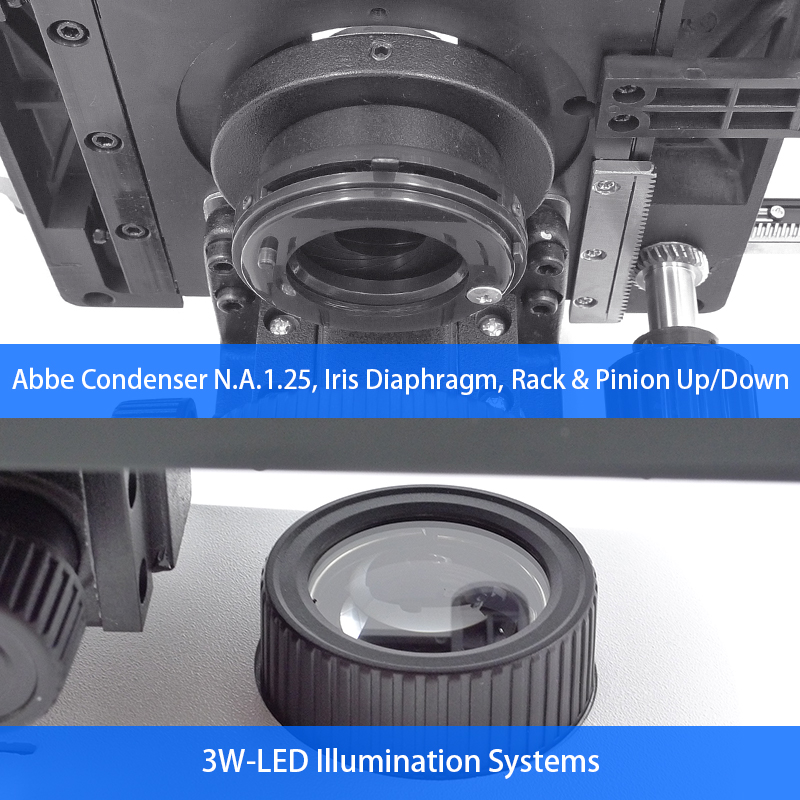

Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder
3W-LED Illumination Systems

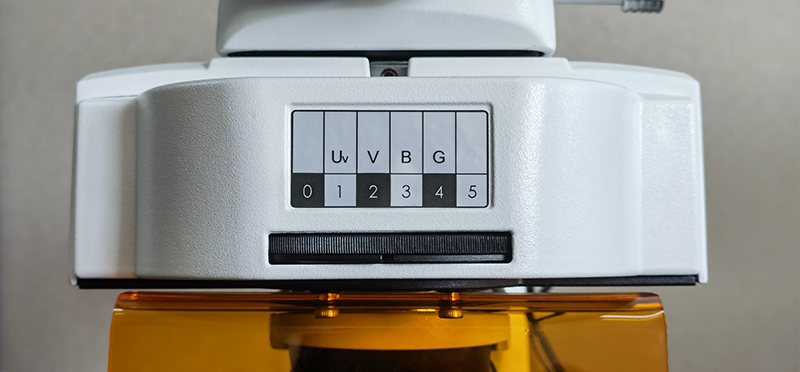

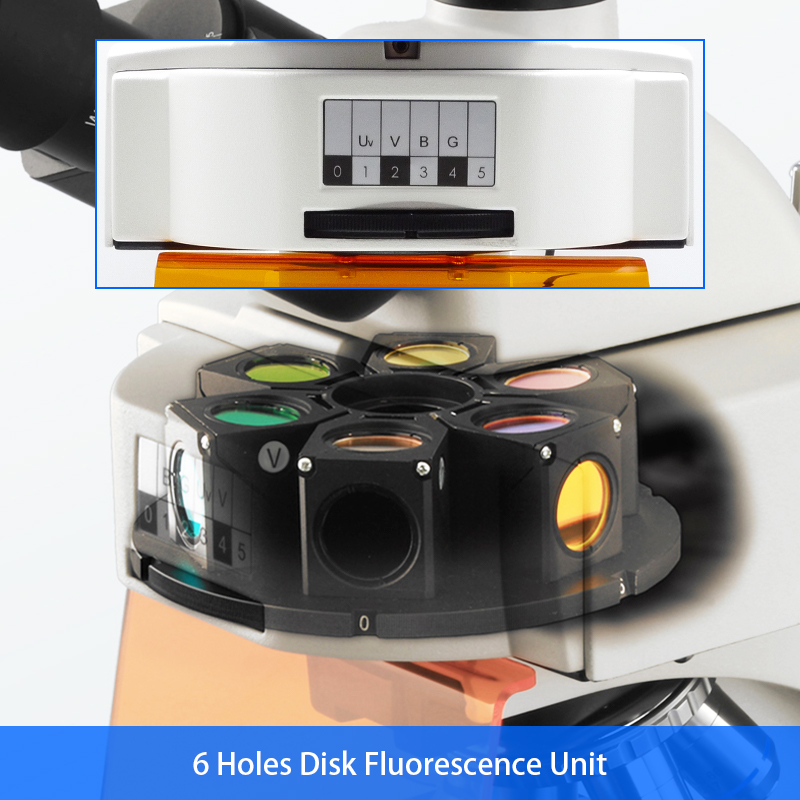

6 Holes Disk Fluorescence Unit
Can Load Up to 5 Fluorescence Filters + 1 Hole For Bright Field View,

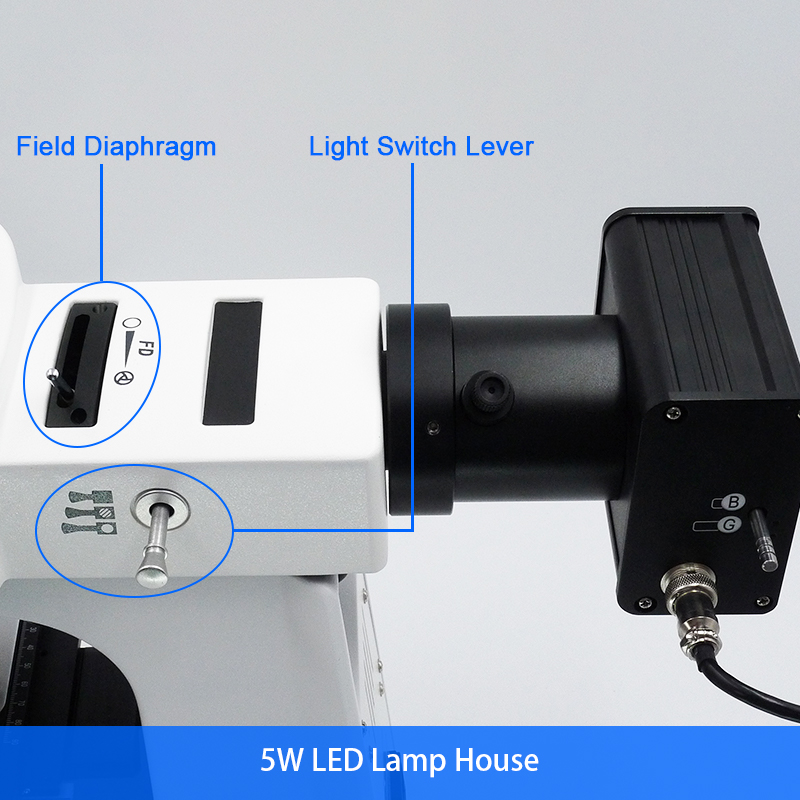

5W LED Lamp Fluorescent
Illumination Unit, With Field Diaphragm, Light Switch Lever.

Items	A16.2601-L LED Fluorescent Microscope Specification	-B2	-T2	-B4	-T4	Cata. No.
Head	Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm	●		●		A53.2621-B
Head	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80		●		●	A53.2621-T
Eyepiece	WF10X/20mm (High Eyepoint)	●●	●●	●●	●●	A51.2602-1020
Nosepiece	Quadruple, Backward	●	●	●	●	A54.2610-N734
Nosepiece	Quintuple, Backward	○	○	○	○	A54.2610-N735
Infinity Plan Objective	PLAN 4x/0.10,W.D.=12.1mm	●	●	●	●	A52.2606-4
	PLAN 10x/0.25,W.D.=4.64mm	●	●	●	●	A52.2606-10
	PLAN 40x/0.66,W.D.=0.65mm	●	●	●	●	A52.2606-40
	PLAN 100x/1.25(S, Oil),W.D.=0.12mm	●	●	●	●	A52.2606-100

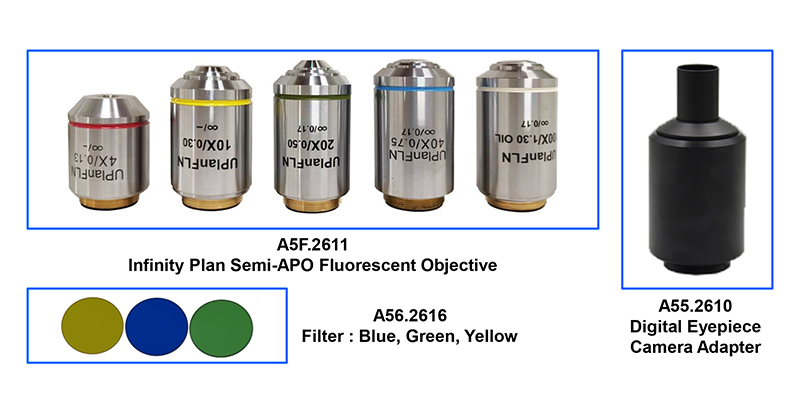

Infinity Plan Semi-APO Fluorescent Objective	UplanFLN 4x, N.A.0.16，W.D.=17.151mm	○	○	○	○	A5F.2611-4
	UplanFLN 10x, N.A.0.30，W.D.=7.68mm	○	○	○	○	A5F.2611-10
	UplanFLN 20x, N.A.0.50，W.D.=1.96mm	○	○	○	○	A5F.2611-20
	UplanFLN 40x, N.A.0.75，W.D.=0.78mm	○	○	○	○	A5F.2611-40
	UplanFLN 100x(Oil), N.A.1.30，W.D.=0.15mm	○	○	○	○	A5F.2611-100
Working Stage	Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder	●	●	●	●	A54.2601-S04
Working Stage	Rackless (Integrated) Stage, Size 140×135mm, Travel Range 75×35mm, Double Slide Holder	○	○	○	○	A54.2601-S12

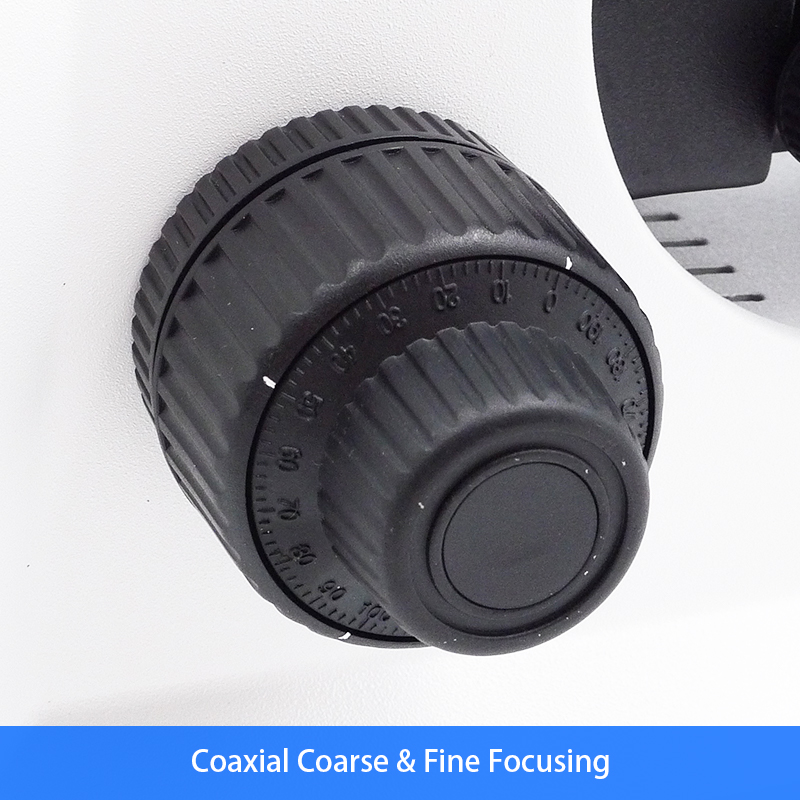

Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division	●	●	●	●
Condenser	Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down	●	●	●	●	A56.2614-C06b

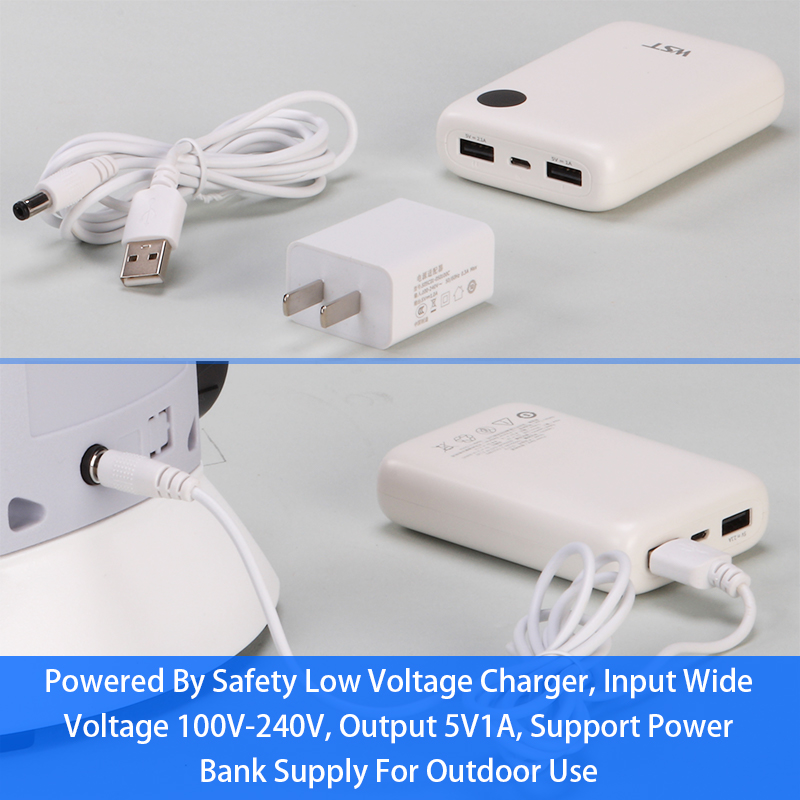

Illumination	3W-LED Illumination Systems Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	●	●	●	A56.2650-3WLED
	12V/20W Halogen Lamp	○	○	○	○	A56.2650-12V20WH
	6V/30W Halogen Lamp	○	○	○	○	A56.2650-6V30WH

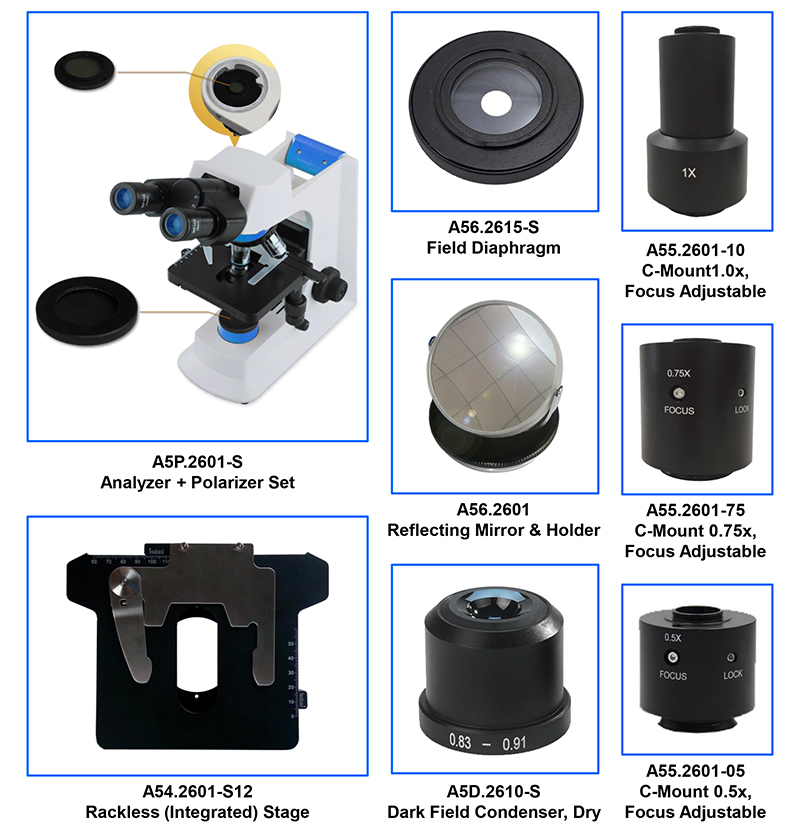

Field Diaphragm	Upgrade To Kohler Illumnation	○	○	○	○	A56.2615-S
Filter	Dia.45mm, Blue	○	○	○	○	A56.2616-45B
	Dia.45mm, Green	○	○	○	○	A56.2616-45G
	Dia.45mm, Yellow	○	○	○	○	A56.2616-45A
Dark Field	Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective	○	○	○	○	A5D.2610-S
Polarizing	Analyzer + Polarizer Set	○	○	○	○	A5P.2601-S

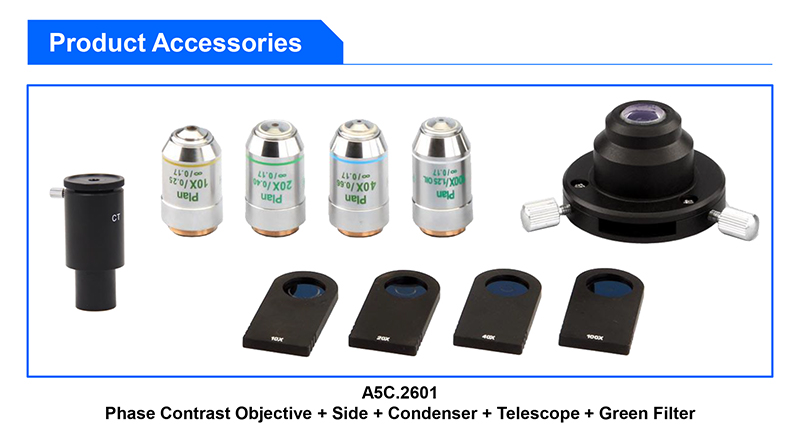

Phase Contrast	Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-10
	Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-20
	Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-40
	Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter	○	○	○	○	A5C.2601-100

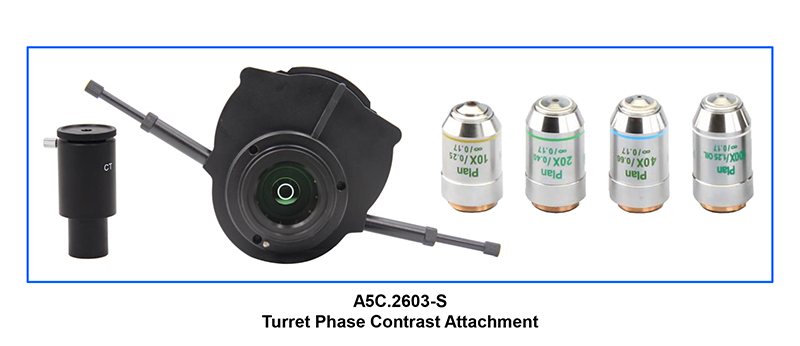

	Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter	○	○	○	○	A5C.2603-S
Fluorescence	Upgrade From A12.2601-C/CT Biological Microscope With: B,GChina Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier	●	●			A5F.2602-2
Fluorescence	Upgrade From A12.2601-C/CT Biological Microscope With: B,G,U,UVChina Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier			●	●	A5F.2602-4
Adapter	C-Mount 0.5x, Focus Adjustable	○	○	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	○	○	A55.2601-10
	Upgrade From A12.2601-C/CT Fluorescence Microscope With:	○	○	○	○	A55.2610
Mirror	Reflecting Mirror & Holder	○	○	○	○	A56.2601

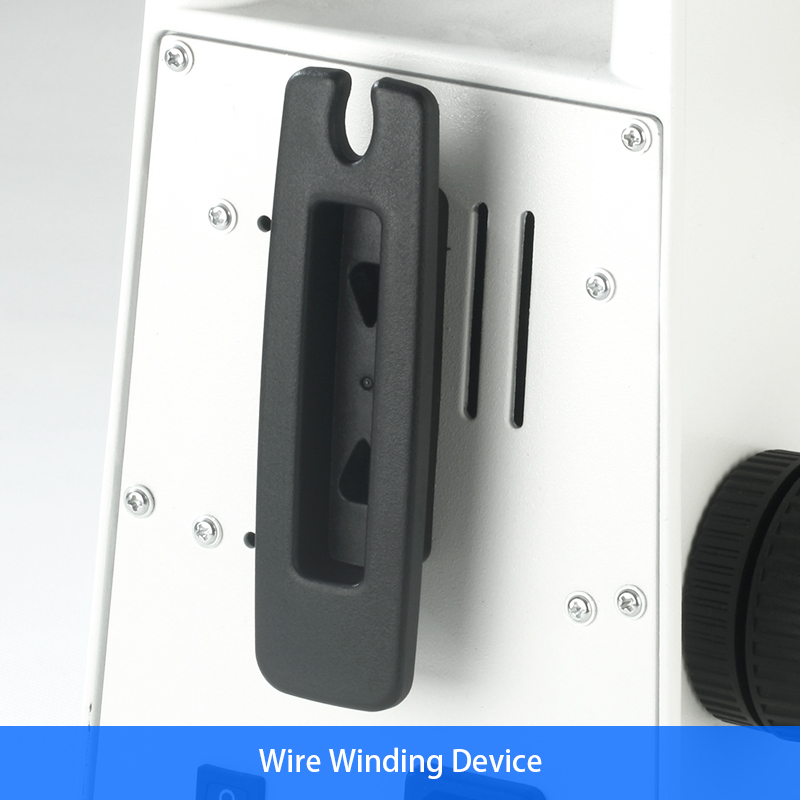

Attachment	Wire Winding Device	○	○	○	○	A50.2602-S
Package	Carton Size 970×340×440mm, 1 pc / Ctn
Weight	Gross Weight: 22 kgs, Net Weight: 18 kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories

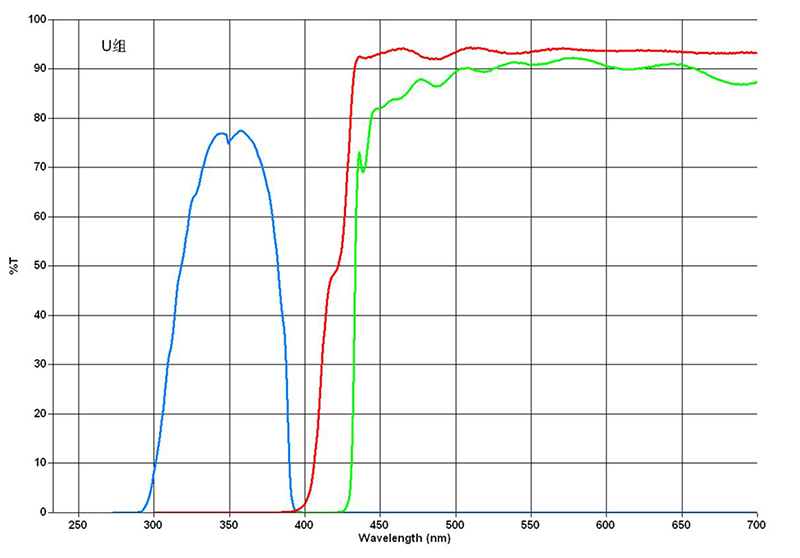

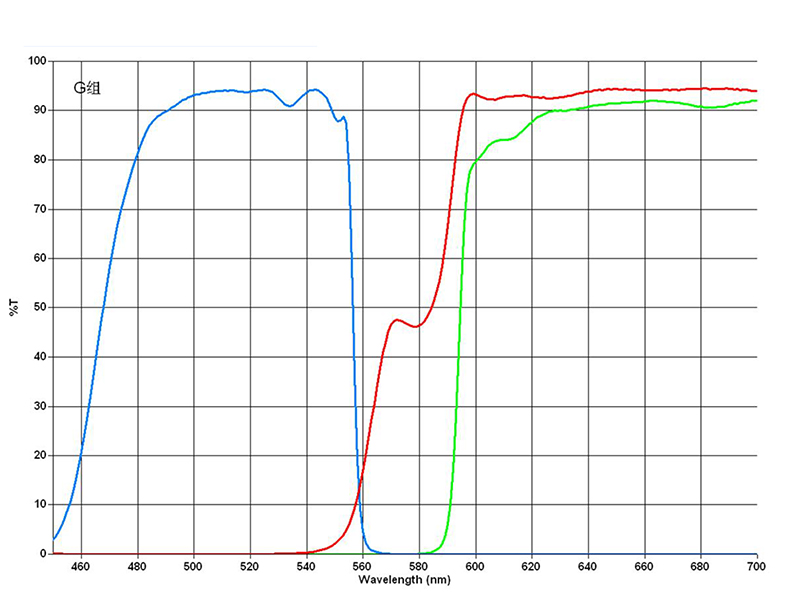

Fluorescent Filters	Exciter (nm)	Dichroic (nm)	Emitter (nm)
UV	330-380	400	435

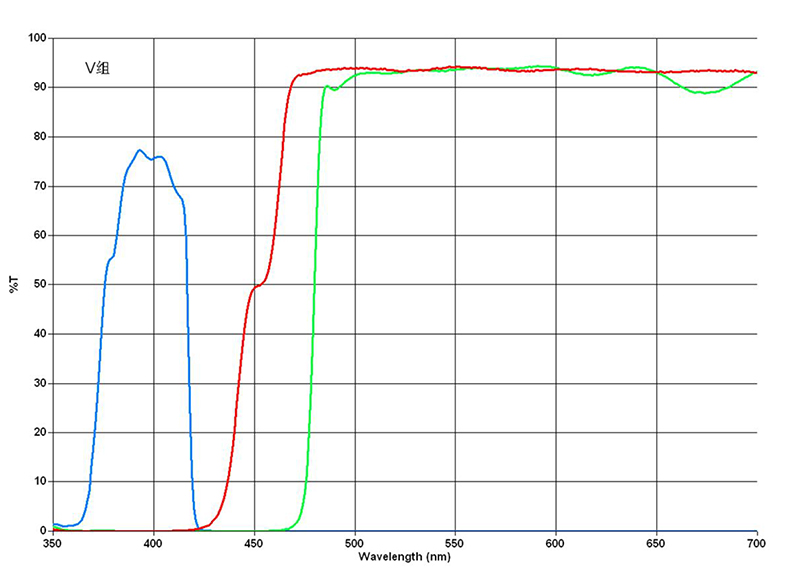

V	380-420	430	460

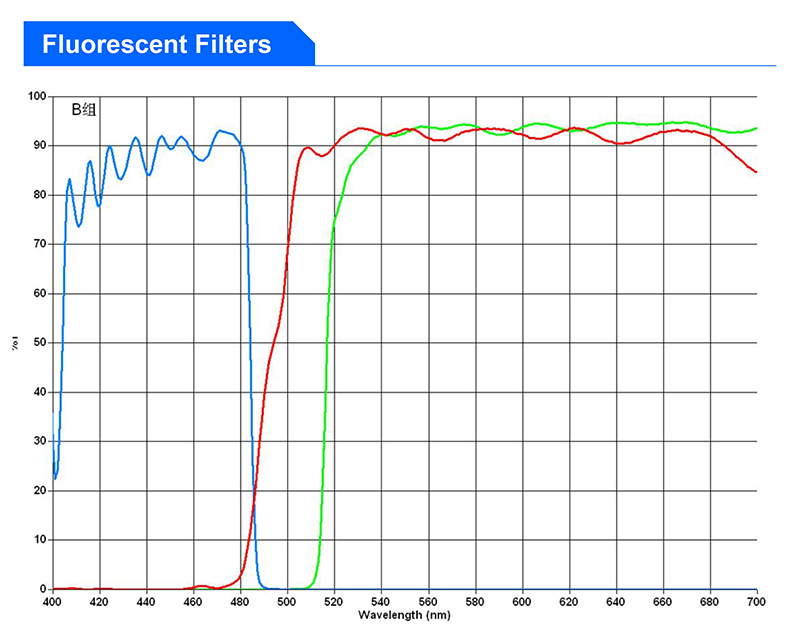

B	420-490	505	520
G	500-550	575	590

Pictures Hide Same Show Difference
Model No.	A16.2601-L-T2	A16.2601-L-B2	A16.2601-L-B4	A16.2601-L-T4
Fluorescene	B,G China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier	B,G China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier	B,G,U,UV China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier	B,G,U,UV China Fluorescent Set 6 Holes Disc Fluorescent Unit 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier
Fluorescent Band	3 Bands	2 Bands	——	——
Video Adapter	C-Mount 0.3x	——	C-Mount 0.3x	C-Mount 0.3x
Power Supply Type	DC Adapter AC 110V/220V	AC 110V-240V	DC Adapter AC 110V/220V	DC Adapter AC 110V/220V
Reflect Light	5W LED Fluorescent Light Source	5W LED Lamp	5W LED Fluorescent Light Source	5W LED Fluorescent Light Source
Transmit Light	3W LED	3W LED	3W LED	3W LED
Light Source Type	LED	LED	LED	LED
Light Source Features	LED 5W Transmit & Reflect	LED 5W Transmit & Reflect	LED 5W Transmit & Reflect	LED 5W Transmit & Reflect
Condenser N.A.	1.25	1.25	1.25	1.25
Condenser Type	Abbe	Abbe	Abbe	Abbe
Condenser Features	Rack & Pinionↆ↑	Iris Diaphragm Rack & Pinionↆ↑	Rack & Pinionↆ↑	Rack & Pinionↆ↑
Focusing Scale	0.002mm	0.002mm	0.002mm	0.002mm
Focusing Range	26mm	26mm	26mm	26mm
Focusing Features	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Lock Ring
Working Stage Moving	76x52mm	76x52mm	76x52mm	76x52mm
Working Stage Size	145x140mm	145x140mm	145x140mm	145x140mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Working Stage Features	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm
Objective	Infinity E-Plan: EPLAN 4x/0.10, W.D.=12.1mm EPLAN 10x/0.25, W.D.=4.14mm EPLAN 40x/0.65, W.D.=0.58mm EPLAN 100x/1.25 (S,Oil), W.D.=0.19mm	Infinity E-Plan: EPLAN 4x/0.10, W.D.=12.1mm EPLAN 10x/0.25, W.D.=4.14mm EPLAN 40x/0.65, W.D.=0.58mm EPLAN 100x/1.25 (S,Oil), W.D.=0.19mm	Infinity E-Plan: EPLAN 4x/0.10, W.D.=12.1mm EPLAN 10x/0.25, W.D.=4.14mm EPLAN 40x/0.65, W.D.=0.58mm EPLAN 100x/1.25 (S,Oil), W.D.=0.19mm	Infinity E-Plan: EPLAN 4x/0.10, W.D.=12.1mm EPLAN 10x/0.25, W.D.=4.14mm EPLAN 40x/0.65, W.D.=0.58mm EPLAN 100x/1.25 (S,Oil), W.D.=0.19mm
Objective Features	Iris Diaphragm	——	Iris Diaphragm	Iris Diaphragm
Nosepiece Holes	4 Holes	4 Holes	4 Holes	4 Holes
Nosepiece Features	Inward	Inward	Inward	Inward
Eyepiece	WF10x/20mm, 2 pc.	WF10x/20mm, 2 pc.	WF10x/20mm, 2 pc.	WF10x/20mm, 2 pc.
Eyepiece Diameter	23.2mm	23.2mm	23.2mm	23.2mm
Eyepiece Features	Diopter Adjustable	——	Diopter Adjustable	Diopter Adjustable
Head Light Path	E80:P20	——	——	E80:P20
Head Interpupillary	48~75mm	48~75mm	48~75mm	48~75mm
Head Rotation	Eyetube Rotate 360°	Head Rotate 360° Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°
Head Type	Seidentopf Trinocular	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Trinocular
Standard Magnification	——	40x-1000x	——	——
Optical System	Infinity Semi-Plan	Infinity Semi-Plan	Infinity Semi-Plan	Infinity Semi-Plan
Features	Infinity	Infinity	Infinity	Infinity
Focusing Type	——	Coaxial Coarse & Fine	——	——
Objective Type	——	Infinity E-Plan	——	——
Head Diopter	——	Left Tube Adjustable	——	——
Head Inclination	——	30°	——	——
Upgrade Function	——	BF+PH+DF+PL+FL	——	——
Standard Function	——	BF+FL	——	——
