A16.2601-L-T4

Like Favorites

LED Fluorescent Microscope, Trinocular, B,G,U,UV


  • Six Holes Fluorescent Unit Can Hold Up To 5 Fluorescent Filter + Bright Field View
  • 5W LED Fluorescent Light Source For Observe In Pathology, Clinical Lab Use
  • Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil
  • High Rigidity Body Structure Design Supply High Steady And Easy Handle
  • Different Color Available To Customize Your Model!
Quantity:

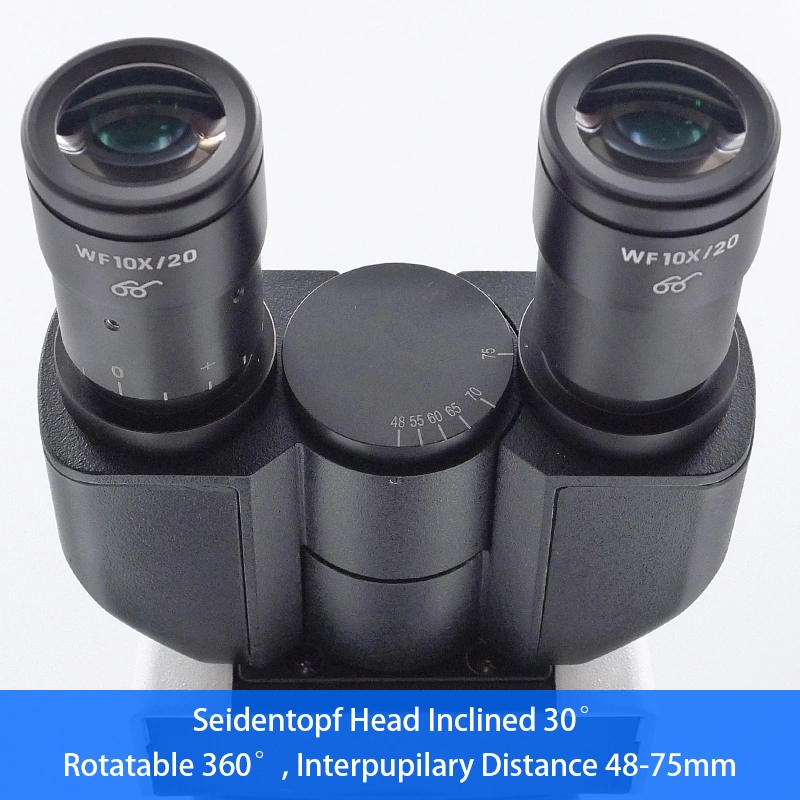

Seidentopf Head
Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece, Which Is Convenient For People With Different Sitting Height;
The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope


Quadruple, Backward
4 Sets Objective Available: Achromatic, Plan, Infinity E-Plan, Infinity Plan.

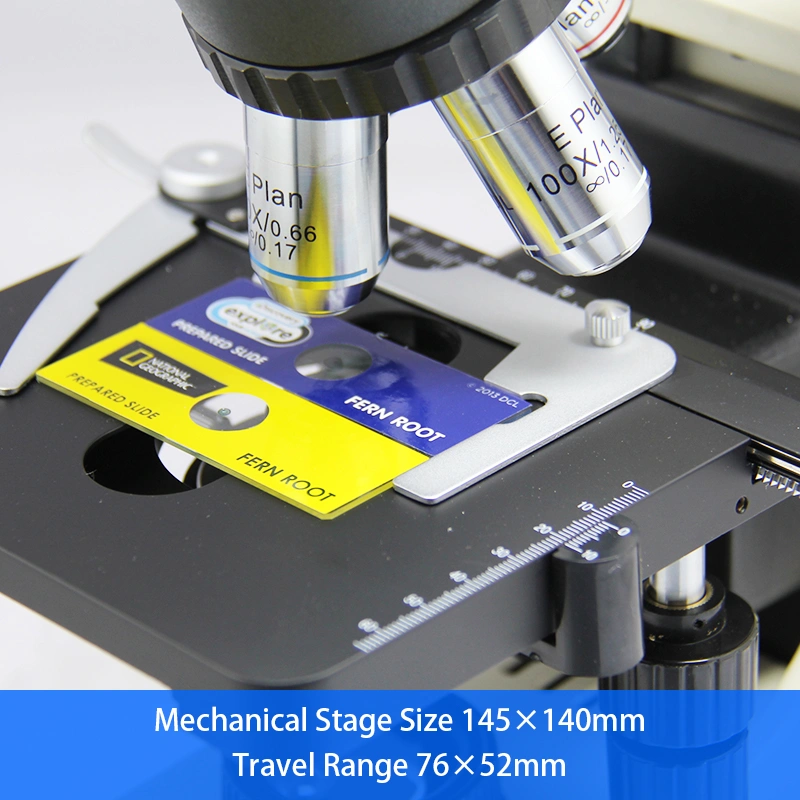

Double Slide Holder  Working Stage
Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm

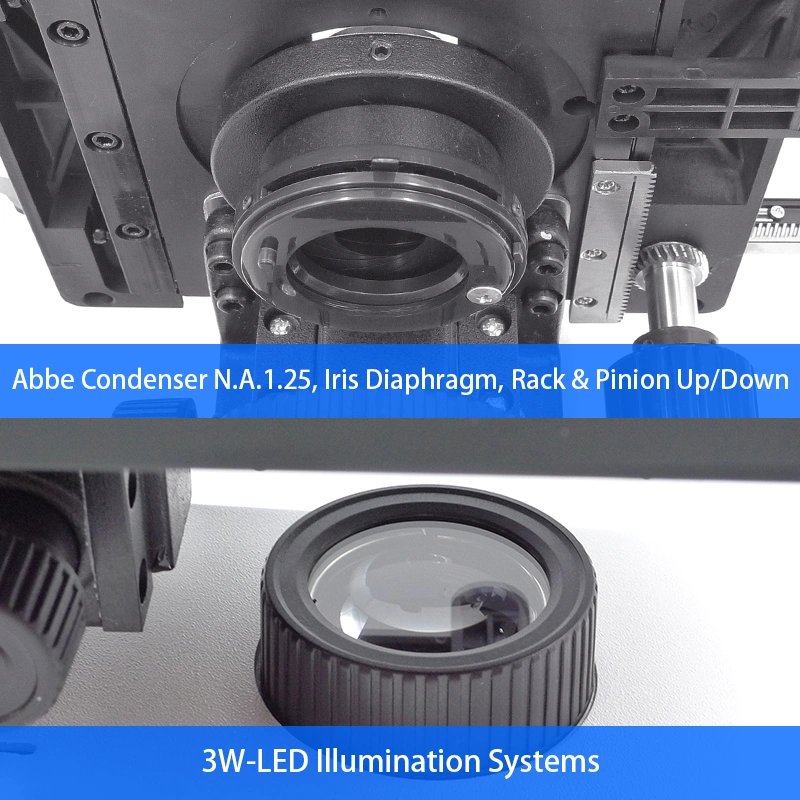

Condenser & Light Source
Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder
3W-LED Illumination Systems






6 Holes Disk Fluorescence Unit
Can Load Up to 5 Fluorescence Filters + 1 Hole For Bright Field View,

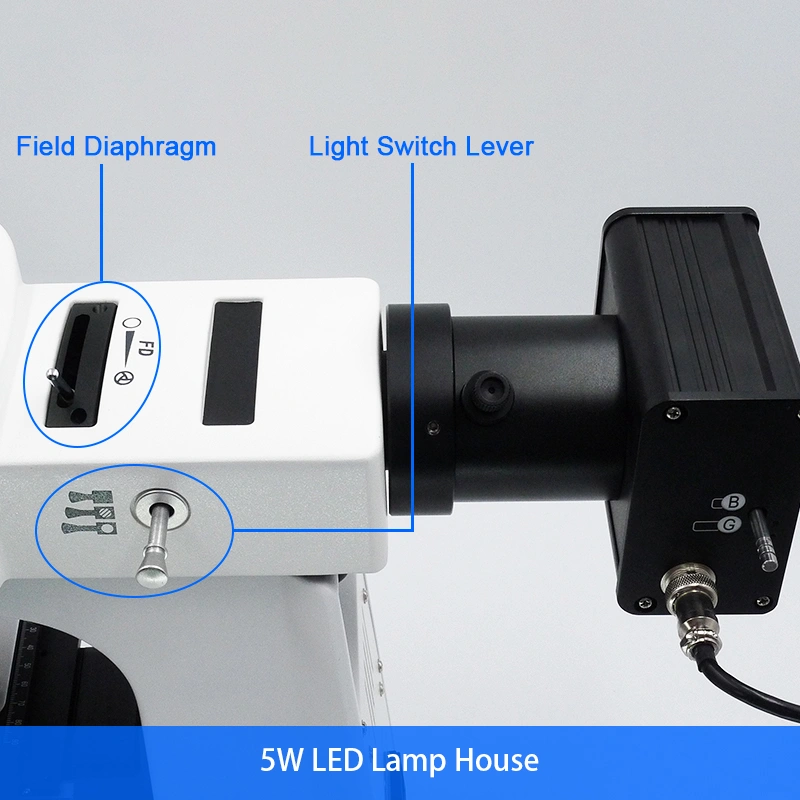

5W LED Lamp Fluorescent
Illumination Unit, With Field Diaphragm, Light Switch Lever.




ItemsA16.2601-L LED Fluorescent Microscope Specification-B2-T2-B4-T4Cata. No.
HeadSeidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm  A53.2621-B
Seidentopf Trinocular  Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80  A53.2621-T
EyepieceWF10X/20mm (High Eyepoint)●●●●●●●●A51.2602-1020
NosepieceQuadruple, BackwardA54.2610-N734
Quintuple, BackwardA54.2610-N735
Infinity
E-Plan Objective
EPLAN 4x/0.10,W.D.=12.1mmA52.2605-4
EPLAN 10x/0.25,W.D.=4.14mmA52.2605-10
EPLAN 40x/0.65(S),W.D.=0.58mmA52.2605-40
EPLAN 100x/1.25(S, Oil),W.D.=0.19mmA52.2605-100
Infinity Plan

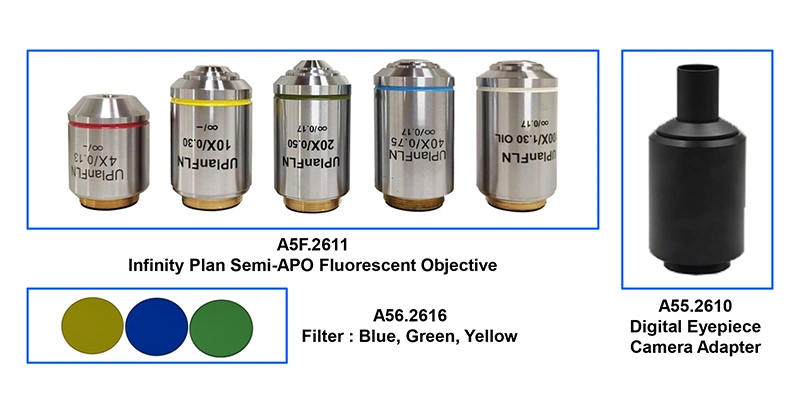

Semi-APO Fluorescent Objective
UplanFLN 4x, N.A.0.16W.D.=17.151mmA5F.2611-4
UplanFLN 10x, N.A.0.30W.D.=7.68mmA5F.2611-10
UplanFLN 20x, N.A.0.50W.D.=1.96mmA5F.2611-20
UplanFLN 40x, N.A.0.75W.D.=0.78mmA5F.2611-40
UplanFLN 100x(Oil), N.A.1.30W.D.=0.15mmA5F.2611-100
Working StageMechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide HolderA54.2601-S04
Rackless (Integrated) Stage, Size 140×135mm,
Travel Range 75×35mm, Double Slide Holder
A54.2601-S12

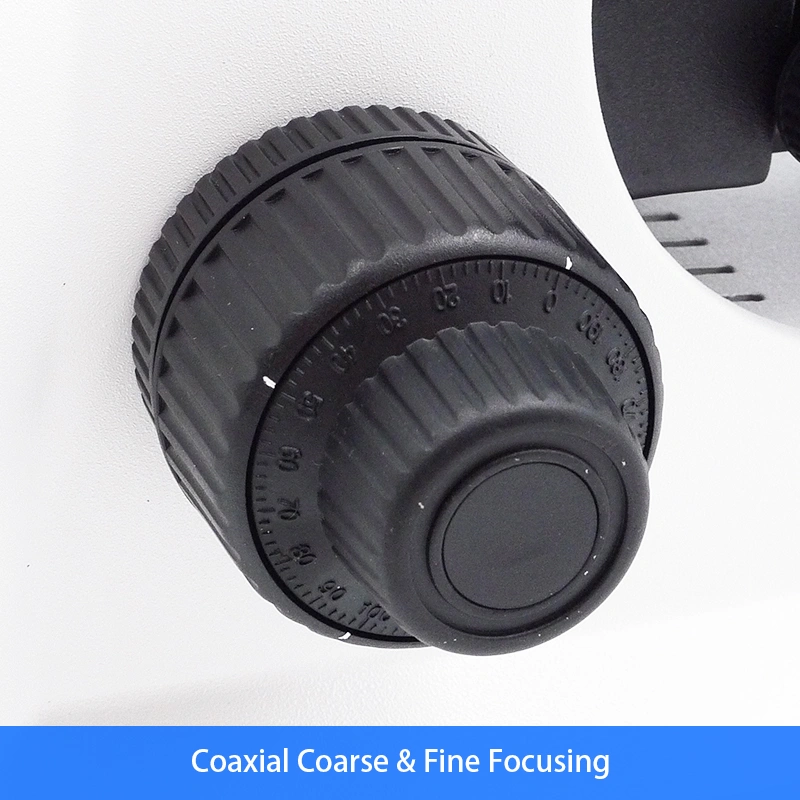

FocusingCoaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division
CondenserAbbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/DownA56.2614-C06b
Illumination3W-LED Illumination Systems
Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use
A56.2613-3W
12V/20W Halogen LampA56.2650-20W
6V/30W Halogen LampA56.2650-30W

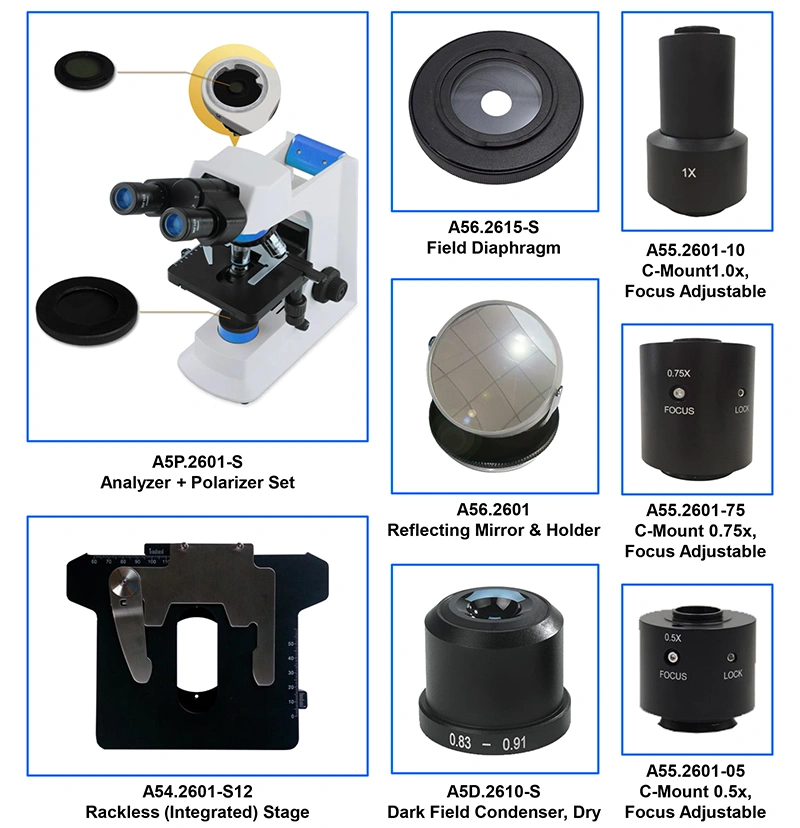

Field DiaphragmUpgrade To Kohler IllumnationA56.2615-S
FilterDia.45mm, Blue A56.2616-45B
Dia.45mm, GreenA56.2616-45G
Dia.45mm, YellowA56.2616-45A
Dark FieldDark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x ObjectiveA5D.2610-S
PolarizingAnalyzer + Polarizer SetA5P.2601-S
Phase ContrastInfinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2601-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2601-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2601-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2601-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter
A5C.2603-S
FluorescenceUpgrade From A12.2601-C/CT Biological Microscope With:
B,GChina Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
  A5F.2602-2
Upgrade From A12.2601-C/CT Biological Microscope With:
B,G,U,UVChina Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
  A5F.2602-4
AdapterC-Mount 0.5x, Focus AdjustableA55.2601-05
C-Mount 0.75x, Focus AdjustableA55.2601-75
C-Mount1.0x, Focus AdjustableA55.2601-10
Upgrade From A12.2601-C/CT Fluorescence Microscope With:A55.2610
MirrorReflecting Mirror & HolderA56.2601

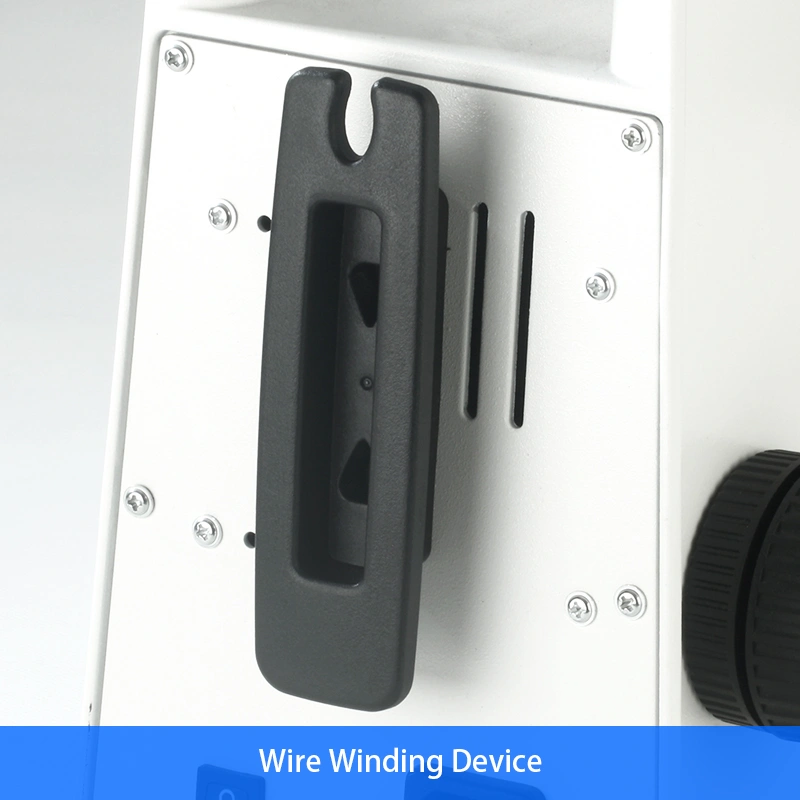

AttachmentWire Winding DeviceA50.2602-S
PackageCarton Size 970×340×440mm, 1 pc / Ctn
WeightGross Weight: 22 kgs, Net Weight: 18 kgs
Note:""In Table Is Standard outfits,""Is Optional Accessories
Fluorescent FiltersExciter (nm)Dichroic (nm)Emitter (nm)
UV330-380400435
V380-420430460
B420-490505520
G500-550575590
Pictures
Model No. A16.2601-L-T4 A16.2601-L-B2 A16.2601-L-B4 A16.2601-L-T2
Function
BF+FL BF+FL BF+FL BF+FL
Features
Infinity Infinity Infinity Infinity
Optical System
Infinity Semi-Plan Infinity Semi-Plan Infinity Semi-Plan Infinity Semi-Plan
Standard Magnification
40x-1000x 40x-1000x 40x-1000x 40x-1000x
Optional Magnification
40x-1600x 40x-1600x 40x-1600x 40x-1600x
Head Type
Seidentopf Trinocular Seidentopf Binocular Seidentopf Binocular Seidentopf Trinocular
Head Inclination
30° 30° 30° 30°
Head Rotation
Eyetube Rotate 360° Eyetube Rotate 360° Eyetube Rotate 360° Eyetube Rotate 360°
Head Interpupillary
48~75mm 48~75mm 48~75mm 48~75mm
Head Light Path
Fixed E80:P20 —— —— Fixed E80:P20
Eyepiece Features
Wide Field
High Eyepoint
Diopter Adjustable
Wide Field
High Eyepoint
Diopter Adjustable
Wide Field
High Eyepoint
Diopter Adjustable
Wide Field
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
23.2mm 23.2mm 23.2mm 23.2mm
Eyepiece
WF10x/20mm, 2 pc. WF10x/20mm, 2 pc. WF10x/20mm, 2 pc. WF10x/20mm, 2 pc.
Nosepiece Holes
4 Holes 4 Holes 4 Holes 4 Holes
Nosepiece Features
Backward Backward Backward Backward
Objective Type
Infinity Semi-Plan Infinity Semi-Plan Infinity Semi-Plan Infinity Semi-Plan
Objective Features
With Iris Diaphragm With Iris Diaphragm With Iris Diaphragm With Iris Diaphragm
Objective
Infinity E-Plan:
EPLAN 4x/0.10, W.D.=12.1mm
EPLAN 10x/0.25, W.D.=4.14mm
EPLAN 40x/0.65, W.D.=0.58mm
EPLAN 100x/1.25 (S,Oil), W.D.=0.19mm
Infinity E-Plan:
EPLAN 4x/0.10, W.D.=12.1mm
EPLAN 10x/0.25, W.D.=4.14mm
EPLAN 40x/0.65, W.D.=0.58mm
EPLAN 100x/1.25 (S,Oil), W.D.=0.19mm
Infinity E-Plan:
EPLAN 4x/0.10, W.D.=12.1mm
EPLAN 10x/0.25, W.D.=4.14mm
EPLAN 40x/0.65, W.D.=0.58mm
EPLAN 100x/1.25 (S,Oil), W.D.=0.19mm
Infinity E-Plan:
EPLAN 4x/0.10, W.D.=12.1mm
EPLAN 10x/0.25, W.D.=4.14mm
EPLAN 40x/0.65, W.D.=0.58mm
EPLAN 100x/1.25 (S,Oil), W.D.=0.19mm
Working Stage Type
Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Working Stage Size
145x140mm 145x140mm 145x140mm 145x140mm
Working Stage Moving
76x52mm 76x52mm 76x52mm 76x52mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Safety Stop Screw
Tension Adjustable
Safety Stop Screw
Tension Adjustable
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine Focus Coaxial Coarse & Fine Focus Coaxial Coarse & Fine Focus Coaxial Coarse & Fine Focus
Focusing Range
26mm 26mm 26mm 26mm
Focusing Scale
0.002mm 0.002mm 0.002mm 0.002mm
Condenser Type
Abbe + Iris Diaphragm Abbe + Iris Diaphragm Abbe + Iris Diaphragm Abbe + Iris Diaphragm
Condenser N.A.
1.25 1.25 1.25 1.25
Condenser Features
Rack & Pinion Up/Down Rack & Pinion Up/Down Rack & Pinion Up/Down Rack & Pinion Up/Down
Light Source Feature
Brightness Adjustable
LED 3W
LED 5W
Transmit & Reflect
Brightness Adjustable
LED 3W
LED 5W
Transmit & Reflect
Brightness Adjustable
LED 3W
LED 5W
Transmit & Reflect
Brightness Adjustable
LED 3W
LED 5W
Transmit & Reflect
Light Source Type
LED LED LED LED
Transmit Light
3W LED 3W LED 3W LED 3W LED
Reflect Light
5W LED Fluorescent Light Source 5W LED Fluorescent Light Source 5W LED Fluorescent Light Source 5W LED Fluorescent Light Source
Power Supply Type
AC 110V/220V Optional
DC 5V-12V Low Voltage
AC 110V/220V Optional
DC 5V-12V Low Voltage
AC 110V/220V Optional
DC 5V-12V Low Voltage
AC 110V/220V Optional
DC 5V-12V Low Voltage
Fluorescene
B,G,U,UV China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
B,G China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
B,G,U,UV China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
B,G China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
Fluorescent Band
B,G,U,V B,G B,G,U,V B,G
Function Upgradeable
Dark Field
Polarizing
Phase Contrast
Dark Field
Polarizing
Phase Contrast
Dark Field
Polarizing
Phase Contrast
Dark Field
Polarizing
Phase Contrast
